CJ/YJ truck build...

Hey guys been lurking on here for a while, figured Id get a few pics up of what I'm tinkering with. This is going to be a slow build for me so bare with me on the timeframe...

Im starting this off with a pretty beat up YJ that I acquired in a trade. The po's had done a lot of hack jobs in and out of the Jeep so I don't think what I'm doing is really hurting it any worse (for the purist out there)than it already is. Worst case scenario I buy a used tub and go back to original...

Well this is what I am starting with *Warning.. she ain't Purdy




Holy huge hangers ↑↑↑↑↑

Hood and grill were pretty smashed up so I replaced w/ a CJ grill and hood, always liked round headlights better anyways...



...as you can see in the previous pics the PO had chopped up the fenders so tube fenders just made sense..




I've got more pics but out of time... I'll get some more posted later

__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 09-16-2013, 06:06 PM   #2
Jeeper

YJ Nate's Avatar

Join Date: Apr 2013
Posts: 349
That poor yj.. making it look like an old man with that CJ grille.. :P

__________________
---

YJ enthusiast, JK owner


Hi, I'm Nate, and I'm a jeepaholic.
YJ Nate is offline   Quote Quick Reply
Old 09-16-2013, 06:18 PM   #3
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
Quote:
Originally Posted by YJ Nate View Post
That poor yj.. making it look like an old man with that CJ grille.. :P
It'll look more like its owner/driver then.... lol
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 09-16-2013, 06:53 PM   #4
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
... sooooo here comes the part that many are gonna hate me for, but I don't really care....

The PO did a real number "trimming the wheel wells" and the tub has some serious rust issues so I thought I'd go for the flatbed idea...

This is my inspiration...


except with a bed more like this...


my plans are to extend the wheelbase 6" and extend the rear frame by 8"+/- and have a bed mounted roll bar built similar to the one in the pic above..... so first things first... lets do some cutting!!!

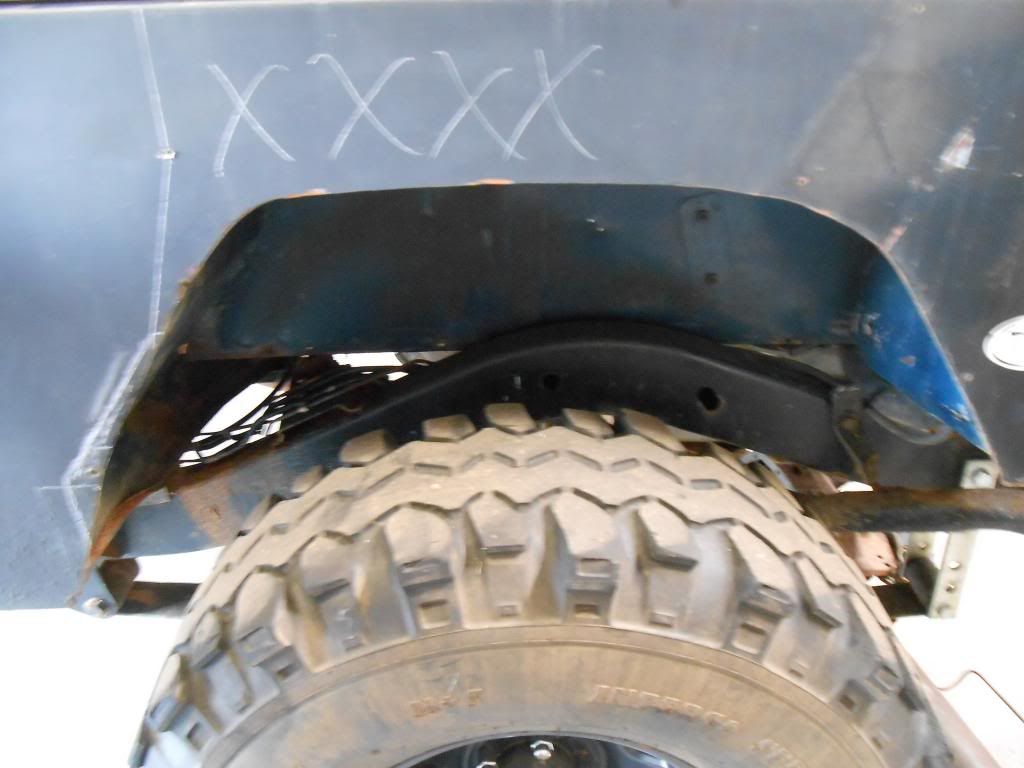

wheel well marked out... sad my phone takes better pics than my $200 camera....

first cuts made...


even got the wife involved....


all cut up and ready for new sheetmetal, which unfortunately hasn't got here yet.....


I was surprised to find a practically brand new gas tank.... a lil muddy but not a speck of rust on it....


I also got got rid of those huge A$$ hangers and brought the body down a little... I think I'm happier with the stance now....




this is as far as I've gotten for now.... more to come as I get time and money....
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 09-16-2013, 07:49 PM   #5
Jeeper

YJ Nate's Avatar

Join Date: Apr 2013
Posts: 349
Chicks with power tools, cant get much more entertaining than that.

Thats a cool idea. looking forward to seeing how it turns out. I get a kick out of those shackles every time i see them.
__________________
---

YJ enthusiast, JK owner


Hi, I'm Nate, and I'm a jeepaholic.
YJ Nate is offline   Quote Quick Reply
Old 09-16-2013, 08:24 PM   #6
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
I did too... theyre gone now
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 09-17-2013, 10:03 AM   #7
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
Quote:
Originally Posted by YJ Nate View Post
Chicks with power tools, cant get much more entertaining than that.

Thats a cool idea. looking forward to seeing how it turns out. I get a kick out of those shackles every time i see them.
she had fun with the sawzall.... had to slow her down she started to get a lil crazy
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 09-30-2013, 05:58 PM   #8
Jeeper

superduty_5.9's Avatar

Join Date: Jan 2011
Location: Mount Victory, Ohio
Posts: 230
Looks like a cool build. I like it when the wife helps sometimes but mostly when she leaves me alone! lol
__________________
Diesel fumes make me horny!
superduty_5.9 is offline   Quote Quick Reply
Old 10-14-2013, 12:18 PM   #9
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
My wife usually stays out but comes and visits me now and then lol...

So I got a little more done this weekend. Found a deal on some Dakota springs and picked up some 2x4x.25 steel stock. Guess my dumbass shoulda measured my frame and got the right size. I plan on fish mouthing the joints so I will have to fill the gap w some .25 plate I have. Total wheelbase will be approx. 110"... LONG N LOW! I plan on running 37's but will swap axles in the future to run 40's with a SOA....

here's a few pics....

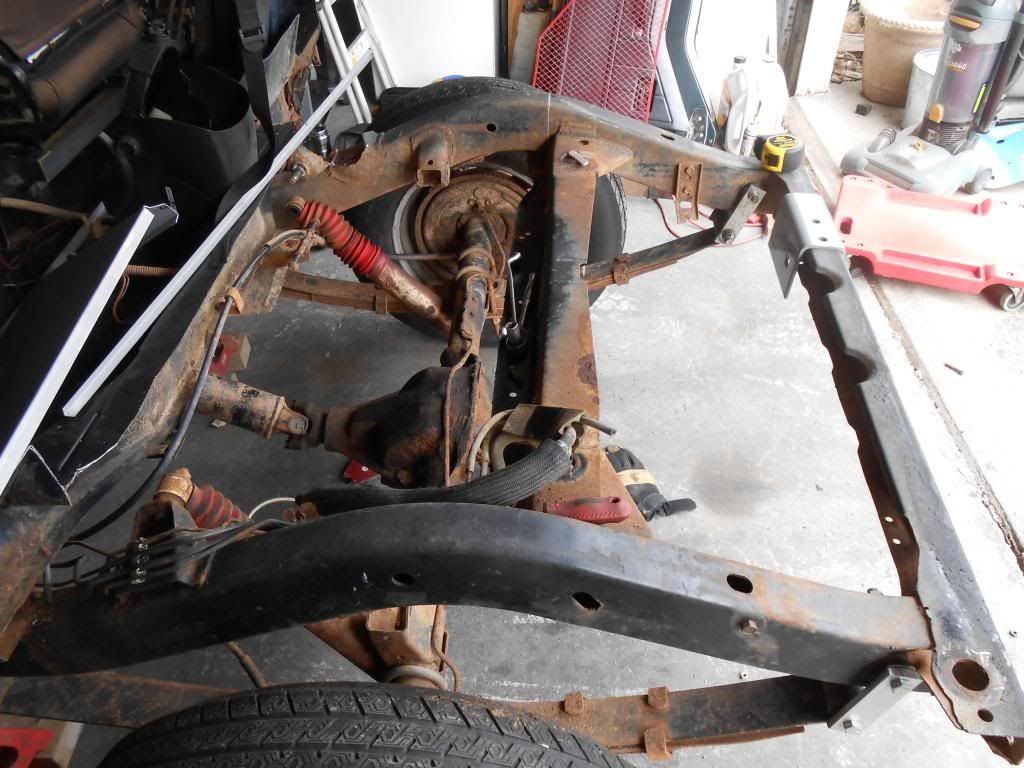

Axle out...

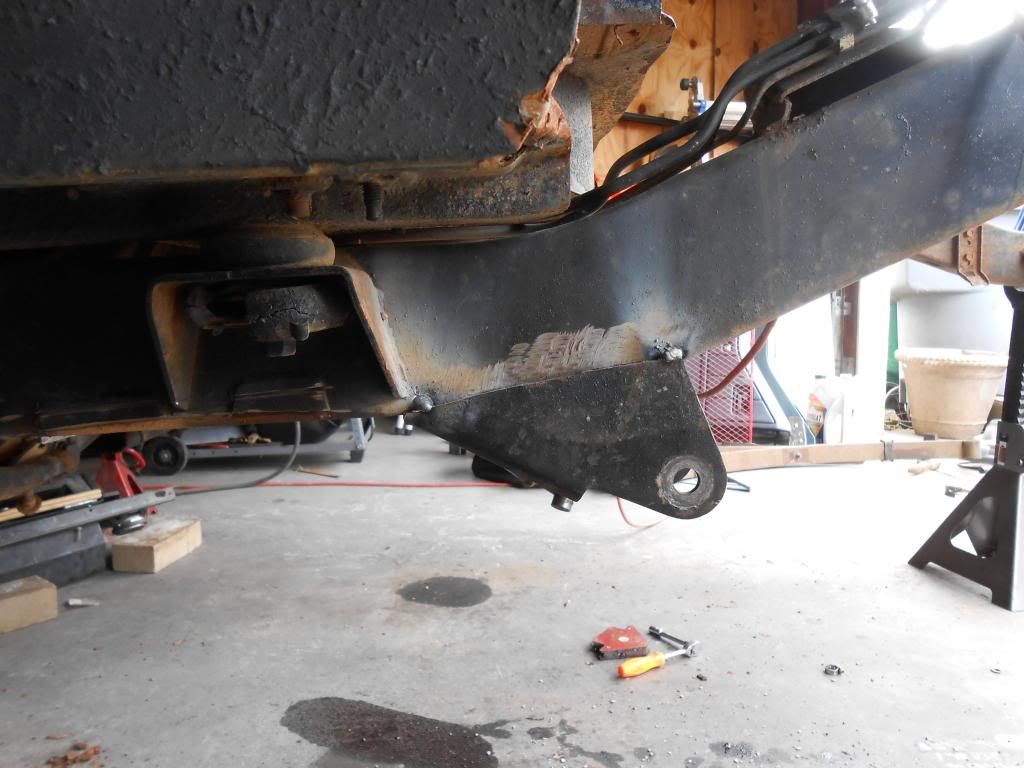

hangers moved to rear of body mount, around 7" to the rear...

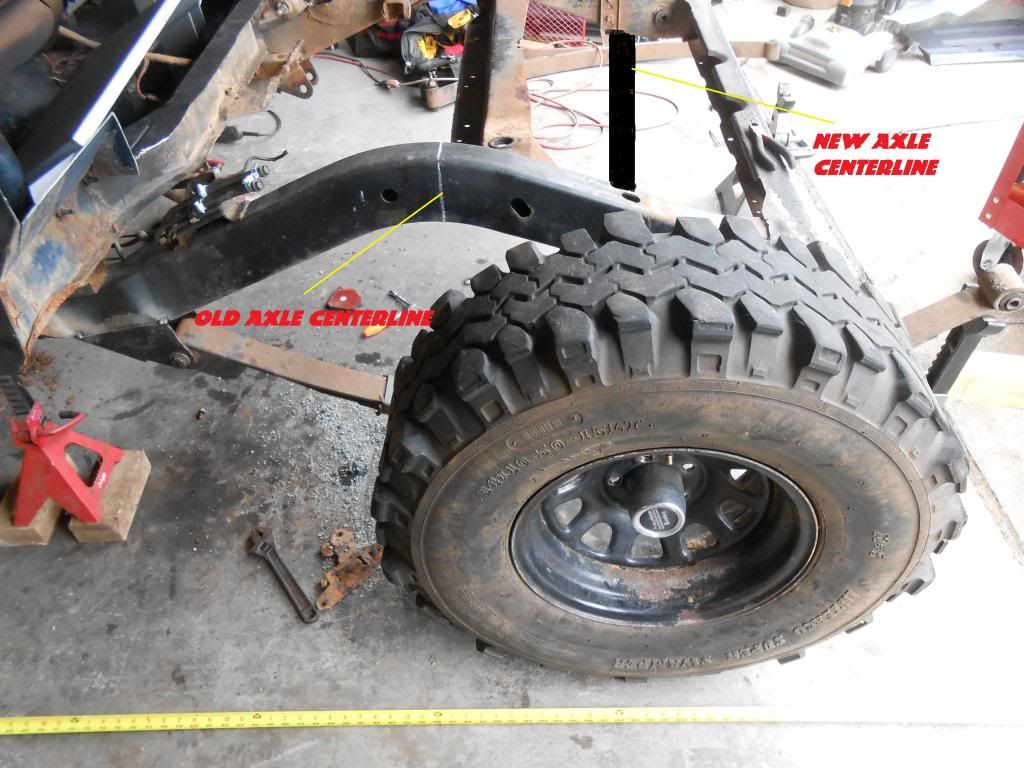

with hangers moved and with the Dakota springs wheelbase came to around 110"...

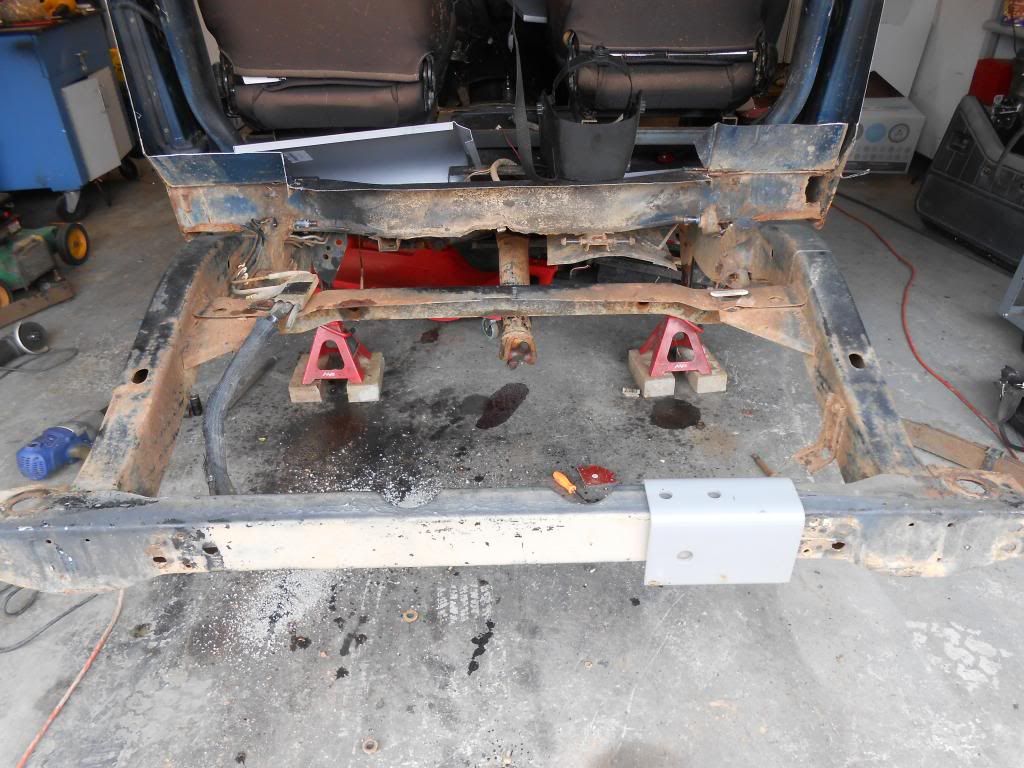

new rear frame extensions "tacked in"...



.... any questions and/or suggestions? Don't hesitate to ask or give input. Thanks for looking...
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-14-2013, 01:21 PM   #10
Jeeper

MTJeepTJ's Avatar

Join Date: Jan 2013
Location: Lolo Montana
Posts: 241
I see nothing wrong with this build. I was just happy as soon as i saw you took those 2 foot long shackles off! Holy caster angle with those on there. Keep us posted on progress.
__________________
In The Mountains
MTJeepTJ is offline   Quote Quick Reply
Old 10-14-2013, 01:55 PM   #11
Jeeper

MyRed88's Avatar

Join Date: Aug 2013
Location: Highland Michigan
Posts: 1,015
Quote:
Originally Posted by MTJeepTJ View Post
I see nothing wrong with this build. I was just happy as soon as i saw you took those 2 foot long shackles off! Holy caster angle with those on there. Keep us posted on progress.
x2
MyRed88 is offline   Quote Quick Reply
Old 10-14-2013, 04:28 PM   #12
Supporting Member

WF Supporting Member

daddyjeep's Avatar

Join Date: Apr 2005
Location: Smethport, PA
Posts: 2,227
Love the build. I made the same mistake on the 2x4 tubing so don't feel like you are alone on that one.
__________________
87 YJ, 5.2/46RH/NP231, Custom 4 link/ Radius Arms, Ballistic Nitrogen Shocks, 35" Cooper STT DaddyJeep build Thread:http://www.wranglerforum.com/f8/dadd...ld-122601.html
daddyjeep is offline   Quote Quick Reply
Old 10-14-2013, 06:14 PM   #13
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
Thanks guys! Yeah it's gonna be a slow build but it'll get there one day. DaddyJeep I read your build LOL I feel ya pain on having to feed the kids... I'll probably go coil springs in the front when I swap my axles but leafs are easy and cheaper ! Nice build! I had also thought of running a 5.2 later on but the PO had just recently replaced the 4.2 and it has some goodies on it... Offy dual plane intake, dual headers, newish 390 cfm carb... If theres one thing I can say it runs like a champ!
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-21-2013, 09:48 PM   #14
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
got some goodies in the mail today, so maybe get to work on it a lil this week....
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-21-2013, 10:15 PM   #15
Jeeper

Scoutss392's Avatar

Join Date: Oct 2013
Posts: 64
Cool build so far can't wait to see the progress!
__________________
1990 YJ 5" CSC lift on 33's with 4.56 and ARB's
Scoutss392 is offline   Quote Quick Reply
Old 10-22-2013, 02:20 PM   #16
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
I'd say the D35 is shot.... took this before I pulled the axle. I'm replacing it with an 8.8, but thought this was interesting...

__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-23-2013, 12:53 PM   #17
Jeeper

YJ Nate's Avatar

Join Date: Apr 2013
Posts: 349
holy freaking backlash! Is your pinion missing every other tooth or what! :P
__________________
---

YJ enthusiast, JK owner


Hi, I'm Nate, and I'm a jeepaholic.
YJ Nate is offline   Quote Quick Reply
Old 10-23-2013, 02:05 PM   #18
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
lol afraid to open the cover to see.... J/K the pinion bearing is demolished I drove this thing from over an hour away when I got it...had a lot of movement when accel/decel in the gear shifter thought the trans mount was bad but it wasn't... this was the cause of the play. The pinion moves ↨ ↔ about ˝ in, as well as in/out about an inch... only a matter of time before it grenade...
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-23-2013, 02:09 PM   #19
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
got a lil done last night, sorry no pics, got the new springs mounted to the axle and in the front hangers, now I gotta figure my location for the rear hanger mounts. Also noticed that I may have to make some custom length shackles to keep it level....
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-24-2013, 08:01 PM   #20
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
Back on all fours....

Tacked in the rear hangers and mounted everything up...


....difference between the pinion and driveshaft kinda gives you an idea of how far back I am from stock...


....thinking about using this old receiver as my rear cross member....


....anyone know about shackle angles? How does this look? I plan on using boomerangs once all the mock up is done... It seems to cycle well bouncing it up and down...


Yes, I know my garage is a mess.... I call it organized chaos!
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-24-2013, 08:52 PM   #21
Jeeper

TeeJayy's Avatar

Join Date: Oct 2010
Location: Long Island NY
Posts: 181
This is an awesome build, I always like the truck style wrangler idea! subscribed!
TeeJayy is online now   Quote Quick Reply
Old 10-25-2013, 08:08 PM   #22
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
lil more got done today, mounted and welded in the rear cross member/receiver hitch, then mounted the tires and rolled it out to get a look at how it sits... Definitely gonna need some bigger tires....


Before


After....





somehow (I really really don't know) I wound up with 2 more inches of WB than I had anticipated. So instead of a 110" wb, I will now running a 112" wb....


Also got the fuel tank re-mounted...



I don't think the diff is going to contact the skid pan, but Im going to limit upward travel with bump stops to keep the tires from contacting the bed anyways... Im not a "Xtreme 4X4" by no means ...


but I do like how high the tank sits...



Any comments or suggestions ? Please feel free to add your .02

Thanks...
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-25-2013, 08:48 PM   #23
Jeeper

XSapper's Avatar

Join Date: Jul 2013
Location: In the hills
Posts: 103
like it, especially the rear crossmember/ receiver hitch. what are the rear springs off of?
__________________
God, Guts, & Guns made America free and I'm keeping all three!

A government large enough to give you everything you need, is large enough to take everything you have.
XSapper is offline   Quote Quick Reply
Old 10-25-2013, 10:20 PM   #24
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
Quote:
Originally Posted by XSapper View Post
like it, especially the rear crossmember/ receiver hitch. what are the rear springs off of?

thanks! They are Dakota springs
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-25-2013, 10:40 PM   #25
Supporting Member

WF Supporting Member

daddyjeep's Avatar

Join Date: Apr 2005
Location: Smethport, PA
Posts: 2,227
That looks a lot longer one you got it outside. Are you going to use the rear of the tub to finish off the cab or do you have other plans?
__________________
87 YJ, 5.2/46RH/NP231, Custom 4 link/ Radius Arms, Ballistic Nitrogen Shocks, 35" Cooper STT DaddyJeep build Thread:http://www.wranglerforum.com/f8/dadd...ld-122601.html
daddyjeep is offline   Quote Quick Reply
Old 10-27-2013, 01:12 PM   #26
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
Quote:
Originally Posted by daddyjeep View Post
That looks a lot longer one you got it outside. Are you going to use the rear of the tub to finish off the cab or do you have other plans?

my rear corners were beat all to hell, another reason I decided to just cut the back end off. I bought new sheet metal corners to weld in. Im going to cut out the tailgate section and use an old CJ tailgate to create a solid backend with a "Jeep" logo stamped in the middle....... Hopefully.... well that's the plan anyways LOL
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-27-2013, 02:00 PM   #27
Jeeper

XSapper's Avatar

Join Date: Jul 2013
Location: In the hills
Posts: 103
Are you going with a stepside style bed or a flatbed style?
__________________
God, Guts, & Guns made America free and I'm keeping all three!

A government large enough to give you everything you need, is large enough to take everything you have.
XSapper is offline   Quote Quick Reply
Old 10-27-2013, 03:52 PM   #28
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
Quote:
Originally Posted by XSapper View Post
Are you going with a stepside style bed or a flatbed style?

flatbed.... I like the stepside look but theres nothing better than a flatbed.

... more or less like this.
__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Old 10-27-2013, 04:14 PM   #29
Jeeper

Robdog2232's Avatar

Join Date: Oct 2013
Location: East Texas
Posts: 76
Can't wait for the finished product, if such a thing exists
Robdog2232 is offline   Quote Quick Reply
Old 10-27-2013, 05:20 PM   #30
Jeeper

robmcbee's Avatar

Join Date: Jun 2013
Location: Indian Land/Fort Mill SC
Posts: 72
ha ha me either.... but I don't think it does... Once Im done with this it's on to drivetrain and axles, then who knows what

__________________
those who know me talk of my drinking.... but never of my thirst...
robmcbee is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 09:46 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
