Old 11-16-2013, 08:50 PM   #211
Jeeper

WF Supporting Member

OregonPlinker's Avatar

Join Date: Dec 2012
Location: Creswell, OR.
Posts: 878
Maybe one of you guys can help me out here. I picked up a little lincoln migpak 10 a few months ago and finally fired it up last night. I really know nothing about welding except what Ive read on here and a few books my wife got me. Well now I have about 2 hours experience... lol.

Anyway my problem is the wire seems to be coming out in spurts and some times totally stops. It is getting pinched on itself on the roll. If I back roll it and loosen some wire up it works awesome for a bit but once it gets down to tight wire it starts surging again. Is the wire feed weak or is it a crappy roll of wire? Any help would be awesome! Thanks a bunch!

__________________
91 Laredo, 4.0ho, TF999, Magnaflow exhaust, Yukon rear axles, Spartan Lockers, Posi locker, 3.5 inch springs, 1"MML, 1"BL, 1"shackles, trimmed fenders, raised flares, 35x13.50s.
OregonPlinker is offline   Quote Quick Reply
Old 11-16-2013, 10:28 PM   #212
Jeeper

Join Date: Oct 2012
Location: fort dodge iowa
Posts: 125
Youve most likely over tighten the nut that holds the wire spool on or you have the wire ran.the wrong way. Think the roll of tp being on "the wrong way". If the wire is coming off.the wrong side of.the wheel itll jerk and pinch. Try going to the website welders tips and tricks. There are tons of videos and instruction of about every type of welding there.

new2jeepin is offline   Quote Quick Reply
Old 11-17-2013, 12:57 PM   #213
Jeeper

Eric Eickhoff's Avatar

Join Date: Mar 2013
Location: West Valley area
Posts: 38
Click image for larger version

Name:	image-800222524.jpg
Views:	145
Size:	127.1 KB
ID:	520274
Eric Eickhoff is offline   Quote Quick Reply
Old 11-17-2013, 01:02 PM   #214
Jeeper

Eric Eickhoff's Avatar

Join Date: Mar 2013
Location: West Valley area
Posts: 38
Click image for larger version

Name:	image-2449015473.jpg
Views:	128
Size:	146.5 KB
ID:	520290

Some of my work
Eric Eickhoff is offline   Quote Quick Reply
Old 11-17-2013, 01:37 PM   #215
Newb

Linker's Avatar

Join Date: Nov 2013
Posts: 14
@eric very nice looking work. I have only done some simple stick welding but am looking to get a jeep and do most of the work myself like many of you. What brand/type of welder would be good for a beginner?
Linker is offline   Quote Quick Reply
Old 11-17-2013, 03:12 PM   #216
Jeeper

Eric Eickhoff's Avatar

Join Date: Mar 2013
Location: West Valley area
Posts: 38
A Miller Dynasty is the best TIG machine available but ,, if I were to buy a new machine I would buy a Lincoln precision TIG 275 water cooled unit ( best bang for Buck )and a lifetime machine ,, and with their Motorsports program u can pick one up for pretty cheap
Eric Eickhoff is offline   Quote Quick Reply
Old 11-18-2013, 02:20 AM   #217
Jeeper

WF Supporting Member

OregonPlinker's Avatar

Join Date: Dec 2012
Location: Creswell, OR.
Posts: 878
Quote:
Originally Posted by new2jeepin View Post
Youve most likely over tighten the nut that holds the wire spool on or you have the wire ran.the wrong way. Think the roll of tp being on "the wrong way". If the wire is coming off.the wrong side of.the wheel itll jerk and pinch. Try going to the website welders tips and tricks. There are tons of videos and instruction of about every type of welding there.
Makes sense. Thanks man. Ill have to double check everything. I got it used and Dont know if its put together right or not.lol. I just plugged it in and started burning...
__________________
91 Laredo, 4.0ho, TF999, Magnaflow exhaust, Yukon rear axles, Spartan Lockers, Posi locker, 3.5 inch springs, 1"MML, 1"BL, 1"shackles, trimmed fenders, raised flares, 35x13.50s.
OregonPlinker is offline   Quote Quick Reply
Old 11-25-2013, 11:29 AM   #218
Supporting Member

WF Supporting Member

jeepwayoflife's Avatar

Join Date: Nov 2011
Location: California/Montana
Posts: 3,188
Click image for larger version

Name:	ForumRunner_20131125_082919.jpg
Views:	108
Size:	153.1 KB
ID:	543106



Click image for larger version

Name:	ForumRunner_20131125_082901.jpg
Views:	111
Size:	221.3 KB
ID:	543098

Aluminum on a 110 Miller Mig
__________________
--------------------------------------------------------
jeepwayoflife is offline   Quote Quick Reply
Old 11-25-2013, 08:12 PM   #219
Jeeper

rickgonzales's Avatar

Join Date: Oct 2012
Location: Summerville, SC
Posts: 88
On the old miller 250. 3003 aluminum. Inside and outside seam.
Attached Thumbnails
Click image for larger version

Name:	ForumRunner_20131125_201050.jpg
Views:	80
Size:	87.6 KB
ID:	544370   Click image for larger version

Name:	ForumRunner_20131125_201112.jpg
Views:	87
Size:	73.7 KB
ID:	544378

rickgonzales is offline   Quote Quick Reply
Old 03-13-2014, 11:19 PM   #220
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,028

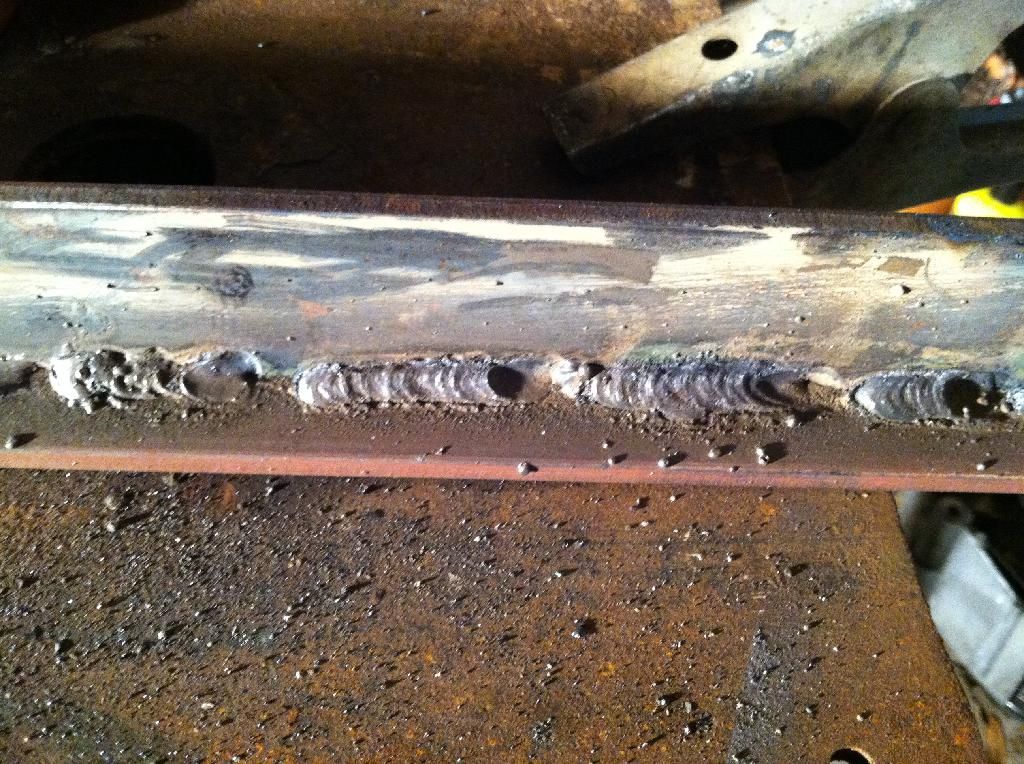

Ill admit, I'm intimidated. This is 6011 rods on 120 amps with my buzz box.
They're really ugly. prepare yourself.





And here is where i tried to steepen my drag angle because I thought i was getting worm holes on the top and bottom of my welds... maybe thats just the slag i need to chip off. Who knows!?


Those definitely look the best to me. They are penetrating and not just sitting on top of the metals... Well now that i think about it, I think i turned it up to 130ish for those welds...

Then here it is on like 105?



Those are terrible. so those are a no.

Someone, help me improve!
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 03-14-2014, 10:28 AM   #221
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,741
Quote:
Originally Posted by jherrington View Post
Ill admit, I'm intimidated. This is 6011 rods on 120 amps with my buzz box.
They're really ugly. prepare yourself.





And here is where i tried to steepen my drag angle because I thought i was getting worm holes on the top and bottom of my welds... maybe thats just the slag i need to chip off. Who knows!?


Those definitely look the best to me. They are penetrating and not just sitting on top of the metals... Well now that i think about it, I think i turned it up to 130ish for those welds...

Then here it is on like 105?



Those are terrible. so those are a no.

Someone, help me improve!
Get the slag off those bad boys. What size rod are you using. Grab some 7018 3/32nds and run them at 120. Slow down and focus on rod depth and consistent angle both planes. Drag or push but stay consistent and slow down. I can't say it enough that's such an important thing. Slow down.


I hadn't ran a bead for 8 months and wanted to brush up while I was home and had a chance. So I practiced some round tube style welding which I needed practice at. Not shabby.
Attached Thumbnails
Click image for larger version

Name:	image-3696700068.jpg
Views:	56
Size:	220.9 KB
ID:	869690
__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is offline   Quote Quick Reply
Old 03-14-2014, 11:38 AM   #222
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,028
I'm running 1/8in rod. I'll go pick up some more steel and some smaller rods and practice practice practice.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 03-14-2014, 01:20 PM   #223
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,741
Quote:
Originally Posted by jherrington View Post
I'm running 1/8in rod. I'll go pick up some more steel and some smaller rods and practice practice practice.
Well turn your power up for 1/8, and you can practice running passes over your old welds if you don't wana waste steel. Smaller rods are easier though.
__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is offline   Quote Quick Reply
Old 03-14-2014, 02:06 PM   #224
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,028
Getting better

__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 03-14-2014, 02:12 PM   #225
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,741
Quote:
Originally Posted by jherrington View Post
Getting better
Improving. What kind of pattern do you use? I like to run a weave so a s or z whatever. Some guys run stringers and tie in. I like a smaller rod and a weave for stringers if I have to. Work on a pattern. Also work on a stable stance, setup to hold the rod to keep steady.
__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is offline   Quote Quick Reply
Old 03-14-2014, 03:14 PM   #226
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,028
Im using the whip and pause method. I get a better deposit with it right now than I do using small circles.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 03-14-2014, 05:49 PM   #227
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,741
Quote:
Originally Posted by jherrington View Post
Im using the whip and pause method. I get a better deposit with it right now than I do using small circles.
I think you are talking about a z but it looks like you're just running a stringer- a straight line. You wana go bottom top over a rod width bottom, top. Repeat.
__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is offline   Quote Quick Reply
Old 03-21-2014, 01:31 PM   #228
Supporting Member

WF Supporting Member

jeepwayoflife's Avatar

Join Date: Nov 2011
Location: California/Montana
Posts: 3,188
Getting better! Any tips on welding very thin (18 gauge) aluminum with a mig welder? Using 30 wire.

Click image for larger version

Name:	ForumRunner_20140321_103127.jpg
Views:	117
Size:	224.1 KB
ID:	895882
__________________
--------------------------------------------------------
jeepwayoflife is offline   Quote Quick Reply
Old 03-22-2014, 01:30 PM   #229
Jeeper

scott m 72's Avatar

Join Date: Sep 2013
Posts: 346
Quote:
Originally Posted by jeepwayoflife View Post
Getting better! Any tips on welding very thin (18 gauge) aluminum with a mig welder? Using 30 wire.
Back up your weld (put something behind it) with copper or steel bar or angle or soft copper plate. Use clamps to hold them in place.

Copper will pull the heat out to minimize warp. You can shape the soft plate to conform to your peice.

Backing up also helps to avoid blowing through thin material.
scott m 72 is offline   Quote Quick Reply
Old 03-22-2014, 01:42 PM   #230
Supporting Member

WF Supporting Member

daddyjeep's Avatar

Join Date: Apr 2005
Location: Smethport, PA
Posts: 2,572
Quote:
Originally Posted by jeepwayoflife View Post
Getting better! Any tips on welding very thin (18 gauge) aluminum with a mig welder? Using 30 wire.
I am far from an expert, but I have had better luck on sheet metal with smaller wire. I would grab a spool of .025 if you can.
__________________
87 YJ, 5.2/46RH/NP231, Custom 4 link/ Radius Arms, Ballistic Nitrogen Shocks, 35" Cooper STT
DaddyJeep build Thread:http://www.wranglerforum.com/f8/dadd...ld-122601.html
daddyjeep is offline   Quote Quick Reply
Old 03-22-2014, 01:52 PM   #231
Jeeper

scott m 72's Avatar

Join Date: Sep 2013
Posts: 346
/\

This, too.

Realistically, though, TIG or heliarc is much more suited to thin aluminum than MIG.
scott m 72 is offline   Quote Quick Reply
Old 03-22-2014, 04:05 PM   #232
Jeeper

Eric Eickhoff's Avatar

Join Date: Mar 2013
Location: West Valley area
Posts: 38
Click image for larger version

Name:	image-4046867271.jpg
Views:	89
Size:	155.5 KB
ID:	899946 Click image for larger version

Name:	image-1099643373.jpg
Views:	84
Size:	162.2 KB
ID:	899970

Click image for larger version

Name:	image-3529284769.jpg
Views:	85
Size:	171.9 KB
ID:	900186
Attached Thumbnails
Click image for larger version

Name:	image-3502940367.jpg
Views:	37
Size:	156.7 KB
ID:	899890   Click image for larger version

Name:	image-4120680167.jpg
Views:	37
Size:	140.2 KB
ID:	899922

Click image for larger version

Name:	image-1379909326.jpg
Views:	36
Size:	105.1 KB
ID:	899930   Click image for larger version

Name:	image-1636528989.jpg
Views:	37
Size:	218.7 KB
ID:	899938

Click image for larger version

Name:	image-1839520840.jpg
Views:	39
Size:	147.9 KB
ID:	899954   Click image for larger version

Name:	image-1615142741.jpg
Views:	33
Size:	135.7 KB
ID:	899962

Click image for larger version

Name:	image-1409423500.jpg
Views:	32
Size:	150.2 KB
ID:	900050   Click image for larger version

Name:	image-1925628122.jpg
Views:	38
Size:	160.9 KB
ID:	900066

Click image for larger version

Name:	image-2816488947.jpg
Views:	34
Size:	127.3 KB
ID:	900090   Click image for larger version

Name:	image-1275109879.jpg
Views:	36
Size:	132.4 KB
ID:	900130

Click image for larger version

Name:	image-2354417689.jpg
Views:	34
Size:	168.8 KB
ID:	900138   Click image for larger version

Name:	image-3308859331.jpg
Views:	35
Size:	117.0 KB
ID:	900146

Click image for larger version

Name:	image-658284478.jpg
Views:	41
Size:	146.7 KB
ID:	900154   Click image for larger version

Name:	image-4010898204.jpg
Views:	37
Size:	165.1 KB
ID:	900170

Click image for larger version

Name:	image-3866980875.jpg
Views:	42
Size:	120.8 KB
ID:	900178
Eric Eickhoff is offline   Quote Quick Reply
Old 03-23-2014, 04:59 PM   #233
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,028
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 03-23-2014, 08:12 PM   #234
Jeeper

Recycled's Avatar

Join Date: Oct 2013
Location: Westchester
Posts: 36
Quote:
Originally Posted by Eric Eickhoff View Post
Artistry in metal
Recycled is offline   Quote Quick Reply
Old 03-24-2014, 09:41 PM   #235
EYJ
Jeeper

EYJ's Avatar

Join Date: Dec 2012
Location: Huntersville, NC
Posts: 144
currently working on a bumper for somebody.
Attached Thumbnails
Click image for larger version

Name:	RCC JGG Bump 6.jpg
Views:	42
Size:	152.7 KB
ID:	910730
__________________
Jeep YJ "Tomahawk"
EYJ is offline   Quote Quick Reply
Old 03-24-2014, 09:49 PM   #236
EYJ
Jeeper

EYJ's Avatar

Join Date: Dec 2012
Location: Huntersville, NC
Posts: 144
currently building a swing-out carrier bumper for somebody.
full size suv.
Attached Thumbnails
Click image for larger version

Name:	RCC JGG Bump 6.jpg
Views:	39
Size:	152.7 KB
ID:	910738   Click image for larger version

Name:	RCC JGG Bump 2.jpg
Views:	48
Size:	165.3 KB
ID:	910746


__________________
Jeep YJ "Tomahawk"
EYJ is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Show your 35s on 15s ESP Tires & Wheels 288 12-12-2014 03:45 PM
First time Jeep owners: What did you drive before your Jeep? Mr. Sinister JK General Discussion Forum 1356 10-10-2013 04:38 AM
Your worst stuck moment! 99Wrangler4x4 Pictures Forum 235 10-02-2013 07:32 PM
Post a photo of your wrangler here RSA-JK JK Pics Forum 1069 09-24-2012 11:47 AM
Whats your weather for Tuesday??? Jeepgirlnextdr Off-Topic 15 03-06-2012 05:30 PM



Download our Mobile App

» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 07:35 AM.



Jeepģ, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
