Old 08-11-2009, 10:49 AM   #31
Jeeper

89PBR96's Avatar

Join Date: Aug 2009
Location: Central Il
Posts: 1,839
Quote:
Originally Posted by Geoff@Bestop View Post
OK, I'm not trying to pick on your body work here at all. I'm trying to figure out how sloppy and crappy I can be.

If you had painted instead of lined it, would the body work have shown up a lot more? How many of my sins will rhino lining cover up?

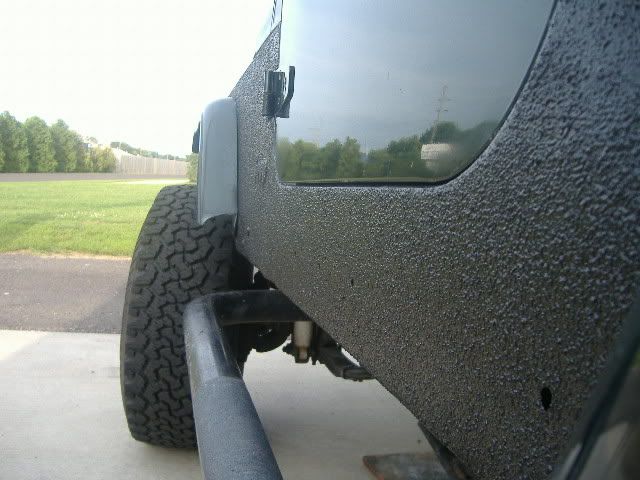

Better pic of where i Replaced panel Not perfect but

89PBR96 is offline   Quote Quick Reply
Old 08-11-2009, 10:51 AM   #32
Jeeper

89PBR96's Avatar

Join Date: Aug 2009
Location: Central Il
Posts: 1,839

89PBR96 is offline   Quote Quick Reply
Old 08-11-2009, 10:52 AM   #33
Jeeper

89PBR96's Avatar

Join Date: Aug 2009
Location: Central Il
Posts: 1,839
89PBR96 is offline   Quote Quick Reply
Old 08-11-2009, 04:23 PM   #34
Jeeper

djwilbanks's Avatar

Join Date: Aug 2009
Location: NE Arkansas
Posts: 62
Man, that really does look good.
djwilbanks is offline   Quote Quick Reply
Old 08-11-2009, 05:11 PM   #35
Jeeper

89PBR96's Avatar

Join Date: Aug 2009
Location: Central Il
Posts: 1,839
Quote:
Originally Posted by djwilbanks View Post
Man, that really does look good.
Thanks again
89PBR96 is offline   Quote Quick Reply
Old 08-11-2009, 07:18 PM   #36
Jeeper

Levinoss's Avatar

Join Date: Apr 2007
Location: Jeffersontown
Posts: 5,540
Do the doors and hood!
__________________

"Yesterday is history, tomorrow is a mystery, but today is a gift. That is why it is called the "present."
Levinoss is offline   Quote Quick Reply
Old 08-11-2009, 08:24 PM   #37
Sponsoring Vendor

Join Date: May 2009
Posts: 4,612
It looks really good. I think a thick coat of that could hide a lot of sins. Which means it's perfect for my mad bodyworking skilz!
Geoff@Bestop is offline   Quote Quick Reply
Old 08-12-2009, 08:46 PM   #38
Supporting Member

WF Supporting Member

daddyjeep's Avatar

Join Date: Apr 2005
Location: Smethport, PA
Posts: 2,531
That does look really good. I am planning on doing the inside of the tub but maybe I shouldn't stop there.
__________________
87 YJ, 5.2/46RH/NP231, Custom 4 link/ Radius Arms, Ballistic Nitrogen Shocks, 35" Cooper STT
DaddyJeep build Thread:http://www.wranglerforum.com/f8/dadd...ld-122601.html
daddyjeep is offline   Quote Quick Reply
Old 08-15-2009, 07:08 PM   #39
Jeeper

PT4WDL's Avatar

Join Date: Jul 2009
Location: Frankfort,Ky
Posts: 249
Let me ask, how do you get in the smaller of places with the roller? I was dead set this morning to do the tub on mine. But I feel that some more research is due. For almost $80 a gallon I don't want to F this up. You said to watch out for roller marks. So how do you get it in the tighter areas without problems?
PT4WDL is offline   Quote Quick Reply
Old 08-15-2009, 07:55 PM   #40
Jeeper

crasha9's Avatar

Join Date: Apr 2009
Location: North Carolina
Posts: 876
Send a message via Yahoo to crasha9
Quote:
Originally Posted by 89PBR96 View Post
Better pic of where i Replaced panel Not perfect but
I would've never been able to tell.
__________________
1999 Green Jeep Wrangler Sport
crasha9 is offline   Quote Quick Reply
Old 08-15-2009, 09:32 PM   #41
Jeeper

05GT-O.C.D.'s Avatar

Join Date: Sep 2008
Posts: 1,415
Quote:
Originally Posted by PT4WDL View Post
Let me ask, how do you get in the smaller of places with the roller? I was dead set this morning to do the tub on mine. But I feel that some more research is due. For almost $80 a gallon I don't want to F this up. You said to watch out for roller marks. So how do you get it in the tighter areas without problems?
The Herculiner kit also comes with a brush. You dab the brush into the crannies before you roll your first coat. (dab, not paint stroke) Wait for it to dry, but within 24 hrs make sure you're doing the second coat. Dab again any areas you may have not gotten good coverage on, then roll your second coat.
__________________
When my time comes, mix my ashes with gunpowder encased in brass, point me towards murderer's and pedophile's and let me fly.

(: ˇ ɹǝʌo ǝɯ 11oɹ ...sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
05GT-O.C.D. is offline   Quote Quick Reply
Old 08-16-2009, 03:10 PM   #42
Jeeper

PT4WDL's Avatar

Join Date: Jul 2009
Location: Frankfort,Ky
Posts: 249
So it is a kit not just a gallon bucket of stuff. Thats good to know. Also how about the weight ratio between it and the carpet it is to replace. One other thing, does the center console go back in flush like it is with the carpet?
PT4WDL is offline   Quote Quick Reply
Old 08-16-2009, 06:48 PM   #43
Jeeper

89PBR96's Avatar

Join Date: Aug 2009
Location: Central Il
Posts: 1,839
Quote:
Originally Posted by PT4WDL View Post
So it is a kit not just a gallon bucket of stuff. Thats good to know. Also how about the weight ratio between it and the carpet it is to replace. One other thing, does the center console go back in flush like it is with the carpet?
I have not done the interior yet I'm waiting on the drivers floor pan to get here then that is next.

It is a kit you need to buy a 4 inch throw away pan to roll the roller in to apply the herculiner

Kit is a one gallon herc. with two rollers scrub pad and a brush

Pointer's use the brush for hard to reach places first then roll on i had a few spots i don't care for (tip for ya)

I'm pleased with it for weight i would say less than carpet since the can weighs 8 lbs or so gallon of water is 8lbs and you I did not use but a half Gallon to do my exterior


Hope this Helps you out good luck
__________________
2003 Excursion 4x4 Short Bus
1984 Dodge 250 4x4 4 Inch lift 36's
1994 STX Ranger 4x4 6 Inch lift 33's or 35's
1998 TJ 3.5 Inch lift 33's or 35's
89PBR96 is offline   Quote Quick Reply
Old 08-16-2009, 06:51 PM   #44
Jeeper

89PBR96's Avatar

Join Date: Aug 2009
Location: Central Il
Posts: 1,839
Quote:
Originally Posted by PT4WDL View Post
Let me ask, how do you get in the smaller of places with the roller? I was dead set this morning to do the tub on mine. But I feel that some more research is due. For almost $80 a gallon I don't want to F this up. You said to watch out for roller marks. So how do you get it in the tighter areas without problems?

I just noticed one after done use good lighting when you do it and you can tell kit came with a little 2inch brush

Hope i helped you out

Use the brush for tight spots first then roll
__________________
2003 Excursion 4x4 Short Bus
1984 Dodge 250 4x4 4 Inch lift 36's
1994 STX Ranger 4x4 6 Inch lift 33's or 35's
1998 TJ 3.5 Inch lift 33's or 35's
89PBR96 is offline   Quote Quick Reply
Old 08-16-2009, 08:33 PM   #45
Jeeper

05GT-O.C.D.'s Avatar

Join Date: Sep 2008
Posts: 1,415
Quote:
Originally Posted by PT4WDL View Post
So it is a kit not just a gallon bucket of stuff. Thats good to know. Also how about the weight ratio between it and the carpet it is to replace. One other thing, does the center console go back in flush like it is with the carpet?
Weight of carpet vs the liner is comperable. Pretend that you have all your carpet in a trash bag, and compare that to a paint of can. Now, some of the moisture in the paint/herculiner will evaporate so that reduces the weight slightly. Overall, any weight difference is trivial. I put two coats on the entire interior of my tub and tailgate and still have some left over in the can.

You'll need the kit (2 roller covers, 1 roller, 1 brush, 1 scuff pad)

In addition, I used:

Xylol xylene (for prep) sold in the paint section at Lowes

A bunch of cheap rags

Chemical resistant gloves

A sanding disc I could attach to my drill. - Not sandpaper, but like a stiff scotch brite pad.

2 extra 2" brushes - 3 total. (one for first coat, one for second coat, and one for final touch up after you reinstall your interior)

That's it - you'll spend twice as much time removing/installing your interior and prepping as you will actually applying the Herculiner. It's super easy to apply, by far the interior removal/installation is the most time consuming/difficult - not that it's hard anyways.

Regarding the 'flushness' of the console. It's not perfect, but not bad at all anyways. I'm pretty anal about that kind of stuff, and i didn't even think to notice.

Just a tip - once you get your console out and are applying the liner - be sure to get up around everything. There's some parts that you'd think your console covers, but does not. You'll see what I mean once you start applying. Take special note of what your console covers and what it doesn't before you remove it and you'll avoid some last minute touch up.
__________________
When my time comes, mix my ashes with gunpowder encased in brass, point me towards murderer's and pedophile's and let me fly.

(: ˇ ɹǝʌo ǝɯ 11oɹ ...sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
05GT-O.C.D. is offline   Quote Quick Reply
Old 08-17-2009, 12:29 AM   #46
Jeeper

89PBR96's Avatar

Join Date: Aug 2009
Location: Central Il
Posts: 1,839
Well said ^
__________________
2003 Excursion 4x4 Short Bus
1984 Dodge 250 4x4 4 Inch lift 36's
1994 STX Ranger 4x4 6 Inch lift 33's or 35's
1998 TJ 3.5 Inch lift 33's or 35's
89PBR96 is offline   Quote Quick Reply
Old 09-07-2009, 12:27 PM   #47
Jeeper

Join Date: Sep 2009
Posts: 21
good job.
jrank3792 is offline   Quote Quick Reply
Old 09-07-2009, 12:49 PM   #48
Jeeper

jerryj's Avatar

Join Date: May 2009
Location: Idyllwild
Posts: 670
Ive done some out side and the whole inside take your time on the prep scuff it up and make sure you get all the dirt out and if you use a gallon keep stiring it or it will be extra thick about 2/3 through it the sand keeps going to the bottom.
jerryj is offline   Quote Quick Reply
Old 01-19-2010, 01:09 AM   #49
Jeeper

wasurfer86's Avatar

Join Date: Dec 2009
Location: WA
Posts: 1,156
Quote:
Originally Posted by 89PBR96 View Post
Well said ^
im glad you posted some more close up pics cause i couldnt really tell how it looked in the first ones. i think eventually ill do the same but for now i have way to much on my plate money wise and this isnt something that has to get done, its just a want.
__________________
I bet pulp fiction wasn't the first time Bruce Willis had a ball gag in his mouth.
wasurfer86 is offline   Quote Quick Reply
Old 01-21-2010, 09:37 PM   #50
Jeeper

89PBR96's Avatar

Join Date: Aug 2009
Location: Central Il
Posts: 1,839
Quote:
Originally Posted by wasurfer86 View Post
im glad you posted some more close up pics cause i couldnt really tell how it looked in the first ones. i think eventually ill do the same but for now i have way to much on my plate money wise and this isnt something that has to get done, its just a want.
Glad I could help it's a durable thing for a toy
__________________
2003 Excursion 4x4 Short Bus
1984 Dodge 250 4x4 4 Inch lift 36's
1994 STX Ranger 4x4 6 Inch lift 33's or 35's
1998 TJ 3.5 Inch lift 33's or 35's
89PBR96 is offline   Quote Quick Reply
Old 01-22-2010, 12:09 AM   #51
Supporting Member

WF Supporting Member

schnutzy's Avatar

Join Date: Sep 2009
Location: ring side seats to the the country's largest circus
Posts: 28,191
Send a message via AIM to schnutzy
so after covering a good section of your jeep, how much do you think it would cost (in materials) to do the whole jeep?
__________________
clinging on to sanity, one motorcycle at a time.
schnutzy is offline   Quote Quick Reply
Old 01-22-2010, 02:57 AM   #52
Jeeper

wasurfer86's Avatar

Join Date: Dec 2009
Location: WA
Posts: 1,156
i think ill start with the front bumper. when i painted mine i switched brands and the top coat isnt sticking that well.
__________________
I bet pulp fiction wasn't the first time Bruce Willis had a ball gag in his mouth.
wasurfer86 is offline   Quote Quick Reply
Old 01-22-2010, 06:06 AM   #53
Jeeper

Join Date: Jan 2010
Location: Mayland
Posts: 152
I was wondering about doing this to a jeep. My only concern is how much an impact with a rock will damage the lining and if you need to do touch up to it ow hard is that going to be VS. paint. The only other concern is if you need to do body work I heard this stuff is flamable and not easily put out.
bugman1964 is offline   Quote Quick Reply
Old 01-22-2010, 08:39 AM   #54
Jeeper

meyers's Avatar

Join Date: Apr 2009
Location: Dover, New Hampshire
Posts: 738
Looks Great. I am still toying with the idea of doing the inside of the tub on mine. Do you think if it is Rhino lined you could still put the carpets back in over it if you wanted to, like when winter rolls around? If I do mine it will be right up to the outside lip and the door jams then a new paint job on the outside sheet metal. I figure it will solve the paint wearing off issue with the door sills and where the hard top sits.
meyers is offline   Quote Quick Reply
Old 01-22-2010, 11:47 AM   #55
Jeeper

mrcarcrazy's Avatar

Join Date: Jul 2009
Location: Midland/Odessa, TX
Posts: 3,864
Quote:
Originally Posted by meyers View Post
Looks Great. I am still toying with the idea of doing the inside of the tub on mine. Do you think if it is Rhino lined you could still put the carpets back in over it if you wanted to, like when winter rolls around? If I do mine it will be right up to the outside lip and the door jams then a new paint job on the outside sheet metal. I figure it will solve the paint wearing off issue with the door sills and where the hard top sits.
Yes, a few people have reinstalled carpet on top of the lining.
__________________
#2 Jeep http://www.wranglerforum.com/f322/99...ld-819418.html
99 Sahara, automatic.
mrcarcrazy is offline   Quote Quick Reply
Old 01-22-2010, 02:38 PM   #56
Jeeper

89PBR96's Avatar

Join Date: Aug 2009
Location: Central Il
Posts: 1,839
Quote:
Originally Posted by schnutzy View Post
so after covering a good section of your jeep, how much do you think it would cost (in materials) to do the whole jeep?
I have a half gallon left if the helps you out I think a full gallon and maybe a quart would get you inside and out
__________________
2003 Excursion 4x4 Short Bus
1984 Dodge 250 4x4 4 Inch lift 36's
1994 STX Ranger 4x4 6 Inch lift 33's or 35's
1998 TJ 3.5 Inch lift 33's or 35's
89PBR96 is offline   Quote Quick Reply
Old 01-22-2010, 02:39 PM   #57
Jeeper

89PBR96's Avatar

Join Date: Aug 2009
Location: Central Il
Posts: 1,839
Quote:
Originally Posted by bugman1964 View Post
I was wondering about doing this to a jeep. My only concern is how much an impact with a rock will damage the lining and if you need to do touch up to it ow hard is that going to be VS. paint. The only other concern is if you need to do body work I heard this stuff is flamable and not easily put out.
I think it would match pretty good and it would have to be one big rock and then I think you just have a dent I have brushed a few tree branches that would go threw a paint job
__________________
2003 Excursion 4x4 Short Bus
1984 Dodge 250 4x4 4 Inch lift 36's
1994 STX Ranger 4x4 6 Inch lift 33's or 35's
1998 TJ 3.5 Inch lift 33's or 35's
89PBR96 is offline   Quote Quick Reply
Old 01-22-2010, 02:48 PM   #58
Supporting Member

WF Supporting Member

schnutzy's Avatar

Join Date: Sep 2009
Location: ring side seats to the the country's largest circus
Posts: 28,191
Send a message via AIM to schnutzy
Quote:
Originally Posted by 89PBR96 View Post
I have a half gallon left if the helps you out I think a full gallon and maybe a quart would get you inside and out
well then it definitely seems like it would be cheaper then a paint job. i wonder if it comes in yellow
__________________
clinging on to sanity, one motorcycle at a time.
schnutzy is offline   Quote Quick Reply
Old 01-22-2010, 03:05 PM   #59
Supporting Member

WF Supporting Member

schnutzy's Avatar

Join Date: Sep 2009
Location: ring side seats to the the country's largest circus
Posts: 28,191
Send a message via AIM to schnutzy
well i answered my own question. it comes in black, red and grey, and maybe white, now i dont remember.
__________________
clinging on to sanity, one motorcycle at a time.
schnutzy is offline   Quote Quick Reply
Old 01-23-2010, 07:50 AM   #60
Jeeper

Join Date: Jan 2010
Location: Mayland
Posts: 152
I know rhino liner you can get in any color you just have the added expense of some one else doing it.

bugman1964 is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
10 Best Car Repair Tools of All Time larphead General Jeep Discussion 14 07-24-2009 06:29 PM
First time out with the JK daggo66 On The Trail 4 06-19-2009 12:58 PM
No 4WD, Front Axle has locker - time for tcase NP231 rickuski TJ Tech Forum 7 05-18-2009 03:28 AM
New to forum, engine install time deaglementor YJ Tech Forum 7 05-08-2009 12:14 AM
Newbie ? - Any TJ's with Full Time 4x4? ChvyCruzen TJ General Discussion Forum 3 06-15-2005 08:23 AM



Download our Mobile App

» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 12:07 PM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
