Old 05-20-2012, 02:10 PM   #91
Supporting Member

WF Supporting Member

schnutzy's Avatar

Join Date: Sep 2009
Location: ring side seats to the the country's largest circus
Posts: 28,192
Send a message via AIM to schnutzy
SolidWorks just needs a "sawzall" button for chopping out the body

__________________
clinging on to sanity, one motorcycle at a time.
schnutzy is offline   Quote
Old 05-20-2012, 02:50 PM   #92
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Quote:
Originally Posted by schnutzy
SolidWorks just needs a "sawzall" button for chopping out the body



No sawzall function but you can "cut".

__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 05-20-2012, 04:35 PM   #93
Jeeper

Ageless Stranger's Avatar

Join Date: Apr 2010
Posts: 26,792
Quote:
Originally Posted by nick50471 View Post
Well I stretched it to 112" wheel base and fixed the tires and rims. 49x16x20 IROKS on 20"x12" beadlockers. The WMS is very close to where I want to be.

So, the front axle is going to be passenger drop?

Quote:
Originally Posted by schnutzy View Post
SolidWorks just needs a "sawzall" button for chopping out the body
This.
Ageless Stranger is offline   Quote
Old 05-20-2012, 04:55 PM   #94
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Quote:
Originally Posted by Ageless Stranger

So, the front axle is going to be passenger drop?
I can flip the axles and the the chunk. Since I don't have a drive train other than an Atlas II to picked out I will leave them for now.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 05-20-2012, 04:58 PM   #95
Jeeper

Ageless Stranger's Avatar

Join Date: Apr 2010
Posts: 26,792
Quote:
Originally Posted by nick50471 View Post
I can flip the axles and the the chunk. Since I don't have a drive train other than an Atlas II to picked out I will leave them for now.
You can get an Atlas dropped either way. I'd just hate to see you drop it on the incorrect side...
Ageless Stranger is offline   Quote
Old 05-20-2012, 05:18 PM   #96
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Quote:
Originally Posted by Ageless Stranger

You can get an Atlas dropped either way. I'd just hate to see you drop it on the incorrect side...
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 05-21-2012, 07:11 PM   #97
Jeeper

Ezalycasaid1's Avatar

Join Date: Feb 2011
Location: Grand Junction, Colorado
Posts: 183
Holey crap man. You had told me you where thinking about a 2.5 build but I thought like the rest of us you were gonna let that thought pass. Props to you for following through. Lol your making me look like an amateur here. Hope your build goes well. Good luck. Hopefully Ill see yall in moab next month.
__________________
Project Shiella the never ending story.
Overkill is an underated achievement.
Ezalycasaid1 is offline   Quote
Old 05-21-2012, 11:39 PM   #98
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Quote:
Originally Posted by Ezalycasaid1
Holey crap man. You had told me you where thinking about a 2.5 build but I thought like the rest of us you were gonna let that thought pass. Props to you for following through. Lol your making me look like an amateur here. Hope your build goes well. Good luck. Hopefully Ill see yall in moab next month.


Nothing that hasn't been done before.


Julie mentioned that 07xman might make it over too. Would be fun.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 05-22-2012, 12:01 AM   #99
Jeeper

Ezalycasaid1's Avatar

Join Date: Feb 2011
Location: Grand Junction, Colorado
Posts: 183
Quote:
Originally Posted by nick50471 View Post


Nothing that hasn't been done before.


Julie mentioned that 07xman might make it over too. Would be fun.
I hope he does, I haven't wheeled with him since 7 mile rim like a year and a half ago. I see him around town on trails but he normally just comes watch me destroy my rig on billings and 21rd. Hes smart enough not to bring his jeep on those trails, he just parks his on the bypass roads and walks to the trail. They're metal munchers. Statistically that trail has cost me $450 per run in repairs/upgrades.
__________________
Project Shiella the never ending story.
Overkill is an underated achievement.
Ezalycasaid1 is offline   Quote
Old 06-14-2012, 03:53 PM   #100
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
One Link/Panhard it is. Thanks IBB. That is simple, effective and low cost.

Pirate never fails to deliver great info.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 06-14-2012, 08:41 PM   #101
Jeeper

Ageless Stranger's Avatar

Join Date: Apr 2010
Posts: 26,792
What?
Ageless Stranger is offline   Quote
Old 06-14-2012, 10:42 PM   #102
Needs a Tummy Tuck.

Flipper Wilson's Avatar

Join Date: Jul 2011
Location: In the shop
Posts: 184
looking forward to following your thread. The drawings are awesome.
__________________
Ephesians 2:8-9

For by grace are ye saved through faith; and that not of yourselves: it is a gift of God:
Not of works, lest any man should boast.
Flipper Wilson is offline   Quote
Old 06-14-2012, 11:48 PM   #103
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Quote:
Originally Posted by Flipper Wilson
looking forward to following your thread. The drawings are awesome.
Thanks.

The 3D modeling takes time but is well worth it. I still have to fix the Rockwell models.

I will be rebuilding the Rocks the week after the 4th of July.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 06-17-2012, 12:24 AM   #104
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922

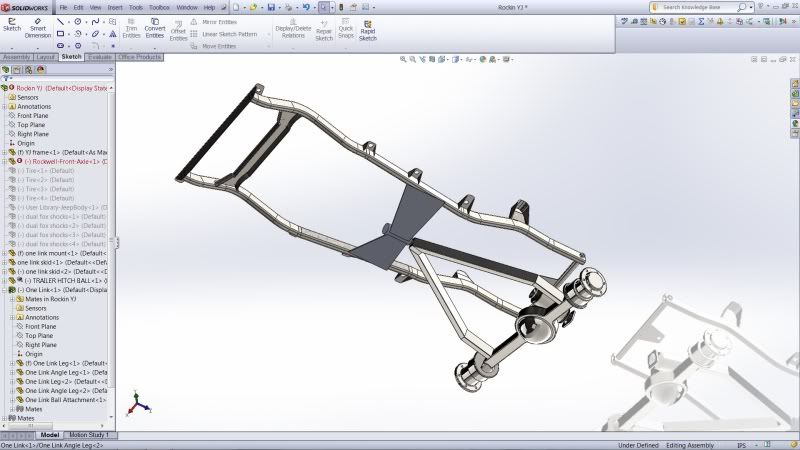

Finished up the ball hitch and the one link front.




Poser 3D Flex

__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 06-17-2012, 12:44 AM   #105
Jeeper

Drakea94's Avatar

Join Date: Mar 2011
Posts: 16,118
Question . Benefit of rockwells ?
And four wheel steering thus means you can turn each wheel correct ,
__________________
"You can't let the 1% di*kheads ruin your day, you have to remember the 99% of people who are nice"


"May God have mercy upon my enemies, because I won't."
General George Patton Jr.
Drakea94 is offline   Quote
Old 06-17-2012, 12:53 AM   #106
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Quote:
Originally Posted by Drakea94
Question . Benefit of rockwells ?
And four wheel steering thus means you can turn each wheel correct ,
Four wheel steering is the back axle steers also. They can all four turn the same direction and the Jeep will dog track or the rear turns opposite and you can turn very tightly.


Rockwell axles are Top Loaders the drive input is above the axle. This also allows for pinion brakes instead of wheel brakes.
The axles are very strong so you can run crazy big rubber.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 06-17-2012, 12:55 AM   #107
Jeeper

Drakea94's Avatar

Join Date: Mar 2011
Posts: 16,118
Ohhhh. So cj tub ??
Decide what's gonna power . Don't know if you covered it .. I like the pictures
__________________
"You can't let the 1% di*kheads ruin your day, you have to remember the 99% of people who are nice"


"May God have mercy upon my enemies, because I won't."
General George Patton Jr.
Drakea94 is offline   Quote
Old 06-17-2012, 12:58 AM   #108
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Quote:
Originally Posted by Drakea94
Ohhhh. So cj tub ??
Decide what's gonna power . Don't know if you covered it .. I like the pictures
No probably a YJ with a CJ grill.

I haven't given the motor much thought yet.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 06-17-2012, 01:00 AM   #109
Jeeper

Drakea94's Avatar

Join Date: Mar 2011
Posts: 16,118
Quote:
Originally Posted by nick50471

No probably a YJ with a CJ grill.

I haven't given the motor much thought yet.
Sweet . Fiberglass tub ?
__________________
"You can't let the 1% di*kheads ruin your day, you have to remember the 99% of people who are nice"


"May God have mercy upon my enemies, because I won't."
General George Patton Jr.
Drakea94 is offline   Quote
Old 06-17-2012, 01:38 AM   #110
Jeeper

Ezalycasaid1's Avatar

Join Date: Feb 2011
Location: Grand Junction, Colorado
Posts: 183
Quote:
Originally Posted by nick50471 View Post
Finished up the ball hitch and the one link front.


Its just me talking and I'm no expert by far, but this setup concerns me. Are you gonna run a tracbar to your axles? That's going to be a RIDICULOUS amount of stress being put on that one point, with or without a trackbar. I'm not knocking your idea, i've just never seen someone run that. Ive also never seen a non tracbar setup without dual triangulation up front.

This is the closest thing ive seen to that but theres still two links in the front of it. I dont understand this setup either because as the axle would drop the control arms would pull it forward and the y link behind it would pull the axle backwards.
http://project-jk.com/gallery2/main....g2_itemId=6496
__________________
Project Shiella the never ending story.
Overkill is an underated achievement.
Ezalycasaid1 is offline   Quote
Old 06-17-2012, 09:44 AM   #111
Jeeper

Ageless Stranger's Avatar

Join Date: Apr 2010
Posts: 26,792
Nice flex nick. Looks like the hood is going to take some abuse.
Ageless Stranger is offline   Quote
Old 06-17-2012, 10:30 AM   #112
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Quote:
Originally Posted by Ezalycasaid1

Its just me talking and I'm no expert by far, but this setup concerns me. Are you gonna run a tracbar to your axles? That's going to be a RIDICULOUS amount of stress being put on that one point, with or without a trackbar. I'm not knocking your idea, i've just never seen someone run that. Ive also never seen a non tracbar setup without dual triangulation up front.

This is the closest thing ive seen to that but theres still two links in the front of it. I dont understand this setup either because as the axle would drop the control arms would pull it forward and the y link behind it would pull the axle backwards.
http://project-jk.com/gallery2/main....g2_itemId=6496

The design is still missing the "Tracbar" or "Panhard". That will keep the axle under the rig. I will post another pic when I get that done. Maybe today if I get the mower fixed.

IBB lead me down this path and I wasn't convinced at first. After several hours on Pirate and seeing rigs with this setup I changed my mind.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 06-17-2012, 10:31 AM   #113
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Quote:
Originally Posted by Drakea94

Sweet . Fiberglass tub ?
No fiberglass
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 06-17-2012, 04:18 PM   #114
Jeeper

Ezalycasaid1's Avatar

Join Date: Feb 2011
Location: Grand Junction, Colorado
Posts: 183
Quote:
Originally Posted by nick50471 View Post
The design is still missing the "Tracbar" or "Panhard". That will keep the axle under the rig. I will post another pic when I get that done. Maybe today if I get the mower fixed.

IBB lead me down this path and I wasn't convinced at first. After several hours on Pirate and seeing rigs with this setup I changed my mind.

Right on. Any idea of what the benefit of doing it this way over dual triangulation? What did you search for on pirate that comes up with this setup? Youve got me pretty curious about this. Haha I just fixed our mower, good luck with that.
__________________
Project Shiella the never ending story.
Overkill is an underated achievement.
Ezalycasaid1 is offline   Quote
Old 06-17-2012, 05:24 PM   #115
Sponsoring Vendor

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,492
Lots of advantages:

1) only have to use one big joint instead of 4

2) the trailing arms protect the driveshaft and allow you to slide up and over rocks

3) one single joint wont have 3 others fighting it for alignment if the fabwork is off

4) its really really hard to crush a square box tube

5) its super easy to get this much travel....

Ibuildembig is online now   Quote
Old 06-17-2012, 07:35 PM   #116
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
When running Rocks and 4WS it allows for more room for pinion brakes and hydraulic steering.

I can now mount everything on the driveline side and leave the front open for a monster rock smashing skid.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 06-18-2012, 12:40 PM   #117
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Panhard is modeled. That was tricky getting the mates to work. Very cool to see the suspension work in the cad model.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 06-18-2012, 01:17 PM   #118
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922

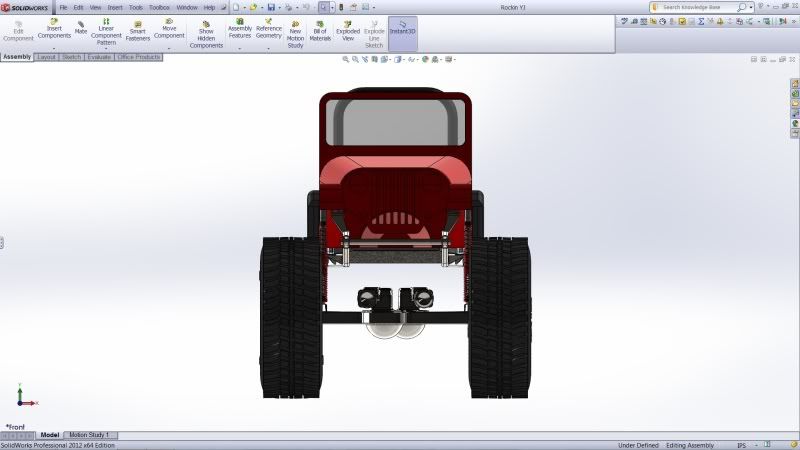

Panhard design screen shots


__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Old 06-18-2012, 06:08 PM   #119
Jeeper

Ageless Stranger's Avatar

Join Date: Apr 2010
Posts: 26,792
You're tire is still in the hood.
Ageless Stranger is offline   Quote
Old 06-18-2012, 08:27 PM   #120
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 13,922
Quote:
Originally Posted by Ageless Stranger
You're tire is still in the hood.
I will need bumpstops. There is a bumpstop expert on WF maybe he will will help out.

__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.
nick50471 is offline   Quote
Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Complete build up 2003 sahara SULFEK TJ Build Forum 32 04-01-2012 02:11 PM
Master4ths Build Master4th YJ Build Forum 9 03-22-2012 02:16 AM
Future technologies and Jeep's performance Coffeeman General Jeep Discussion 8 03-16-2012 12:58 PM
!!!!! Parking lot hit and run!!!! glowingghoul JK General Discussion Forum 16 03-15-2012 09:27 PM
New at this and need help. IronManT28 TJ General Discussion Forum 2 03-15-2012 08:00 PM



Download our Mobile App

» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 12:49 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
