Spartan locker install

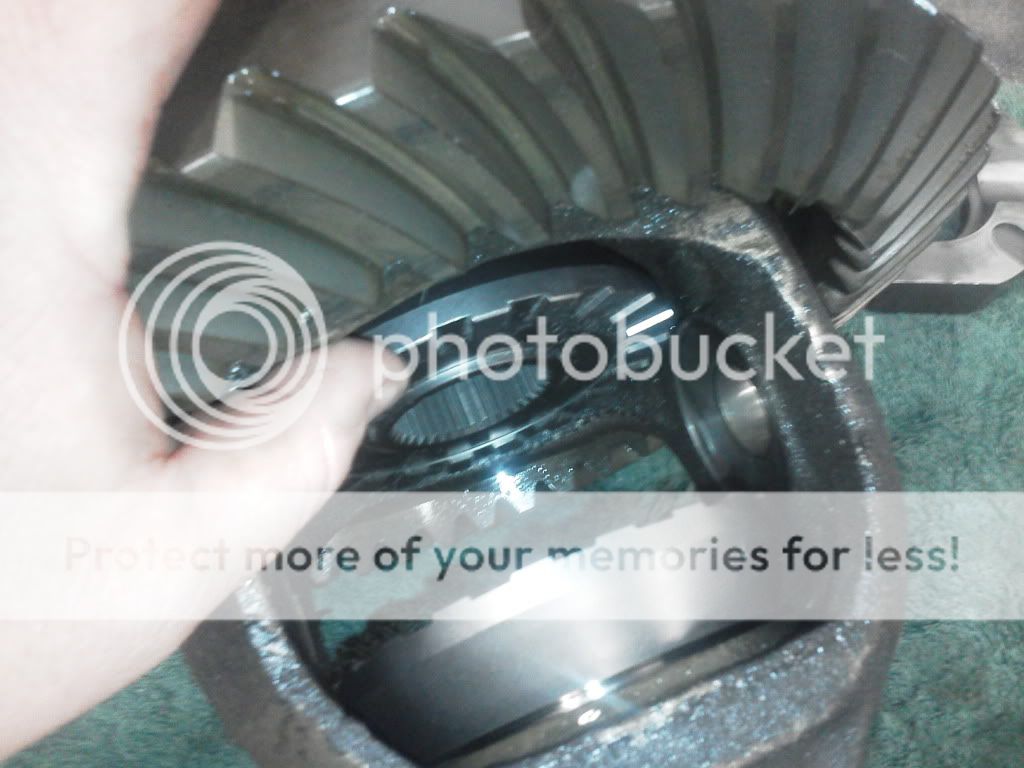

Here's a step by step on how to install a spartan locker.



Knock the roll pin out, remove the crosspin and side gears



Install the springs into the thumb cups and drop into the retainer



Squeeze the thumb cup down flush with the retainer and push in the lock pin



Install side gears into carrier

Ibuildembig is offline   Quote
Old 03-17-2012, 08:49 AM   #2
Commercial MemberX

5-Year WF Supporting Member

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,636
Ibuildembig is on a distinguished road
Install retainers into carrier





Pull lock pins and line up all teeth





Install new crosspin and rollpin



Reinstall carrier into axle


Ibuildembig is offline   Quote
Old 03-17-2012, 08:55 AM   #3
JEEP OUT

5-Year WF Supporting Member

dabolt55's Avatar

Join Date: Jul 2011
Location: Clinton, Tn.
Posts: 18,243
dabolt55 is on a distinguished road
You made that look sooo easy. Great write up..
__________________
Nothing to it but to do it.
SIMPLE AS THAT.

'04 TJ RUBICON, 4.0l auto... #JEEPOUT
2"BDS coils, Rubicon express shocks, 33/12.50/15 yellowed out, Black steel D's.
JEEP OUT>> http://www.wranglerforum.com/f115/ge...l#post23475417
dabolt55 is online now   Quote
Old 03-17-2012, 08:57 AM   #4
Commercial MemberX

5-Year WF Supporting Member

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,636
Ibuildembig is on a distinguished road
Thanks! Actually it was easy, about 30 minutes start to finish.
Ibuildembig is offline   Quote
Old 03-17-2012, 10:31 PM   #5
Jeeper

wvhillbilly's Avatar

Join Date: Jan 2011
Location: Princeton
Posts: 362
wvhillbilly is on a distinguished road
Are they good lockers i have been looking into getting me a set. Are they worth it?
wvhillbilly is offline   Quote
Old 03-17-2012, 10:53 PM   #6
Commercial MemberX

5-Year WF Supporting Member

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,636
Ibuildembig is on a distinguished road
I've never run one before personally so I can't say, but they assure me that it will handle what I am gonna put through it and for the money its worth a shot.
Ibuildembig is offline   Quote
Old 03-17-2012, 10:57 PM   #7
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,965
GoldenSahara00 is on a distinguished road
Hey man let me know how you like it. I am prob pulling the trigger on an aussie soon but curious to see how you like the spartan.
__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is offline   Quote
Old 03-17-2012, 11:00 PM   #8
Commercial MemberX

5-Year WF Supporting Member

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,636
Ibuildembig is on a distinguished road
Well you know what its going in so its going to be a few months probably before I get to drive it....but when I do I will report back as to how it works. I plan on trying out a few 4 wheel burnouts so my neighbors dont forget what goes on down here hehe

From what I have seen the spartan looks tougher since the springs are incased in a plug and it goes into a machined hole, versus have a super long spring like the aussie does.
Ibuildembig is offline   Quote
Old 03-17-2012, 11:16 PM   #9
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,965
GoldenSahara00 is on a distinguished road
Quote:
Originally Posted by Ibuildembig
Well you know what its going in so its going to be a few months probably before I get to drive it....but when I do I will report back as to how it works. I plan on trying out a few 4 wheel burnouts so my neighbors dont forget what goes on down here hehe

From what I have seen the spartan looks tougher since the springs are incased in a plug and it goes into a machined hole, versus have a super long spring like the aussie does.
Yeah good point. I might throw one in my 8.8 when I get it in, If I can stop spending money

I have been trying to look into the spartan/ aussie but I'm at a disadvantage because of limited personal experience. I guess I'll see.

Oh and 4 wheel burnouts sound spectacular
__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is offline   Quote
Old 03-19-2012, 08:12 PM   #10
Jeeper

Fishnhuntforever's Avatar

Join Date: Feb 2012
Location: Northern California
Posts: 72
Fishnhuntforever is on a distinguished road
Nice write up thanks for sharing!
__________________
My dogs hunt I just give them a ride
Fishnhuntforever is offline   Quote
Old 03-24-2012, 02:26 PM   #11
Jeeper

Join Date: Dec 2011
Location: Hill Country
Posts: 769
Tdog02 is on a distinguished road
Did my spartan today but haven't reinstalled the carrier because it looks like an awful wide gap when the cross pin was put in. Could be that it's normal but can you give me an opinion ? Thanks

Click image for larger version

Name:	image-3555228131.jpg
Views:	347
Size:	134.9 KB
ID:	107759
Tdog02 is offline   Quote
Old 03-24-2012, 08:23 PM   #12
Commercial MemberX

5-Year WF Supporting Member

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,636
Ibuildembig is on a distinguished road
Thats about the same as mine is
Ibuildembig is offline   Quote
Old 03-24-2012, 09:06 PM   #13
Jeeper

Join Date: Dec 2011
Location: Hill Country
Posts: 769
Tdog02 is on a distinguished road
I guess it was not a problem, put it all together and it works as advertised. It went together with no problems; nothing stuck, all bolts came right out, carrier popped out AND went back in. Almost scary how simple it was.
Tdog02 is offline   Quote
Old 03-25-2012, 10:56 AM   #14
Jeeper

MarkinOhio's Avatar

Join Date: Mar 2011
Location: NE Ohio
Posts: 611
MarkinOhio is on a distinguished road
Nice work, seems pretty basic subscribed to see results



__________________
“Dogs’ lives are too short. Their only fault, really.” – Agnes Sligh Turnbull
MarkinOhio is offline   Quote
Old 03-25-2012, 05:53 PM   #15
Jeeper

MarkNog's Avatar

Join Date: Sep 2011
Location: Central Jersey
Posts: 607
MarkNog is on a distinguished road
You make it seem simpler than everyone else... perfect guide!
MarkNog is offline   Quote
Old 03-25-2012, 06:03 PM   #16
Jeeper

Join Date: Dec 2011
Location: Hill Country
Posts: 769
Tdog02 is on a distinguished road
Started with no problems except a frozen drivers side rotor. Banged away with a rubber mallet and it came off, then pulled the axles.


Click image for larger version

Name:	image-2953284982.jpg
Views:	386
Size:	150.1 KB
ID:	108108

Took carrier out, I used a cardboard flat and put everything in the right place. At first the carrier seemed stuck like chuck.


Click image for larger version

Name:	image-1200604617.jpg
Views:	358
Size:	135.2 KB
ID:	108109

I put a shop rag on the ring and turned with the drive shaft and it pushed it right out..

I put the carrier in a bench vise and marked the ring. The ring bolts are reverse thread, that's pretty important to know before you crank on the bolts. The instructions from spartan are basic, they could be better detailed though.


Click image for larger version

Name:	image-3715137147.jpg
Views:	387
Size:	126.9 KB
ID:	108112

Everything is vacuum packed and well packaged, so I put it in.


Click image for larger version

Name:	image-2665326763.jpg
Views:	354
Size:	151.0 KB
ID:	108117

My only concern was the gap between the halves after installing the cross pin but this appears to be normal by all accounts.

The re-install of everything went smooth, and if you count my wrench time and clean up, it was just under 4 hours.


Click image for larger version

Name:	image-3774333167.jpg
Views:	369
Size:	142.3 KB
ID:	108118

I tested according to the instructions and it did separate and click, I installed the cover and used the lube locker gasket (worth the coin IMO) and filled with 85-140 like in the rear and the field test proved that slippery mud and other obstacles were much easier.


Click image for larger version

Name:	image-1146285506.jpg
Views:	377
Size:	155.5 KB
ID:	108119

On street driving I can't tell it's there. You may hear a little clicking in parking lots but you have to really listen for it. My out of pocket for the spartan, gear oil, lube locker gasket, gojo and a roll of shop rags was 296. I recommend it for your rig if you want a mod that increases the capability of your rig.

Thanks to Doch80 for the pm and the offer to text him if I had questions!
Tdog02 is offline   Quote
Old 03-25-2012, 06:42 PM   #17
Jeeper

Join Date: Dec 2011
Location: Hill Country
Posts: 769
Tdog02 is on a distinguished road
Didn't mean to hijack, typed in wrong thread.
Tdog02 is offline   Quote
Old 06-30-2012, 12:51 PM   #18
Jeeper

jeepers29's Avatar

Join Date: Feb 2011
Location: Georgetown, Texas
Posts: 4,839
jeepers29 is on a distinguished road
Quote:
Originally Posted by Ibuildembig View Post
Here's a step by step on how to install a spartan locker.


NIce write up. Thanks. I was wondering, is there any way to do this without taking the carrier out? I have been wrenching for many years, but never done anything with diffs, other than fluid changes. If not, I will just have to buck up but wanted to ask. Thanks for your time.


Knock the roll pin out, remove the crosspin and side gears



Install the springs into the thumb cups and drop into the retainer



Squeeze the thumb cup down flush with the retainer and push in the lock pin



Install side gears into carrier

NIce write up. Thanks. I was wondering, is there any way to do this without taking the carrier out? I have been wrenching for many years, but never done anything with diffs, other than fluid changes. If not, I will just have to buck up but wanted to ask. Thanks for your time.
jeepers29 is offline   Quote
Old 06-30-2012, 01:58 PM   #19
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 14,036
nick50471 is on a distinguished road
Quote:
Originally Posted by jeepers29 View Post
NIce write up. Thanks. I was wondering, is there any way to do this without taking the carrier out? I have been wrenching for many years, but never done anything with diffs, other than fluid changes. If not, I will just have to buck up but wanted to ask. Thanks for your time.
The carrier has to come out. Not difficult though. If you can do brakes you can install a lunchbox locker.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.

Nick's 52 Chevy COE Build
nick50471 is offline   Quote
Old 06-30-2012, 11:49 PM   #20
Jeeper

jeepers29's Avatar

Join Date: Feb 2011
Location: Georgetown, Texas
Posts: 4,839
jeepers29 is on a distinguished road
Thanks Nick. As I have done more brake jobs than I would like to admit, I will give it a go.
jeepers29 is offline   Quote
Old 07-05-2012, 02:49 PM   #21
Jeeper

jeepers29's Avatar

Join Date: Feb 2011
Location: Georgetown, Texas
Posts: 4,839
jeepers29 is on a distinguished road
Does the gear oil need to have a friction modifier in it like a LSD? I am fixin to install and want to have all I need on hand. Thanks y'all.
jeepers29 is offline   Quote
Old 07-05-2012, 03:16 PM   #22
Commercial MemberX

5-Year WF Supporting Member

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,636
Ibuildembig is on a distinguished road
nope, there's no clutches in it
Ibuildembig is offline   Quote
Old 07-05-2012, 04:25 PM   #23
Jeeper

jeepers29's Avatar

Join Date: Feb 2011
Location: Georgetown, Texas
Posts: 4,839
jeepers29 is on a distinguished road
Quote:
Originally Posted by Ibuildembig View Post
nope, there's no clutches in it

Thank you sir!
jeepers29 is offline   Quote
Old 07-05-2012, 05:38 PM   #24
Jeeper

riotsnclowns's Avatar

Join Date: Jul 2012
Location: CT
Posts: 105
riotsnclowns is on a distinguished road
This might be a dumb question but I'll shoot and see what falls...

Whats a locker, whats its purpose and where is it located? Is it for auto or man?
riotsnclowns is offline   Quote
Old 07-05-2012, 06:48 PM   #25
Newb

Join Date: Jul 2012
Posts: 1
Kentkast is on a distinguished road
Quote:
Originally Posted by riotsnclowns
This might be a dumb question but I'll shoot and see what falls...

Whats a locker, whats its purpose and where is it located? Is it for auto or man?
Locks the wheels so if one slips they both still turn at the same speed. Keeps the differential from slipping hence the name locker.
Kentkast is offline   Quote
Old 07-10-2012, 08:09 AM   #26
Jeeper

95YamJam's Avatar

Join Date: May 2011
Location: Fort Wayne
Posts: 1,566
95YamJam is on a distinguished road
I am running a spartan in my d35(yeah, I know...LOL). I has worked great for me on quite a few wheeling trips. I also DD it and it works great. Every now and then it will "pop" in the rear after turn but it still works great.

I havn't broken it yet or the d35 for that matter. Now I am only running a 32" tire and have a 4cyl. But since a few peoples have asked about how well it works I figured i'd input.

Great write up and it really is an easy install. I will run one in my 8.8 when that goes in the jeep and am wanting to get one for my d30 soon.
__________________
My build thread : http://www.wranglerforum.com/f8/my-9...yam-93463.html

"A lack of planning on your part does not constitue an instant emergency on my part"
95YamJam is offline   Quote
Old 10-26-2012, 08:04 AM   #27
Jeeper

OverkillYJ's Avatar

Join Date: Jun 2012
Location: Philadelphia, PA
Posts: 2,931
OverkillYJ is on a distinguished road
Is it a bad idea to put a Spartan locker in a daily driver? Would it just be noisy, or would it cause problems? I am thinking about one in my Dana 30.
__________________
Complete rebuild axle/engine/everything swap in progress: Building stock width 44's with 302 from 01 Explorer. Motor has GT40p heads, Cobra Intake, and truck cam. Running A9L EEC IV stand alone engine from late 80's-90's Mustang GT. Big Bearing NP435 married to NP205.
OverkillYJ is offline   Quote
Old 10-26-2012, 09:23 AM   #28
Commercial MemberX

5-Year WF Supporting Member

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,636
Ibuildembig is on a distinguished road
Nah I haven't heard anyone complain about it.....a detroit will jar your teeth when it loads and unloads
Ibuildembig is offline   Quote
Old 10-26-2012, 10:00 AM   #29
Jeeper

nick50471's Avatar

Join Date: Apr 2010
Location: Bushwood Country Club
Posts: 14,036
nick50471 is on a distinguished road
Quote:
Originally Posted by Ibuildembig View Post
Nah I haven't heard anyone complain about it.....a detroit will jar your teeth when it loads and unloads
That's the sound of TRACTION.
__________________
License to kill gophers by the government of the United Nations. Man, free to kill gophers at will. To kill, you must know your enemy, and in this case my enemy is a varmint. And a varmint will never quit - ever. They're like the Viet Cong - Varmint Cong. So you have to fall back on superior intelligence and superior firepower. And that's all she wrote.

Nick's 52 Chevy COE Build
nick50471 is offline   Quote
Old 10-26-2012, 10:04 AM   #30
Jeeper

OverkillYJ's Avatar

Join Date: Jun 2012
Location: Philadelphia, PA
Posts: 2,931
OverkillYJ is on a distinguished road
So besides some clicking when I drive around nothing will really change until I shift into 4wd when I will gain the benefits?

__________________
Complete rebuild axle/engine/everything swap in progress: Building stock width 44's with 302 from 01 Explorer. Motor has GT40p heads, Cobra Intake, and truck cam. Running A9L EEC IV stand alone engine from late 80's-90's Mustang GT. Big Bearing NP435 married to NP205.
OverkillYJ is offline   Quote
Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Junkyard Cruise Control Install for every TJ young-blood TJ General Discussion Forum 191 03-14-2016 07:00 PM
Bilstein 5100 install tips jonf30 JK General Discussion Forum 21 04-25-2013 08:46 PM
Rallylight/Hella headlight upgrade install krutj JK General Discussion Forum 221 06-23-2012 05:56 AM
Chrysler 8.25" 27 Spline Spartan Locker now Available at Baseline 4x4 Outfitters Baseline 4x4 Outfitters Vendor Spotlight! Great Deals for Members. 3 04-22-2012 08:13 AM
MI: D35 Detroit Locker grnd93 Classifieds Archive 12 03-27-2012 07:30 PM



Download our Mobile App

» Featured Product

All times are GMT -5. The time now is 09:23 AM.


User Alert System provided by Advanced User Tagging v3.1.0 (Pro) - vBulletin Mods & Addons Copyright © 2016 DragonByte Technologies Ltd.
vBulletin Security provided by vBSecurity v2.2.2 (Pro) - vBulletin Mods & Addons Copyright © 2016 DragonByte Technologies Ltd.

Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
