Old 04-28-2011, 10:28 PM   #1
Jeeper

JL2112's Avatar

Join Date: Apr 2011
Posts: 48
DIY Grab Handles

Got inspired by another thread this evening so I picked up some 3/8" rope and made a few grab handles similar to using cobra knots with 550 paracord.
If anyone's interested, I'll post pics after I put them on tomorrow...

Not the best pics, but you get the idea...
-J




JL2112 is offline   Quote Quick Reply
Old 04-28-2011, 10:36 PM   #2
Jeeper

Road_House's Avatar

Join Date: Mar 2011
Location: North Shore Mass
Posts: 325
Very nice. You should put them on eBay or something. I would be interested if I didn't already own a mopar set.

__________________
06 Green LJ
Road_House is offline   Quote Quick Reply
Old 04-29-2011, 07:06 AM   #3
Jeeper

JL2112's Avatar

Join Date: Apr 2011
Posts: 48
Thanks, I had actually ordered a set, but they ended up being backordered and couldn't tell me when they'd be in so I cancelled the order and made these...


-J
JL2112 is offline   Quote Quick Reply
Old 04-29-2011, 07:26 AM   #4
President, ThumbJeeps

WF Supporting Member

sevenservices's Avatar

Join Date: Sep 2009
Location: Mid-Michigan/Thumb
Posts: 3,938
nice knot
__________________
-Chris
President, ThumbJeeps
CB Callsign "AirForce One"


1994 Wrangler YJ I6 4.0 H/O Auto 3 spd. 4" RC (33x12.5) (15x8) 3:54 Gears
sevenservices is offline   Quote Quick Reply
Old 04-29-2011, 08:23 AM   #5
Jeeper

Griffmeister's Avatar

Join Date: Feb 2011
Location: Tampa, FL
Posts: 152
very nice! how do you plan on attaching them? thats the part i am stuck on.
Griffmeister is offline   Quote Quick Reply
Old 04-29-2011, 08:44 AM   #6
Jeeper

JL2112's Avatar

Join Date: Apr 2011
Posts: 48
It is constructed of 2 ropes, the first cobra knotted around the second which allows the array of knots to slide. So... the one side with the loop can go around the rollbar and back through itself, then the cobra knots slide tight against it which is ideal. Temporarily for fitment I just put some clean knots on the other "open" side around the rollbar which looks and works fine, but I haven't trimmed the lines yet as I'm trying to think of the best way to attach on the back side while making them removable with some form of clip / clasp etc.. I can take some pics as it sits now if interested, and I'll post again for sure once I decide on a permanent solution.
Hope this makes sense, kind of hard to describe.
-J
JL2112 is offline   Quote Quick Reply
Old 04-29-2011, 10:36 AM   #7
Jeeper

Join Date: Feb 2011
Posts: 66
Very cool idea. If there was an etsy.com for off-road stuff, you could make alot of money on there!
__________________
Streetsideauto.com

Some say that his favorite flavor of ice-cream is ceramic...
...and that his descendants number in the thousands...
StreetsideStig is offline   Quote Quick Reply
Old 04-29-2011, 12:14 PM   #8
Jeeper

JL2112's Avatar

Join Date: Apr 2011
Posts: 48
Here's a pic of one mounted. I'll post what I end up with as the final mount method once I get that done if interested. Once done, the back 2 lines will sit tight together like the front does.

Personally, I actually like the look a lot better than the typical velcro straps. I was a bit concerned about them sliding together under load, but they don't budge at all.

-J

JL2112 is offline   Quote Quick Reply
Old 04-29-2011, 12:21 PM   #9
Electrical Guy

WF Supporting Member

deathphoenix99's Avatar

Join Date: Apr 2010
Location: Houston, TX
Posts: 2,619
I may have to do this, any good links or information you have?
__________________
2011 RCLB Silverado, It's got the power I need.
Wiring Diagrams!
-Phil-

QUOTE:Bugsbb
"You're just about to get a bump and poke back.."
deathphoenix99 is offline   Quote Quick Reply
Old 04-29-2011, 12:25 PM   #10
Jeeper

YAHAHA's Avatar

Join Date: Jan 2010
Posts: 774
<subscribes: waiting for detailed directions on how to tie that fancy knot>
__________________
It's not just a Jeep, it's an amusement park on wheels!
YAHAHA is offline   Quote Quick Reply
Old 04-29-2011, 12:26 PM   #11
Jeeper

JL2112's Avatar

Join Date: Apr 2011
Posts: 48
I'm likely going to make them for the back as well, I can take some pics in process and put together a small "how to" if there's interest.

I'd potentially be willing to slap some together for cost of materials / shipping too to help support the community if there's anyone not feeling too ambitious..

In the interim if you google cobra knot, you'll get most of the info needed.
-J
JL2112 is offline   Quote Quick Reply
Old 04-29-2011, 12:34 PM   #12
Electrical Guy

WF Supporting Member

deathphoenix99's Avatar

Join Date: Apr 2010
Location: Houston, TX
Posts: 2,619
I'd like a how to, I'm trying to figure out how you tied it to the roll cage.
__________________
2011 RCLB Silverado, It's got the power I need.
Wiring Diagrams!
-Phil-

QUOTE:Bugsbb
"You're just about to get a bump and poke back.."
deathphoenix99 is offline   Quote Quick Reply
Old 04-29-2011, 01:02 PM   #13
Supporting Member

WF Supporting Member

the Kolector's Avatar

Join Date: Apr 2011
Location: Louisville, Ky
Posts: 2,557
Taking orders?? I would like 2 please!
__________________
You Are The Result of 3.8 Billion Years of Evolutionary Success. Act Like It.
the Kolector is offline   Quote Quick Reply
Old 04-29-2011, 01:07 PM   #14
Jeeper

JL2112's Avatar

Join Date: Apr 2011
Posts: 48
@Kolector, (and / or anyone else) if you're interested, PM me and I can shoot you details. I also want to button up a solid attachment method, expect to have that done this weekend. And like I stated earlier, just cost of materials / shipping.
-J
JL2112 is offline   Quote Quick Reply
Old 04-30-2011, 03:50 PM   #15
Jeeper

Sniper4x4's Avatar

Join Date: Mar 2011
Posts: 98
These are ones I made I inch rope overlaped by a 1/4 rope with the cobra weave
Attached Thumbnails
Click image for larger version

Name:	image-3208527106.jpg
Views:	133
Size:	81.1 KB
ID:	47450
Sniper4x4 is offline   Quote Quick Reply
Old 04-30-2011, 05:56 PM   #16
Jeeper

Join Date: Feb 2011
Location: Texas
Posts: 3,162
Scribed
KidRock171 is offline   Quote Quick Reply
Old 05-02-2011, 01:07 PM   #17
Jeeper

gbtb87's Avatar

Join Date: Apr 2011
Location: OHIO
Posts: 122
Pretty fancy!!!!
Is that a little "marlinspike seamanship"?
__________________
Car engines make CO2 and trees absorb CO2. By running your engine you're feeding a tree and helping the environment."charrison"
gbtb87 is offline   Quote Quick Reply
Old 05-02-2011, 09:41 PM   #18
Jeeper

Join Date: Feb 2011
Location: Texas
Posts: 3,162
Sent OP a PM but no response. I'd like a set.
KidRock171 is offline   Quote Quick Reply
Old 05-02-2011, 09:46 PM   #19
Electrical Guy

WF Supporting Member

deathphoenix99's Avatar

Join Date: Apr 2010
Location: Houston, TX
Posts: 2,619
well I made a set for my jeep from 3/8" rope from Harbor Freight. $5 for the rope and I can easily made 2 sets. I have no idea how I want to attach them though, but it's a great idea OP.
__________________
2011 RCLB Silverado, It's got the power I need.
Wiring Diagrams!
-Phil-

QUOTE:Bugsbb
"You're just about to get a bump and poke back.."
deathphoenix99 is offline   Quote Quick Reply
Old 05-02-2011, 09:53 PM   #20
Jeeper

Join Date: Aug 2010
Location: Benton, Arkansas
Posts: 71
I really like these. Please put together the "How to" guide with some pics. In the meantime I'm going to google cobra knot and see what I can learn.

Good idea on the hand holds.
__________________
1994 Wrangler
1970 Cougar XR7 Convertible
"I love 'em topless!"
Razorcat is offline   Quote Quick Reply
Old 05-02-2011, 09:55 PM   #21
Jeeper

JL2112's Avatar

Join Date: Apr 2011
Posts: 48
@kidrock, sorry, just saw your PM and no, they are tight enough and the rope is thick enough that they don't slide at all, can't speak to if you don't have roll bar covers, but mine don't budge under load.
@ kolector, planning on making yours tomorrow eve.
@ anyone else following the bouncing ball, I'll take some pics while I tie those up and post additional photos & tips. Sorry for the delay, hectic weekend here...
-J
JL2112 is offline   Quote Quick Reply
Old 05-02-2011, 11:49 PM   #22
Supporting Member

WF Supporting Member

the Kolector's Avatar

Join Date: Apr 2011
Location: Louisville, Ky
Posts: 2,557
Cool, how did you end up attaching them to the roll bar? And zip code is 40218 for shipping quote. I'll PM you the full address when it is time, Paypal work for you?
__________________
You Are The Result of 3.8 Billion Years of Evolutionary Success. Act Like It.
the Kolector is offline   Quote Quick Reply
Old 05-03-2011, 12:15 AM   #23
Electrical Guy

WF Supporting Member

deathphoenix99's Avatar

Join Date: Apr 2010
Location: Houston, TX
Posts: 2,619
Well, out of the 75' of rope, I found I could make at least 6 grab handles, I'm sure if I tried, I could make 7 or maybe 8 if I conserve the rope.

For those that want some rough dimensions to go by, here's what I used.
I have 2 pieces of rope at 30", these are used as the core of the handle and to tie it to the roll bar. I roughly made the handle portion 8" long. And the piece of rope to make the handle was 8' for me, although 7' would be plenty long, I like to have a little extra to hold as I tighten each knot. For me, I just use the loose ends and tie a square knot to attach it to the roll bars. There's plenty of length to wrap the roll bars twice or you could shorten it if you only want to wrap and tie.

I used the 3/8" rope from Harbor Freight.
75 Ft. x 3/8" Camouflage Poly Rope

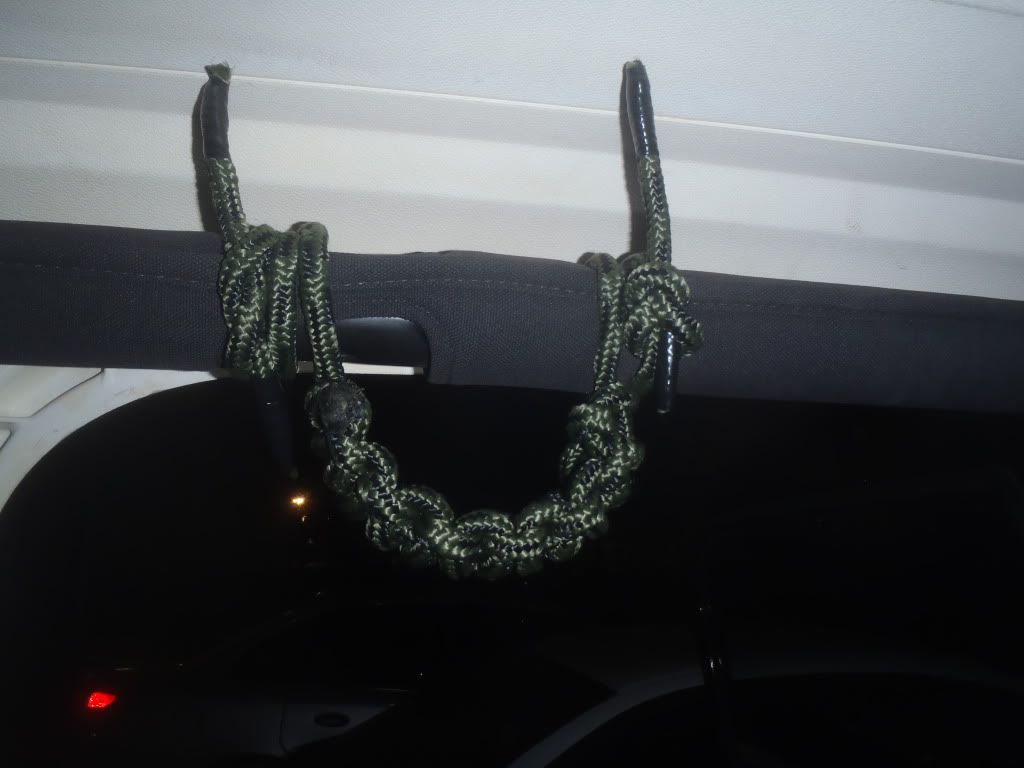

Here's some pics, this is just test fitting, once I remove the top, I plan to tie them nicely and clean up the loose ends.





__________________
2011 RCLB Silverado, It's got the power I need.
Wiring Diagrams!
-Phil-

QUOTE:Bugsbb
"You're just about to get a bump and poke back.."
deathphoenix99 is offline   Quote Quick Reply
Old 05-03-2011, 06:03 AM   #24
Jeeper

Danno6102's Avatar

Join Date: Apr 2011
Location: Arlington, Rush, indiana
Posts: 92
Quote:
Originally Posted by deathphoenix99 View Post
Well, out of the 75' of rope, I found I could make at least 6 grab handles, I'm sure if I tried, I could make 7 or maybe 8 if I conserve the rope.

For those that want some rough dimensions to go by, here's what I used.
I have 2 pieces of rope at 30", these are used as the core of the handle and to tie it to the roll bar. I roughly made the handle portion 8" long. And the piece of rope to make the handle was 8' for me, although 7' would be plenty long, I like to have a little extra to hold as I tighten each knot. For me, I just use the loose ends and tie a square knot to attach it to the roll bars. There's plenty of length to wrap the roll bars twice or you could shorten it if you only want to wrap and tie.

I used the 3/8" rope from Harbor Freight.
75 Ft. x 3/8" Camouflage Poly Rope

Here's some pics, this is just test fitting, once I remove the top, I plan to tie them nicely and clean up the loose ends.





pics no workey for me.

I wonder if you could use a small cable clamp to loop the rope around the roll bar & yank it nice & tight & clamp the rope back to itself.
Danno6102 is offline   Quote Quick Reply
Old 05-03-2011, 06:39 AM   #25
Electrical Guy

WF Supporting Member

deathphoenix99's Avatar

Join Date: Apr 2010
Location: Houston, TX
Posts: 2,619
A cable clamp would probably work, I just look for asthetics as well. And the pics work fine for me, so no idea.
__________________
2011 RCLB Silverado, It's got the power I need.
Wiring Diagrams!
-Phil-

QUOTE:Bugsbb
"You're just about to get a bump and poke back.."
deathphoenix99 is offline   Quote Quick Reply
Old 05-03-2011, 07:49 AM   #26
Jeeper

JL2112's Avatar

Join Date: Apr 2011
Posts: 48
I'll post better pics tonight, but my solution was to loop the rope and cobra knot over it instead of having open strands on both side. This lets you wrap the loop end around the rollbar and through itself so ties or clamps are only needed on one end. Uses more rope, but looks very clean and makes the handle itself wider and flatter.
The loose ends can then be tied or held with a cable clamp. I opted for a cable clamp painted black on mine. The only caution is to position it well so that there's no chance of rub when the soft top is up. but its clean and allows you to cut the ropes short.
@Kolector, no worries, I'll PM you for your addy when done and lets get them to you before we worry about reimbursement for materials / shipping..
-J
JL2112 is offline   Quote Quick Reply
Old 05-03-2011, 07:52 AM   #27
Electrical Guy

WF Supporting Member

deathphoenix99's Avatar

Join Date: Apr 2010
Location: Houston, TX
Posts: 2,619
Can't wait to see the better pictures. I have 2 of them so I can loop on end on itself, but I like the tied method for ease of use. I have a hard top, so I didn't have to worry about rubbing, but I didn't think about soft top users.
__________________
2011 RCLB Silverado, It's got the power I need.
Wiring Diagrams!
-Phil-

QUOTE:Bugsbb
"You're just about to get a bump and poke back.."
deathphoenix99 is offline   Quote Quick Reply
Old 05-03-2011, 11:11 PM   #28
Jeeper

Join Date: Feb 2011
Location: Texas
Posts: 3,162
These are cool.
KidRock171 is offline   Quote Quick Reply
Old 05-03-2011, 11:12 PM   #29
Jeeper

JL2112's Avatar

Join Date: Apr 2011
Posts: 48
Alright, its getting late so bear with me...

Double over rope 1, and lay rope 2 behind it:


Now start your first knot:



Second knot is opposite the first, and so-on...:



When you're done, it should look something like this with the loop at one end, and 4 strands at the other:



To attach to the rollbar, wrap the looped end around and pass the 4 strands and knotted "handle" through it (sorry about he bottle, its raining tonight):





Note that the way the knots are wrapped around the base strands, they should be tight, but you can slide them on the strands and will do that to tighten this end around your rollbar:



The other end is your choice, they can be knotted, or use a cable clamp. I chose to use a cable clamp painted black so the ends could be cut shorter. Be sure to burn the ends and / or wrap with electrical tape to prevent fraying (unless you're really feeling like going all out and want to wrap with thread).

I can post pics of mine mounted tomorrow if anyone's interested, but this pretty much sums it up otherwise.

@Kolector, this is one of yours.. PM me you're addy when you have a moment.
-J
JL2112 is offline   Quote Quick Reply
Old 05-03-2011, 11:15 PM   #30
Jeeper

JL2112's Avatar

Join Date: Apr 2011
Posts: 48
@KidRock, I think those are 2 bands both cobra knotted above each other. You'd have to use a thinner diameter rope, and I think you may end up with open strands at both ends. I really like the size I got out of the above method, and the fact that there only open strands to deal with on one side. PS, 3/8" rope in my example above.
-J

JL2112 is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Door Handles & Grab Bar Removal? Scooby TJ Tech Forum 5 09-01-2013 12:33 PM
Smittybilt Grab Handles - Save your money! redz1 JK General Discussion Forum 32 07-27-2011 10:26 PM
Grab Handles Michigunman TJ General Discussion Forum 22 11-26-2010 12:24 PM
Grab Handles kevinss2001 JK General Discussion Forum 31 09-15-2010 04:13 PM
grab handles, 05 JCS05Rubi General Jeep Discussion 1 05-29-2007 02:05 PM


logo carid shop wrangler parts carid fender flares custom wheels store avs deflectors at carid

» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 06:02 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
