Old 09-02-2013, 06:20 PM   #1
Newb

Join Date: Aug 2013
Posts: 13
bought a tj 2.5 w/seized motor... trying to diagnose

hello everyone. first official post. I've really really wanted a jeep since i was a kid but i've been too cheap, broke, or responsible to own one until now.

the catch is, i bought one with a seized motor. i'm going to try to keep my story short, but it'll be tough. here we go....

99 red tj "spice" top/interior. Previous owner threw a rod 2.5 years ago, had a weekend warrior replace with ATK reman from NAPA. Earlier this summer when taking it on one of the first drives with the top down, it quit running at a red light. would still turn over, but not catch, and was turning over slowly. He's not very technical savvy so he checked the oil level, which was good, and had it towed by AAA to a local show i've never heard of. They did an hours worth of labor, and told him it'd be a major project to diagnose, they left the valve cover loose and spark plugs out. He had it towed home, it sat for two months with 3 spark plugs out, then he sold it to me.

he had it flat bedded to my home, and in my driveway i discovered it's seized. I removed the 4th spark plug, split a quart of tranny fluid between all 4 cylinders through the spark plug hole, and tried to free it up a few days later. i was hoping for surface corrosion on the rings. it didn't free up. the crank will turn maybe 10-15 degrees freely, but no more than that. i got a boroscope into the spark plug holes, and from what little i can see things look good, complete piston tops and cross hatch on the recently reman'd motor.

i've begun tearing it down to pull the engine, and have found a few odd things. the alternator is locked up, and the pulley is loaded up with burnt on rubber from the serp. belt. And the oil pressuge sender is loose, attached to the block with a 90 degree brass fitting and both threaded connections are loosy doosy.

i drained the oil and found no metal bits or shavings or anything shiny for that matter. i was expecting to find a spun main bearing.

i'm going to pull the oil pan next, and if i don't find anything conclusive, i'll pull the motor.


i'm posting here because internal engine diagnostics are a bit foreign to me. i spent 8 years behind a parts counter and am still ASE certified, but my hands on experience is limited. Anyone care to offer direction or educated guesses as to how things will go for me? ATK warranties the long block until February, but if it's a non-warranteable problem and i ship it to them, i've got to pay to have it shipped back. i'd like to conclusively diagnose it before doing that, so i have some leverage if they give me a hard time.

i've got a newborn in the house and a new job so time is tight otherwise i'd just poke around it until i backwards engineered the whole thing and figured it out for myself. But in order to make my dream of jeep ownership (running operable jeep ownership) come true, i'm going to need to reach out for some help.

anyhow, thanks in advance, i'll answer questions and update here as i go.

jonmorehouse is offline   Quote Quick Reply
Old 09-02-2013, 08:41 PM   #2
Jeeper

The Ugly Jeep's Avatar

Join Date: Mar 2010
Location: Mountain Top, PA
Posts: 280
If it turns at all , it's not seized.

You have a chance of a bent rod, but I'm thinking not.
With the belt removed, will it turn over?

__________________
97 Wrangler - 4 Angry Hamsters; 2 1/2 " Rough Country Suspension, 33x12.5x15 Firestone Destination MT's.
2011 JK "Mojave".
2012 MW3 Rubicon
Recognize the same mistakes, every time you make them !
The Ugly Jeep is offline   Quote Quick Reply
Old 09-03-2013, 06:15 AM   #3
Newb

Join Date: Aug 2013
Posts: 13
serp belt is off and i only get the 10-15 degrees of rotation. What are the chances the timing chain broke and got sucked into the gears?

i see no signs of hydro lock, with what little i can see with a boroscope. No coolant in the oil though
jonmorehouse is offline   Quote Quick Reply
Old 09-03-2013, 06:39 AM   #4
Jeeper

The Ugly Jeep's Avatar

Join Date: Mar 2010
Location: Mountain Top, PA
Posts: 280
How are the starter, battery and battery connections?
Have you tried using a long breaker bar with a socket on the crank pulley bolt ?
__________________
97 Wrangler - 4 Angry Hamsters; 2 1/2 " Rough Country Suspension, 33x12.5x15 Firestone Destination MT's.
2011 JK "Mojave".
2012 MW3 Rubicon
Recognize the same mistakes, every time you make them !
The Ugly Jeep is offline   Quote Quick Reply
Old 09-03-2013, 08:52 AM   #5
Jeeper

Side_Project's Avatar

Join Date: Aug 2013
Location: Alton
Posts: 77
X2
Side_Project is offline   Quote Quick Reply
Old 09-03-2013, 08:59 AM   #6
Jeeper

Tomdata's Avatar

Join Date: Mar 2013
Posts: 396
What happens when you crank it over using the starter and the serpentine belt off?
Tomdata is offline   Quote Quick Reply
Old 09-04-2013, 09:00 PM   #7
Newb

Join Date: Aug 2013
Posts: 13
18" breaker with the belt removed and spark plugs out, i can only get ~10degrees rotation. if i wiggle it while looking down the spark plug hole with a boroscope the pistons move up and down a tiny bit. with the valve cover removed i don't see any suprises, the pushrods are all straight and such. i'm beginning to think/hope the motor is not seized and the problem is external.

i'm beginning to think the problem is in the flywheel/clutch, or timing chain. friday/saturday i'll have the inspection cover off to the transmission (i've read the AX5 has one near the starter, but i havn't found it yet) and the timing chain cover off.
jonmorehouse is offline   Quote Quick Reply
Old 09-04-2013, 09:06 PM   #8
Jeeper

Tomdata's Avatar

Join Date: Mar 2013
Posts: 396
Just a though. Make sure the tranny is in neutral when you are trying to spin the motor.
Tomdata is offline   Quote Quick Reply
Old 09-08-2013, 05:16 PM   #9
Newb

Join Date: Aug 2013
Posts: 13
okay, to anyone following along...

got it tore down enough to pull the timing cover to find a snapped chain all bunched up at the bottom... binding up the crank in both directions.
if you can't see the pics sorry. im trying to figure out google+.

so, new timing chain kit from napa, straightened out the tensioner bracket, and i'm now trying to fight the timing cover back on. it's a real mother.

i guess my only persistant concern is, why did a 2 year old maybe 10k miles timing chain fail? the chain showed no signs of low lubrication or wear, just a catastrophic failure. with the chain removed the crank and cam both turn over smoothly.
jonmorehouse is offline   Quote Quick Reply
Old 09-08-2013, 06:00 PM   #10
Jeeper

R u s s's Avatar

Join Date: Jul 2013
Location: Snohomish County
Posts: 358
Images: 2
Defective slack remover or defect in chain. Unless the cam seized. In combination that most 2.5s get rode hard because of lack of power
R u s s is offline   Quote Quick Reply
Old 09-08-2013, 06:09 PM   #11
Jeeper

Notoriously_rob's Avatar

Join Date: Jun 2012
Posts: 686
Following this one. I just replaced my 4.0 with an atk. Good call on the timing chain bro! Hope nothing else is broken because of it.
Notoriously_rob is offline   Quote Quick Reply
Old 09-11-2013, 06:29 PM   #12
Newb

Join Date: Aug 2013
Posts: 13
crank and cam turn over buttery smooth...

called ATK. they want $25 to transfer warranty (i didn't buy the motor) and then they'll send me a new timing chain and gears. I inquired about the timing cover, as it's damaged from the chain... but it's considered "consequential" damage and not covered. I thought they'd work with me a bit because i was doing all the labor myself (warranty pays labor at book time) but no. Decided to buy parts locally and leave them out of it. ordered new fenders, flares, 2" BB spacers, 1.25" body lift...

my next adventure after getting it running will be repairing two rotten body mounts, driver side, middle and front of torque box... yay...

i'm figuring i can make robust plates then adjust the body spacers to level it out (plates won't be at original height...)
jonmorehouse is offline   Quote Quick Reply
Old 09-11-2013, 09:24 PM   #13
Jeeper

Join Date: Oct 2011
Posts: 384
Its damn impressive what your have done diagnosing and pulling everything aparon your own. nice work.
__________________
1999 Jeep Wrangler SE 2.5 (Jasper Re-Built) - Dozer Orange
2005 Chrysler Crossfire SRT-6 3.2 (Supercharged) - Black
mrobinso is offline   Quote Quick Reply
Old 09-11-2013, 09:54 PM   #14
Jeeper

ChasUGC's Avatar

Join Date: Jul 2013
Posts: 2,594
Images: 2
Great diagnosis. Pics please?
I bet this is going to be an awesome Jeep.
You may have to sell the newborn though(J/K!!).
ChasUGC is offline   Quote Quick Reply
Old 09-13-2013, 08:26 PM   #15
Newb

Join Date: Aug 2013
Posts: 13

as it sits

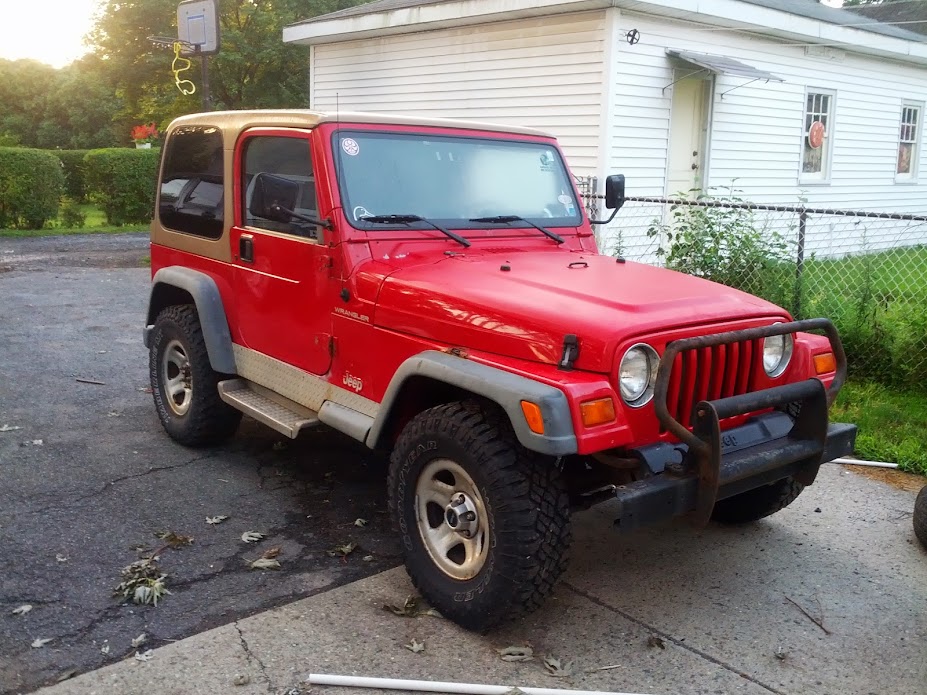

when i got it home.

2" BB, 1.25" body lift, and 33" bfg TA/KO's waiting to go on
jonmorehouse is offline   Quote Quick Reply
Old 09-26-2013, 05:03 PM   #16
Newb

Join Date: Aug 2013
Posts: 13
well, to anyone following along i've got the grill and radiator back in, and have had it running up to temperature a few times. runs like a champ, and once i get the 2" bb spacers in i'll start bolting the fenders back together. should be on the road and looking for dirt in a few weeks. i really lucked out... i had no idea what i was getting into and was in the market for a hoist and engine stand.
jonmorehouse is offline   Quote Quick Reply
Old 09-26-2013, 06:55 PM   #17
Jeeper

Dextreme's Avatar

Join Date: Oct 2011
Location: Oregon City, OR
Posts: 4,088
Images: 1
That is awesome that you got it resolved.
__________________
'99 Chilli Pepper TJ Wrangler "Mistress"
33x12.5 DuraTracs
Zone 4.25"
Dextreme is offline   Quote Quick Reply
Old 09-26-2013, 07:47 PM   #18
Jeeper

louczar's Avatar

Join Date: Aug 2013
Location: NB, TX
Posts: 178
Quote:
Originally Posted by jonmorehouse View Post
well, to anyone following along i've got the grill and radiator back in, and have had it running up to temperature a few times. runs like a champ, and once i get the 2" bb spacers in i'll start bolting the fenders back together. should be on the road and looking for dirt in a few weeks. i really lucked out... i had no idea what i was getting into and was in the market for a hoist and engine stand.
kudos for looking at it logically and fixing it. Many would not consider doing what you did (and considered doing) to fix it.
__________________
Just because you have one doesn't mean you have to act like one :-)

2012 VW Jetta TDI (90+ mile commute round trip to work) DD
2002 Wrangler X (in my name and waiting for my son to move from permit to license)
louczar is offline   Quote Quick Reply
Old 09-26-2013, 11:27 PM   #19
Jeeper

R u s s's Avatar

Join Date: Jul 2013
Location: Snohomish County
Posts: 358
Images: 2
Nice

R u s s is offline   Quote Quick Reply
