Having a hard time getting the Axle Nut off

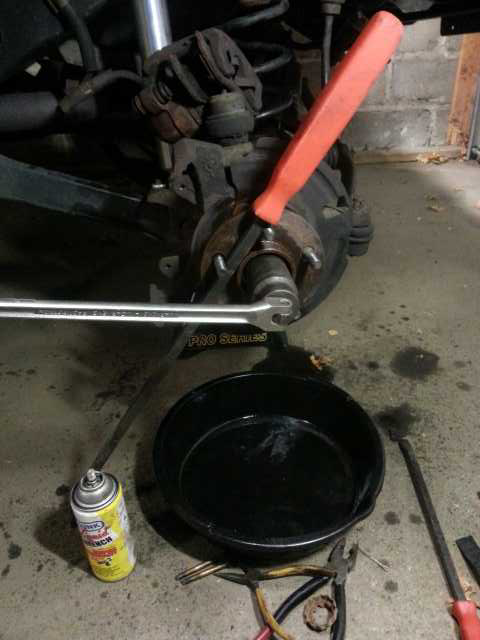

I'm having a hard time getting the nut off the axle. I sprayed it up with PB Blaaster and WD40 and will try tomorrow. Anyone have any tricks or tips?

I

__________________
********************
2003 Inca Gold Rubicon - Factory for Now
2000 Harley F150 (Gone)
2007 BMW 650
1967 Lincoln Continetal
& some bikes
SupremeTeam is offline   Quote Quick Reply
Old 11-30-2012, 10:53 PM   #2
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,702
What are you trying to do?

you can try using a torch. You can always use a bigger bar too. Lol.

__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is offline   Quote Quick Reply
Old 11-30-2012, 11:01 PM   #3
Jeeper

Patrick H's Avatar

Join Date: Nov 2011
Location: Northern NM
Posts: 3,135
Don't use a torch on that. You really don't want to burn the grease, and seals, out of the unit bearing, or lower ball joint. If you don't have access to a good impact wrench, get a longer cheater.
Patrick H is offline   Quote Quick Reply
Old 11-30-2012, 11:03 PM   #4
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,702
Quote:
Originally Posted by Patrick H View Post
Don't use a torch on that. You really don't want to burn the grease, and seals, out of the unit bearing, or lower ball joint. If you don't have access to a good impact wrench, get a longer cheater.

That's why I asked him what he was working on lol. As long as he just heats the nut carefully and doesn't over do it I don't think he would have an issue burning the seals or grease though. A little heat can go a long way. I agree impact, then bigger cheater.
__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is offline   Quote Quick Reply
Old 11-30-2012, 11:12 PM   #5
Jeeper

Moabrubi's Avatar

Join Date: May 2011
Location: Rancho Cucamonga, CA
Posts: 1,584
Stick a hilift jack handle or floorjack handle over that cheater. I would try an impact first though.
Moabrubi is online now   Quote Quick Reply
Old 11-30-2012, 11:15 PM   #6
Jeeper

Thomas302's Avatar

Join Date: Jul 2010
Location: Southern, NM
Posts: 304
I had to use my impact to get that nut off. It's torqued to 175lbs and its been on there awhile.
__________________
Military Jeepers
Southern New Mexico
Sacramento Chapter
Thomas302 is offline   Quote Quick Reply
Old 11-30-2012, 11:15 PM   #7
Supporting Member

WF Supporting Member

jeepwayoflife's Avatar

Join Date: Nov 2011
Location: California/Montana
Posts: 3,180
I hate it when my nuts get stuck... Yeah liquid wrench has worked wonders for me, I have heard PB blaster is great as well. Do that for a few days, whack it a bunch, and give it a try. If nothing, heat it up real good with a torch and give it another try
__________________
--------------------------------------------------------
jeepwayoflife is offline   Quote Quick Reply
Old 11-30-2012, 11:33 PM   #8
Jeeper

SupremeTeam's Avatar

Join Date: Feb 2011
Location: Boston, MA
Posts: 106
I'm trying to change the Ujoint. The one on that side is slopping around. I tried using a pipe and I sprayed it today. I'm going to spray it for a day or two and I'm gonna try to have one of the trucks from work come by and use the more powerful air compressors it has on it. My air is just a small weak tank.
__________________
********************
2003 Inca Gold Rubicon - Factory for Now
2000 Harley F150 (Gone)
2007 BMW 650
1967 Lincoln Continetal
& some bikes
SupremeTeam is offline   Quote Quick Reply
Old 12-01-2012, 12:03 AM   #9
Jeeper

Trevor C 98tj's Avatar

Join Date: Oct 2012
Posts: 327
Put the bar on the right side and lay on your back and bench press it!! Lol
Trevor C 98tj is offline   Quote Quick Reply
Old 12-01-2012, 12:36 AM   #10
Jeeper

mike481's Avatar

Join Date: Sep 2012
Location: Rancho Cucamonga, CA
Posts: 110
Like the others have said, you need a bigger cheater bar. I have used a 6' pipe before as a cheater. That 1/2" breaker bar is tough enough to break that nut loose without causing any damage to the tool or you.
mike481 is offline   Quote Quick Reply
Old 12-01-2012, 01:54 AM   #11
Jeeper

PDXJeeper's Avatar

Join Date: Oct 2012
Location: Beaverton, OR
Posts: 136
More leverage! An impact with lots of air volume is the easiest.
PDXJeeper is offline   Quote Quick Reply
Old 12-01-2012, 02:04 AM   #12
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,390
Images: 2
I haven't had factory unit bearing hubs in 10+ years but can't you just remove the bolts that that hold the unit bearing hub to the knuckle? And then pull it all out as one long assembly where you'll have access to the u-joint?

Though a good double anvil 1/2" impact wrench would make short work of that nut.
__________________
When you have a choice, buy American.

Jerry Bransford is offline   Quote Quick Reply
Old 12-01-2012, 05:55 AM   #13
Jeeper

Rubicondon53's Avatar

Join Date: Feb 2011
Location: pennsylvania
Posts: 1,588
no need

Quote:
Originally Posted by SupremeTeam View Post
I'm trying to change the Ujoint. The one on that side is slopping around. I tried using a pipe and I sprayed it today. I'm going to spray it for a day or two and I'm gonna try to have one of the trucks from work come by and use the more powerful air compressors it has on it. My air is just a small weak tank.
No need to get that off to replace your u joints, three bolts and it all comes out/off as a unit.
__________________
04' Rubi, with all the gizmos we need for long range excursions, / home modified excursion trailer;

96' Lexus 450, locked, loaded and ready to roll..
'12 VW New Beetle
Rubicondon53 is offline   Quote Quick Reply
Old 12-01-2012, 08:15 AM   #14
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,702
Quote:
Originally Posted by SupremeTeam View Post
I'm trying to change the Ujoint. The one on that side is slopping around. I tried using a pipe and I sprayed it today. I'm going to spray it for a day or two and I'm gonna try to have one of the trucks from work come by and use the more powerful air compressors it has on it. My air is just a small weak tank.
That's what I was worried about. You don't need to remove that in order to change the U joint.
__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is offline   Quote Quick Reply
Old 12-01-2012, 08:21 AM   #15
Jeeper

Patrick H's Avatar

Join Date: Nov 2011
Location: Northern NM
Posts: 3,135
Sure, you can just pull the hubb assy. from the knuckle, but then you have a whole hubb assy. hanging on the end of the stub shaft when you try to put U-joints in it.
Maybe I shouldn't talk, because I've never replaced axle U-joints with a hub assembly hanging off the end, but it doesn't sound like the easiest way.
Patrick H is offline   Quote Quick Reply
Old 12-01-2012, 09:23 AM   #16
Jeeper

Johnnymoto's Avatar

Join Date: Oct 2012
Posts: 377
Try "Mouse Milk" brand loosening oil. That stuff is what we use on Aviation to remove stuck nuts and bolts. The trick on this stuff is patience. Wet the threads ( carefully, this stuff is very light and will run off all over the place ) and wait a couple of days to let it penetrate, and put a bit more on the threads every day to keep them wet. You will not believe your eyes when totally rusted threads and nuts come off so easily. You can get this stuff ( also Corrosion -X protectant ) on any Aviation store.
Johnnymoto is offline   Quote Quick Reply
Old 12-01-2012, 10:42 AM   #17
Jeeper

Join Date: Nov 2012
Location: Geneseo, NY
Posts: 212
I see you live in the Northeast like I do. I personally would get it off now, because when that hub goes your going to wish you had... Clean it and use white lithium grease on everything...
Horn5413 is offline   Quote Quick Reply
Old 12-01-2012, 11:10 AM   #18
Jeeper

SupremeTeam's Avatar

Join Date: Feb 2011
Location: Boston, MA
Posts: 106
This morning I got one of the construction trucks at work and got that nut off in 2 mins. The trucks all run high pressure blowers, jack hammers and sand blasters so the compressors on them put out some serious PSI. I see that is what I need to get in my garage.

What do you think is a nice powerful amount of pressure to have? I need to find a new one.
__________________
********************
2003 Inca Gold Rubicon - Factory for Now
2000 Harley F150 (Gone)
2007 BMW 650
1967 Lincoln Continetal
& some bikes
SupremeTeam is offline   Quote Quick Reply
Old 12-01-2012, 11:12 AM   #19
Jeeper

SupremeTeam's Avatar

Join Date: Feb 2011
Location: Boston, MA
Posts: 106
Quote:
Originally Posted by Horn5413 View Post
I see you live in the Northeast like I do. I personally would get it off now, because when that hub goes your going to wish you had... Clean it and use white lithium grease on everything...
I'm cleaning and using never seize on everything as I go but I don't think I have that white lithium grease, I'm gonna have to put that on my list for today.
__________________
********************
2003 Inca Gold Rubicon - Factory for Now
2000 Harley F150 (Gone)
2007 BMW 650
1967 Lincoln Continetal
& some bikes
SupremeTeam is offline   Quote Quick Reply
Old 12-01-2012, 11:14 AM   #20
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,390
Images: 2
I use antiseize on several parts of my TJ like the tie-rod end threads, wheel stud threads, t-case mounting bolt threads, etc. but I can't think of any part of the hub assembly where I'd reach for my can of white lithium grease.
__________________
When you have a choice, buy American.

Jerry Bransford is offline   Quote Quick Reply
Old 12-01-2012, 11:19 AM   #21
Jeeper

SupremeTeam's Avatar

Join Date: Feb 2011
Location: Boston, MA
Posts: 106
Quote:
Originally Posted by mike481 View Post
Like the others have said, you need a bigger cheater bar. I have used a 6' pipe before as a cheater. That 1/2" breaker bar is tough enough to break that nut loose without causing any damage to the tool or you.
I used the pipe from my old floor jack which was about 4 feet long on the end of that breaker bar and it got me no where. I don't know if it was all the stuff I sprayed on there yesterday or the big compressor I used today but it came off. I think it had more to do with the way the impact gun works compared to the guns attached to me.
__________________
********************
2003 Inca Gold Rubicon - Factory for Now
2000 Harley F150 (Gone)
2007 BMW 650
1967 Lincoln Continetal
& some bikes
SupremeTeam is offline   Quote Quick Reply
Old 12-01-2012, 11:20 AM   #22
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,390
Images: 2
Quote:
Originally Posted by SupremeTeam View Post
I think it had more to do with the way the impact gun works compared to the guns attached to me.
I can related to that.
__________________
When you have a choice, buy American.

Jerry Bransford is offline   Quote Quick Reply
Old 12-01-2012, 11:22 AM   #23
Jeeper

SupremeTeam's Avatar

Join Date: Feb 2011
Location: Boston, MA
Posts: 106
Quote:
Originally Posted by Jerry Bransford View Post
I use antiseize on several parts of my TJ like the tie-rod end threads, wheel stud threads, t-case mounting bolt threads, etc. but I can't think of any part of the hub assembly where I'd reach for my can of white lithium grease.
Okay I don't have any so I will get some to have, I like to have a well stocked garage. Maybe he was talking about greasing the Ujoints with the lithium?
__________________
********************
2003 Inca Gold Rubicon - Factory for Now
2000 Harley F150 (Gone)
2007 BMW 650
1967 Lincoln Continetal
& some bikes
SupremeTeam is offline   Quote Quick Reply
Old 12-01-2012, 11:37 AM   #24
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,390
Images: 2
Quote:
Originally Posted by SupremeTeam View Post
Maybe he was talking about greasing the Ujoints with the lithium?
I hope not.
__________________
When you have a choice, buy American.

Jerry Bransford is offline   Quote Quick Reply
Old 12-01-2012, 11:55 AM   #25
Jeeper

SupremeTeam's Avatar

Join Date: Feb 2011
Location: Boston, MA
Posts: 106
Quote:
Originally Posted by Jerry Bransford View Post
I haven't had factory unit bearing hubs in 10+ years but can't you just remove the bolts that that hold the unit bearing hub to the knuckle? And then pull it all out as one long assembly where you'll have access to the u-joint?

Though a good double anvil 1/2" impact wrench would make short work of that nut.
What tool and size take off these 3 bolts?



__________________
********************
2003 Inca Gold Rubicon - Factory for Now
2000 Harley F150 (Gone)
2007 BMW 650
1967 Lincoln Continetal
& some bikes
SupremeTeam is offline   Quote Quick Reply
Old 12-01-2012, 11:58 AM   #26
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,390
Images: 2
Use a 12-pt 13mm to get those off. But before even trying to remove them, you need to use some form of penetrant on them like Break-Free, Kroil, Liquid Wrench, or PB-Blaster. Spray it on several times over several hours to give it a chance to work its way into the threads so it can work on them. No, WD-40 is not a suitable substitute for any of those products... WD-40 simply does not work nearly well enough for that purpose.

Edit:

http://www.stu-offroad.com/axle/d30/axle-2.htm

http://www.stu-offroad.com/axle/unit...tbearing-1.htm
__________________
When you have a choice, buy American.

Jerry Bransford is offline   Quote Quick Reply
Old 12-01-2012, 12:09 PM   #27
Jeeper

SupremeTeam's Avatar

Join Date: Feb 2011
Location: Boston, MA
Posts: 106
Quote:
Originally Posted by Jerry Bransford View Post
Use a 12-pt 13mm to get those off. But before even trying to remove them, you need to use some form of penetrant on them like Break-Free, Kroil, Liquid Wrench, or PB-Blaster. Spray it on several times over several hours to give it a chance to work its way into the threads so it can work on them. No, WD-40 is not a suitable substitute for any of those products... WD-40 simply does not work nearly well enough for that purpose.


Edit:

D-30 Axle Shaft Removal - 2

Unit Bearing - 1
I sprayed them right after the picture with PB and liquid wrench. Are you talking about a regular 12 point socket and doesn't a Jeep use the American sizes instead of a 13 mm? I'm heading to the mall so if there is another set that I need from Sears I can grab it before I try to take this off. I want to use the right tool for the job, within reason.
__________________
********************
2003 Inca Gold Rubicon - Factory for Now
2000 Harley F150 (Gone)
2007 BMW 650
1967 Lincoln Continetal
& some bikes
SupremeTeam is offline   Quote Quick Reply
Old 12-01-2012, 12:09 PM   #28
Jeeper

Join Date: Nov 2012
Location: Geneseo, NY
Posts: 212
Quote:
Originally Posted by SupremeTeam View Post
I'm cleaning and using never seize on everything as I go but I don't think I have that white lithium grease, I'm gonna have to put that on my list for today.
NOOO!! Do not use Never seize!!! We have a saying " If you want it to seize use never seize ".... Never Seize has metal particals in it... Like I said, you live in the northeast.. steel+aluminum particals " any metal partical"+ road salt= Bad words when working next time....
Horn5413 is offline   Quote Quick Reply
Old 12-01-2012, 12:17 PM   #29
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,390
Images: 2
Quote:
Originally Posted by SupremeTeam View Post
I sprayed them right after the picture with PB and liquid wrench. Are you talking about a regular 12 point socket and doesn't a Jeep use the American sizes instead of a 13 mm? I'm heading to the mall so if there is another set that I need from Sears I can grab it before I try to take this off. I want to use the right tool for the job, within reason.
The 12-pt. 13mm socket I suggested is what you want. And to be sure, your TJ uses probably half metric and half SAE size fasteners. If you don't already own a set of metric tools, you might as well pick up a set of them in addition to the SAE size tools you probably already have.
__________________
When you have a choice, buy American.

Jerry Bransford is offline   Quote Quick Reply
Old 12-01-2012, 12:20 PM   #30
Jeeper

SupremeTeam's Avatar

Join Date: Feb 2011
Location: Boston, MA
Posts: 106
Quote:
Originally Posted by Jerry Bransford View Post
The 12-pt. 13mm socket I suggested is what you want. And to be sure, your TJ uses probably half metric and half SAE size fasteners. If you don't already own a set of metric tools, you might as well pick up a set of them in addition to the SAE size tools you probably already have.

Okay learn something new everyday. I do have metric for the rice rockets I work on. Thanks much!

__________________
********************
2003 Inca Gold Rubicon - Factory for Now
2000 Harley F150 (Gone)
2007 BMW 650
1967 Lincoln Continetal
& some bikes
SupremeTeam is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




Download our Mobile App

» Featured Product

All times are GMT -5. The time now is 02:00 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
