Old 10-13-2012, 08:33 PM   #1
Jeeper

Texas2070's Avatar

Join Date: Mar 2012
Location: Starlight, IN
Posts: 162
NP 231 explosion!

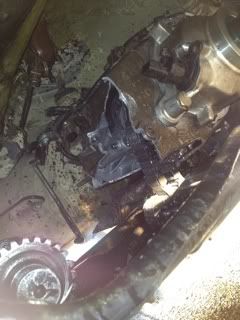

So I was driving up the highway when I heard a oldd roaring sound (louder the wheels) when the transfer case suddenly exploded. Parts flew everywhere when I checked it it was blown oh half. Installed an sye 3 days ago so I'm sure it was something I did. Any one have any thoughts to why this happened.

Texas2070 is offline   Quote Quick Reply
Old 10-13-2012, 09:29 PM   #2
Sponsoring Vendor

WF Supporting Member

Black Magic Brakes's Avatar

Join Date: May 2011
Posts: 1,868
Quote:
Originally Posted by Texas2070 View Post
So I was driving up the highway when I heard a oldd roaring sound (louder the wheels) when the transfer case suddenly exploded. Parts flew everywhere when I checked it it was blown oh half. Installed an sye 3 days ago so I'm sure it was something I did. Any one have any thoughts to why this happened.
Unless you forgot to fill it back up with ATF, the most likely cause was the front CV died, froze up and then blew the side off the transfer case when it locked up. Happens pretty often when the CV maintenance is ignored.

__________________
I am Savvy, I am the brake Wizard.
http://blackmagicbrakes.com
Black Magic Brakes is offline   Quote Quick Reply
Old 10-13-2012, 10:09 PM   #3
Jeeper

Join Date: Oct 2012
Location: lake of the ozarks
Posts: 100
this may be a dunb question but what do i need to do to maintain my front cv i dont wat this to happen to me.
boltz is offline   Quote Quick Reply
Old 10-14-2012, 07:00 AM   #4
Jeeper

Texas2070's Avatar

Join Date: Mar 2012
Location: Starlight, IN
Posts: 162
That's exactly what it was then. It was squeeking like crazy and I was going to put a new one on this weekend but I had work.... Just my luck. Oh well. All she needs is some elbow grease.

One more question. When the transfer case exploded it pinched my fuel line. Is there a safe way to spread them back out or should I get new ones.
Texas2070 is offline   Quote Quick Reply
Old 10-14-2012, 08:31 AM   #5
Jeeper

jrussblues's Avatar

Join Date: Apr 2011
Location: se la
Posts: 3,066
Get new ones. You don't want to risk a gas leak.
__________________
06 LJ
78? CJ-7
jrussblues is offline   Quote Quick Reply
Old 10-14-2012, 09:27 AM   #6
Sponsoring Vendor

WF Supporting Member

Black Magic Brakes's Avatar

Join Date: May 2011
Posts: 1,868
Quote:
Originally Posted by boltz View Post
this may be a dunb question but what do i need to do to maintain my front cv i dont wat this to happen to me.
This is likely the wrong board to say this on, but turn the stereo down or off and listen to your rig when you drive it. It will let you know when things are going bad and need to be addressed.

Rarely to the point of almost never does the front CV joint start to fail without a lot of squeaking and chirping to let you know.

You can rebuild the centering ball with greaseable parts and stay on top of the maintenance. Cheap insurance over replacing a t-case.
__________________
I am Savvy, I am the brake Wizard.
http://blackmagicbrakes.com
Black Magic Brakes is offline   Quote Quick Reply
Old 10-14-2012, 09:30 AM   #7
Sponsoring Vendor

WF Supporting Member

Black Magic Brakes's Avatar

Join Date: May 2011
Posts: 1,868
Quote:
Originally Posted by Texas2070 View Post
That's exactly what it was then. It was squeeking like crazy and I was going to put a new one on this weekend but I had work.... Just my luck. Oh well. All she needs is some elbow grease.

One more question. When the transfer case exploded it pinched my fuel line. Is there a safe way to spread them back out or should I get new ones.
Depends on your budget and time constraints. If you have the money and time, replace it. If you don't, you can carefully cut the pinched section out and repair it with a stainless steel compression fitting or union, zinc plated steel will work as well. Avoid copper and brass.

I do lots of fuel system work and use compression fittings quite often to adapt to soft line when I relocate fuel tanks. I've never had an issue with them. It is a very low pressure system, so the repair is pretty easy.
__________________
I am Savvy, I am the brake Wizard.
http://blackmagicbrakes.com
Black Magic Brakes is offline   Quote Quick Reply
Old 10-26-2012, 09:54 PM   #8
Jeeper

The Ugly Jeep's Avatar

Join Date: Mar 2010
Location: Mountain Top, PA
Posts: 280
Wouldn't it need to be in 4 wheel drive for the cv to cause this? In 2wd the front output shaft should be disengaged. ????
__________________
97 Wrangler - 4 Angry Hamsters; 2 1/2 " Rough Country Suspension, 33x12.5x15 Firestone Destination MT's.
2011 JK "Mojave".
2012 MW3 Rubicon
Recognize the same mistakes, every time you make them !
The Ugly Jeep is offline   Quote Quick Reply
Old 10-26-2012, 10:30 PM   #9
Jeeper

Wheelerbob's Avatar

Join Date: Feb 2009
Location: Middle river, Md
Posts: 563
Quote:
Originally Posted by The Ugly Jeep View Post
Wouldn't it need to be in 4 wheel drive for the cv to cause this? In 2wd the front output shaft should be disengaged. ????
Nope, the front driveshaft turns all the time. It is disconnected inside the transfer case but still turns all the time because it is connected to the front axle. The front axle in a TJ does not dissconnect from the driveshaft.
__________________
13 2dr bright white Ruby
Poison spyder hood louver
2.5" teraflex BB
Teraflex axle mount rear track bar bracket
315/75/16 Fierce Attitudes MT on 16x8.5 Level 8 ZX
Sleeved and gusseted
Wheelerbob is offline   Quote Quick Reply
Old 10-27-2012, 09:47 AM   #10
Jeeper

The Ugly Jeep's Avatar

Join Date: Mar 2010
Location: Mountain Top, PA
Posts: 280
I agree with that but if the tcase yoke freewheels until it is shifted into 4wd, wouldnt something in the case of had to bind ?
__________________
97 Wrangler - 4 Angry Hamsters; 2 1/2 " Rough Country Suspension, 33x12.5x15 Firestone Destination MT's.
2011 JK "Mojave".
2012 MW3 Rubicon
Recognize the same mistakes, every time you make them !
The Ugly Jeep is offline   Quote Quick Reply
Old 10-27-2012, 10:52 AM   #11
Jeeper

Join Date: Nov 2011
Location: Calgary, Alberta
Posts: 204
Quote:
Originally Posted by The Ugly Jeep View Post
I agree with that but if the tcase yoke freewheels until it is shifted into 4wd, wouldnt something in the case of had to bind ?

The transfercase can be working 100% perfect but when the DC joint seizes, it can rip it in half just like the pic.

Vince
Vinman is offline   Quote Quick Reply
Old 10-27-2012, 09:54 PM   #12
Jeeper

AtcoTrailsINC's Avatar

Join Date: Feb 2010
Location: Camden County NJ
Posts: 442
Send a message via AIM to AtcoTrailsINC
this makes me happy that i didnt put my cv rebuild off for another day lol mine was chirping like crazyy
__________________
2000 wrangler sport. 4.0 3 speed auto. DD
AtcoTrailsINC is offline   Quote Quick Reply
Old 10-30-2012, 12:10 PM   #13
Jeeper

Texas2070's Avatar

Join Date: Mar 2012
Location: Starlight, IN
Posts: 162
I should upload some pictures of the drive shaft and what it did. The things ruined! The jeep is healing though.
Texas2070 is offline   Quote Quick Reply
Old 02-22-2013, 06:01 PM   #14
Newb

Join Date: Apr 2010
Posts: 2
I regrettably join this thread! Happened last night. I did notice some squeaking in the past 3 or 4 days but it was't very loud and only happened at speeds under 20 or so. It'll be the last time I put something like that off! I'm getting a used t-case next week and im also looking for a front drive shaft. the splines on the front end look like they got scraped up maybe when they hit the pavement. Anyway, I have to also fix a brake line and the speedo wiring so far that I can tell. I'll also pick up a service manual, wanted one anyway. I do have some good help with this project, but what Im wondering most is what other additional things might I likely need or run into while doing this? Nothing is ever simple, I know.

vballvoodoo is offline   Quote Quick Reply
