Question About Wheel and Tires Fitment

Ok so I have a 1998 Wrangler with the 2.5l. I have stock Grizzly wheels and 31x10.50 tires. They rub a little bit on the frame when I make a sharp turn. I was wondering, if I got a new set of wheels with different backspacing would that cure the rubbing issue? If so, what backspacing would I need?

Helmsy is offline   Quote Quick Reply
Old 02-08-2012, 03:24 PM   #2
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Also my Jeep is white so I'm thinking of black wheels....Opinions?

Helmsy is offline   Quote Quick Reply
Old 02-08-2012, 03:28 PM   #3
IITYWTMWYBMAB

WF Supporting Member
::WF Administrator::

4Jeepn's Avatar

Join Date: Apr 2005
Location: Florence, KY
Posts: 9,454
Images: 5
I would go with a 15x8 rim with 3.75 back spacing. This will also allow you to run a 12.50 wide tire down the road if you want.
__________________
79.96.85.00.01.97.00.97.93.97.95.94
CJ.XJ.CJ. TJ. TJ.ZJ. TJ.TJ. ZJ.ZJ.YJ. XJ
4Jeepn is offline   Quote Quick Reply
Old 02-08-2012, 03:30 PM   #4
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Quote:
Originally Posted by 4Jeepn View Post
I would go with a 15x8 rim with 3.75 back spacing. This will also allow you to run a 12.50 wide tire down the road if you want.
Ok awesome. With 3.75 back spacing the tire will be stuck out farther. Correct?
__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-08-2012, 03:32 PM   #5
Upside-down Disorder

InvertChaos's Avatar

Join Date: Sep 2010
Location: NoVa
Posts: 7,878
Quote:
Originally Posted by Helmsy

Ok awesome. With 3.75 back spacing the tire will be stuck out farther. Correct?
Correct
__________________
|2004 Jeep TJ "Green Machine"|4.0L 5 speed Dana44|33x12.50x15 Goodyear Duratracs|2.5" RC coils + 1.25" body lift|OME NitroSport shocks|4.56 gears|Skid Row Engine Skid|BCC Sliders|Currie AntiRock|
InvertChaos is offline   Quote Quick Reply
Old 02-08-2012, 03:37 PM   #6
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Quote:
Originally Posted by InvertChaos View Post
Correct
What is the stock backspacing....Just curious
__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-08-2012, 04:00 PM   #7
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 29,205
Images: 2
Quote:
Originally Posted by Helmsy View Post
Ok so I have a 1998 Wrangler with the 2.5l. I have stock Grizzly wheels and 31x10.50 tires. They rub a little bit on the frame when I make a sharp turn.
It takes two five cent washers and ten minutes to fix that. Go to Jeep Steer Stop Adjustment

Wheel backspacing is the distance between the rear-most edge of the wheel and the wheel's mounting surface. The yellow tape measure in the below photo is measuring how much backspacing the wheel has. The more backspacing a wheel has, the further into the wheel well the wheel is positioned.
Attached Thumbnails
Click image for larger version

Name:	Wheelbackspacing.jpg
Views:	41
Size:	44.2 KB
ID:	95910
__________________
When you have a choice, buy American.

Jerry Bransford is online now   Quote Quick Reply
Old 02-08-2012, 04:18 PM   #8
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Quote:
Originally Posted by Jerry Bransford View Post
It takes two five cent washers and ten minutes to fix that. Go to Jeep Steer Stop Adjustment

Wheel backspacing is the distance between the rear-most edge of the wheel and the wheel's mounting surface. The yellow tape measure in the below photo is measuring how much backspacing the wheel has. The more backspacing a wheel has, the further into the wheel well the wheel is positioned.
Thanks!! I'll do that soon (and probably still get new wheels)
__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-08-2012, 04:22 PM   #9
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 29,205
Images: 2
Quote:
Originally Posted by Helmsy View Post
Thanks!! I'll do that soon (and probably still get new wheels)
You won't need those washers with new aftermarket wheels.
__________________
When you have a choice, buy American.

Jerry Bransford is online now   Quote Quick Reply
Old 02-08-2012, 04:24 PM   #10
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Quote:
Originally Posted by Jerry Bransford View Post
You won't need those washers with new aftermarket wheels.
Yea but that'll let me wait till summer at least to keep the salt off of them for one winter.
__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-09-2012, 10:16 AM   #11
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Im thinking of these wheels. 15x8 with 3.5 back spacing....what do ya think

__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-09-2012, 10:29 AM   #12
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 29,205
Images: 2
Your wheels will stick out unnecessarily far with only 3.5" of BS. The minimum I'd run is 3.75" with 4" being even better.
__________________
When you have a choice, buy American.

Jerry Bransford is online now   Quote Quick Reply
Old 02-09-2012, 10:35 AM   #13
Jeeper

WF Supporting Member

B.B.'s Avatar

Join Date: Oct 2011
Location: Lakeland, FL
Posts: 167
Quote:
Originally Posted by Helmsy View Post
Im thinking of these wheels. 15x8 with 3.5 back spacing....what do ya think

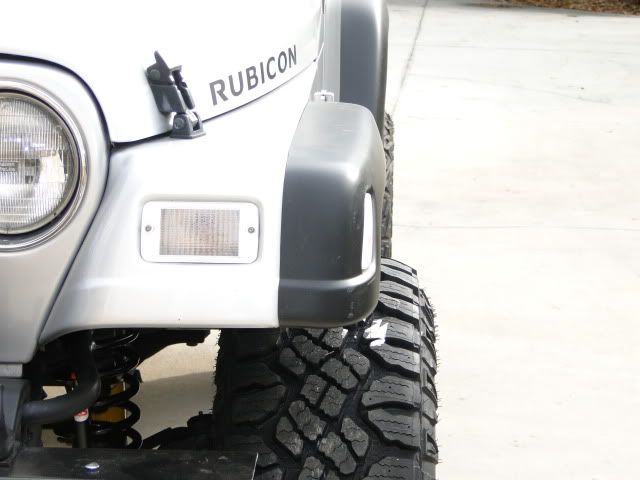

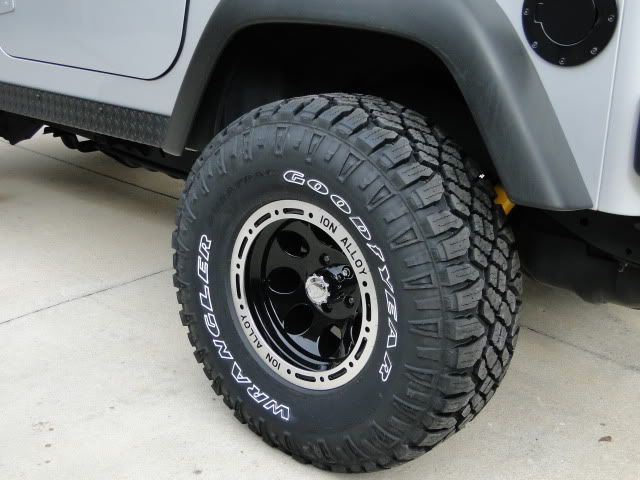

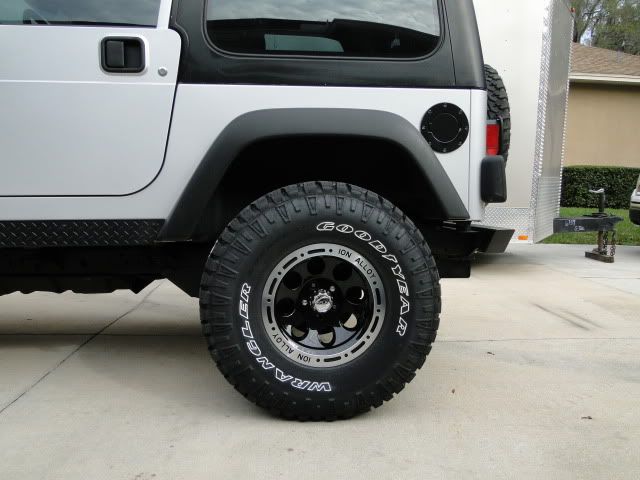

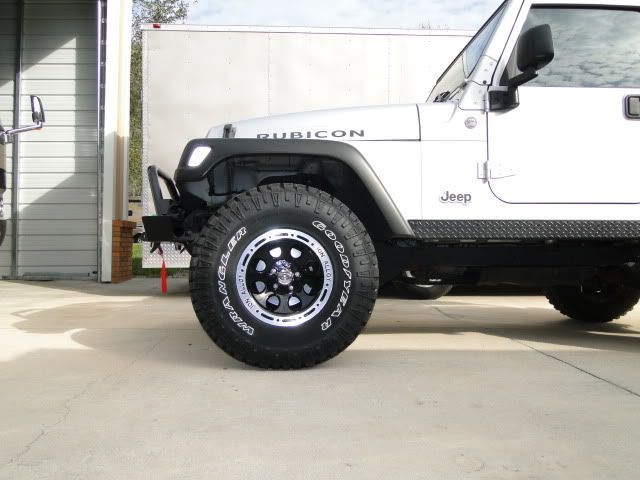

I have them with 33 12.50 15 DuraTracs Rating C and they fit OK. I wish they were 3.75 or 4.0 BS instead of 3.5 BS, but they are fine !! Pricing on this wheel has been substantially lowered since Ion came out with new designs..........tough to beat.
.
.
.

.
.
.

.
.
.

.
.
.

.
.
.

.
.
.

.
.
.
__________________


'06 TJ Rubi Bright Silver Auto .....A KEEPER !!!
B.B. is offline   Quote Quick Reply
Old 02-09-2012, 11:28 AM   #14
Jeeper

Join Date: Jan 2012
Location: Mendota Heights, MN
Posts: 100
So, is the above photo "Ion Alloy 174 Black Beadlock Wheel (15x8"/5x114.3mm)" is that you have? Is that the correct size for a TJ (5 x 4.5") I find them on Amazon for only $110 and that includes shipping. I see it is only a 3.5" backspacing - but a 1" spacer would resolve that.
Zinger is offline   Quote Quick Reply
Old 02-09-2012, 11:41 AM   #15
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 29,205
Images: 2
Quote:
Originally Posted by Zinger View Post
I see it is only a 3.5" backspacing - but a 1" spacer would resolve that.
Adding a 1" spacer would give that wheel with 3.5" of backspacing the equivilent of 2.5" of backspacing. A spacer positions the wheel further out of the wheel well, not further in.
__________________
When you have a choice, buy American.

Jerry Bransford is online now   Quote Quick Reply
Old 02-09-2012, 11:48 AM   #16
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Quote:
Originally Posted by Jerry Bransford
Your wheels will stick out unnecessarily far with only 3.5" of BS. The minimum I'd run is 3.75" with 4" being even better.
Would 4 inch back spacing be enough to not rub. Because I would rather them not stick out as much as possible if that makes sense.
__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-09-2012, 11:50 AM   #17
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 29,205
Images: 2
Quote:
Originally Posted by Helmsy View Post
Would 4 inch back spacing be enough to not rub. Because I would rather them not stick out as much as possible if that makes sense.
4" of backspacing would be fine, anything between that and 5" would work fine for your 31x10.50 tires.
__________________
When you have a choice, buy American.

Jerry Bransford is online now   Quote Quick Reply
Old 02-09-2012, 11:50 AM   #18
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Quote:
Originally Posted by B.B.

I have them with 33 12.50 15 DuraTracs Rating C and they fit OK. I wish they were 3.75 or 4.0 BS instead of 3.5 BS, but they are fine !! Pricing on this wheel has been substantially lowered since Ion came out with new designs..........tough to beat.
Nice jeep man. Those wheels look really good. I might just pull the trigger. They're only like 89.99 a piece from quadratec.
__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-09-2012, 11:53 AM   #19
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Quote:
Originally Posted by Jerry Bransford
4" of backspacing would be fine, anything between that and 5" would work fine for your 31x10.50 tires.
Thanks. You've been a great help. I'll look around and see what I can find and update you guys.
__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-09-2012, 04:32 PM   #20
Jeeper

WF Supporting Member

B.B.'s Avatar

Join Date: Oct 2011
Location: Lakeland, FL
Posts: 167
helmsy,
you can get free shipping by going to google and type in "174-5865B quadtratec", then click on the "shopping" option, then click the link that pops up and you will see free shipping when you add it to your cart......
__________________


'06 TJ Rubi Bright Silver Auto .....A KEEPER !!!
B.B. is offline   Quote Quick Reply
Old 02-09-2012, 05:23 PM   #21
Jeeper

Join Date: Jan 2012
Location: Mendota Heights, MN
Posts: 100
B.B. you mean - "174-5865B quadratec" right?
Zinger is offline   Quote Quick Reply
Old 02-09-2012, 06:32 PM   #22
Jeeper

WF Supporting Member

B.B.'s Avatar

Join Date: Oct 2011
Location: Lakeland, FL
Posts: 167
That's right zinger... Spelling was never my specialty !!
__________________


'06 TJ Rubi Bright Silver Auto .....A KEEPER !!!
B.B. is offline   Quote Quick Reply
Old 02-09-2012, 08:11 PM   #23
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Quote:
Originally Posted by B.B. View Post
helmsy,
you can get free shipping by going to google and type in "174-5865B quadtratec", then click on the "shopping" option, then click the link that pops up and you will see free shipping when you add it to your cart......
awesome..Thanks man!
__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-09-2012, 08:12 PM   #24
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Other than the tires sticking out farther than really necessary are there any ill effects to having 3.5 inch backspacing?
__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-09-2012, 09:06 PM   #25
Jeeper

WF Supporting Member

B.B.'s Avatar

Join Date: Oct 2011
Location: Lakeland, FL
Posts: 167
It is only 1/2" difference; Mostly unnoticed in the scheme of things. Some say it is harder on the bearings, whereas harder is an ambiguous term. In doing the B10 bearing life calculations, which I have actually done, the extra load of increasing the moment-arm by 1/2" is truly insignificant. The biggest negative to me is throwing mud all over the side of the Jeep !!
__________________


'06 TJ Rubi Bright Silver Auto .....A KEEPER !!!
B.B. is offline   Quote Quick Reply
Old 02-09-2012, 09:39 PM   #26
Jeeper

Helmsy's Avatar

Join Date: Feb 2011
Location: Southeast Ohio
Posts: 239
Quote:
Originally Posted by B.B. View Post
It is only 1/2" difference; Mostly unnoticed in the scheme of things. Some say it is harder on the bearings, whereas harder is an ambiguous term. In doing the B10 bearing life calculations, which I have actually done, the extra load of increasing the moment-arm by 1/2" is truly insignificant. The biggest negative to me is throwing mud all over the side of the Jeep !!
Awesome explanation and I actually understood it (thank you college physics).I was mostly concerned about it being harder on the bearings and that is exactly what I wanted to hear.
I don't think I can wait till spring like I was planning to...I'm ordering them next week...
__________________
1998 Jeep Wrangler SE
1997 Chevy Silverado
2005 Harley Davidson 1200 Sportster
Helmsy is offline   Quote Quick Reply
Old 02-09-2012, 09:58 PM   #27
Jeeper

Join Date: Jan 2012
Location: Mendota Heights, MN
Posts: 100
Hey B. B. - Thanks for the insight on the Great Pricing and Free Shipping! I'm going for it!
Zinger is offline   Quote Quick Reply
Old 02-11-2012, 03:40 PM   #28
Jeeper

WF Supporting Member

B.B.'s Avatar

Join Date: Oct 2011
Location: Lakeland, FL
Posts: 167
you will love them zinger........now I need to sell my MT/R's Kevlar 245/75/16 about 6k miles on them....almost new!
__________________


'06 TJ Rubi Bright Silver Auto .....A KEEPER !!!
B.B. is offline   Quote Quick Reply
Old 02-11-2012, 04:09 PM   #29
Jeeper

monkeee2002's Avatar

Join Date: May 2010
Location: Western Idaho
Posts: 1,468
Quote:
Originally Posted by B.B. View Post
helmsy,
you can get free shipping by going to google and type in "174-5865B quadtratec", then click on the "shopping" option, then click the link that pops up and you will see free shipping when you add it to your cart......

That's an awesome little trick there! Thanks, B.B. !
__________________
" ... Nobody said it was a good plan. It's like somebody went through an actual strategy and replaced every instance of the word 'tactical' with 'balls out.' ... "

monkeee2002 is offline   Quote Quick Reply
Old 02-12-2012, 04:38 PM   #30
Jeeper

WF Supporting Member

B.B.'s Avatar

Join Date: Oct 2011
Location: Lakeland, FL
Posts: 167
Just a little caveat...........It works for any online shipping vendor. The trick is to use the OEM part number then the vendor you wish to purchase from. You cannot use the vendor number, it has to be the manufactures number. The flaw in the program is after you choose just one item and put it in your cart, you can add anything else from the vendors website and the shipping will remain free for all items..........if you buy a light bulb from QT for $1.99, then add a $1000.00, 500 pound bumper, the shipping is still free.....

__________________


'06 TJ Rubi Bright Silver Auto .....A KEEPER !!!
B.B. is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
JK Wheels & Rims JohnNeedsYourHelp Tires & Wheels 14 02-20-2012 04:07 PM
255/75R/17 - question about tire and wheel sizing tbradnc Tires & Wheels 3 10-16-2011 11:05 AM
Tires rotated now steering wheel wobbles. Wolffdood JK General Discussion Forum 5 08-04-2011 04:15 PM
2012 Black Wrangler Sahara 18" Wheel Question Husker4theSpurs JK General Discussion Forum 8 06-17-2011 10:19 AM
Stock Wheel, Large Tires Question mfbobby YJ General Discussion Forum 4 04-08-2011 10:21 AM



» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 02:51 PM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
