Replacing the dash lights

Most of my dashboard light bulbs are out and I want to replace them with LED blue light bulbs.
But here's my problem:
1) I don't no how many bulbs are back there, and there sizes? Can anyone help with this?
2) how do I get to them?
Thanks in advance.

97'wrangler is offline   Quote Quick Reply
Old 08-12-2010, 09:49 AM   #2
Jeeper

davis_use's Avatar

Join Date: Mar 2010
Location: The Woodlands, TX
Posts: 68
Images: 1
There are 5...You have to remove the gauge cluster unit from the dash to get to them, it's not that hard, though. Pull the center defroster trim from the dash and start unscrewing the parts. You'll also have to remove the panel below the steering wheel to remove the lower screws if I recall right.
One caution is that the LED lights are polarity-specific. If you plug one in and it doesn't work, pull it and flip it around and reinstall, should work then.

__________________
(0lllllll0) Wanna Ride Topless?
davis_use is offline   Quote Quick Reply
Old 08-12-2010, 09:55 AM   #3
Jeeper

Join Date: Mar 2010
Location: Connecticut
Posts: 449
Quote:
Originally Posted by davis_use
There are 5...You have to remove the gauge cluster unit from the dash to get to them, it's not that hard, though. Pull the center defroster trim from the dash and start unscrewing the parts. You'll also have to remove the panel below the steering wheel to remove the lower screws if I recall right.
One caution is that the LED lights are polarity-specific. If you plug one in and it doesn't work, pull it and flip it around and reinstall, should work then.
Are all 5 the same size?
97'wrangler is offline   Quote Quick Reply
Old 11-22-2010, 11:54 PM   #4
Newb

Join Date: Nov 2010
Posts: 2
That is correct all the same size. Another bit of info I found out was that the exact stock bulbs are almost impossible to find, however a 194 bulb is a good replacement bulb for the stock socket. i ran to every auto parts store in town to find this out.
Moto-Man064 is offline   Quote Quick Reply
Old 11-27-2010, 06:19 PM   #5
Jeeper

Jeepchic70's Avatar

Join Date: Nov 2010
Location: Austin, TX
Posts: 196
Send a message via Yahoo to Jeepchic70
Been reading these forums for a while and finally decided to join. Y'all have inspired me to replace my dash lights with LED as well but I am going with red. I ordered the Matrix II from Autolumination Instrument Panel Light Bulbs & Lamps) I've already gotten the Daytona dash overlay in place so I'm just waiting on the bulbs to arrive and install. I'll post pics when I get it done.
Jeepchic70 is offline   Quote Quick Reply
Old 11-27-2010, 06:42 PM   #6
Jeeper

Hendy's Avatar

Join Date: Oct 2008
Location: Fort Eustis, Virginia
Posts: 372
Those Matrix II bulbs are suhweet!!! I am going to order 5 of them too, I just have to decide on a color or maybe I will go with a two color combination.
__________________
Chris

2002 TJ, 3" RCD coil springs, 1" body lift, 32" BFG AT KO's, 15X10 Cragar Soft 8's, Rocky Mount Discos, Skyjacker Nitro 8000's, new Rugged Ridge soft top (VERY LOUD!!!!). PowerAid throttle body spacer, AIRAID CAI, DYNOMAX Super Turbo CATBACK.

Rocking the country music through a Sony Xplod head unit (iPod/iPhone compatible) 300W Dual amp, 10" Pioneer sub in the back.


http://img1.jurko.net/10183.gif
Hendy is offline   Quote Quick Reply
Old 11-27-2010, 09:53 PM   #7
Creepy Crawler

WF Supporting Member

BLK00TJ's Avatar

Join Date: Nov 2010
Posts: 3,194
Quote:
Originally Posted by Jeepchic70 View Post
Been reading these forums for a while and finally decided to join. Y'all have inspired me to replace my dash lights with LED as well but I am going with red. I ordered the Matrix II from Autolumination Instrument Panel Light Bulbs & Lamps) I've already gotten the Daytona dash overlay in place so I'm just waiting on the bulbs to arrive and install. I'll post pics when I get it done.
I want to do red too so I can't wait to see these pictures. I've seen a lot of mods with the blue, but no TJs with red. I'm also wanting to add red LEDs under the dash and under to bench seat in back but controllable with a switch.
BLK00TJ is offline   Quote Quick Reply
Old 11-28-2010, 09:55 AM   #8
Jeeper

Jeepchic70's Avatar

Join Date: Nov 2010
Location: Austin, TX
Posts: 196
Send a message via Yahoo to Jeepchic70
I have an '05 Wrangler X Rocky Mountain Edition. It's red and I did buy both red and white bulbs because I installed the US Speedo Gauge Faces Color Overlay (2005 Jeep Wrangler Custom Color Gauge Overlay, Color Gauge Faces, Gauge Face) Because it's an overlay, it was pretty dark with the stock bulbs underneath. I took the blue covers off the bulbs and that made it better but not bright. I bought white bulbs but I was afraid that the red overlay with white bulbs would make my dash appear pink. There is NO pink in my womanly but not girly world and that would have made me VERY unhappy! I bought the red bulbs just in case because I don't want to go ballistic if I see a pink instrument panel at night.
Jeepchic70 is offline   Quote Quick Reply
Old 11-28-2010, 10:50 AM   #9
Jeeper

Join Date: Oct 2010
Posts: 108
Post some pictures.
Mike750 is offline   Quote Quick Reply
Old 11-29-2010, 09:11 AM   #10
Jeeper

Jeepchic70's Avatar

Join Date: Nov 2010
Location: Austin, TX
Posts: 196
Send a message via Yahoo to Jeepchic70
I promise to post pics as soon as it's done. Right now my instrument panel is in pieces waiting for the bulbs. I should have some by the end of the week.
__________________
'05 Wrangler X Rocky Mountain Edition & '98 Sahara
---Pam (aka Jeepchic70)
Jeepchic70 is offline   Quote Quick Reply
Old 12-01-2010, 09:13 PM   #11
Jeeper

Jeepchic70's Avatar

Join Date: Nov 2010
Location: Austin, TX
Posts: 196
Send a message via Yahoo to Jeepchic70
Took off the US Speedo Daytona overlay. A total bummer even with five 5 bulb super bright white LED lights in the dash because I couldn't read the numbers on the speedometer at all. At least it wasn't pink but readable numbers would be good!
Now I am back to my original instrument panel but waiting on the red LED lights to see what they look like. I'm really hoping that looks as good as the blue ones I've seen pictures of!
__________________
'05 Wrangler X Rocky Mountain Edition & '98 Sahara
---Pam (aka Jeepchic70)
Jeepchic70 is offline   Quote Quick Reply
Old 12-01-2010, 09:52 PM   #12
Creepy Crawler

WF Supporting Member

BLK00TJ's Avatar

Join Date: Nov 2010
Posts: 3,194
That sucks. It sounds like you need a more directional LED than the ones you got.
BLK00TJ is offline   Quote Quick Reply
Old 12-01-2010, 09:58 PM   #13
Jeeper

meyers's Avatar

Join Date: Apr 2009
Location: Dover, New Hampshire
Posts: 738
When I was home and went from driving our 2010 dodge to driving the 2002 Jeep I couldn't believe how bad the dash lights are in just a few years. I was thinking of trying to upgrade, glad I saw this thread.

My only question is with the LED's in there are they still able to be controlled by the dimmer switch. I would imagine the load on the dimmer switch would be diffrent with conventional bulbs, just don't want the swap to cause any kind of electrical issues. Haven't had any since 2002 don't want to start now
meyers is offline   Quote Quick Reply
Old 12-02-2010, 08:25 AM   #14
Jeeper

Jeepchic70's Avatar

Join Date: Nov 2010
Location: Austin, TX
Posts: 196
Send a message via Yahoo to Jeepchic70
I can still dim the LED lights with the dimmer. I bought the super white Matrix II from Autolumination Instrument Panel Light Bulbs & Lamps)

The new bulbs fit nicely in the existing sockets with a little pinch of each of the 4 prongs inside the socket. Without doing that, they felt kind of loose in the socket. The bulbs are polarized so if you put it in and it doesn't work, take it out of the socket and turn it around.

I will post the pics as soon as I get the red bulbs in!
__________________
'05 Wrangler X Rocky Mountain Edition & '98 Sahara
---Pam (aka Jeepchic70)
Jeepchic70 is offline   Quote Quick Reply
Old 12-02-2010, 01:35 PM   #15
Jeeper

Jeepchic70's Avatar

Join Date: Nov 2010
Location: Austin, TX
Posts: 196
Send a message via Yahoo to Jeepchic70
Going to give another shot to the US Speedo Daytona overlay and hope I get it right this time. I really want that red face on my instrument panel!
__________________
'05 Wrangler X Rocky Mountain Edition & '98 Sahara
---Pam (aka Jeepchic70)
Jeepchic70 is offline   Quote Quick Reply
Old 12-02-2010, 09:39 PM   #16
Jeeper

Jeepchic70's Avatar

Join Date: Nov 2010
Location: Austin, TX
Posts: 196
Send a message via Yahoo to Jeepchic70

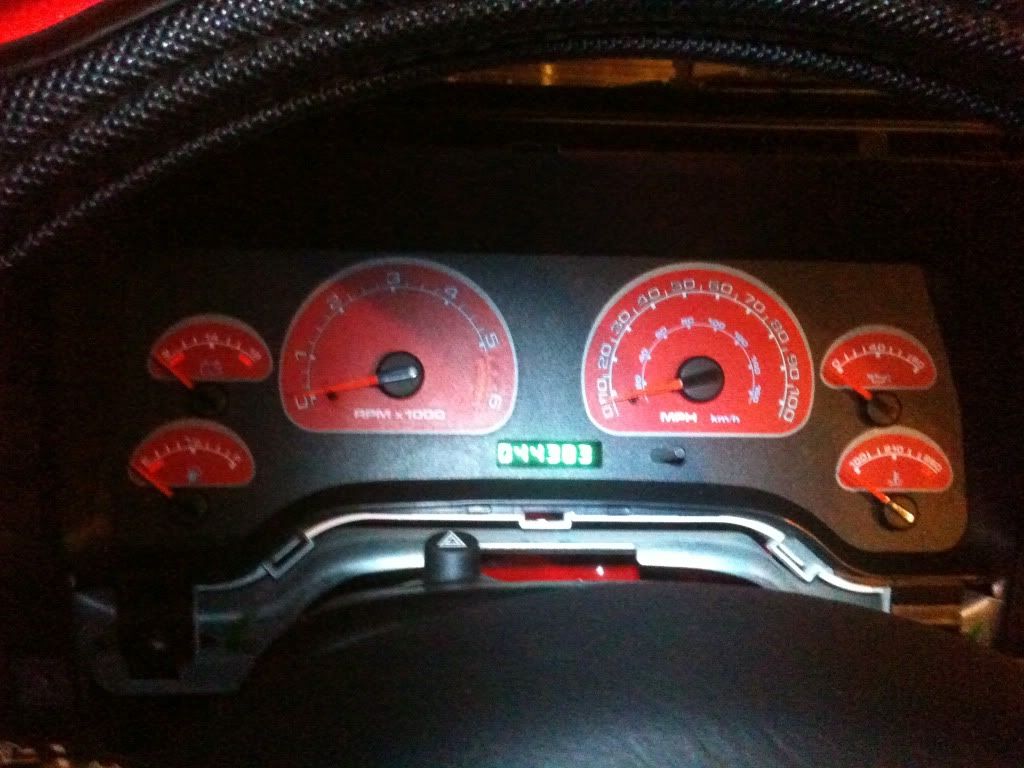

I got the overlay installed with the help of a guy from US Speedo! No red bulbs because the entire face of the instrument panel was replaced with the red one! Awesome looking, I think.
