swing out carrier rattles. Whatcha got?

OK, I just got my new Dirtworx swingout carrier put on, and did a quick run thru the desert.
When I started out, there were no rattles what-so-ever. But, after a very short time ( 1/2 mile or so) it started to rattle.
I hopped out, and found that the screw had come loose. I tightened it up, thinking maybe I forgot to tighten it down completely before I left.
Another 1/2 mile, and it starts rattling again.
Has anyone had problems with this, or have ideas on how to make it stop?
What does your swing-out have to latch it shut?

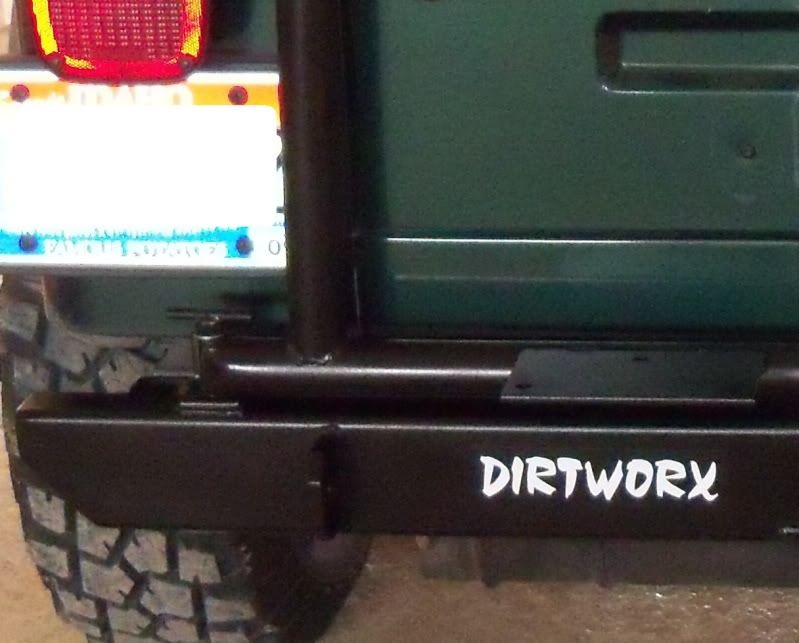

Here's how mine latches shut:

The only thing I can think of is
(A) use a lock washer, which will chew up the paint and allow rust
(B) drill out the threaded base, and use an old fashioned bolt and nut (which will probably need a lock washer also)

Any better ideas would be GREATLY appreciated!

__________________
" ... Nobody said it was a good plan. It's like somebody went through an actual strategy and replaced every instance of the word 'tactical' with 'balls out.' ... "

monkeee2002 is offline   Quote Quick Reply
Old 11-07-2010, 11:13 PM   #2
Jeeper

dbbd1's Avatar

Join Date: Sep 2008
Location: Oregon
Posts: 259
How about red loctite?

__________________
The opinions of worthless people, are worthless.

The only problem that you have with anyone in this world, is what you expect of them.

Society is no match for a stupid person.

"Life Is tough but it is tougher when you are stupid"

-John Wayne
dbbd1 is offline   Quote Quick Reply
Old 11-08-2010, 12:26 AM   #3
Jeeper

monkeee2002's Avatar

Join Date: May 2010
Location: Western Idaho
Posts: 1,468
I thought about loctite, and RTV silicone. Either one would have to be reapplied repeatedly. I'd like something with a little more longevity.
I have an insta-trunk, and use it fairly frequently.
__________________
" ... Nobody said it was a good plan. It's like somebody went through an actual strategy and replaced every instance of the word 'tactical' with 'balls out.' ... "

monkeee2002 is offline   Quote Quick Reply
Old 11-08-2010, 12:30 AM   #4
Jeeper

Ageless Stranger's Avatar

Join Date: Apr 2010
Posts: 26,792
Why would loctite have to be applied more than once? Especially red? You're not taking the bolt in and out are you?
Ageless Stranger is offline   Quote Quick Reply
Old 11-08-2010, 12:32 AM   #5
Jeeper

Ageless Stranger's Avatar

Join Date: Apr 2010
Posts: 26,792
Oh, wow. I see how it works now. I wouldn't use loctite on that either. You probably need to tighten it tighter is all. Maybe use a small cheater? I don't see how you could use a lock washer either, you'd be losing it all the time...
Ageless Stranger is offline   Quote Quick Reply
Old 11-08-2010, 12:43 AM   #6
Jeeper

monkeee2002's Avatar

Join Date: May 2010
Location: Western Idaho
Posts: 1,468
Yeah, now you see what I see, lol. Now I wish it had come with one of those cantilever latches that I see on other bumpers.
Perhaps if I use an eye-bolt, and hook a bungie to it & the center of the tire mount. It might not keep it super tight, but it would keep it from turning.
I'm going to hit the hardware store in the morning and pick up a few things, then hit the desert again for some good ol' trial and error testing I guess.
__________________
" ... Nobody said it was a good plan. It's like somebody went through an actual strategy and replaced every instance of the word 'tactical' with 'balls out.' ... "

monkeee2002 is offline   Quote Quick Reply
Old 11-08-2010, 12:52 AM   #7
Jeeper

Ageless Stranger's Avatar

Join Date: Apr 2010
Posts: 26,792
Sounds like a plan!
Ageless Stranger is offline   Quote Quick Reply
Old 11-08-2010, 01:49 AM   #8
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 33,111
Images: 2
Bumper mounted tire carriers are notorious for developing rattles, it takes a darned expensive version to hold that off so the rattling comes later rather than sooner. That's why I always recommend the ORF (Off-Road Fabricators) tire carrier because it doesn't rattle (period!) and it doesn't attach to the bumper.
__________________
When you have a choice, buy American.

Jerry Bransford is offline   Quote Quick Reply
Old 11-08-2010, 07:47 PM   #9
Member

Join Date: Oct 2009
Location: San Jose Calif.
Posts: 1,006
If I'm looking at the picture right you still should be able to use locktite on the threaded part and still allow the rest to pivot.
03 RUBI is offline   Quote Quick Reply
Old 11-08-2010, 11:25 PM   #10
Jeeper

parcours's Avatar

Join Date: May 2010
Posts: 53
I went with the Garvin Wilderness.

32" Tire, Axe, Shovel, 2 gas cans and a high lift.... No rattles.... Very well built.
parcours is offline   Quote Quick Reply
Old 11-09-2010, 10:35 AM   #11
Jeeper

alstjruby03's Avatar

Join Date: May 2009
Location: washington
Posts: 248
my tire carrier doesn't rattle but i need a crow bar to get it latched.
alstjruby03 is offline   Quote Quick Reply
Old 11-09-2010, 10:51 AM   #12
Hardcore Jeeper

Peepers's Avatar

Join Date: Oct 2010
Location: Windsor, CT
Posts: 3,320
I can't see the pictures at work, but would there be a way to attach some kind of rubber or other padding that would make the space where the arm rests smaller so it can't rattle or even so its not a metal on metal clash your hearing?
__________________
What have we got?
We have one heavily armed Recreational Vehicle


ΣΧ
The Power Tech 6
Peepers is offline   Quote Quick Reply
Old 11-09-2010, 12:09 PM   #13
Jeeper

monkeee2002's Avatar

Join Date: May 2010
Location: Western Idaho
Posts: 1,468
Quote:
Originally Posted by 03 RUBI View Post
If I'm looking at the picture right you still should be able to use locktite on the threaded part and still allow the rest to pivot.
I thought about that, but I'd have to reapply it every time I open it, which is frequently.

Quote:
Originally Posted by parcours View Post
I went with the Garvin Wilderness.

32" Tire, Axe, Shovel, 2 gas cans and a high lift.... No rattles.... Very well built.
Sounds great!
I just bought these bumpers though, and I'm not really wanting to toss them and start over. It also appears to be about $500 more than I paid.

Quote:
Originally Posted by Peepers View Post
I can't see the pictures at work, but would there be a way to attach some kind of rubber or other padding that would make the space where the arm rests smaller so it can't rattle or even so its not a metal on metal clash your hearing?
I hadn't thought of that. Do you think that would prevent the T-handle from unscrewing itself as well? My biggest worry at this point is to look in the mirror at some point and see my spare tire swinging in the breeze, lol!

I grabbed a few misc items to try to fix this, I just need some time to get onto a trail and test them out.
I plan on trying :
a rubber washer
a lock washer
a star washer
or any combination of these.


If all of this fails, I may have to resort to finding a way to bolt something like this on.
__________________
" ... Nobody said it was a good plan. It's like somebody went through an actual strategy and replaced every instance of the word 'tactical' with 'balls out.' ... "

monkeee2002 is offline   Quote Quick Reply
Old 11-09-2010, 01:11 PM   #14
Jeeper

AyokonaTJ's Avatar

Join Date: Aug 2010
Posts: 66
Quote:
Originally Posted by monkeee2002
If all of this fails, I may have to resort to finding a way to bolt something like this on.
Ok.., where do I find a latch like that?
AyokonaTJ is offline   Quote Quick Reply
Old 11-09-2010, 01:34 PM   #15
Jeeper

Join Date: Oct 2010
Posts: 386
If you find a latch like that I'd highly consider replacing the red lever with a beer tap
sure as heck looks like one
Phrankoff is offline   Quote Quick Reply
Old 11-09-2010, 01:59 PM   #16
Hardcore Jeeper

Peepers's Avatar

Join Date: Oct 2010
Location: Windsor, CT
Posts: 3,320
Amazon.com: 1/2 dia., 2.50 Grip Lg., T-Handle Quick Release Ball Lock Pins, Stainless Steel (1 Each): Industrial & Scientific: Reviews, Prices & more

Ball Lock Pins: Vlier-Lock Quick Release - T Handle

I'm not sure I'm picturing this right if a t-handle is unscrewing, but could you remove the threads from the hole and use something like this? I have a t-bar holding my tire swing closed and we drilled a small hole through it an use one of those pins on a trailer hitch pin to hold it in.
__________________
What have we got?
We have one heavily armed Recreational Vehicle


ΣΧ
The Power Tech 6
Peepers is offline   Quote Quick Reply
Old 11-09-2010, 02:24 PM   #17
Jeeper

burton160w's Avatar

Join Date: Oct 2009
Location: Underneath my TJ
Posts: 1,639
Why don't you shoot the guy you bought it from...

... an email explaining the problem. He might have a few solutions or even better might send you a replacement or repair it for you he does have after all a 100% rating and I'm sure he's not looking for any negatives.
__________________
It's got a Willy's body, a Chevy engine, Ford axles, GM transmission, and Dodge steering components... it must be a Wrangler.
burton160w is offline   Quote Quick Reply
Old 11-09-2010, 07:41 PM   #18
Member

Join Date: Oct 2009
Location: San Jose Calif.
Posts: 1,006
Sorry, didn't see the T handle set up. Guess mine was a worthless idea. My Tomken has something like the pic above and I've had no problems with it.
03 RUBI is offline   Quote Quick Reply
Old 11-09-2010, 07:52 PM   #19
Jeeper

monkeee2002's Avatar

Join Date: May 2010
Location: Western Idaho
Posts: 1,468
Quote:
Originally Posted by 03 RUBI View Post
Sorry, didn't see the T handle set up. Guess mine was a worthless idea.
I haven't seen a worthless idea yet. It's a good idea, and would probably work. I just don't want to reapply that alot.
The clamp I posted the image of can be found by googling 'de sta co'. There are several styles.
I'l shoot an email out to Robert. Of all the posts I've read about his bumpers, I seem to be his only customer with this problem.
I'm hoping to hit the trails tomorrow, so I can ty what I've got so far.

__________________
" ... Nobody said it was a good plan. It's like somebody went through an actual strategy and replaced every instance of the word 'tactical' with 'balls out.' ... "

monkeee2002 is offline   Quote Quick Reply
