Track bar bolt?

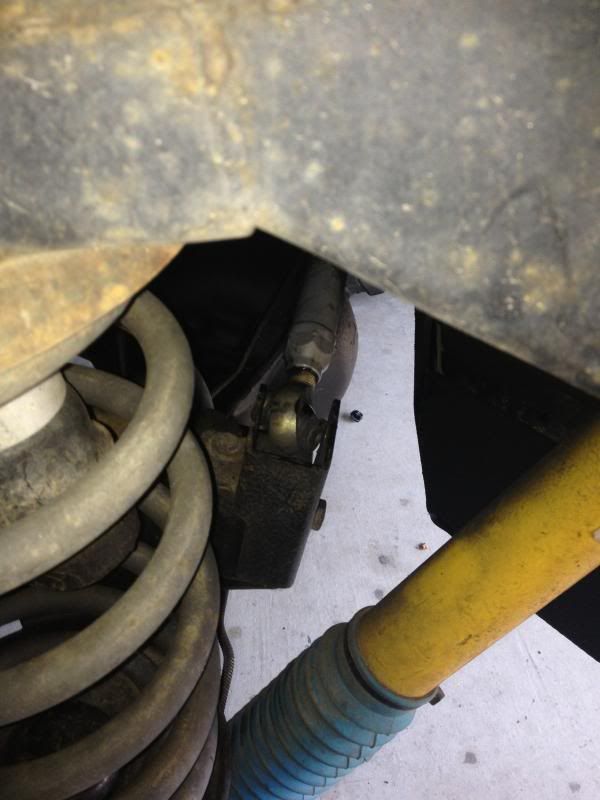

So I decided it was time to get into my Jeep. Got the front end lifted up so I could do an oil change and while the oil was draining. I decided to take a look around. Bought Sammie (my jeep) in August 2012 and I haven't really done anything to her. HIDs are the extent of my "upgrades". While I was walking around the Jeep, I came across this little guy:

Oh wait, don't see what I am talking about? Found it sitting just like this.

I haven't removed a bolt, screw or nut from the Jeep other than the rear seat and anything for the HIDs. Looked around the garage to see if it fell out but I couldn't find anything. Looks like I need to go to home depot and get a new bolt and nut.

Question though, with this not being installed for god only knows how long, what would that do? What would that not do? Basically, what should I look for here.....

__________________
"I used to drive 5 MPH over the speed limit. Hell, I used to drive the speed limit. Then I bought a TJ..."
BWolfE84 is offline   Quote Quick Reply
Old 05-10-2013, 06:58 PM   #2
Jeeper

Wattapunk's Avatar

Join Date: Mar 2012
Location: North TX
Posts: 1,976
Never thought you would have to lift a Jeep to do an oil change. The factory rear trackbar bolt size is M12x1.75x80. You will have better luck at Ace Hardware vs. HD.

Wattapunk is offline   Quote Quick Reply
Old 05-10-2013, 07:06 PM   #3
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 33,116
Images: 2
Make sure the metric bolt you buy is graded at either 10.9 minimum (which is fine) or the stronger 12.9 strength. A conventional bolt is not strong enough.
__________________
When you have a choice, buy American.

Jerry Bransford is offline   Quote Quick Reply
Old 05-10-2013, 07:17 PM   #4
Jeeper

BWolfE84's Avatar

Join Date: Jul 2012
Posts: 122
Quote:
Originally Posted by Wattapunk View Post
Never thought you would have to lift a Jeep to do an oil change. The factory rear trackbar bolt size is M12x1.75x80. You will have better luck at Ace Hardware vs. HD.
well the lift was to play. I wanted to inspect the ball joints and take a look at the rotors but I had to remove the tires. It also helps with a downward angle for draining the oil. First oil change since I owned the Jeep and let me tell you, that shit looked like dark chocolate!!!

Thanks for the info on Ace. I will have take your advice

Quote:
Originally Posted by Jerry Bransford View Post
Make sure the metric bolt you buy is graded at either 10.9 minimum (which is fine) or the stronger 12.9 strength. A conventional bolt is not strong enough.
Thanks for the info!!!
__________________
"I used to drive 5 MPH over the speed limit. Hell, I used to drive the speed limit. Then I bought a TJ..."
BWolfE84 is offline   Quote Quick Reply
Old 05-10-2013, 09:56 PM   #5
Jeeper

amiller's Avatar

Join Date: Jun 2012
Posts: 351
Yes, and drive something else to the hardware store. Dont drive the Jeep like that.
__________________
2005 TJ with a few goodies
amiller is offline   Quote Quick Reply
Old 05-10-2013, 10:15 PM   #6
Jeeper

BWolfE84's Avatar

Join Date: Jul 2012
Posts: 122
Hahaha. I know right. Scary thing is that I don't know how long that has been missing. Honestly, what is the problem? I mean obliviously I am missing a bolt but what does the track bar do?
__________________
"I used to drive 5 MPH over the speed limit. Hell, I used to drive the speed limit. Then I bought a TJ..."
BWolfE84 is offline   Quote Quick Reply
Old 05-10-2013, 10:21 PM   #7
Creepy Crawler

WF Supporting Member

BLK00TJ's Avatar

Join Date: Nov 2010
Posts: 3,194
Quote:
Originally Posted by BWolfE84 View Post
Hahaha. I know right. Scary thing is that I don't know how long that has been missing. Honestly, what is the problem? I mean obliviously I am missing a bolt but what does the track bar do?
It keeps your axles centered. Without it, your axle will float back and forth. Muy dangerous for the front, but can really mess up stuff in the rear (CAs, pinion bearing, etc).
__________________
Wheel. Break/Test. Repair/Upgrade. Repeat
BLK00TJ's YouTube Channel -- BLK00TJ's Build
BLK00TJ is offline   Quote Quick Reply
Old 05-11-2013, 01:47 AM   #8
Jeeper

BWolfE84's Avatar

Join Date: Jul 2012
Posts: 122
Ok sweet. Got a bolt and got it installed. Thanks everybody!

__________________
"I used to drive 5 MPH over the speed limit. Hell, I used to drive the speed limit. Then I bought a TJ..."
