Old 07-23-2012, 06:27 AM   #31
Jeeper

TnDz TJ's Avatar

Join Date: Apr 2011
Location: Reno, NV
Posts: 2,925
Images: 220
Quote:
Originally Posted by Imped View Post
Don't forget the Novak cable shifter.

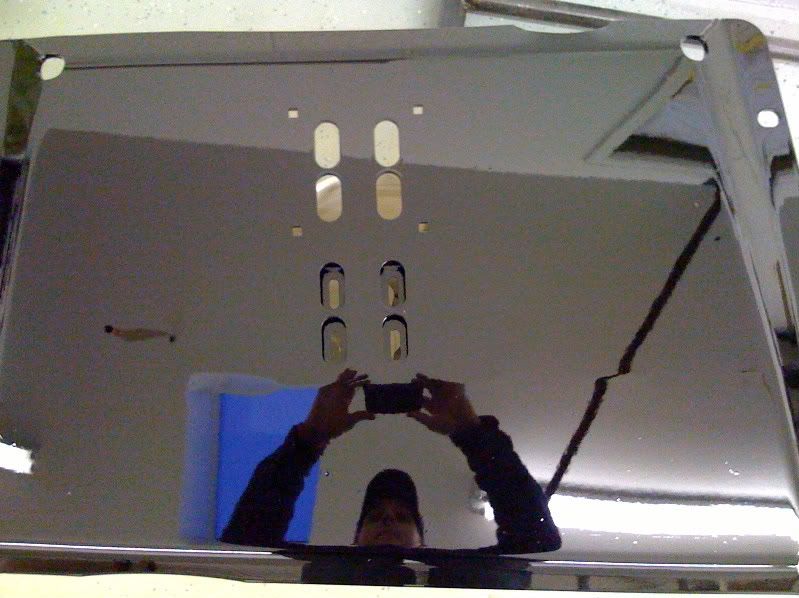

Can't beat a flat belly:

I have seen a lot of mentioning of the Novak cable shifter... why? I really don't get it.... is the linkage that far out of wack that it's needed?


Quote:
Originally Posted by Coasttrash View Post
TnDz keep us posted on your UCF install I have basically the same setup you do. I plan on getting UCF just would like to know the ease of the install and such.
Don't I always? LOL!!!!!

I will do a small writeup I guess..... with a video... maybe....

__________________
~Todd~ 2004 X 4.0 5 speed---SOLD
4" Lift, 4.56's, 33" Duratracs on M/T Classics
RR SYE, Tatton CV, MML, BL, TT, Dynomax Exhaust
Hella Lighting: Driving, Fogs and H4 E-Codes
NOPE! ... and NEVER will be...
TnDz TJ is offline   Quote Quick Reply
Old 07-23-2012, 07:50 AM   #32
Jeeper

Join Date: Aug 2010
Location: NW burbs IL
Posts: 1,075
Quote:
Originally Posted by MarkNog View Post
Get a big piece of 1/4" steel and bolt it up... thats basically my plan down the road a lil ways.
I made my TT for about 50 bucks and some time on the drill press and welder, Its not completely flat my x-member hangs down 2" but my trans is flat with the bottom of the frame, I'm very happy with it. Plus I should never break it, I built it for the strength of full size stuff... a couple pics for ya... the x-member is 1/4" wall 2x3 rectangle with a poly mount and the tabs that it bolts to off the frame are 3/8" angle I will be skinning it with plate when the build is done.


__________________
My Low Budget LCG Build
97flexy is offline   Quote Quick Reply
Old 07-23-2012, 08:29 AM   #33
Jeeper

Imped's Avatar

Join Date: Jan 2011
Location: Indy
Posts: 3,273
Quote:
Originally Posted by TnDz TJ View Post
I have seen a lot of mentioning of the Novak cable shifter... why? I really don't get it.... is the linkage that far out of wack that it's needed?
Ummm....yeah. The stock linkage is attached to both the tub and the transfer case. What happens when you change the relationship of those two items? The already messy, overly complex Z-linkage becomes torqued and binds. The more you change the relationship--ie, the higher the t-case is to the tub--the more upset the linkage becomes. The Novak shifter is one simple cable that doesn't rely on the tub's position at all. Simple, smooth, and very effective.
Quote:
Originally Posted by 97flexy View Post
I made my TT for about 50 bucks and some time on the drill press and welder, Its not completely flat my x-member hangs down 2" but my trans is flat with the bottom of the frame, I'm very happy with it. Plus I should never break it, I built it for the strength of full size stuff... a couple pics for ya... the x-member is 1/4" wall 2x3 rectangle with a poly mount and the tabs that it bolts to off the frame are 3/8" angle I will be skinning it with plate when the build is done.
All I see is a crossmember and, no offense, but a rudimentary one at that. That offers minimal protection and while the drivetrain is higher, you've still got a bulging edge to get caught up on. Tucking as high as possible doesn't matter one bit when you don't have a smooth surface.

Flat + protection + smooth
__________________
Daily Driver Rock Rig
IndyORV
Imped is offline   Quote Quick Reply
Old 07-23-2012, 11:44 AM   #34
Jeeper

TnDz TJ's Avatar

Join Date: Apr 2011
Location: Reno, NV
Posts: 2,925
Images: 220
I see your point with the binding. I will pay close attention to the linkage before and after the install and if I can manipulate the linkage to smooth out the actuation. I hope I can with little effort
__________________
~Todd~ 2004 X 4.0 5 speed---SOLD
4" Lift, 4.56's, 33" Duratracs on M/T Classics
RR SYE, Tatton CV, MML, BL, TT, Dynomax Exhaust
Hella Lighting: Driving, Fogs and H4 E-Codes
NOPE! ... and NEVER will be...
TnDz TJ is offline   Quote Quick Reply
Old 07-23-2012, 12:04 PM   #35
Jeeper

IslandTJ's Avatar

Join Date: Mar 2008
Location: where I wheel: N 45║ 36.663' W 123║ 20.935'
Posts: 2,695


HOT DAMN !
__________________
1998 TJ Moss Green Sahara w/ numerous scratches & dents whose playground is on a tropical island that's 33 miles long and 4-12 miles wide, in year-round 82 degree weather

Edit: "Now jeepin in Oregon"
IslandTJ is offline   Quote Quick Reply
Old 07-23-2012, 12:06 PM   #36
Jeeper

Imped's Avatar

Join Date: Jan 2011
Location: Indy
Posts: 3,273
Just view it this way.....

Look at the stock orientation--no body lift, stock skid, no t-case drop--as 'ideal.' Look at anything that moves the tub away from the t-case--body lift, t-case drop--as a "+". Now look at something that moves the t-case closer to the tub--a higher clearance skid--as a "-". The linkage doesn't work very well past its neutral, stock state. If you just throw a 1" body lift on, you'll be able to adjust it to work OK. If you add a t-case drop to that equation, it'll be tougher and you'll feel exactly what I'm talking about because they're now being 'pulled' apart by two opposing items (one lowers the t-case, one raises the tub).

Now look at the opposite scenario--a 1" body lift with a skid that raises the t-case, say, 2" over stock. You're now dealing with the tub and t-case being approx. 1" closer together than stock, which can work out OK. Now take a flat skid coupled with a low profile trans mount, like mine, that raises the t-case about 3.5" over stock. Coupled with my 1" body lift, the tub and t-case are about +2.5" closer together than stock, smooshing the stock linkage together. I was able to make it work but after awhile I got tired of it being so stiff. Additionally, the terrible design bothered me to the point that I just didn't want that junk on there anymore. The Novak cable is so much more elegant, simple, and low profile. If you're of the "if it's worth doing, then it's worth doing right" camp, then you'll add that to the list.
__________________
Daily Driver Rock Rig
IndyORV
Imped is offline   Quote Quick Reply
Old 07-23-2012, 12:20 PM   #37
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,391
Quote:
Originally Posted by Imped View Post
1" body lift with a skid that raises the t-case, say, 2" over stock. You're now dealing with the tub and t-case being approx. 1" closer together than stock, which can work out OK.
this is basically what I run, and I like it...just wish it was aluminum. It would tuck higher, but not by much because of the fat 42RLE pan.

UnlimitedLJ04 is online now   Quote Quick Reply
Old 07-23-2012, 12:26 PM   #38
Jeeper

Jeep_guy3's Avatar

Join Date: Aug 2011
Location: Lincoln County, OR
Posts: 259
X2 on the Novak. When I got my jeep it had a BL lift and a tcase drop, I couldn't get it into 4lo due to the binding. After reading some of the reviews on the Novak, I went ahead and ordered it before I spent the money on a sye even though I knew I was gonna ditch the tcase drop and be back to a better geometry with the linkage... No question one of the best purchases I've made, it is smooth as silk to shift. I did my sye and didnt have to make any adjustments to it and I have the ability to do a tummy tuck in the future and if it needs adjusting it is as easy as loosening a jam nut to allow more/less cable pull.
__________________
My JEEP helped win a war, your HONDA cuts my grass!
Jeep_guy3 is offline   Quote Quick Reply
Old 07-23-2012, 01:28 PM   #39
Jeeper

Join Date: May 2010
Posts: 2,221
Quote:
Originally Posted by TnDz TJ View Post
I have seen a lot of mentioning of the Novak cable shifter... why? I really don't get it.... is the linkage that far out of wack that it's needed?
Get a little more experience with things before making that decision.
geiman is offline   Quote Quick Reply
Old 07-23-2012, 01:54 PM   #40
Jeeper

TnDz TJ's Avatar

Join Date: Apr 2011
Location: Reno, NV
Posts: 2,925
Images: 220
Oh yeah. Not gonna jump in and buy right away. I wanna see how bad it really is an might just need a tweak here and there
__________________
~Todd~ 2004 X 4.0 5 speed---SOLD
4" Lift, 4.56's, 33" Duratracs on M/T Classics
RR SYE, Tatton CV, MML, BL, TT, Dynomax Exhaust
Hella Lighting: Driving, Fogs and H4 E-Codes
NOPE! ... and NEVER will be...
TnDz TJ is offline   Quote Quick Reply
Old 07-23-2012, 03:04 PM   #41
Jeeper

2003x's Avatar

Join Date: Mar 2011
Location: Boston, MA
Posts: 964
Quote:
Originally Posted by TnDz TJ
Oh yeah. Not gonna jump in and buy right away. I wanna see how bad it really is an might just need a tweak here and there
You will more then not need it. I tried skating by but it didnt work, 4wd was all bound up.
__________________
HP D30, Ford 8.8, 4.88s, 4" RC Long Arm, 1" BL, 35" Toyo MT's.
My Build
http://www.jeepforum.com/forum/f22/2...-build-944608/
2003x is offline   Quote Quick Reply
Old 07-24-2012, 11:07 AM   #42
Jeeper

Join Date: Aug 2010
Location: NW burbs IL
Posts: 1,075
Imped- I don't think you read it right but I said I would be skinning the bottom of the jeep when I'm done that x-member is not my skid plate. just a crossmember. once I'm done with my skid plate it may not be flat with my frame rails but i will slide over anything and th bottom of my jeep will be smooth.
__________________
My Low Budget LCG Build
97flexy is offline   Quote Quick Reply
Old 07-24-2012, 11:38 AM   #43
Jeeper

Imped's Avatar

Join Date: Jan 2011
Location: Indy
Posts: 3,273
Quote:
Originally Posted by 97flexy View Post
Imped- I don't think you read it right but I said I would be skinning the bottom of the jeep when I'm done that x-member is not my skid plate. just a crossmember. once I'm done with my skid plate it may not be flat with my frame rails but i will slide over anything and th bottom of my jeep will be smooth.
Clearly I missed that. But I think you could have got that xmember tucked up nicely between the frame rails....actually I know you could have. Before going further, you may want to look into redesigning that.
__________________
Daily Driver Rock Rig
IndyORV
Imped is offline   Quote Quick Reply
Old 07-24-2012, 11:40 PM   #44
Jeeper

rbkelley89's Avatar

Join Date: Jun 2012
Posts: 155
Quote:
Originally Posted by Imped View Post
Don't forget the Novak cable shifter.

Can't beat a flat belly:

oh yeah thats what im looking for. What sye should i look into they are a few different options. the super short by jb looks like what i want so the angle isnt too drastic
rbkelley89 is offline   Quote Quick Reply
Old 07-25-2012, 07:47 AM   #45
Jeeper

Imped's Avatar

Join Date: Jan 2011
Location: Indy
Posts: 3,273
JB SS is as good as you can get.
__________________
Daily Driver Rock Rig
IndyORV
Imped is offline   Quote Quick Reply
Old 07-29-2012, 12:44 AM   #46
Jeeper

rbkelley89's Avatar

Join Date: Jun 2012
Posts: 155
So when u adjust the control arms to change pinion angle. Do u rotate the axle changing the spring and shock alignment?
__________________
2001 orange tj 2.5L (113,000) 35" Km2 Black rims, lp d30 front and d35 with lock rear
1"BD MML, 1.25" BL, 4" RC Lift, Flat tc Skid, Adj rear ca's (front soon) TW rear DS, Novak shifter cable, JB ss SYE, RE angled rear trackbar, 8,000Lb Mile marker, Custom front and rear (w/swing) bumpers. Homemade CAI. Lots more to come.
rbkelley89 is offline   Quote Quick Reply
Old 07-29-2012, 02:53 AM   #47
Jeeper

Derp's Avatar

Join Date: Jul 2012
Location: Huntington Beach CA
Posts: 583
Quote:
Originally Posted by MarkNog

Get a big piece of 1/4" steel and bolt it up... thats basically my plan down the road a lil ways.
You're better off with aluminum :o
Derp is offline   Quote Quick Reply
Old 07-29-2012, 08:11 AM   #48
Jeeper

2003x's Avatar

Join Date: Mar 2011
Location: Boston, MA
Posts: 964
Quote:
Originally Posted by Derp

You're better off with aluminum :o
I have the UCF steel version, its heavy but solid. If I had the extra money I may have gone aluminum.
__________________
HP D30, Ford 8.8, 4.88s, 4" RC Long Arm, 1" BL, 35" Toyo MT's.
My Build
http://www.jeepforum.com/forum/f22/2...-build-944608/
2003x is offline   Quote Quick Reply
Old 07-29-2012, 09:05 AM   #49
Jeeper

TnDz TJ's Avatar

Join Date: Apr 2011
Location: Reno, NV
Posts: 2,925
Images: 220
I also got the steel version... should be here Friday....
__________________
~Todd~ 2004 X 4.0 5 speed---SOLD
4" Lift, 4.56's, 33" Duratracs on M/T Classics
RR SYE, Tatton CV, MML, BL, TT, Dynomax Exhaust
Hella Lighting: Driving, Fogs and H4 E-Codes
NOPE! ... and NEVER will be...
TnDz TJ is offline   Quote Quick Reply
Old 07-29-2012, 11:38 AM   #50
Jeeper

2003x's Avatar

Join Date: Mar 2011
Location: Boston, MA
Posts: 964
Quote:
Originally Posted by TnDz TJ
I also got the steel version... should be here Friday....
You will like it alot.
__________________
HP D30, Ford 8.8, 4.88s, 4" RC Long Arm, 1" BL, 35" Toyo MT's.
My Build
http://www.jeepforum.com/forum/f22/2...-build-944608/
2003x is offline   Quote Quick Reply
Old 07-29-2012, 12:16 PM   #51
Moderator

WF Supporting Member
::WF Moderator::

doclouie's Avatar

Join Date: Feb 2010
Location: Was in the mountains, now in Texas
Posts: 3,679
Images: 4
Quote:
Originally Posted by rbkelley89
So when u adjust the control arms to change pinion angle. Do u rotate the axle changing the spring and shock alignment?
Yes you do. That is why you need an adjustable track bar or a new track bar bracket and shock relocation brackets to do it right.
__________________
2000 Sahara, 3.5" Rubicon Express Lift, 1" spring spacer & 1" Body Lift, 33" or 35" BFG Mud tires, Front & Rear ARB, Rancho 9000 shocks, UCF Ultra High Belly Up

doclouie is offline   Quote Quick Reply
Old 07-29-2012, 12:41 PM   #52
Jeeper

TnDz TJ's Avatar

Join Date: Apr 2011
Location: Reno, NV
Posts: 2,925
Images: 220
Quote:
Originally Posted by 2003x View Post
You will like it alot.
The wait-time is KILLING me!!!! Now it's worse.... THANKS ALOT!!!!!
__________________
~Todd~ 2004 X 4.0 5 speed---SOLD
4" Lift, 4.56's, 33" Duratracs on M/T Classics
RR SYE, Tatton CV, MML, BL, TT, Dynomax Exhaust
Hella Lighting: Driving, Fogs and H4 E-Codes
NOPE! ... and NEVER will be...
TnDz TJ is offline   Quote Quick Reply
Old 07-29-2012, 01:21 PM   #53
Jeeper

rbkelley89's Avatar

Join Date: Jun 2012
Posts: 155
Rokmen Control arms Upper and lower $300 Each
Rokmen HD-Lower Control Arms
Rokmen HD-Rear Upper Control Arms

or
Savvy upper and lower $290-$300 Each
TJ/LJ REAR UPPER JOHNNY JOINT« CONTROL ARMS
TJ/LJ/XJ/MJ FRONT LOWER OR TJ/LJ REAR LOWER JJ CONTROL ARMS

A ? on the control arms. Are these what i am looking for and does anyone have any deals going on or know of cheaper ones?

Novak $170
Novak's 231 & 242 Cable Shifter Kit

UCF Mount and skid - Ultra high clearance early model $270
Under Cover Fabworks, LLC - '97-'02 TJ Transfer Case Skid (Ultra High-Clearance)(Carbon Steel)

A ? on the UCF does the ultra high provide more clearance than the deep clearance. and since i have a 2" body lift and a 1" mm lift do i not need the lo pro mount because of the automatic tranny and all the early model differences.

Brown dog 1" MM lift ultra flex rubber $110
CU2883-1K4 Jeep 2.5L, 2.4L Wrangler TJ & LJ 1" MML, Ultra-Flex Rubber

teraflex ss SYe $250
| TeraFlex Suspensions
or
JB COnversions short shaft sye $300
JB Conversions, Inc.
or
RR ss sye $150 Community deal

Drive shaft Tom woods $300
Tom Wood's Custom Drive Shafts - Tom Woods Custom Drive Shafts Custom Driveshafts Specialist

Teraflex rear adj track bar $220
| TeraFlex Suspensions

How does this list look and what am i missing? Does anyone know how i can save some money on this? high $2000+ low $1550 not included CA tax and shipping
rbkelley89 is offline   Quote Quick Reply
Old 07-29-2012, 01:41 PM   #54
Moderator

WF Supporting Member
::WF Moderator::

doclouie's Avatar

Join Date: Feb 2010
Location: Was in the mountains, now in Texas
Posts: 3,679
Images: 4
I want to say Savvy has a 10% off coupon JF10 if I remember correctly. You also can get their aluminum upper arms for like $30 cheaper, but yes those are good. I just put UCF Ultra High skid on last week and it works well with even a 1" BL. I also bought my Novak cable through Savvy as they were the cost of everyone else so I wanted to give my business to them.

I met Tom Wood and he sells both JB conversion SYE and Teraflex SYE. He said he would use either one and did not prefer one over the other. Those are the only two brands he sells. If you buy both at the same time I am pretty sure there is a discount. I have the Teraflex SYE and it was an easy smooth install while it was in the Jeep. I also have Tom's drive shaft which of course is nice. One thing you could do to save a little money would be to use a Track bar bracket rather than an adjustable track bar. To do a tuck properly this is what you will need:

Rear adjustable control arms (Home Made on my lathe and mill) $300
Novak shift cable $170
Tummy tuck skid $300
New 1/2" bolts and washers for the skid $5
Track bar bracket for CV drive shaft or an adjustable track bar $35
Shock relocator brackets $35
1" or larger body lift if using the UCF Ultra High Skid $100
SYE $250
CV drive shaft $275
Some cutting and fabing of the cat bracket

Overall it will cost around $1500 to do it properly.
__________________
2000 Sahara, 3.5" Rubicon Express Lift, 1" spring spacer & 1" Body Lift, 33" or 35" BFG Mud tires, Front & Rear ARB, Rancho 9000 shocks, UCF Ultra High Belly Up

doclouie is offline   Quote Quick Reply
Old 07-29-2012, 02:11 PM   #55
Jeeper

TnDz TJ's Avatar

Join Date: Apr 2011
Location: Reno, NV
Posts: 2,925
Images: 220
I look at the cost of just doing the TT and I am SOOOOOO glad I have done everything beforehand..

I added my 1" MML last year to relieve driveline angle with my 2" BB.
Installed my 4" lift with 8 adj. CA's in April '12'
Installed my SYE, CV shaft and rear angled track bar braket same time as lift.
Added my 1.25" BL in June '12'

All I needed was the skid from UCF and hopefully just a linkage adjustment to tackle the potential bind... if not... I will be getting the Novak cable setup.
__________________
~Todd~ 2004 X 4.0 5 speed---SOLD
4" Lift, 4.56's, 33" Duratracs on M/T Classics
RR SYE, Tatton CV, MML, BL, TT, Dynomax Exhaust
Hella Lighting: Driving, Fogs and H4 E-Codes
NOPE! ... and NEVER will be...
TnDz TJ is offline   Quote Quick Reply
Old 07-29-2012, 02:18 PM   #56
Jeeper

LilYeller's Avatar

Join Date: Apr 2011
Location: South Florida U.S.A
Posts: 2,590
Yea but it still sucks to see it all lumped up in one cost tho lol. Im in the process of axle swap, regear and lockers and theres no way to break up that cost sadly. This I will have to take my time and add small things at a time so I can keep it under the radar.
__________________

Random Guy: "Is there anywhere that thing cant go?"
Me: "Yea, past a gas station..."

Build thread: My Lil' Yeller Jeep, Paracord Grab handles ~ how to make your own
Keep on Jeepin on!
LilYeller is offline   Quote Quick Reply
Old 07-29-2012, 02:26 PM   #57
Jeeper

TnDz TJ's Avatar

Join Date: Apr 2011
Location: Reno, NV
Posts: 2,925
Images: 220
I hear ya..... I collected parts for 7 months before doing anything... worst 7 months of my life with my TJ...
__________________
~Todd~ 2004 X 4.0 5 speed---SOLD
4" Lift, 4.56's, 33" Duratracs on M/T Classics
RR SYE, Tatton CV, MML, BL, TT, Dynomax Exhaust
Hella Lighting: Driving, Fogs and H4 E-Codes
NOPE! ... and NEVER will be...
TnDz TJ is offline   Quote Quick Reply
Old 07-29-2012, 07:27 PM   #58
Jeeper

2003x's Avatar

Join Date: Mar 2011
Location: Boston, MA
Posts: 964
Quote:
Originally Posted by doclouie View Post
Overall it will cost around $1500 to do it properly.
It is costly. I did it over a period of seven years, building her slowly. The thing is, once you change one thing, you have to change something else to compensate for the new part lol.
__________________
HP D30, Ford 8.8, 4.88s, 4" RC Long Arm, 1" BL, 35" Toyo MT's.
My Build
http://www.jeepforum.com/forum/f22/2...-build-944608/
2003x is offline   Quote Quick Reply
Old 07-29-2012, 07:34 PM   #59
Jeeper

2003x's Avatar

Join Date: Mar 2011
Location: Boston, MA
Posts: 964
Some pics of my UCF Skid, Lo Pro Mount, Novak Cable shifter;
__________________
HP D30, Ford 8.8, 4.88s, 4" RC Long Arm, 1" BL, 35" Toyo MT's.
My Build
http://www.jeepforum.com/forum/f22/2...-build-944608/
2003x is offline   Quote Quick Reply
Old 07-29-2012, 11:26 PM   #60
Jeeper

solman's Avatar

Join Date: Apr 2010
Location: Southern PA
Posts: 1,670
I love my UCF transfer case skid. And the Novak cable shifter is the way to go as well. I tries to do the TT, BL, MMl and retain the stock linkage but it was all out of whack.
This is what will show up on your door step

Add a little paint

and no more stock shovel

__________________
Favorite quote, Thanks GoldenSahara00 "not many people do it. most of the guys who do do it, don't sit on the computer and talk/write about it, they do it then go wheel"
solman is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




Download our Mobile App

» Featured Product

All times are GMT -5. The time now is 06:56 AM.



Jeep«, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
