Visor (Interior) Repair

Hi all,
I recently successfully repaired/reinforced the visors on my '01 Sahara and thought I'd share. The OEM visors are fairly expensive and I wasn't about to buy another set... knowing they would eventually fail in the same places.
I am a knifemaker/sheathmaker by hobby so I have leather-working skills but the hinge reinforcements are very basic leather work if you've ever used a sewing awl. I patched both sides of each visor (4 patches) during a snowy day here. They've been holding up and working really well!

Materials:
Leather - I used thin Deer hide but Pigskin should function equally well. Needs to be fairly thin/flexible leather.
Gorilla Tape - Optional but holds everything together while working and provides a little extra reinforcement under the patch.
Sewing Awl - available from most hardware stores
Drill press - Needed to pre-drill the stitch holes in a uniform manner
Stitch Wheel #6 - Optional but will greatly ease in the spacing of stitch holes prior to drilling
Carnuba Creme - Essential to protect the leather
Leather Sheen - Optional but highly recommended
Oil Leather Dye - Optional, I did not use it on the hinge reinforcements... wasn't concerned with color match

Here's what I repaired on both visors. I'm sure some of you can relate.


Gorilla Tape on patch areas. This was later trimmed to conceal under the patches.


The rest is leather sewing which is a bit lengthily to explain and I'm not going to cover it... BUT... basic awl skills and the above mentioned tools (drill press and stitch wheel especially) make it a breeze. There are many youtube tutorials for leather sewing techniques.

Here are the results

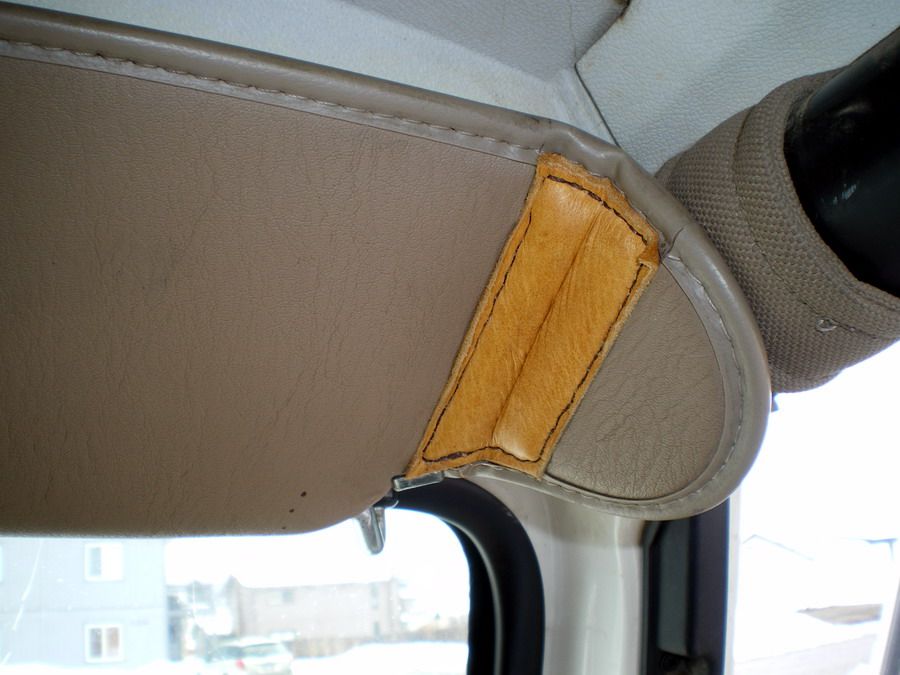

Driver's side

Good flex

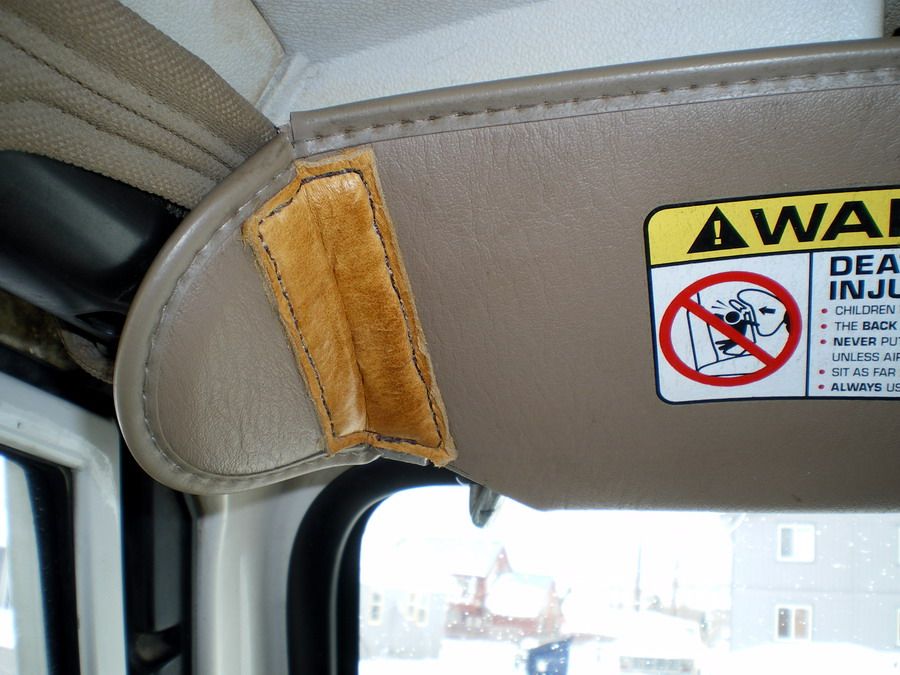

Passenger side

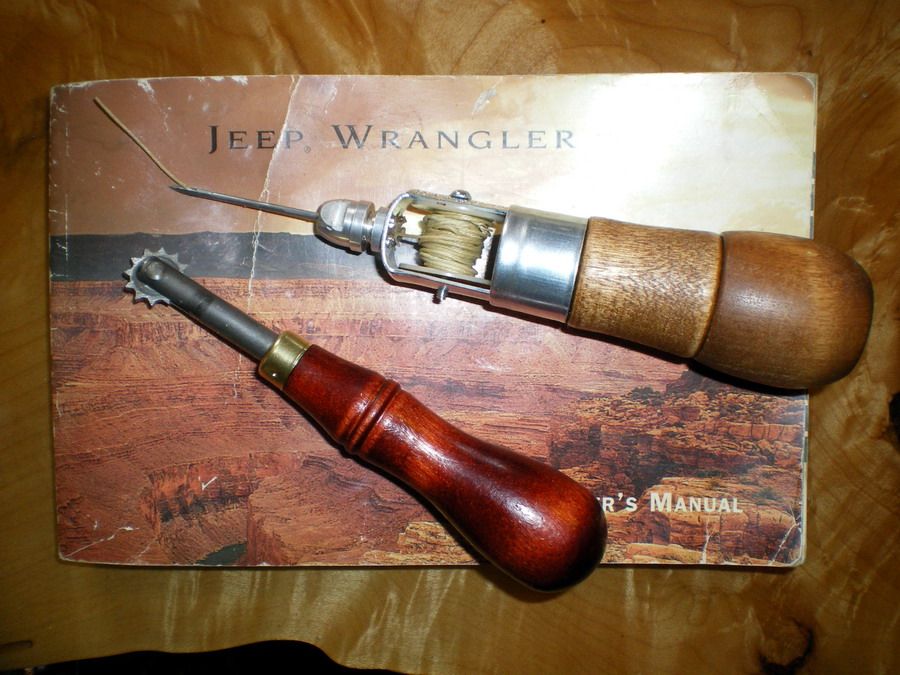

Sewing Awl, and stitch wheel

Protection


Then I got bored and made a visor pouch for the driver's side. Officers always appreciate it if they can see your hands when they pull ya over. I sewed it directly to the visor. This was much more involved with heavier leather, welts, dye, other leather tools, etc.. I won't get into that. This pouch took a couple of days. The wolf paw is the makers-mark I use on my sheaths and threw that on for the heck of it.



__________________
'01 Sahara, Original Owner
BDS, OME, Metalcloak,
JKS Disco, Rough Trail, Kargo Master,.... bla bla bla, never done
Ghost Creek Mine, Owner ... Mitchell/Yooper Placer Mine, Owner
Only thing we have to fear is, fear itself....................................... and bears
Gold Miner is offline   Quote Quick Reply
Old 04-20-2013, 01:30 PM   #2
Jeeper

wa_troop's Avatar

Join Date: Oct 2012
Location: Yelm Washington
Posts: 500
You should do the whole thing with deer hide would look sick!

wa_troop is offline   Quote Quick Reply
Old 04-20-2013, 01:39 PM   #3
Jeeper

Gold Miner's Avatar

Join Date: Jan 2013
Location: way up thar
Posts: 474
Quote:
Originally Posted by wa_troop View Post
You should do the whole thing with deer hide would look sick!
I thought about that! I could do it easy enough, but that would be time-consuming. This was just a quick fix. I may do that in the future... need more Deer hide too but I'm in with the local taxidermist so that shouldn't be a problem.
__________________
'01 Sahara, Original Owner
BDS, OME, Metalcloak,
JKS Disco, Rough Trail, Kargo Master,.... bla bla bla, never done
Ghost Creek Mine, Owner ... Mitchell/Yooper Placer Mine, Owner
Only thing we have to fear is, fear itself....................................... and bears
Gold Miner is offline   Quote Quick Reply
Old 04-20-2013, 01:42 PM   #4
Jeeper

wa_troop's Avatar

Join Date: Oct 2012
Location: Yelm Washington
Posts: 500
Quote:
Originally Posted by Gold Miner View Post
I thought about that! I could do it easy enough, but that would be time-consuming. This was just a quick fix. I may do that in the future... need more Deer hide too but I'm in with the local taxidermist so that shouldn't be a problem.
How much does deer hide cost?
wa_troop is offline   Quote Quick Reply
Old 04-20-2013, 01:45 PM   #5
Jeeper

Gold Miner's Avatar

Join Date: Jan 2013
Location: way up thar
Posts: 474
$5 - $10 per sq ft from Tandy
__________________
'01 Sahara, Original Owner
BDS, OME, Metalcloak,
JKS Disco, Rough Trail, Kargo Master,.... bla bla bla, never done
Ghost Creek Mine, Owner ... Mitchell/Yooper Placer Mine, Owner
Only thing we have to fear is, fear itself....................................... and bears
Gold Miner is offline   Quote Quick Reply
Old 04-20-2013, 02:08 PM   #6
Jeeper

Southerner's Avatar

Join Date: Feb 2012
Location: West TN
Posts: 192
That is awesome.
__________________
"Dyin' ain't much of a livin', boy."-Josey Wales
Southerner is offline   Quote Quick Reply
Old 04-20-2013, 05:44 PM   #7
Jeeper

viperx6x9x's Avatar

Join Date: Dec 2012
Location: Norfolk Va.
Posts: 1,066
Looks nice. Fortunately my visors are holding up well, but that pouch is an excellent idea.

My wifes cousin is big into leather work, maybe I can talk him into making me one. He is working on a leather buttstock piece for my M1 currently. Can't wait to see how that turns out.
__________________
War does not determine who is right, it determines who is left.
viperx6x9x is offline   Quote Quick Reply
Old 04-20-2013, 06:54 PM   #8
Jeeper

Gold Miner's Avatar

Join Date: Jan 2013
Location: way up thar
Posts: 474
Quote:
Originally Posted by viperx6x9x View Post
He is working on a leather buttstock piece for my M1 currently.
If he can do that, he should have no trouble whipping up a visor pouch like I did. I bet he would find it to be a fun little project like I did.
__________________
'01 Sahara, Original Owner
BDS, OME, Metalcloak,
JKS Disco, Rough Trail, Kargo Master,.... bla bla bla, never done
Ghost Creek Mine, Owner ... Mitchell/Yooper Placer Mine, Owner
Only thing we have to fear is, fear itself....................................... and bears
Gold Miner is offline   Quote Quick Reply
Old 04-20-2013, 07:07 PM   #9
Jeeper

viperx6x9x's Avatar

Join Date: Dec 2012
Location: Norfolk Va.
Posts: 1,066
Yeah, he loves working on this kind of stuff. He primarily does holsters and belts and western wear type stuff. Just in case you were curious this is his site http://www.watsonhillleather.com/.

You seem to be pretty good with leather, ever think of doing some other interior stuff? Like grab bars, that grab strap on the door panel, maybe a center console lid cover, or a leather wrap for the shifter handle/knob. I think a few leather pieces could put a little life into the interior. The TJ interiors, my X model at least, seem really boring to me. TJ market could be a good one for you to tap into.
__________________
War does not determine who is right, it determines who is left.
viperx6x9x is offline   Quote Quick Reply
Old 04-20-2013, 07:13 PM   #10
Jeeper

Gold Miner's Avatar

Join Date: Jan 2013
Location: way up thar
Posts: 474
Yeah... it would be nice to do the console lid with Deer. I need to figure out how to attach leather to that thick plastic though. Not sure if that can be done or what the professional process would be.
I might have to start watching "Pimp My Ride".... LOL
