Old 05-24-2011, 10:40 AM   #301
Jeeper

Moroney167's Avatar

Join Date: Nov 2010
Location: Goshen NY
Posts: 1,018
Quote:
Originally Posted by Ibuildembig View Post
Hmmm, Id try some stock shackles
I am hoping the guy I got Jeep from has them, he said he might and is going to check so I can get them in tonight. I had a feeling these would become an issue. otherwise this thing is BIG!!! I am so damn happy I did this SOA. I love working on Jeeps everything is just so easy! Compared to 20 year old big trucks and my diesel stuff everything comes off easy and even if it doesn't it still can be fixed.

Got the front all done until I get this shackle/steering fixed.

Any suggestions on steering shaft mine has A LOT of play. Coming from firewall into the power steering box. The Ujoints are shot and looks to have been welded in the past. Works still for now but deff explains the sloppy steering I had, although not horrible for as loose as it is.

Moroney167 is offline   Quote Quick Reply
Old 05-24-2011, 10:42 AM   #302
Sponsoring Vendor

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,350
So far I havent found anyone who can get the joints for them, I just replace the shaft. I have some good used ones for 70 bucks...new is 125

Ibuildembig is online now   Quote Quick Reply
Old 05-24-2011, 10:44 AM   #303
Jeeper

Moroney167's Avatar

Join Date: Nov 2010
Location: Goshen NY
Posts: 1,018
Those are stock ones? I figured just replace the shaft, as I said some old gobber welds are on it haha. I was going to hopefully find something around here being its not holding me back any. I need to get this thing done tonight if all goes as planned (never does of course) and then that and a few other things are on top of my list.

I may be interested though. Whats shipping and all gonna run me. I would have it sent to my business address if helps.
Moroney167 is offline   Quote Quick Reply
Old 05-24-2011, 10:46 AM   #304
Sponsoring Vendor

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,350
I can do it for 70 shipped toya
Ibuildembig is online now   Quote Quick Reply
Old 05-24-2011, 10:52 AM   #305
Jeeper

Moroney167's Avatar

Join Date: Nov 2010
Location: Goshen NY
Posts: 1,018
Few crapy pics from phone that looks like I had a smudge on the lens

I love nice clean painted black axles and all!

These are with 15x10 Micky T beadlocks (fake ones) with 33x12.5x15 Goodyear Duratracs




My steering hit

Just a view of drivers side.
Moroney167 is offline   Quote Quick Reply
Old 05-24-2011, 10:55 AM   #306
Jeeper

Moroney167's Avatar

Join Date: Nov 2010
Location: Goshen NY
Posts: 1,018
Quote:
Originally Posted by Ibuildembig View Post
I can do it for 70 shipped toya
Let me wait till next paycheck... running pretty low on funds after buyin all these thigns haha. I need to sell my stock axles too try getting something back. I know they are not worth much. I need to figure out if they were 3.07's or 3.55's. I'll look and check for tags tonight.

By friday or so I'll be in touch with you to pick that up im sure. Thanks a ton for the help again!
Moroney167 is offline   Quote Quick Reply
Old 05-25-2011, 12:56 AM   #307
Jeeper

Moroney167's Avatar

Join Date: Nov 2010
Location: Goshen NY
Posts: 1,018
help me out here. How's this driveshaft look as far as angle everything. I get some vibration from like 25 up to maybe 45 then smooths out and os fine. Is that my prob? All new ujoints. Hoping I put angle in right. I am going to make a call about a longer driveshaft tomorrow.

Thanks in advance
Moroney167 is offline   Quote Quick Reply
Old 05-25-2011, 03:46 AM   #308
Jeeper

94impactyj's Avatar

Join Date: Sep 2010
Posts: 157
you need to have an sye installed and a CV drive shaft made. running the stock slip yolk shaft wont last long...
__________________
94' Impact red YJ
2.5l jasper
33in BFG AT
4in Skyjacker
5in Rugged ridge HID driving lights
6in KC Daylighters
94impactyj is offline   Quote Quick Reply
Old 05-25-2011, 07:55 AM   #309
Jeeper

Moroney167's Avatar

Join Date: Nov 2010
Location: Goshen NY
Posts: 1,018
Understood. However been told from a few hands on users as well its a waste of money don't bother. If needed like this ill make driveshaft longer. I just think the angle is off sine. Hopefully takes away my vibrations.
Moroney167 is offline   Quote Quick Reply
Old 05-25-2011, 07:59 AM   #310
Sponsoring Vendor

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,350
Quote:
Originally Posted by 94impactyj View Post
you need to have an sye installed and a CV drive shaft made. running the stock slip yolk shaft wont last long...
13 years and going on my first SOA....you dont "HAVE" to have anything

Looks like you could have raised the pinion up a little bit more but its not terrible. Most likely your vibes are comming from the shaft not being long enough into the back of the case. Get a longer one made and see how she does....BTW spicer joints or nothing
Ibuildembig is online now   Quote Quick Reply
Old 05-25-2011, 08:03 AM   #311
Jeeper

Moroney167's Avatar

Join Date: Nov 2010
Location: Goshen NY
Posts: 1,018
Haha thanks for the reply man. I am looking inti shaft today. Is it horrible to drive still? Other than that it is perfect and handles awesome! I am going to put track bar in hopefully help front axle stay put. And then build some rear wrap bars.
Moroney167 is offline   Quote Quick Reply
Old 05-25-2011, 12:29 PM   #312
Jeeper

89JEEPYJ's Avatar

Join Date: Oct 2010
Posts: 967
ya i had my driveshaft looking similiar to that but not as far out and the back of my transfercase exploded where the shaft goes into the t-case. and after that both universals exploded on the driveshaft and bent the driveshaft
89JEEPYJ is offline   Quote Quick Reply
Old 05-27-2011, 08:15 PM   #313
Newb

Join Date: May 2011
Location: Camby IN
Posts: 7
I also need steering help with 93 and a soa
1984cj7 is offline   Quote Quick Reply
Old 06-04-2011, 06:37 PM   #314
Jeeper

Join Date: Jul 2010
Location: Denver, Colorado
Posts: 105
Done! No steering problems. Just need to address the rear driveshaft. Either get a longer one or go SYE and CV....

ccbruin is offline   Quote Quick Reply
Old 06-05-2011, 08:55 AM   #315
Jeeper

WF Supporting Member

Tang87's Avatar

Join Date: Dec 2010
Location: Illinois
Posts: 7,058
Have you ever done a SOA with a Ford 9"?
__________________
'87 Jeep YJ
Tang87 is offline   Quote Quick Reply
Old 06-05-2011, 09:51 AM   #316
Sponsoring Vendor

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,350
Nope but it wouldnt be any different.....I gave up on 1/2 ton stuff years ago lol.

The problem is finding a front that will work with the rear considering the only 5 lug Dana 44 Ford ever used with leaf springs was a 1/2 ton extended cab.
Ibuildembig is online now   Quote Quick Reply
Old 06-05-2011, 09:55 AM   #317
Jeeper

WF Supporting Member

Tang87's Avatar

Join Date: Dec 2010
Location: Illinois
Posts: 7,058
Quote:
Originally Posted by Ibuildembig
Nope but it wouldnt be any different.....I gave up on 1/2 ton stuff years ago lol.

The problem is finding a front that will work with the rear considering the only 5 lug Dana 44 Ford ever used with leaf springs was a 1/2 ton extended cab.
Hm I always find wagoneer fronts and 6 bolt pattern. Have you ever converted a 44 to 5 bolt?
__________________
'87 Jeep YJ
Tang87 is offline   Quote Quick Reply
Old 06-05-2011, 09:56 AM   #318
Sponsoring Vendor

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,350
Nah that's GM stuff lol

Seriously though, I think its possible by just changing the knuckle/spindle/hub etc or a combination of those.
Ibuildembig is online now   Quote Quick Reply
Old 06-05-2011, 09:58 AM   #319
Jeeper

Ageless Stranger's Avatar

Join Date: Apr 2010
Posts: 26,792
Quote:
Originally Posted by ccbruin View Post
Done! No steering problems. Just need to address the rear driveshaft. Either get a longer one or go SYE and CV....

Ditch the Duratracs?
Ageless Stranger is offline   Quote Quick Reply
Old 06-05-2011, 03:07 PM   #320
Jeeper

WF Supporting Member

Tang87's Avatar

Join Date: Dec 2010
Location: Illinois
Posts: 7,058
Quote:
Originally Posted by Ibuildembig
Nah that's GM stuff lol

Seriously though, I think its possible by just changing the knuckle/spindle/hub etc or a combination of those.
Lol maybe I'll just upgrade my shafts lol
__________________
'87 Jeep YJ
Tang87 is offline   Quote Quick Reply
Old 06-05-2011, 06:42 PM   #321
Jeeper

Join Date: Jul 2010
Location: Denver, Colorado
Posts: 105

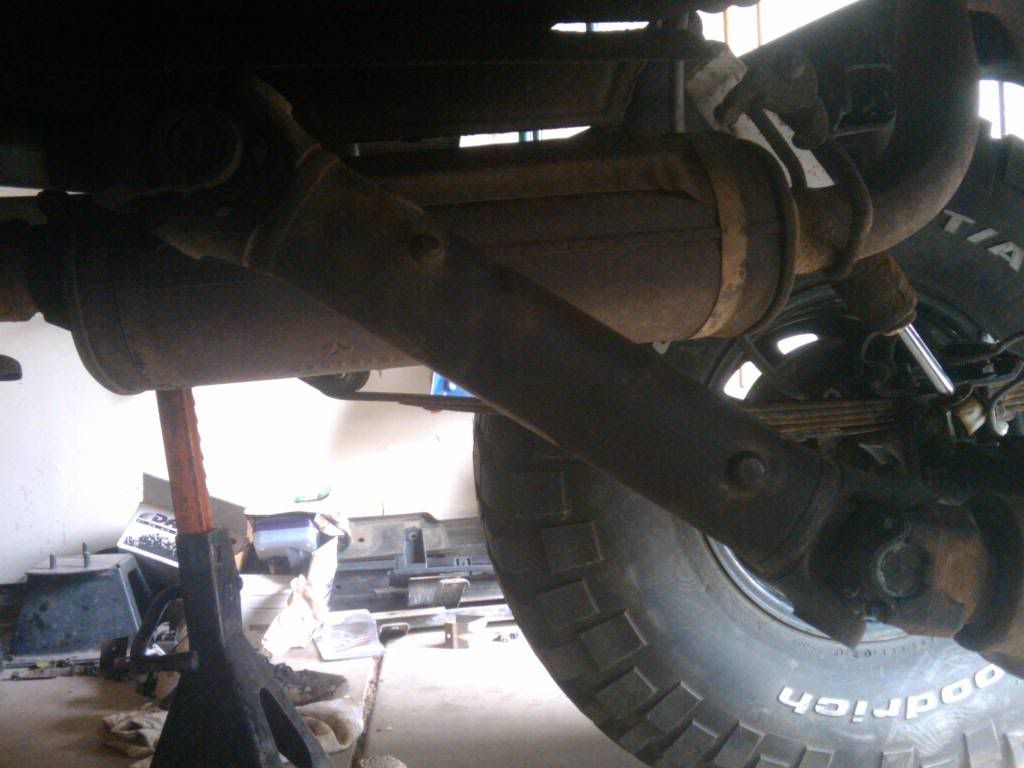

This is my rear driveshaft... Is this angle to steep? i either need a longer driveshaft or a SYE/CV...

ccbruin is offline   Quote Quick Reply
Old 06-06-2011, 08:44 AM   #322
Sponsoring Vendor

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,350
Thats not gonna work, you need to rotate your pinion up alot.
Ibuildembig is online now   Quote Quick Reply
Old 06-07-2011, 07:03 AM   #323
Jeeper

Glenn91YJ's Avatar

Join Date: Jul 2010
Location: MA
Posts: 345
Quote:
Originally Posted by ccbruin View Post
This is my rear driveshaft... Is this angle to steep? i either need a longer driveshaft or a SYE/CV...

You might have trouble getting your TC and Pinion parallel. The angle is going to be pretty steep. Obviously CV with a SYE eliminates that problem.

Take a look at this article...
Driveline 101
__________________
Owning a Renegade means being "Different"!
Glenn91YJ is offline   Quote Quick Reply
Old 06-07-2011, 09:29 AM   #324
Sponsoring Vendor

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,350
A CV and SYE will not fix that problem....the pinion is way too far down. It needs to be cut loose and rolled up and it will be fine.
Ibuildembig is online now   Quote Quick Reply
Old 06-12-2011, 11:39 AM   #325
Jeeper

Moroney167's Avatar

Join Date: Nov 2010
Location: Goshen NY
Posts: 1,018
Dig this back up and bug ya for some more info.

Mine has beed EXCELLENT so far. Until I get these front ujoints replaced on the axle and a traction bar im not testing it to much. Fork lift test wen't well though!

I know with new shocks it can be a tad ruff but i'll b ehonest as great as it handles nad drives its pretty stiff of a ride. Stock springs are flat w/ jeeps weight and stock shackles. Using RC basic shocks. With just the stock weight of the jeep and stock motor would you suggest I yank out 1 leaf from the pack to soften it up. And do I take out one of the longer springs in ir or the bottom stiffer spring. Curious some opinions. Just thinking when in the trails it will be verys tiff bouncing around instead of absorbing anything. Runnin 25psi in 33x12.5.15 duratracs on 15x10 wheels. Road that is and its just killer on bumps and turns real stiff. No sway bar and only front trac bar in to help axle movement.

Thanks
Moroney167 is offline   Quote Quick Reply
Old 08-02-2011, 07:47 AM   #326
Newb

Join Date: Aug 2010
Posts: 9
Quote:
Originally Posted by Ibuildembig View Post
Ok here's where I put my money where my mouth is




It woulda went up about a foot or so further had the flares not hit. They will prolly get changed in stage 2. On another note, the wishbone is perfect and doesnt inhibit travel in the slightest.
Im curoius how you addressed the front shocks? I know you had to get longer one but where did you mount the front shocks and how did you measure for new ones? and what shocks did you use?
jeepin82 is offline   Quote Quick Reply
Old 08-02-2011, 08:04 AM   #327
Sponsoring Vendor

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,350
I think your making it way more complicated than it is.....they are mounted in the stock location top and bottom. I believe they came from RC and were a 8170 or 8113 whichever is longer.

You just have to measure for full up and down travel and decide what you wanna run.
Ibuildembig is online now   Quote Quick Reply
Old 08-02-2011, 09:43 PM   #328
Newb

Join Date: Jul 2011
Posts: 1
Beautiful job! I am considering doing this to my 94. When I bought it, it all ready had a 4" lift in it. I noticed that you are doing this SOA with the stock springs. How much different would it be to do with the 4" springs in it all ready?

ABout 15 years ago Dad and I built a CJ5 that had a 4" spring lift, SOA, and a 2" body lift, then ran 36" TSL's on it. I remember having to build an extension from the frame to lower the steering box because we couldnt find a large enough drop on a pitman arm. I dont remember doing anything with the driveshafts (Im sure we did though)...
jet pilot is offline   Quote Quick Reply
Old 08-02-2011, 11:36 PM   #329
Jeeper

billytheyj's Avatar

Join Date: Aug 2010
Location: Elko, NV
Posts: 1,320
Quote:
Originally Posted by jet pilot
Beautiful job! I am considering doing this to my 94. When I bought it, it all ready had a 4" lift in it. I noticed that you are doing this SOA with the stock springs. How much different would it be to do with the 4" springs in it all ready?

ABout 15 years ago Dad and I built a CJ5 that had a 4" spring lift, SOA, and a 2" body lift, then ran 36" TSL's on it. I remember having to build an extension from the frame to lower the steering box because we couldnt find a large enough drop on a pitman arm. I dont remember doing anything with the driveshafts (Im sure we did though)...
It would be way too tall in my opinion.... a soa on stock springs should net you about 5.5"s of lift so an soa with 4" springs would mean 9.5"s of lift....
__________________
OHHHH BOOOO!!!!!!!!
billytheyj is offline   Quote Quick Reply
Old 08-03-2011, 08:44 AM   #330
Sponsoring Vendor

Ibuildembig's Avatar

Join Date: Aug 2010
Location: Fruitland, Missouri
Posts: 8,350
I have done it with 6's before, but it was more of a driver/mud toy. Anything is possible so I say go for it

I am using a 2 inch spring on my current SOA project.

Ibuildembig is online now   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



« YJ Clutch Question | - »
Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
How to Multi-Quote Scout Off-Topic 27 02-16-2012 03:47 PM
Good step bars for under $200 spleify JK General Discussion Forum 12 06-02-2010 10:04 PM
Side Step Question TOW69 JK General Discussion Forum 3 05-27-2010 08:32 AM
Custom Aluminum Fuel Bezel - Step by Step build.. dave@rokmen TJ Build Forum 9 01-14-2010 01:58 PM
Death Wobble: Step 1 complete Spaceman TJ Tech Forum 24 10-09-2009 03:41 PM



» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 02:25 PM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
