Body Lift/Mount Help

Im working on putting in a body lift/repairing entire frame and tub around all the body mounts. The Body is off the frame, today i removed radiator, fan shroud, and front grill. I went with the prothane 1 inch body lift. My 2 questions concern that front mount under the grill and the 2 fan shroud mounts supplied in the kit. ill post pics and comments to make this simple to read and easy to answer, thanks guys

__________________
93 4.0 Hugger Orange
MY BUILD: http://www.wranglerforum.com/f8/the-...cs-165675.html

89 Carralo, 96 Ram 1500, 90 Camaro, 02 Gz
250, 79 Yamaha dt125, 78 dt175
Carralo1 is offline   Quote
Old 10-31-2012, 04:29 PM   #2
Jeeper

Carralo1's Avatar

Join Date: Jun 2012
Location: Athens GA/Boston MA
Posts: 443

Looks like when i put in the new mount, it may hit this cross brace?





Welded in new nut old one was spinning

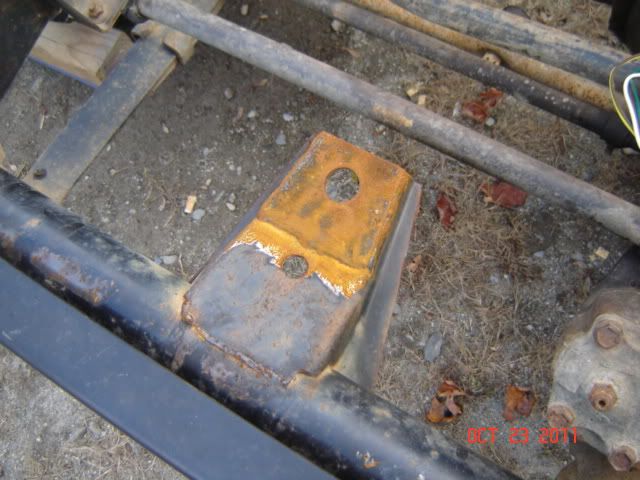

Frame mount hole

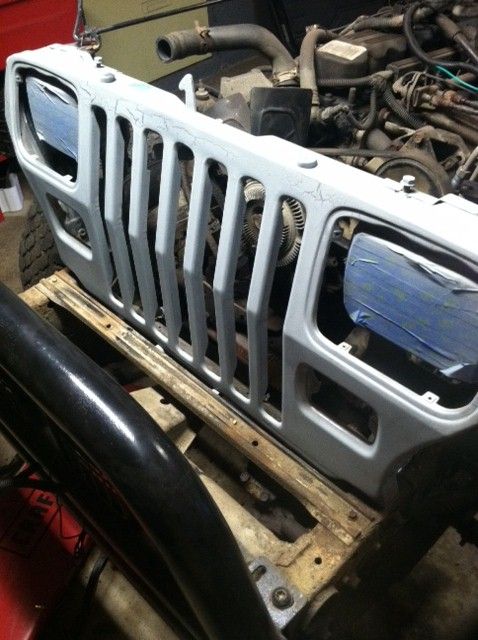

The 2 fan shroud mounts and the front body mount. Question 1: Where do the 2 fan ones go?




Do they replace the black rubber mount in this picture bottom right of grill?



Question 2: Why is the hole in the frame larger than the mount itself?




If anyone has pics, that might help a bit

__________________
93 4.0 Hugger Orange
MY BUILD: http://www.wranglerforum.com/f8/the-...cs-165675.html

89 Carralo, 96 Ram 1500, 90 Camaro, 02 Gz
250, 79 Yamaha dt125, 78 dt175
Carralo1 is offline   Quote
Old 10-31-2012, 05:09 PM   #3
Jeeper

Join Date: Aug 2011
Location: Central Maine
Posts: 275
Q1. Yes
Q2. Rust

I plated mine and drilled a new hole to fit the mount.

[IMG][/IMG]
brentd711 is offline   Quote
Old 11-02-2012, 09:17 AM   #4
Jeeper

Carralo1's Avatar

Join Date: Jun 2012
Location: Athens GA/Boston MA
Posts: 443
Quote:
Originally Posted by brentd711 View Post
Q1. Yes
Q2. Rust

I plated mine and drilled a new hole to fit the mount.

[IMG][/IMG]
Thanks man. Got it welded and drilled. That cross brace right in front of frame mount that holds the brake lines is in the way now(before the grill slid under now it just hits it). This ever happen to anyone.
__________________
93 4.0 Hugger Orange
MY BUILD: http://www.wranglerforum.com/f8/the-...cs-165675.html

89 Carralo, 96 Ram 1500, 90 Camaro, 02 Gz
250, 79 Yamaha dt125, 78 dt175
Carralo1 is offline   Quote
Old 11-02-2012, 10:57 AM   #5
Jeeper

0III0forlife's Avatar

Join Date: Mar 2012
Location: Ridgway, Pa.
Posts: 3,951
You have to notch the cross brace that holds the brake line to fit around the body lift block.

I did mine with a grinder and a cutoff wheel.

As far as the blocks that you are refering to as fan shroud mounts. they fit on either side of the grill where the small black angled block is. but they fit in between the black block and the grill frame. Atleast mine did. The bolts that hold the blocks on the edge of the grill are a real pain, cause the nuts spin, might not be so bad with the grill off the jeep to fix.
0III0forlife is offline   Quote
Old 11-02-2012, 02:22 PM   #6
Jeeper

Carralo1's Avatar

Join Date: Jun 2012
Location: Athens GA/Boston MA
Posts: 443
Okay great. Thanks, i was gonna notch it but just wanted to make sure others have had to do the same
__________________
93 4.0 Hugger Orange
MY BUILD: http://www.wranglerforum.com/f8/the-...cs-165675.html

89 Carralo, 96 Ram 1500, 90 Camaro, 02 Gz
250, 79 Yamaha dt125, 78 dt175
Carralo1 is offline   Quote
Old 11-02-2012, 02:30 PM   #7
Founder, ThumbJeeps

WF Supporting Member

sevenservices's Avatar

Join Date: Sep 2009
Location: Mid-Michigan/Thumb
Posts: 3,952
that frame hole in the center looks like it was torched out by the discoloration in the steel... weird... yeah, you'll want to weld a plate on there w/a hole like pictured ^

not sure where those other two red ones go? anyone else know?
__________________
-Chris
Founder, ThumbJeeps


1994 Wrangler YJ I6 4.0 H/O Auto 3 spd. 4" RC (33x12.5) (15x8) 3:54 Gears
sevenservices is offline   Quote
Old 11-02-2012, 03:35 PM   #8
Jeeper

OverkillYJ's Avatar

Join Date: Jun 2012
Location: Philadelphia, PA
Posts: 2,904
I am about 90% sure those two red one are actually to lower the radiator or the fan shroud (cant remember which), NOT lift it. You want the radiator lowered the same amount that you lift it so that it stays lined up with the fan on the motor since the engine will be staying in the same place. The reason I know this is because my shroud was cut by the PO because he did not know to lower that when he installed the 3"body lift I recently ripped out.
