Old 02-10-2013, 01:13 PM   #1
Jeeper

Join Date: Jan 2013
Location: Carson City
Posts: 34
2013 Hood Lock Install

After putting in my cold air intake to suck money out of my wallet, I decided to protect my investment with a hood lock. I chose the Mopar for a couple of reasons: factory fit (the holes are already there!) and most importantly, it uses the ignition key so I don't have a another key to keep track of.

I got mine on eBay for a little over $100 and, as you'll see in the attached write up, the magic tool to install it cost a whopping $20.
Attached Files
File Type: pdf 2013 Jeep Wrangler Hood Lock Install.pdf (1.16 MB, 1306 views)

34SF is online now   Quote Quick Reply
Old 02-10-2013, 01:23 PM   #2
Jeeper

MattK's Avatar

Join Date: Aug 2012
Location: Carlsbad, CA
Posts: 432
I remember the first time I used a rivet tool to attach a CB antenna bracket on one of my trucks. I didn't know what the hell I was doing and putting in the first one was a little "traumatic" but then it was fun! Nice write up.

__________________
2013 Billet JKR
MattK is offline   Quote Quick Reply
Old 02-10-2013, 02:29 PM   #3
Newb

Join Date: Jan 2011
Posts: 6
Rivets

What size are the shanks on the supplied rivets? Trying to figure out if my rivet tool will work. Thanks
ktmwoodsman is offline   Quote Quick Reply
Old 02-10-2013, 02:39 PM   #4
Jeeper

Jeepsk8's Avatar

Join Date: Nov 2010
Location: N Central Texas
Posts: 165
If you have grill inserts, I wonder if you can modify somehow to install this hood lock.
Jeepsk8 is offline   Quote Quick Reply
Old 02-10-2013, 03:38 PM   #5
Jeeper

Join Date: Jan 2013
Location: Carson City
Posts: 34
Quote:
Originally Posted by ktmwoodsman View Post
What size are the shanks on the supplied rivets? Trying to figure out if my rivet tool will work. Thanks
The rivets are 1/4" and near as I can tell are not measured by the inner shaft part. The difference between these and the ones I found at Home Depot is that the ones that came with the lock are steel shaft versus aluminum. I had a rivet tool that looks like a staple driver (you squeeze it with one hand) and it will hold the 1/4" rivet but there was no way it was going to cut the steel shaft of the Mopar kit rivet.
34SF is online now   Quote Quick Reply
Old 02-10-2013, 06:54 PM   #6
Jeeper

Raziel's Avatar

Join Date: Aug 2011
Posts: 769
I got the mopar one as well & couldn't use the rivets due to them being bigger. I used screws & nuts with red thread lock! Kind of tricky to use but able to do it.
__________________
2011 Jeep Wrangler Unlimited, M/T


Home, Home Is Where The Heart Is. That Is What They Say. It's Sorrow Is As Sweet To Me As Red Wine...
Raziel is offline   Quote Quick Reply
Old 02-10-2013, 06:56 PM   #7
Jeeper

Coho37's Avatar

Join Date: Feb 2012
Location: Cascadia
Posts: 64
Mopar lock

Just did the same mod last week...
I had to rent an automotive riveter to install the steel-shanked 1/4" rivets that came with the lock. It was worth the $15 rental, as those are incredibly stout rivets. Aluminum rivets did not look like a good substitute for this application, and that is all that department-store riveters will handle (by shank diameter as well as strength).
__________________
Coho37
Coho37 is offline   Quote Quick Reply
Old 02-10-2013, 07:54 PM   #8
Jeeper

RoadiJeff's Avatar

Join Date: Dec 2012
Location: St. Louis, MO
Posts: 2,458
Quote:
Originally Posted by Jeepsk8 View Post
If you have grill inserts, I wonder if you can modify somehow to install this hood lock.
You can but the thought of cutting a hole in my $289 Metalcrafters grill insert made me return the Mopar lock and buy a set of Rampage hood locks.
RoadiJeff is offline   Quote Quick Reply
Old 02-10-2013, 07:58 PM   #9
Jeeper

TrueBlueJK's Avatar

Join Date: Oct 2012
Location: New York
Posts: 531
I installed mine last month and used some screws, nuts, and lock washers. I wasn't gonna shell out the extra money for that rivet gun that I'll probably never use again.
TrueBlueJK is offline   Quote Quick Reply
Old 02-10-2013, 11:33 PM   #10
Jeeper

JeeperJake's Avatar

Join Date: Jul 2010
Posts: 2,909
Nice write up! This was the first real mod I did to my own JK. I borrowed my mechanic shop's pro riveter for free.

The lock has given me good service over the last 2 years with no trouble and a moderate peace of mind.

And yes, they CAN be defeated with 1) an ice pick; and 2)IF you know exactly where/what angle to use. My bet is the bad guy won't be ready with either.
__________________
get in--buckle up--hang on
"soothing agricultural implement/personal servant/Walter Mitty multidimensional access utility device conveniently travels on pavement when necessary and often keeps me warm/cool/dry/soothed as needed."
JeeperJake is offline   Quote Quick Reply
Old 02-11-2013, 12:03 AM   #11
Jeeper

jdambm's Avatar

Join Date: Sep 2012
Location: St. louis, Mo
Posts: 908
Images: 6
Send a message via Yahoo to jdambm
Quote:
Originally Posted by Carver001 View Post
After putting in my cold air intake to suck money out of my wallet, I decided to protect my investment with a hood lock. I chose the Mopar for a couple of reasons: factory fit (the holes are already there!) and most importantly, it uses the ignition key so I don't have a another key to keep track of.

I got mine on eBay for a little over $100 and, as you'll see in the attached write up, the magic tool to install it cost a whopping $20.
Carver, Great Writeup this needs to be a sticky! Just ordered the hood lock and fuel door from quadratec because they price match.
jdambm is offline   Quote Quick Reply
Old 02-11-2013, 12:24 AM   #12
Jeeper

Tweak's Avatar

Join Date: Jan 2013
Location: Keller, TX
Posts: 2,681
mine came with one from the dealership. works very well, solidly built, feels just like opening my door locks. rubber cover keeps out mud well.
Tweak is offline   Quote Quick Reply
Old 02-11-2013, 06:58 PM   #13
Supporting Member

WF Supporting Member

Peter T's Avatar

Join Date: Jun 2012
Location: Hamilton Ontario Canada
Posts: 690
Quote:
Originally Posted by Jeepsk8
If you have grill inserts, I wonder if you can modify somehow to install this hood lock.
I installed the Rugged Ridge grill insert. Used a dremal tool to cut out for my Mopar hood lock. Worked great.

Attachment 208769
Peter T is offline   Quote Quick Reply
Old 02-11-2013, 07:27 PM   #14
Jeeper

Matt13's Avatar

Join Date: Nov 2012
Location: San Tan Valley, AZ
Posts: 135
Quote:
Originally Posted by Peter T View Post
I installed the Rugged Ridge grill insert. Used a dremal tool to cut out for my Mopar hood lock. Worked great.

Attachment 208769
Thanks Peter. I was just thinking I need both of these!
__________________
'13 Billet JKUR: Auto - 730N - Dual top
'90 XJ Chopped n caged trail rig 4.0L Auto
'94 YJ: Manual - 4.0L - Soft top (gone)
Matt13 is offline   Quote Quick Reply
Old 02-11-2013, 07:35 PM   #15
Jeeper

Jeepsk8's Avatar

Join Date: Nov 2010
Location: N Central Texas
Posts: 165
Quote:
Originally Posted by Peter T

I installed the Rugged Ridge grill insert. Used a dremal tool to cut out for my Mopar hood lock. Worked great.
Thanks for the info.
Jeepsk8 is offline   Quote Quick Reply
Old 03-02-2013, 08:38 PM   #16
Jeeper

jdambm's Avatar

Join Date: Sep 2012
Location: St. louis, Mo
Posts: 908
Images: 6
Send a message via Yahoo to jdambm

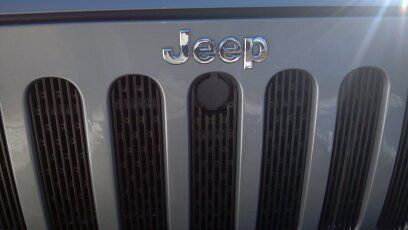

Need to touch up paint in spring but I like it!
jdambm is offline   Quote Quick Reply
Old 03-30-2013, 03:19 PM   #17
Jeeper

GregSimonis's Avatar

Join Date: Mar 2013
Posts: 20
Nice! Can u provide install directions n video/photos?
GregSimonis is offline   Quote Quick Reply
Old 04-01-2013, 02:37 PM   #18
Jeeper

jdambm's Avatar

Join Date: Sep 2012
Location: St. louis, Mo
Posts: 908
Images: 6
Send a message via Yahoo to jdambm
Quote:
Originally Posted by GregSimonis View Post
Nice! Can u provide install directions n video/photos?
Look at.post 1 in this thread the op.pretty much covers it all
jdambm is offline   Quote Quick Reply
Old 04-01-2013, 02:39 PM   #19
Jeeper

jdambm's Avatar

Join Date: Sep 2012
Location: St. louis, Mo
Posts: 908
Images: 6
Send a message via Yahoo to jdambm
Quote:
Originally Posted by jdambm View Post

Look at.post 1 in this thread the op.pretty much covers it all
The drake grill insert i stole.the idea admiring kramers.cg jeep and modified the piece to fit with a dremel.tool
jdambm is offline   Quote Quick Reply
Old 08-10-2013, 06:26 PM   #20
Jeeper

mikebot's Avatar

Join Date: May 2013
Location: Inland Empire, CA, USA!
Posts: 578
Epic write up and directions. My concerns: calmed. THANK YOU OP!
mikebot is offline   Quote Quick Reply
Old 08-13-2013, 10:11 PM   #21
Jeeper

mikebot's Avatar

Join Date: May 2013
Location: Inland Empire, CA, USA!
Posts: 578
Successfully installed p/n 82213051AB on my 2014 JKUR. Had a hell of a time using that stupid POS rivet gun though. Here's what I used. The rivet gun is going back to amazon. I had to break one of the posts off myself since the gripping teeth kept slipping.


Attachment 285548



Attachment 285550
mikebot is offline   Quote Quick Reply
Old 08-13-2013, 10:30 PM   #22
Supporting Member

WF Supporting Member

Peter T's Avatar

Join Date: Jun 2012
Location: Hamilton Ontario Canada
Posts: 690
Quote:
Originally Posted by mikebot View Post
The rivet gun is going back to amazon. I had to break one of the posts off myself since the gripping teeth kept slipping.
I had the same problem. On closer inspection I found the gun had been used and returned. I finished the job. Took the rivet gun back and showed them what I had found. Took a brand new one off the shelf still sitting in the box in the garage
Peter T is offline   Quote Quick Reply
Old 08-13-2013, 11:34 PM   #23
Jeeper

mikebot's Avatar

Join Date: May 2013
Location: Inland Empire, CA, USA!
Posts: 578
Quote:
Originally Posted by Peter T View Post

I had the same problem. On closer inspection I found the gun had been used and returned. I finished the job. Took the rivet gun back and showed them what I had found. Took a brand new one off the shelf still sitting in the box in the garage
You know I think mine had been returned too. What a load of crap! I was panicking that I wasn't going to be able to finish the job. That's what I get for buying a tool made in china. Horrible.
mikebot is offline   Quote Quick Reply
Old 08-14-2013, 07:08 AM   #24
Jeeper

staticattic's Avatar

Join Date: Jun 2013
Location: Tampa Bay, Florida
Posts: 106
Just out of curiosity, prior to the lock assembly install, have any of you had parts stolen off your engine? I rode around for a long time with the rear deck lid removed from my '72 VW Bug. The only time I was ever worried about it was at Bug Jams. Is popping Jeep hoods and stealing parts something that happens? One time would be one too many, so I'm just curious if anyone has experienced it or are just taking precautions to prevent from happening at all?
__________________
Jeff
staticattic is offline   Quote Quick Reply
Old 08-14-2013, 07:31 AM   #25
yeah,,,, im that good

5-Year WF Supporting Member

panthermark's Avatar

Join Date: Aug 2011
Location: Chicago-land
Posts: 9,875
Images: 13
Quote:
Originally Posted by staticattic View Post
Just out of curiosity, prior to the lock assembly install, have any of you had parts stolen off your engine? I rode around for a long time with the rear deck lid removed from my '72 VW Bug. The only time I was ever worried about it was at Bug Jams. Is popping Jeep hoods and stealing parts something that happens? One time would be one too many, so I'm just curious if anyone has experienced it or are just taking precautions to prevent from happening at all?
I have Rampage hood locks...and it was one of the first items I installed.
I wanted to be able to lock to hood so that the battery (thus the alarm) could not be disconnected.

Also, it means my hood can't easily be removed.

Jeep's are pretty unsecure vehicles....anyone at anytime can open your hood and remove your battery or whatever....
__________________
2013 Sahara Unlimited
Billet - Auto - 3.73 - Connectivity - Painted Hardtop - LSD - Remote Start - Saddle Leather - Side Airbags

I may mall crawl...but I look good doing it.....
panthermark is offline   Quote Quick Reply
Old 08-14-2013, 08:18 AM   #26
Jeeper

MassMopar's Avatar

Join Date: Jul 2011
Location: MA
Posts: 106
In college I remember waking up one morning and seeing the cops and a wrangler owner writing up a report. Out of the 400+ car lot, all 5 wranglers had their hoods popped and stuff stolen. Hopefully it was something easy to replace like the battery, but it still sucks
__________________
-Nick
98 XJ - 14 JKUR

A person is smart. People are dumb, panicky, dangerous animals. -K
MassMopar is offline   Quote Quick Reply
Old 08-14-2013, 08:44 AM   #27
Jeeper

mikebot's Avatar

Join Date: May 2013
Location: Inland Empire, CA, USA!
Posts: 578
Think of it like this: a hood lock is a very cheap lifetime insurance policy...or at least a worthwhile deterrent.
mikebot is offline   Quote Quick Reply
Old 08-14-2013, 10:02 AM   #28
Jeeper

JeepBugs7's Avatar

Join Date: Sep 2012
Location: Connecticut
Posts: 155
Quote:
Originally Posted by panthermark View Post
I have Rampage hood locks...and it was one of the first items I installed.
I wanted to be able to lock to hood so that the battery (thus the alarm) could not be disconnected.

Also, it means my hood can't easily be removed.

Jeep's are pretty unsecure vehicles....anyone at anytime can open your hood and remove your battery or whatever....

How difficult are the Rampage hood locks to install? I looked at the instructions and attaching the screws from inside the engine compartment looks like it may be tight. Thanks.
__________________
2013 Sahara Unlimited
Blue Pearlcoat
JeepBugs7 is offline   Quote Quick Reply
Old 08-14-2013, 10:51 AM   #29
Jeeper

DFW6ER's Avatar

Join Date: Mar 2012
Location: FloMo
Posts: 847
I've read a thread on this forum where the poster had his battery stolen....but more costly than that was the twerp cut just about every cable under the hood in his stoned/hurried attempt to steal the battery. Ended up costing thousands to fix it.
So yeah, I have a Mopar hood lock as well. Was pretty much the first accessory I installed on my jeep.
__________________
2012 Black JKUR...stock for now
DFW6ER is offline   Quote Quick Reply
Old 08-14-2013, 11:46 AM   #30
yeah,,,, im that good

5-Year WF Supporting Member

panthermark's Avatar

Join Date: Aug 2011
Location: Chicago-land
Posts: 9,875
Images: 13
Quote:
Originally Posted by JeepBugs7 View Post
How difficult are the Rampage hood locks to install? I looked at the instructions and attaching the screws from inside the engine compartment looks like it may be tight. Thanks.
You are correct about it being tight.

I found it to be a hassle. Not really hard, just real annoying to deal with.

Others had no problems.

Probably depends on the size and dexterity of your hands and fingers.

I like how the Mopar one is keyed to the ignition....but I like how the Rampage one is a more visable deterrent.

No matter what brand you get, as someone mentioned, it is cheap insurance.

__________________
2013 Sahara Unlimited
Billet - Auto - 3.73 - Connectivity - Painted Hardtop - LSD - Remote Start - Saddle Leather - Side Airbags

I may mall crawl...but I look good doing it.....
panthermark is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




Download our Mobile App

» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 04:37 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
