auto trans super cooler mod

ok last year 80,000 wranglers had a recall due to automatic transmission overheating problems,,

im here to help.
this mod is basicaly a radiator for your automatic transmission.

its a flex-a-lite transmission cooler pt#4118.
it has a gvwr(gross vehicle wieght rating) of 18,000lbs,about triple what the wrangler needs.

its made in the good ol' usa and features turbulators,copper tubes and cooling fins.

what you will need.

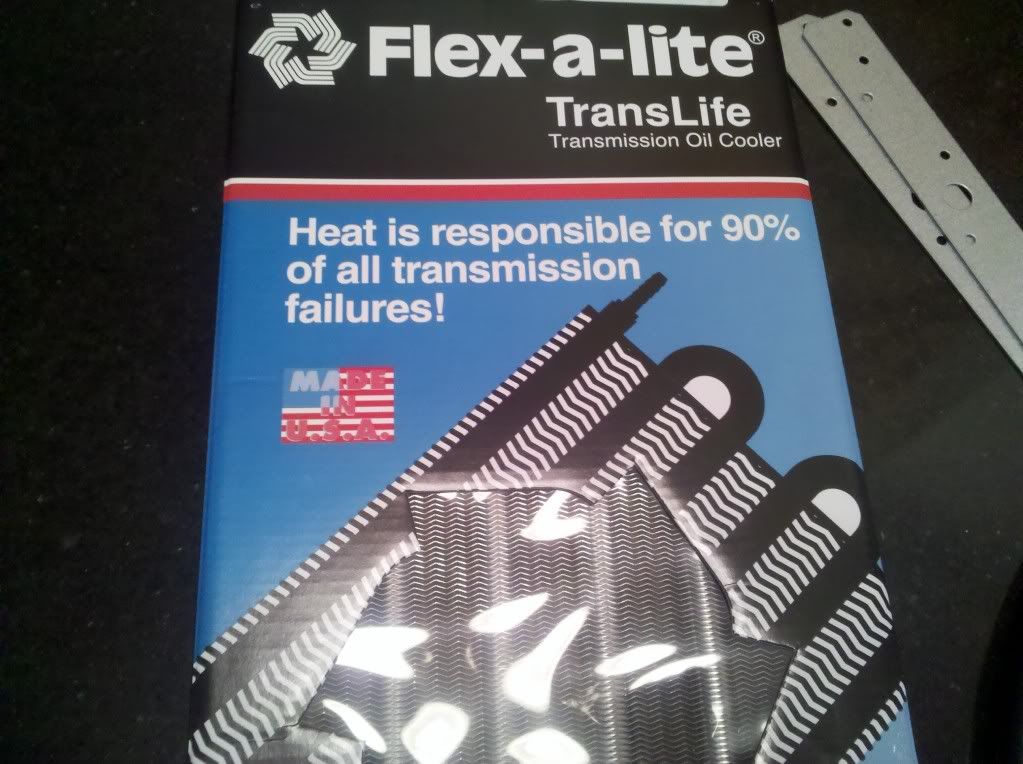

flex a lite trans cooler pt#4118

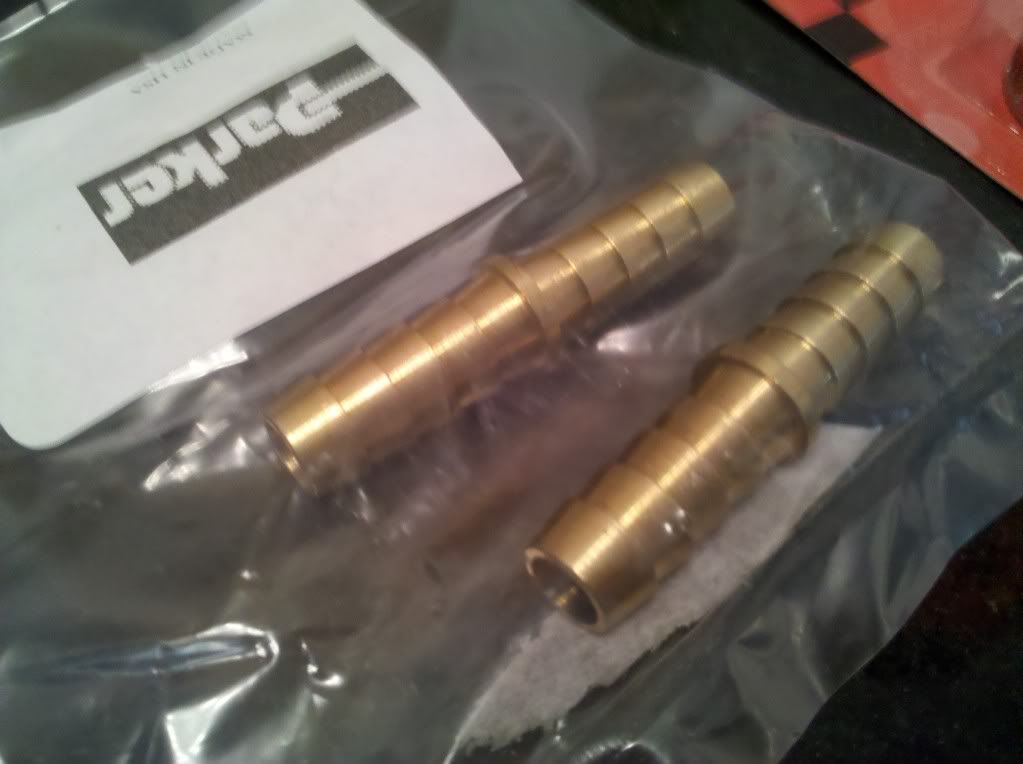

2x 3/8-inch fittings with barbed ends on both sides

2x extra clamps

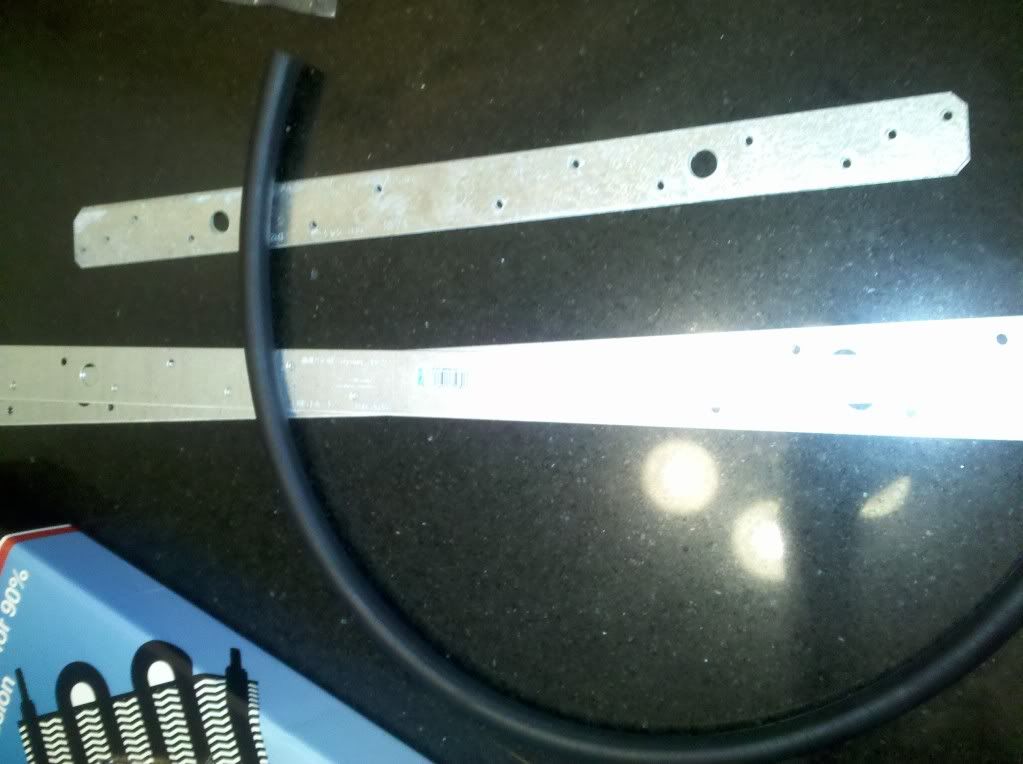

2 pieces of metal stripping approximetly* 1 1/2 ft per piece
and 2 feet of 3/8ths transmission cooler hose

6 12/ 1/2 sheet metal screws


start by letting engine cool,and remove the grill,,its quite easy,,theres 6 2-piece plastic fasteners across the top,use a small flathead to remove the center piece and then the outer piece,,,then there is four clips on the bottom of the grill,,all you have to do is give it a little pull and they will come loose.until you get this.


step1 is taking the metal strapping and making brakets that fit between the upper and lower core support..i used a vice,and a hammer for my bends..until i ended up with this,,(you can make brackets any way you desire)

__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-10-2011, 09:45 PM   #2
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
and then you will notice a mounting kit comes with the flex-a-lite cooler,and you want o use that kit to mout the cooler to your brackets and it will end up looking like so..






ok next step again is up to you for positioning,,i had to drill holes in the upper and lower core support for bracket placement,and i did so like this,,,i also added my hoses,,,there is a hose that comes with the cooler,and there is your 2 ft of hose,,the 2ft goes on bottom and the longer one goes on the top,and place your clamps for hose to seal around fitting.





next step is to tie into the existing transmission line..looking through the top of the hood it would be the top line,be sure to put something under line before cutting as a little tranny fluid will leak out..heres pics of cut needed to be made.



now undernieth your jeep is where the 2 lines are,,you'll want to make some cuts to make all lines size up right,, make sure they run clean and free from any sharp edged objects or moving/running parts (mine go right under the radiator)..after you have cut lines to size,install one of the double barbed fittings in each line and clamp them down,,,,

now make sure the fluid comming from the trans goes into the top of the new flex-a-lite cooler and the bottom will splice into the other end,(make sure to put clamps over lines before conecting fittins as they are a s.o.b. to get back off..after all lines are connected it should look like this.


and now just go through and make sure all six clamps are tight and lines are routed the right way...check your trans fluid level,start it up and watch it say thanks....now reinstall your grill and reep the reward



even if your jk wasnt effected by the recall,this mod can extend the life and performance of your automatic transmission..

hope it helps somebody

__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-10-2011, 10:06 PM   #3
MTH
Jeeper

MTH's Avatar

Join Date: Oct 2010
Location: North Carolina
Posts: 8,553
Holy crap Seelye. I don't even have an auto transmission, but I can say that was a good write up.
__________________
Mike
2010 JKU "Mountain" Edition
TeraFlex 2.5" Coil Lift : Old Man Emu Nitrocharger Shocks : 33x12.5R15 Goodyear DuraTracs : 15x8 Black Rock 909s : Other Stuff . . .
MTH is offline   Quote Quick Reply
Old 06-10-2011, 10:09 PM   #4
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
thanks,,,i wouldnt have one either if the wifey didnt want to drive it,,but i had to be the nice guy,so i figured i would boost it up a little bit
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-11-2011, 05:00 PM   #5
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
wow,i thought more people would be interested in this.
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-11-2011, 05:10 PM   #6
Jeeper

WF Supporting Member

Mortalis5509's Avatar

Join Date: Jul 2010
Location: Winder, GA
Posts: 1,728
Send a message via AIM to Mortalis5509
I did a BCM on my TJ.
__________________
Go DAWGS!!

YOU ONLY NEED TWO TOOLS IN LIFE - WD-40 AND DUCT TAPE. IF IT DOESN'T MOVE AND SHOULD, USE THE WD-40. IF IT SHOULDN'T MOVE AND DOES, USE THE DUCT TAPE.

IF YOU CAN'T FIX IT WITH A HAMMER, YOU'VE GOT AN ELECTRICAL PROBLEM.
Mortalis5509 is offline   Quote Quick Reply
Old 06-11-2011, 08:10 PM   #7
Supporting Member

WF Supporting Member

SilverSport's Avatar

Join Date: May 2011
Posts: 20,839
Send a message via Yahoo to SilverSport
Excellent writeup! I would suggest some mesh behind the grille to protect the cooler. Tube and fin coolers and rocks, road debris, etc, don't get along.
__________________
"Own a Jeep and own a piece of history."

"The Hunter is not concerned with the opinion of the Wolf."
SilverSport is offline   Quote Quick Reply
Old 06-11-2011, 09:30 PM   #8
Jeeper

Mabar's Avatar

Join Date: Jul 2010
Posts: 310
Quote:
Originally Posted by seelye View Post
wow,i thought more people would be interested in this.
Looks good to me!

Mabar
__________________
The Bigger the Government, the Smaller the Citizen
Mabar is offline   Quote Quick Reply
Old 06-11-2011, 11:16 PM   #9
Jeeper

Wandell's Avatar

Join Date: May 2011
Posts: 169
Good writeup!
Wandell is offline   Quote Quick Reply
Old 06-12-2011, 12:47 AM   #10
Jeeper

Join Date: Apr 2011
Location: Oman
Posts: 17
I am going to install an auto tran aux cooler (at some point) and have read a few write ups on installs. The other ones I've read recommend the line from the trans into the cooler should go into the bottom of the cooler and not the top. Various reasoning is given but thinking of the engine radiator the flow is from engine into the top of the radiator; same config you have done with your trans cooler.

Would there be some valid reason to route it opposite to what you did or will it not make enough difference either way; more important just to have the thing hooked up?

Thanks.
Cajalco is offline   Quote Quick Reply
Old 06-12-2011, 12:53 AM   #11
Jeeper

themoneypit's Avatar

Join Date: Apr 2011
Posts: 517
just did the B&M cooler a couple days ago. B&M says it has a cold weather bypass built into the cooler construction. Good if your in a cold climate, gets into the negatives in winter here.
themoneypit is offline   Quote Quick Reply
Old 06-12-2011, 06:52 AM   #12
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
awesome,,thanks a lot fellas..

cajalco,,,my thoughts on how the lines run is like a siphon,,therefor if the fluid starts at top,it can be "pushed" down the cooler much easier than being "pulled" up the cooler.
its basicaly just physics.

moneypit,i hear ya,,it's just the opposite here in va beach,,yesterday was 98.
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-12-2011, 06:54 AM   #13
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
Quote:
Originally Posted by SilverRubi View Post
Excellent writeup! I would suggest some mesh behind the grille to protect the cooler. Tube and fin coolers and rocks, road debris, etc, don't get along.
been thinking of doing this but i want to make sure i dont restrict airflow at all. any ideas?
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-12-2011, 06:57 AM   #14
Jeeper

Mabar's Avatar

Join Date: Jul 2010
Posts: 310
Quote:
Originally Posted by Cajalco View Post
I am going to install an auto tran aux cooler (at some point) and have read a few write ups on installs. The other ones I've read recommend the line from the trans into the cooler should go into the bottom of the cooler and not the top. Various reasoning is given but thinking of the engine radiator the flow is from engine into the top of the radiator; same config you have done with your trans cooler.

Would there be some valid reason to route it opposite to what you did or will it not make enough difference either way; more important just to have the thing hooked up?

Thanks.
I would follow whatever routing instructions that come with the specific brand and model of cooler you purchase. For example, the B&M 70268 cooler instructions state to route the line coming into the B&M cooler at the bottom, then out at the top, back to the transmission.

B&M 70268 cooler - click on "download cooler tech doc" on this page

JP Magazine, July, 2011 issue, page 76, installs a Flex-a-Lite #4118 cooler, exactly like the OP. They state the line from the radiator should go into the TOP of the trans cooler, and exit from the bottom, to return to the transmission.

That is the exact opposite of the B&M instructions.

I would just follow whatever instructions that come with the cooler you install.

Mabar
__________________
The Bigger the Government, the Smaller the Citizen
Mabar is offline   Quote Quick Reply
Old 06-12-2011, 07:01 AM   #15
Jeeper

Mabar's Avatar

Join Date: Jul 2010
Posts: 310
Quote:
Originally Posted by seelye View Post
been thinking of doing this but i want to make sure i dont restrict airflow at all. any ideas?
Here is my mesh grill mod write-up. I doubt if it restricts much air.

JK Wrangler mesh grill mod

Mabar
Attached Thumbnails
Click image for larger version

Name:	IMG_2617.jpg
Views:	69
Size:	221.1 KB
ID:	53180
__________________
The Bigger the Government, the Smaller the Citizen
Mabar is offline   Quote Quick Reply
Old 06-12-2011, 07:33 AM   #16
Jeeper

WF Supporting Member

chucky cheese's Avatar

Join Date: Dec 2006
Location: We eat stuff outa ditches!
Posts: 3,958
Is it necessary to make brackets? The threaded connectors looked long enough to go through the radiator and a/c cores and mount flat up against the front core.
__________________
It ain't easy being cheesy:

Sometimes I make decisions like famous people.
George Armstrong Custer "lets go over that hill, I think those are friendly indians!"

Titanic's Captain Smith "What icebergs? Full speed ahead!"
chucky cheese is offline   Quote Quick Reply
Old 06-12-2011, 09:02 AM   #17
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
Quote:
Originally Posted by Mabar View Post
Here is my mesh grill mod write-up. I doubt if it restricts much air.

JK Wrangler mesh grill mod

Mabar
awesome dude,thank you very much
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-12-2011, 09:04 AM   #18
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
Quote:
Originally Posted by chucky cheese View Post
Is it necessary to make brackets? The threaded connectors looked long enough to go through the radiator and a/c cores and mount flat up against the front core.
nope,not necessary at all to make brackets,i only did so,so the cooler wasnt sitting on top of the radiator,but honestly they give you the long connectors so you can do exactly that.
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-12-2011, 09:15 AM   #19
Jeeper

Mabar's Avatar

Join Date: Jul 2010
Posts: 310
Quote:
Originally Posted by seelye View Post
awesome dude,thank you very much
Hah! You are welcome! Seemed to work out well for me.

Very nice write-up on the trans cooler install.

Mabar
__________________
The Bigger the Government, the Smaller the Citizen
Mabar is offline   Quote Quick Reply
Old 06-12-2011, 10:37 AM   #20
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
Quote:
Originally Posted by Mabar View Post
Hah! You are welcome! Seemed to work out well for me.

Very nice write-up on the trans cooler install.

Mabar
thanks for compliment,,and i just went and picked up everything for the grill guard,i'll be installing later with your instructions,,thanks again!!
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-12-2011, 11:11 AM   #21
Jeeper

Mabar's Avatar

Join Date: Jul 2010
Posts: 310
Quote:
Originally Posted by seelye View Post
thanks for compliment,,and i just went and picked up everything for the grill guard,i'll be installing later with your instructions,,thanks again!!
Don't forget the pics when you are done.

Mabar
__________________
The Bigger the Government, the Smaller the Citizen
Mabar is offline   Quote Quick Reply
Old 06-12-2011, 11:19 AM   #22
Get your Jeep dirty!!!

WF Supporting Member

Rogerg's Avatar

Join Date: Aug 2009
Location: Las Vegas
Posts: 762
Images: 6
Nice detailed write up and the pics makes it even better
__________________
2008 Jeep X unlimited 4" Rancho Sport lift/17x9 Black Level 8 Alloys/37-12.5-17 Nitto Trail Grapplers
2006 Jeep Rubicon 5.5" Teraflex long arm+1" body lift/17x9 Procomp 7031 Alloys/37-12.5-17 Falken Wild Peak
Rogerg is offline   Quote Quick Reply
Old 06-12-2011, 12:45 PM   #23
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
Quote:
Originally Posted by Mabar View Post
I would follow whatever routing instructions that come with the specific brand and model of cooler you purchase. For example, the B&M 70268 cooler instructions state to route the line coming into the B&M cooler at the bottom, then out at the top, back to the transmission.

B&M 70268 cooler - click on "download cooler tech doc" on this page

JP Magazine, July, 2011 issue, page 76, installs a Flex-a-Lite #4118 cooler, exactly like the OP. They state the line from the radiator should go into the TOP of the trans cooler, and exit from the bottom, to return to the transmission.

That is the exact opposite of the B&M instructions.

I would just follow whatever instructions that come with the cooler you install.

Mabar
nice,,that was my source for doing this also...i figured if they did it in jp it should be a good mod,,and cheap..
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-12-2011, 12:46 PM   #24
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
Quote:
Originally Posted by Rogerg View Post
Nice detailed write up and the pics makes it even better
thanks man,,and i couldnt agree more,,i learn from pics,,a.d.d. makes it a sob to read so pics are worth a million words.
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-12-2011, 08:45 PM   #25
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686



__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-12-2011, 09:38 PM   #26
Jeeper

WF Supporting Member

dfwislander's Avatar

Join Date: Aug 2010
Posts: 447
Quote:
Originally Posted by seelye
ok last year 80,000 wranglers had a recall due to automatic transmission overheating problems,,

im here to help.
this mod is basicaly a radiator for your automatic transmission.

its a flex-a-lite transmission cooler pt#4118.
it has a gvwr(gross vehicle wieght rating) of 18,000lbs,about triple what the wrangler needs.

its made in the good ol' usa and features turbulators,copper tubes and cooling fins.

what you will need.
flex a lite trans cooler pt#4118

2x 3/8-inch fittings with barbed ends on both sides

2x extra clamps

2 pieces of metal stripping approximetly* 1 1/2 ft per piece
and 2 feet of 3/8ths transmission cooler hose

6 12/ 1/2 sheet metal screws

start by letting engine cool,and remove the grill,,its quite easy,,theres 6 2-piece plastic fasteners across the top,use a small flathead to remove the center piece and then the outer piece,,,then there is four clips on the bottom of the grill,,all you have to do is give it a little pull and they will come loose.until you get this.

step1 is taking the metal strapping and making brakets that fit between the upper and lower core support..i used a vice,and a hammer for my bends..until i ended up with this,,(you can make brackets any way you desire)
Excellent! Come do mine, I am incapable
dfwislander is offline   Quote Quick Reply
Old 06-13-2011, 06:11 AM   #27
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
where are you located?
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 06-13-2011, 06:29 AM   #28
Jeeper

Join Date: Jun 2011
Posts: 147
Great post. Thanks
Bronsonbull is offline   Quote Quick Reply
Old 06-13-2011, 06:33 AM   #29
Jeeper

Mabar's Avatar

Join Date: Jul 2010
Posts: 310
Looks great, Seeyle.

Mabar
__________________
The Bigger the Government, the Smaller the Citizen
Mabar is offline   Quote Quick Reply
Old 06-13-2011, 10:14 AM   #30
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
Quote:
Originally Posted by Bronsonbull View Post
Great post. Thanks
welcome

mabar,,thanks man,,it was a super easy "perfect" mod.

__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Newb; trans oil cooler drip mikenmo TJ Tech Forum 3 09-28-2010 12:26 AM
Auto Trans with the 4.0 JayJohnson TJ Tech Forum 5 04-26-2010 08:54 PM
Throttle return spring or for auto trans NVRDLMO TJ Tech Forum 19 11-05-2009 08:49 PM
How To Install Auto Tranny Cooler ? nicolas-eric TJ Tech Forum 18 11-19-2008 12:12 PM
Mileage on your Auto Trans daddyrod TJ General Discussion Forum 14 02-01-2008 04:49 PM



» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 09:32 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
