Big ebay rear bumper/tire carrier review>> LOTS OF PICS
So I mentioned I was going to buy a Ebay rear bumper/carrier. At $475 Shipped I figure it was worth a shot. I was pondering a Teraflex hinge, but I wanted protection, looks, and carrier jerry cans and other accessories in the future.
I was trying to stay under $500, so I gave the ebay bumper a chance.
Ok, First..this is not, I repeat NOT E-autogrilles bumper. This is from Truck and Winch out of Cali. Yes they look the same, but the way the handle latches is different and that is all I can tell as of now.
This bumper was a BID bumper and with no one bidding, I got it for $475 shipped to the house.
Ordered Tues 10/8
Shipped Weds 10/9
Received Mon 10/14......That is from Cali to St louis
The D-ring brackets are support welded on the inside
Comes with 2 3/4" 4T D rings
All the Hardware was correct
It operates smoothly
Does not sag when open. So no "lifting it up to close"
95% of the Powder Coating was excellent. (pics will show the bad 5%)
No Rattles, ( I added some reassurance, will show in pics)
Bracket on Driver side of the bumper, the holes didnt line up with the frame.
The 5% of bad coating
The handle looks a little rough.. (See in pic)
The latch mechanism isnt like the E-Autogrill or Smittys.
The studs for the tire carrier are different threads ( easy fix)
No place for a 3rd brake light.
So onto pics....
Here is how it came, 2 separate boxes and the box with the bumper had plywood on the bottom of it. The boxes were a little beat up,but no damage to the parts
Not going to go into details on removing the rear bumper, but it literally takes 5 minutes with air tools. You will have to remove the factory trailer hitch, with has 4 long bolts going through the cross frame, no biggie.
Now you take the "L" shaped bracket and slide it inside the frame, with the vertical part toward THE OUTSIDE.
Now the suck part...The driver side didn't line up
So after re-slotting the holes, I was able to get it all bolted up. You have 2 bolts on both sides of frame and 4 through the cross frame(were the hitch was), all holding it in place. It sits level at all angles
When you put on the tire carrier, there is a nylon bushing that goes on first, than the carrier, then a snap ring. Install grease fitting, grease and its good to go. *** Make sure to snug the carrier post bolts after it is LATCHED AND TIRE IS ON*** I swapped out the regular nuts and lock washers for nylon nuts on the post bolts, You will NOT have the 2 pieces of metal touching, there will be a gap

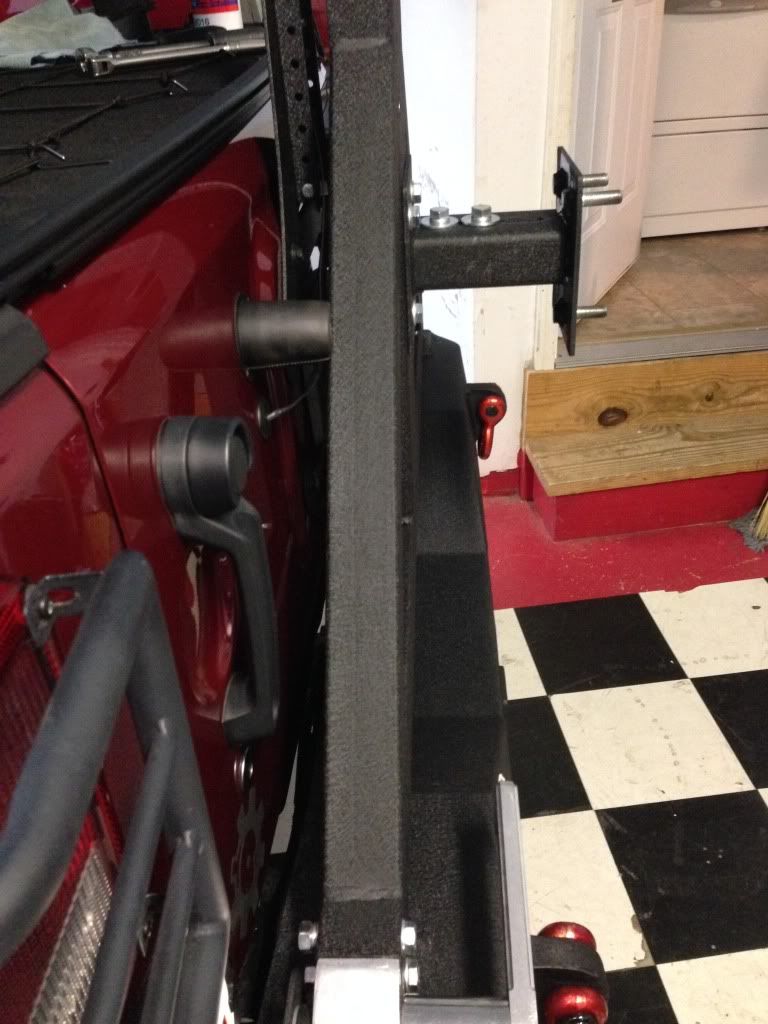

Now Im not sure on my bumper to body gap, it might be like this normally, it might not. I couldn't push it in any further and it could've been to having to modify the holes in the bracket and not doing to to the passenger side. But either was, it makes the carrier come in contact with the factory bump stops and makes for a snug, no rattle contact. Plus its even all the way around so Ill keep it that way. And it doesn't contact my CB antenna mount
The handle and latch setup... Like i said the handle looks a little rough, but not a deal killer. What I did to take out some of the wiggle in the handle was, one layer of electrical tape on the shaft of the handle that is inside the housing and a O-ring between the handle itself and the housing. The tape around that pin makes no difference from experimenting with it
Now Latching...You push the carrier against that rubber bushing and it compresses it. Turn the handle and the pin travels up that vertical piece of steel (YELLOW) and into that recess detent. The rubber bushing then keeps pressure applied, keeping that pin from moving out. I added that white shim to see if I can make it lock in place harder, no difference in operation. I think with the rubber bushing on the handle and the bump stops on the tailgate pushing against the carrier, its fine. I even grabbed the carrier and tried pulling up on it in a jerk motion and it wouldn't budge with the handle engaged.
Im running a 35" on here and using the bottom holes for the tire, they claim up to a 37 will fit
Now heres the deal in the studs for the tire. They were tack welded to the plate and were NOT the same thread pitch as JK lugs...not a big deal, cause they supplied 3 lug nuts to mount with. But Im running special locking lugs from DTD which are 1/2" by 20. So I grounded the welds off, knocked out the old bolts and got 3 new ones in my tread size. Had a friend hit them real quick with the welder, spray bomb the plate again, and I was back in business
Now with the plate all the way back, I still have 5/8" gap from my tire contacting the carrier support. Im sure that is optimal for reduce vibration for off road, but for local Mall Crawling like me, it'll be ok for now.
I will be either taking material off the ends of the necks to push the tire in closer, or just add bump stops to the carrier frame to contact the tire
So overall... Im pleased with it. Is it perfect? Of course not. But I like to tinker with things and plus it will serve its purpose for our application...90% on road, 10% off road.
Just dont expect $1500 quality here
I will keep updates here of anything that comes up either good or bad. But as of now, its solid and no rattles at this time
Any questions or if more detailed pics of somethings.. let me know
I have the same bumper and am happy with it. Make sure it is adjusted correctly at the pivot point. I had mine too tight and the carrier would not rest correctly at the latch. Because of this, the latch wouldn't latch all the way, and on first test run it popped open. Adjusted it, and havent had a problem in three months.
OP, do you know what the little rubber bumper is for? I cant figure out where it goes...
2013 Billet Rubicon
Ace rock rails, 2.5 teraflex coil lift, AEV Geo brackets, Rancho 9000xl shocks all around, 35x12.5x15 Wrangler MTR's on Mb chaos wheels, Bushwacker flat flares, 12k winch on Rough Country hybrid bumper, Spyder rear bumper/carrier, KC long range windshield lights, rock lights and some other happy crap.
I bought the same rear bumper and carrier a few weeks ago. I cant get the oem bumpstops to line up with the carrier. So now the spare tire vibrates/shakes over bumps. What did you do to get the oem bumpstops to line up?
Btw i used the runber bumpstop that was supplied with the carrier and screwed in into the bottom of the carrier so the back of the inside tire would rest on it. It still did not help with the carrier vibration.
I bought the same rear bumper and carrier a few weeks ago. I cant get the oem bumpstops to line up with the carrier. So now the spare tire vibrates/shakes over bumps. What did you do to get the oem bumpstops to line up? Btw i used the runber bumpstop that was supplied with the carrier and screwed in into the bottom of the carrier so the back of the inside tire would rest on it. It still did not help with the carrier vibration.
Not sure what you are trying to get at with the bump stops lining up
