rhb+chr550+reverse cam w/ pics

ok so i searched high and low on how to instal a lockpick and a reverse camera in a 2011 jku 4dr and could not find this anywhere..so i decided to do it myself and the right way..

i will show more pics than describing things so if you have questions feel free to ask away..

ok i started by buying a reverse/color/night vision camera and the chr550..

i then took a 5 gallon paintbucket lid and cut a piece to fit the tire carrier,,i then alighned it,marked holes and cut..then i cut a hole for the camera and sealed it in with weather tape..until i got this.

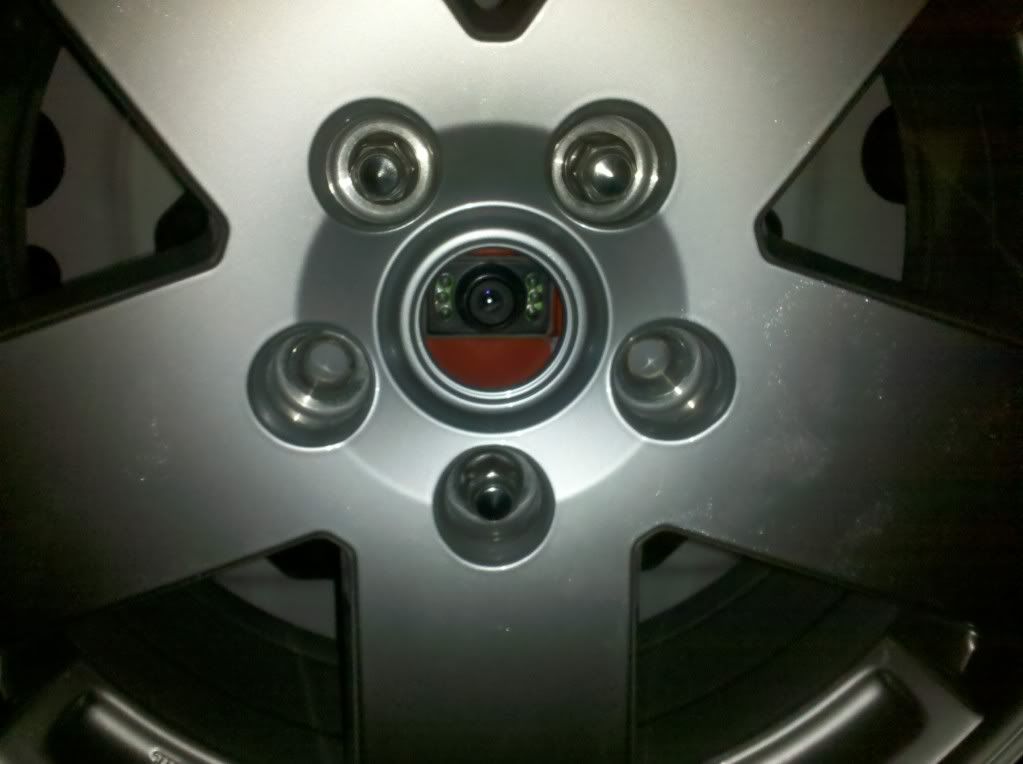

i then instaled it behind the spare running the wires behind the carrier and into the rubber plug behind carrier (plug had to be sliced to fit wires through, and i ended up with this here.

(after these photos i removed tire again and masked the red with a black electrical tape and looked much better.

then i opened the rear gate and removed the black piece of plastic on the door and made a hook to fish my cables through the hole behind plastic like so.


i then connected my power cable and my video cable to the ends comming from door and tucked the connectors back inside the door like so.


then i ran my cables along the third brake light cables and ziptied them together




then i removed my passenger tailight and ran my power wire through where the door catch arm is.

after disconnecting the taillight i snipped the white wire with grey stripe(reverse wire) and the black wire(ground)

i then reached through hole where light was to find power and ground for camera,then pull them through,,,and then connected everything back together like so.





i then ran my video wire along the passenger side tucking it away nicely to not be seen.

and for the lockpick,its definetly plug and play,,i ran my wires from behind my deck and into the rear area of the glove box and up and over and installed the pick to the back wall of glove box like so..



everything works like a charm with factory functioning camera that will automaticaly turn on in reverse..

feel free to ask any questions...and hope this helps someone out..

__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 04-28-2011, 09:56 PM   #2
Supporting Member

WF Supporting Member

the Kolector's Avatar

Join Date: Apr 2011
Location: Louisville, Ky
Posts: 2,607
That looks pretty good and pretty straight forward install. Good Job!

__________________
You Are The Result of 3.8 Billion Years of Evolutionary Success. Act Like It.
the Kolector is online now   Quote Quick Reply
Old 04-28-2011, 10:19 PM   #3
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
thanks man,,,it was pretty simple,hardest part being figuring out where to run all my wires to give it a factory look. but everything is stashed away and cant see a thing...
bigest reason for me doing the right up was because i was so frustrated with not being able to find it myself...
all i could find was wireless cameras,,garb if u ask me,,or someone had mounted one on the back window leaving the camera useless with top removed,or not being able to remove the top,,so this way you can remove the top or whetever and the spare has nothing to do with it either so changing a tire would be a breeze also,,i kept all of this in mind as i was figuring it out,,so no hopefuly someone else wont have to,,lol..
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 04-29-2011, 06:52 AM   #4
Jeeper

Trunz150's Avatar

Join Date: Nov 2010
Location: NY, NY
Posts: 359
Thats a great feature i wish i had the patience to do that lol.....good work
Trunz150 is offline   Quote Quick Reply
Old 04-29-2011, 07:29 AM   #5
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
just follow the instructions,,wasnt that hard.
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 04-29-2011, 10:01 AM   #6
Jeeper

JIMBOX's Avatar

Join Date: Nov 2009
Posts: 9,914
Looks like a real sanitary installation, congrads

I got one on my trailer license plate, to use when backing up in the boondocks/ cliffs/trees/hikers, but



It's on an independant ckt and can be used anytime-

JIMBO
__________________
"ya gotta have class"
JIMBOX is offline   Quote Quick Reply
Old 04-29-2011, 11:33 AM   #7
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
wow,,now thats nice,,im getting there...hey jimbox,,i will be recieving lights and windshield brackets today and wanted to ask you if i would need a relay for just the 2 or if they would run fine off of batt? im using the rugged ridge pillar pod with their rockers..any advice would be highly appreciated.
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 04-29-2011, 11:50 AM   #8
Jeeper

JIMBOX's Avatar

Join Date: Nov 2009
Posts: 9,914
YUP-need relay circuit and nowadays most KC lights come with diagrams/wire/relay/switch !!


Quote:
Originally Posted by seelye View Post
wow,,now thats nice,,im getting there...hey jimbox,,i will be recieving lights and windshield brackets today and wanted to ask you if i would need a relay for just the 2 or if they would run fine off of batt? im using the rugged ridge pillar pod with their rockers..any advice would be highly appreciated.
You can't run direct to battery, with just the switch--two much current-wait till your light package comes in and you'll probably have everything needed !!

Good luck -

JIMBO
__________________
"ya gotta have class"
JIMBOX is offline   Quote Quick Reply
Old 04-29-2011, 11:53 AM   #9
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
oh perfect,,thanks again!!
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 04-30-2011, 08:04 PM   #10
Jeeper

Join Date: Jan 2011
Posts: 37
Nice job- I've been wanting to do this on my 2011- will make it alot easier with your ideas. Can you recommend the camera make/model/source?
Thanks
Jim11787 is offline   Quote Quick Reply
Old 04-30-2011, 10:03 PM   #11
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 04-30-2011, 11:15 PM   #12
Jeeper

TheDoc's Avatar

Join Date: Mar 2011
Location: At the moment Sohar, Oman
Posts: 199
Seelye,

Great work so I guess the Lock pick will work on the 2011, did it free up the nav and video while driving. Do you have the DVD player as well in your unit? Just curious, so the kids can watch a dvd while I do the driving.

Again great work, and yes I will be doing the lights on windshield as my first light weight mod.

Nick
TheDoc is offline   Quote Quick Reply
Old 05-01-2011, 06:16 AM   #13
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
doc,,yep,it unlocked everything,,also new features opened,,including VEC,TV,and AUX.
not exactly sure what they do yet except the aux. is an ipod input cable to the lockpick that lets you have full control of ipod through HU and wheel controls..

everything worked perfect,no cutting wires or anything...

the chr550 comes with 4 harness' the back of your deck has a space for 2 but only one is in there...so you plug the 2 harness' into the back of the deck and then the original grey one goes into the grey side of the lockpick harness',,then there is one more harness,,and it is left open,,nothing goes into it.....this had me so frustrated because i thought i was missing something but after hooking it up like mentioned,,it unlocked everything without a problem..
its a pretty expensive piece of equipment,,but my biggest reason for doing this is because i make trips from va to ny often and i never pay attention to the directions,therefore changing the nav on the fly is something huge for me,,had they done this from the factory,i probably wouldnt care about the dvd playing in motion,,but as long as it comes with the pick,i wont argue either..i'd say as long as you can aford it,its a good thing to have,,,,and like mentioned in many places,,,"you should be able to have total control over something you paid soo much money for"..

and also trust me when i say if you buy the pick,your money will be well spent..

you'll feel like you own your jeep again
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 05-01-2011, 11:57 AM   #14
Jeeper

Join Date: Jan 2011
Posts: 37
Thanks for the camera info. Just wondering- do you have to uninstall this before taking it back to the dealer for service? Will it void the RHB warranty?
Jim11787 is offline   Quote Quick Reply
Old 05-01-2011, 12:51 PM   #15
Just a kid at heart...

WF Supporting Member

seadog's Avatar

Join Date: Oct 2010
Location: Almost where I belong...
Posts: 14,140
Quote:
Originally Posted by JIMBOX View Post
Looks like a real sanitary installation, congrads

I got one on my trailer license plate, to use when backing up in the boondocks/ cliffs/trees/hikers, but



It's on an independant ckt and can be used anytime-

JIMBO
Aren't you done setting that strap yet?
__________________
Brian



I tried to be good, but I got bored...
seadog is offline   Quote Quick Reply
Old 05-01-2011, 01:00 PM   #16
Jeeper

JIMBOX's Avatar

Join Date: Nov 2009
Posts: 9,914
Thats not the problem, I broke the damn power pole and had to go to Nevada off-road (BLM) training school and


Quote:
Originally Posted by seadog View Post
Aren't you done setting that strap yet?


pay $52,000 for new pole and NV Pwr hookup-other than that-

Normal day here in low overhead NorNv !!

JIMBO
__________________
"ya gotta have class"
JIMBOX is offline   Quote Quick Reply
Old 05-01-2011, 01:14 PM   #17
Just a kid at heart...

WF Supporting Member

seadog's Avatar

Join Date: Oct 2010
Location: Almost where I belong...
Posts: 14,140
^ Oops.

To OP, your install looks great. Very well written up. I can't use it, unless I want to get a new NAV unit, though.

One thing I noticed, is that it looks like you have a door stop on the rear gate. Is that stock on a 2011? I wonder if it can be retrofitted on a 2010?
__________________
Brian



I tried to be good, but I got bored...
seadog is offline   Quote Quick Reply
Old 05-01-2011, 02:40 PM   #18
Jeeper

Join Date: Jan 2011
Posts: 80
Awesome looking install and just what I needed to pull the trigger on something I've been thinking about!

Question though... Is your camera just taped to the paint bucket lid, or how did you secure it. I really think your install rocks!
jeepnpete is offline   Quote Quick Reply
Old 05-02-2011, 02:56 AM   #19
Jeeper

TheDoc's Avatar

Join Date: Mar 2011
Location: At the moment Sohar, Oman
Posts: 199
Seadog, The rear tailgate strap is std on 2011. not sure about mod though.

Nick.
TheDoc is offline   Quote Quick Reply
Old 05-02-2011, 06:21 AM   #20
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
Quote:
Originally Posted by jeepnpete View Post
Awesome looking install and just what I needed to pull the trigger on something I've been thinking about!

Question though... Is your camera just taped to the paint bucket lid, or how did you secure it. I really think your install rocks!
under the weather tape there is 2 hinges that secure the camera to the lid plus i used silicone to seal the whole outside and the weather tape for extra seal,,and then i used electrical tape to hide the weather tape,,,lol..its quite secure and waterproof
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 05-02-2011, 07:46 PM   #21
Jeeper

Join Date: Jan 2011
Posts: 37
Quote:
Originally Posted by Jim11787 View Post
Thanks for the camera info. Just wondering- do you have to uninstall this before taking it back to the dealer for service? Will it void the RHB warranty?
Guys-any input on the warranty/service question?
Thanks,
Jim
Jim11787 is offline   Quote Quick Reply
Old 05-02-2011, 08:44 PM   #22
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
to tell you the truth i have no idea as i do most repairs myself but if something major was to happen,i never had to splice any wires,so i could easily uninstall and take to dealer no problem.
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 05-09-2011, 07:43 PM   #23
Jeeper

LZMF1's Avatar

Join Date: Dec 2010
Location: Morris Plains, NJ
Posts: 50
i just recently put a back up cam in my wife's 4 dr jk and i slapped it on the rear license plate . i'm not really thrilled with the way it looks and may end up using your method. i'm just not looking forward to taking it all apart and redoing the whole thing. also, with the cam i got from coastal etech the image is mirrored and i cannot find the install guide. i know that eventually i'll figure out how to have it not mirrored but maybe one of you guys can point me in the right direction. i recall something having to be grounded for a mirror image but i cannot for the life of me remember the specifics.
__________________
2011 COD Black Ops 4 Door Jeep it's my wife's
LZMF1 is offline   Quote Quick Reply
Old 05-09-2011, 08:57 PM   #24
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
^^im not to familiar with that camera,but im sure someone on here might know..

and im glad the thread could help,,if u have any other questions,feel free to shoot.
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 05-09-2011, 09:30 PM   #25
Jeeper

LZMF1's Avatar

Join Date: Dec 2010
Location: Morris Plains, NJ
Posts: 50
i forgot which mygig locpick i put in the jeep.....i noticed yours is a bit different. the COD Black Ops jeep came with an RHB(?) head unit.

have you tried activating the cam while you're driving? it's pretty cool...just tap the U-Connect button a couple of times and violá you can see what's behind you. you turn it off the same way you turn it on.
__________________
2011 COD Black Ops 4 Door Jeep it's my wife's
LZMF1 is offline   Quote Quick Reply
Old 05-10-2011, 06:28 AM   #26
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
^^mine is wired to "not" do that,,i wanted it to be "factory like" so by tapping into my back-up light,,it will only recieve power when in reverse.
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 05-10-2011, 11:46 AM   #27
Jeeper

JeepJKRiders's Avatar

Join Date: Mar 2011
Location: Houston, Texas
Posts: 586
I thought about doing this camera setup, but wanted to place camera under the Jeep (front differential area) so I can see how close rocks are and get better judgment when rock crawling.
JeepJKRiders is offline   Quote Quick Reply
Old 05-10-2011, 01:25 PM   #28
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
^^if doing that,,you should do a 4-camera install on each corner.
__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Old 05-10-2011, 07:41 PM   #29
Jeeper

JeepJKRiders's Avatar

Join Date: Mar 2011
Location: Houston, Texas
Posts: 586
Quote:
Originally Posted by seelye
^^if doing that,,you should do a 4-camera install on each corner.
Any ideas on a good brand for this type of setup?
JeepJKRiders is offline   Quote Quick Reply
Old 05-10-2011, 07:51 PM   #30
Jeeper

seelye's Avatar

Join Date: Apr 2011
Location: chesapeake va
Posts: 686
not sure if ur fimiliar wih "lockpic" but the chr550 has connection for all four cameras,,then its a personal preference on cameras,,id go with a nightvision-color cam.

__________________
2011 sahara unlimited bright white
http://www.wranglerforum.com/f33/my-...ara-88641.html
Just
Everyday
Excited
People
seelye is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Took some pics of my 'Other' ride... 05GT-O.C.D. Pictures Forum 19 07-20-2010 07:58 PM
anyone have pics of a por 15 'd or Rust Bulleted frame, opinions of each needed fullberg YJ Pics Forum 3 04-25-2010 12:58 AM
vintage pics of my past jeeps pokey Pictures Forum 4 02-24-2010 07:54 PM
PICS - Warning - Poser Driveway Pics -- Finally MOz TJ Pics Forum 26 09-23-2007 11:09 AM
please show pics of TJ's with 33x12.50x15tire on a 15x8wheel or a15x10wheel metfan34 TJ Pics Forum 13 07-20-2007 08:38 PM



Download our Mobile App

» Featured Product

All times are GMT -5. The time now is 09:03 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
