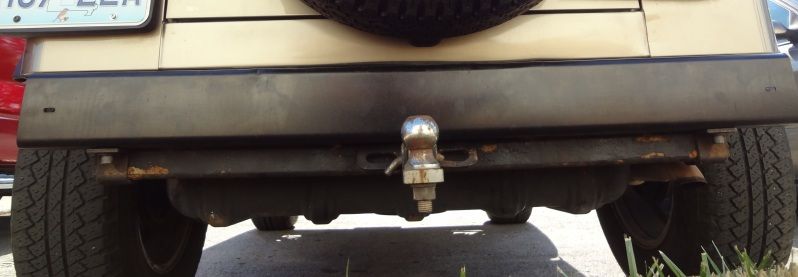

1 1/4 Receiver hitch mount

Does this mount look strong enough to tow a 17 foot aluminum Low boat with 40 HP Mariner?
I can stand on the ball with my 225 lbs and jump on it and it seems as strong or stronger than anything Iíve towed this boat with before.




MOTJ is offline   Quote
Old 08-20-2012, 10:39 PM   #2
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 8,449
looks like a POS.

get a good bumper with an integrated 2" hitch and some frame tie-in brackets.

UnlimitedLJ04 is offline   Quote
Old 08-20-2012, 10:43 PM   #3
Jeeper

98wrang's Avatar

Join Date: Sep 2011
Location: Raleigh, NC
Posts: 43
yeah i have a hidden hitch bolted to my frame and i put my boat on it, granted my boat weighs almost 2 tons on the trailer, and the hitch has shifted to point down. i would get a bumper or get a real hitch welded onto the frame. dont bolt it, weld it
__________________
98 TJ, 2.5L, 5spd, 84k, 3" BDS Suspension Lift, BDS Stabilizer, 33" Goodyear Duratracs, 16" Moto Metals

Totin' It
98wrang is offline   Quote
Old 08-20-2012, 10:44 PM   #4
Jeeper

98wrang's Avatar

Join Date: Sep 2011
Location: Raleigh, NC
Posts: 43
i just realized the picture in my sig is the day my trailer hitch messed up
__________________
98 TJ, 2.5L, 5spd, 84k, 3" BDS Suspension Lift, BDS Stabilizer, 33" Goodyear Duratracs, 16" Moto Metals

Totin' It
98wrang is offline   Quote
Old 08-20-2012, 10:48 PM   #5
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 8,449
Quote:
Originally Posted by 98wrang View Post
yeah i have a hidden hitch bolted to my frame and i put my boat on it, granted my boat weighs almost 2 tons on the trailer, and the hitch has shifted to point down. i would get a bumper or get a real hitch welded onto the frame. dont bolt it, weld it
bolted on is fine, if done right. pic shown above does not qualify.

a 4.0L TJ can tow 2000lbs, that's it. for the 2.5L, it's 1000lbs. you bent your hitch because you went over the rated capacity with improper equipment....and that's just stupidity.
UnlimitedLJ04 is offline   Quote
Old 08-20-2012, 11:01 PM   #6
Jeeper

Patrick H's Avatar

Join Date: Nov 2011
Location: Northern NM
Posts: 3,136
Quote:
Originally Posted by 98wrang View Post
yeah i have a hidden hitch bolted to my frame and i put my boat on it, granted my boat weighs almost 2 tons on the trailer, and the hitch has shifted to point down. i would get a bumper or get a real hitch welded onto the frame. dont bolt it, weld it
Yeah, don't be welding a hitch to the frame. There's absolutely no reason for it.
Patrick H is offline   Quote
Old 08-21-2012, 07:26 AM   #7
Jeeper

Wattapunk's Avatar

Join Date: Mar 2012
Location: North TX
Posts: 2,354
This whole setup is an accident waiting to happen. Improper hitch and towing a boat with the Jeep's short wheel base is just a bad combo. I would recommend trailer brakes.
Wattapunk is offline   Quote
Old 08-21-2012, 01:48 PM   #8
WRH
Jeeper

Join Date: Apr 2012
Posts: 80
My understanding is the 2.5L is only rated to tow 1000 lbs, and that means towing a toy like a jet ski.

WRH is offline   Quote
