3.25 lift... front track bar?

i but on a rough country 3.25 lift yesterday and instructions said drill a hole to relocate the front track bar... but were you have to move it to leaves like no metal to hold it in if you drill a hole... so the question is.. what did yall do to solve the problem..

__________________
JEEP... NOUGH SAID
Nate_Stroud is offline   Quote Quick Reply
Old 01-15-2012, 12:23 PM   #2
Newb

Join Date: Sep 2011
Posts: 3
You have to drill the hole 3/4" towards the drivers side of the vehicle.

MMMichael is offline   Quote Quick Reply
Old 01-15-2012, 04:14 PM   #3
Jeeper

jeepgarza's Avatar

Join Date: Mar 2011
Location: Faribault, Minnesota
Posts: 297
someone should post pictures I'm looking at this lift and i've been wondering about that also
__________________
1997 Wrangler sport 4in. lift 33 km2's ford 8.8 rear 4.56 gears
jeepgarza is offline   Quote Quick Reply
Old 01-15-2012, 11:08 PM   #4
Show Me Your 8008135!

WF Supporting Member

s3nt3nc3d's Avatar

Join Date: Oct 2009
Location: Piqua, OH
Posts: 3,641
Send a message via AIM to s3nt3nc3d
Don't forget to reenforce the mount or you will risk ripping the trackbar out of the mount...I relocated mine when I installed my 3" lift and within days, it was loose in the mount and popping frequently. I kept tightening it and it continued working itself loose. I replaced it with a JKS adjustable a couple months later and my hole was wallowed out from the trackbar shifting so much. Haven't had any issues since installing the adjustable using the original hole.

One note with using an adjustable...you need to have the right amount of bumpstop extensions or your trackbar could contact your differential cover on bigger bumps. If it hits hard enough, that could be disastrous.
__________________
"We don't build great brakes because we think you don't know how to drive, we build them for the guy on the road in front of you that doesn't." - Black Magic Brakes
s3nt3nc3d is offline   Quote Quick Reply
Old 01-16-2012, 12:47 AM   #5
Jeeper

DevilDogDoc's Avatar

Join Date: Jun 2010
Location: Yucca Valley CA 20 miles from JV
Posts: 2,362
Or just leave it where it is. Mine has been shifted over for almost 2 years to no ill effect.
__________________
Violence may not be the answer but it sure cuts down on the stupid questions
DevilDogDoc is offline   Quote Quick Reply
Old 01-16-2012, 01:38 AM   #6
Show Me Your 8008135!

WF Supporting Member

s3nt3nc3d's Avatar

Join Date: Oct 2009
Location: Piqua, OH
Posts: 3,641
Send a message via AIM to s3nt3nc3d
Quote:
Originally Posted by DevilDogDoc View Post
Or just leave it where it is. Mine has been shifted over for almost 2 years to no ill effect.
Of course, that's always an option...but if it were mine, constantly seeing it shifted would drive me nuts. lol
__________________
"We don't build great brakes because we think you don't know how to drive, we build them for the guy on the road in front of you that doesn't." - Black Magic Brakes
s3nt3nc3d is offline   Quote Quick Reply
Old 01-16-2012, 02:09 AM   #7
Jeeper

WF Supporting Member

Mortalis5509's Avatar

Join Date: Jul 2010
Location: Winder, GA
Posts: 1,728
Send a message via AIM to Mortalis5509
Adjustable front trac bar is the solution honestly.
__________________
Go DAWGS!!

YOU ONLY NEED TWO TOOLS IN LIFE - WD-40 AND DUCT TAPE. IF IT DOESN'T MOVE AND SHOULD, USE THE WD-40. IF IT SHOULDN'T MOVE AND DOES, USE THE DUCT TAPE.

IF YOU CAN'T FIX IT WITH A HAMMER, YOU'VE GOT AN ELECTRICAL PROBLEM.
Mortalis5509 is offline   Quote Quick Reply
Old 01-16-2012, 09:03 AM   #8
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,396
Quote:
Originally Posted by Mortalis5509 View Post
Adjustable front trac bar is the solution honestly.
thats only if you're willing to sacrific uptravel by installing bumpstop extensions to prevent the new track bar from hitting the diff cover or tie-rod.

Nate_Stroud: here's what you want to do:
Broken front track bar bracket - JeepForum.com
UnlimitedLJ04 is online now   Quote Quick Reply
Old 01-16-2012, 06:21 PM   #9
Jeeper

WF Supporting Member

Oldguy's Avatar

Join Date: Nov 2011
Posts: 3,266
I have a Teraflex adjustable trackbar and it doesn't even come close to the differential cover...
Oldguy is offline   Quote Quick Reply
Old 01-16-2012, 06:23 PM   #10
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,396
Quote:
Originally Posted by Oldguy View Post
I have a Teraflex adjustable trackbar and it doesn't even come close to the differential cover...
post pics at full bump with the springs removed.
UnlimitedLJ04 is online now   Quote Quick Reply
Old 01-16-2012, 08:52 PM   #11
Jeeper

WF Supporting Member

Oldguy's Avatar

Join Date: Nov 2011
Posts: 3,266
Quote:
Originally Posted by UnlimitedLJ04 View Post
post pics at full bump with the springs removed.
One, I don't do cameras or pictures.

Two, any change I make to my suspension is done with a full cycle check.

Three, are you calling me a liar, MFKR?
Oldguy is offline   Quote Quick Reply
Old 01-16-2012, 09:17 PM   #12
Jeeper

Nate_Stroud's Avatar

Join Date: Oct 2011
Location: Fort Dix, NJ
Posts: 22
I just cut the wheels over till the hole and track bar lined up and put the bolt back in... I don't think my springs could compress down enough to make it touch the front diff...
__________________
JEEP... NOUGH SAID
Nate_Stroud is offline   Quote Quick Reply
Old 01-16-2012, 09:26 PM   #13
Jeeper

WF Supporting Member

Oldguy's Avatar

Join Date: Nov 2011
Posts: 3,266
This is why you do full cycle checks when you modify your suspension. With springs out you check all clearances both at full compression, full drop, and if you're really paranoid at full compression on both sides. This last is really important if you're into any kind of jumping. It is dangerous to 'think' it will clear. You have to 'know' it will clear.
Oldguy is offline   Quote Quick Reply
Old 01-16-2012, 09:26 PM   #14
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,396
Quote:
Originally Posted by Oldguy View Post
Two, any change I make to my suspension is done with a full cycle check.
so prove it...post pics. lots of people claim their stuff works, but few can actually prove it at full bump.

Quote:
Originally Posted by Oldguy View Post
Three, are you calling me a liar, MFKR?
I'm not sure what MFKR is?

Quote:
Originally Posted by Nate_Stroud View Post
I just cut the wheels over till the hole and track bar lined up and put the bolt back in... I don't think my springs could compress down enough to make it touch the front diff...

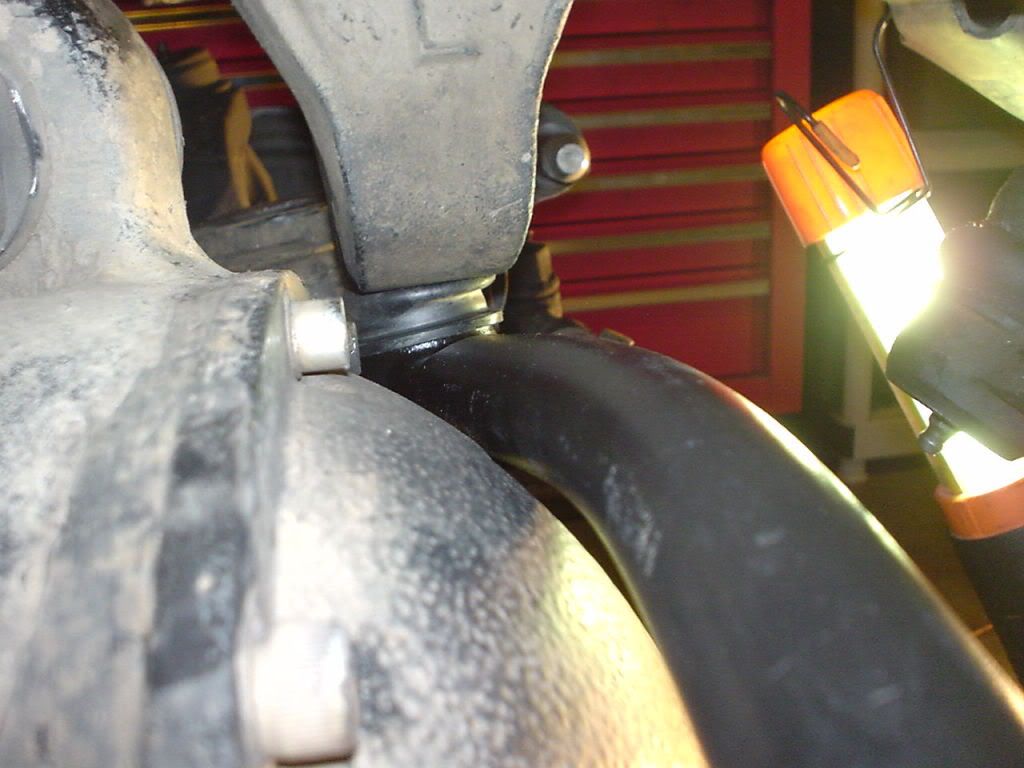

here's 1.375" bumpstop extension over stock at full bump, with an adjustable track bar and a V8 ZJ tie-rod. with a straight tie-rod, this track bar hits the tie-rod without 2" front bumpstop extension.



Notice I had to cut half the face off the diff cover to clear.


give this a read:
tj front adjustable track bars for 0-3.5", does yours hit or fit? - JeepForum.com

Make sure you read the above thread before buying an adjustable track bar. Make sure to understand the problems & challenges.
UnlimitedLJ04 is online now   Quote Quick Reply
Old 01-16-2012, 09:33 PM   #15
Jeeper

MNTNGOAT's Avatar

Join Date: Oct 2011
Location: Fullerton CA
Posts: 838
alot of suspension companys sell track bar relocation bracks. RE1611 - TRACK BAR DROP BRKT, TJ FRONT - Rubicon Express
__________________
all my friends call me COOP a LOOP! Feel free to do the same.
MNTNGOAT is offline   Quote Quick Reply
Old 01-16-2012, 09:43 PM   #16
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,396
Quote:
Originally Posted by MNTNGOAT View Post
alot of suspension companys sell track bar relocation bracks. RE1611 - TRACK BAR DROP BRKT, TJ FRONT - Rubicon Express
those hit tie-rods, even with like 5" of lift


from:
RE Long Arm -> Front Track Bar Bracket hit Tie Rod? - JeepForum.com
UnlimitedLJ04 is online now   Quote Quick Reply
Old 01-16-2012, 09:53 PM   #17
Jeeper

WF Supporting Member

Oldguy's Avatar

Join Date: Nov 2011
Posts: 3,266
Quote:
Originally Posted by UnlimitedLJ04 View Post
so prove it...post pics. lots of people claim their stuff works, but few can actually prove it at full bump.


I'm not sure what MFKR is?



here's 1.375" bumpstop extension over stock at full bump, with an adjustable track bar and a V8 ZJ tie-rod. with a straight tie-rod, this track bar hits the tie-rod without 2" front bumpstop extension.



Notice I had to cut half the face off the diff cover to clear.


give this a read:
tj front adjustable track bars for 0-3.5", does yours hit or fit? - JeepForum.com

Make sure you read the above thread before buying an adjustable track bar. Make sure to understand the problems & challenges.
I don't know who came up with the bend on your track bar but that is a bloody mess

It is the middle of winter here. I am not tearing down my front suspension for nobody, nohow, noway...

However in the spirit of good jeepism and all that crap I propose the following:

PM me your name and address. I'll send you a check for the purchase price of a Teraflex trackbar.

YOU buy it.

YOU install it.

YOU do a full cycle clearance check.

If the trackbar hits the differential cover, cash the check.

If it doesn't, send my check back.

I'm putting my money where my mouth is, ball's in your court

P.S. I don't require proof. I will take your word for it
Oldguy is offline   Quote Quick Reply
Old 01-16-2012, 10:46 PM   #18
"Seamed Like a Good Idea

WF Supporting Member

TJWenatchee's Avatar

Join Date: Jun 2011
Location: Near Wenatchee, WA
Posts: 1,200
Images: 29
__________________
See my TJ Build Page on Facebook
TJWenatchee is offline   Quote Quick Reply
Old 01-16-2012, 10:47 PM   #19
Jeeper

MNTNGOAT's Avatar

Join Date: Oct 2011
Location: Fullerton CA
Posts: 838
Quote:
Originally Posted by UnlimitedLJ04 View Post
those hit tie-rods, even with like 5" of lift


from:
RE Long Arm -> Front Track Bar Bracket hit Tie Rod? - JeepForum.com
weird heres mine. nice n beefy.
Attached Thumbnails
Click image for larger version

Name:	mail.jpg3.jpg
Views:	150
Size:	47.6 KB
ID:	90448
__________________
all my friends call me COOP a LOOP! Feel free to do the same.
MNTNGOAT is offline   Quote Quick Reply
Old 01-17-2012, 08:11 AM   #20
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,396
Quote:
Originally Posted by Oldguy View Post
I don't know who came up with the bend on your track bar but that is a bloody mess
i don't disagree, but this is the current bend used by one of the major track bar manufacturers everybody looks to when they think of high quality track bars. Diff and track bar clearance isn't a trivial problem. I don't know of a track bar that clears at 0" of lift, other than the stocker. Currie & JKS both require 2" front bumpstop.

Quote:
Originally Posted by Oldguy View Post
It is the middle of winter here. I am not tearing down my front suspension for nobody, nohow, noway...
same here

Quote:
Originally Posted by Oldguy View Post
However in the spirit of good jeepism and all that crap I propose the following:

PM me your name and address. I'll send you a check for the purchase price of a Teraflex trackbar.

YOU buy it.

YOU install it.

YOU do a full cycle clearance check.

If the trackbar hits the differential cover, cash the check.

If it doesn't, send my check back.

I'm putting my money where my mouth is, ball's in your court

P.S. I don't require proof. I will take your word for it
I notice Teraflex says their track bar will not work with stock vehicles, and at least 3" of lift is required....

here's the bend difference:


PM sent.
UnlimitedLJ04 is online now   Quote Quick Reply
Old 01-28-2012, 11:44 PM   #21
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,396
Quote:
Originally Posted by Oldguy View Post
I
...Teraflex trackbar.
...
YOU buy it.

YOU install it.

YOU do a full cycle clearance check.
....
I'm putting my money where my mouth is, ball's in your court
Update for everyone...I have finished the evaluation. I bought the Teraflex track bar, and tested with my highly modified SOLID cover and a stock D30 diff cover.

Both the stock diff cover, and my highly modified "SOLI" require 3.75-4" of bumpstop extension to prevent major clearance issues with the Teraflex track bar. You would need 4" of lift just to maintain stock uptravel.

My highly modified Solid cover (notice the whole rib at 2'o-clock is ground off):


and unmodified SOLID diff cover would require 4.5-5" of bumpstop extension with the Teraflex track bar.

Stock diff cover vs Teraflex track bar:



remember my goofy bend track bar? that uses 1.375" bumpstop extension, all other things being equal......now about that check...
UnlimitedLJ04 is online now   Quote Quick Reply
Old 01-29-2012, 10:54 PM   #22
Jeeper

WF Supporting Member

Oldguy's Avatar

Join Date: Nov 2011
Posts: 3,266
Quote:
Originally Posted by UnlimitedLJ04 View Post
Update for everyone...I have finished the evaluation. I bought the Teraflex track bar, and tested with my highly modified SOLID cover and a stock D30 diff cover.

Both the stock diff cover, and my highly modified "SOLI" require 3.75-4" of bumpstop extension to prevent major clearance issues with the Teraflex track bar. You would need 4" of lift just to maintain stock uptravel.

My highly modified Solid cover (notice the whole rib at 2'o-clock is ground off):


and unmodified SOLID diff cover would require 4.5-5" of bumpstop extension with the Teraflex track bar.

Stock diff cover vs Teraflex track bar:



remember my goofy bend track bar? that uses 1.375" bumpstop extension, all other things being equal......now about that check...
Hey, no worries , the check is already in the mail Now if you will pm me your address or email or something the "next" check I send you might actually get to you...

P.S. I am still going WTF??? because I'm starting to feel like I'm in some alternate reality. I will be checking this out on my rig when it gets warmer because I need to bump it 3/4". I'll be doing a full cycle then so hopefully I can sort this out in my own mind.

P.P.S. This has been interesting, to say the least. Check out the CO forum. Perhaps you could join us on one of our "nastier" excursions You missed a great one out to the Gulches this weekend...
Oldguy is offline   Quote Quick Reply
Old 01-29-2012, 11:15 PM   #23
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,396
Quote:
Originally Posted by Oldguy View Post
Hey, no worries , the check is already in the mail Now if you will pm me your address or email or something the "next" check I send you might actually get to you...

P.S. I am still going WTF??? because I'm starting to feel like I'm in some alternate reality. I will be checking this out on my rig when it gets warmer because I need to bump it 3/4". I'll be doing a full cycle then so hopefully I can sort this out in my own mind.

P.P.S. This has been interesting, to say the least. Check out the CO forum. Perhaps you could join us on one of our "nastier" excursions You missed a great one out to the Gulches this weekend...
I'll PM you

and yes, I would definitely recommend a full bump check with the springs removed...honestly, you can look at it and see it's no where close to clearing the stock cover.

I don't wheel in the winter....hard top goes on and I save the gas money for running up I-70 to/from A-Basin, Breck, Keystone & Vail with snowboard buddies
UnlimitedLJ04 is online now   Quote Quick Reply
Old 01-29-2012, 11:20 PM   #24
Jeeper

WF Supporting Member

Oldguy's Avatar

Join Date: Nov 2011
Posts: 3,266
Or, if your paronoia is as great as mine, PM me a date and time and I will meet you in Castle Rock and give you a check with "Pay to the Order of" blank...
Oldguy is offline   Quote Quick Reply
Old 01-29-2012, 11:24 PM   #25
Jeeper

WF Supporting Member

Oldguy's Avatar

Join Date: Nov 2011
Posts: 3,266
Quote:
Originally Posted by UnlimitedLJ04 View Post
I'll PM you

and yes, I would definitely recommend a full bump check with the springs removed...honestly, you can look at it and see it's no where close to clearing the stock cover.

I don't wheel in the winter....hard top goes on and I save the gas money for running up I-70 to/from A-Basin, Breck, Keystone & Vail with snowboard buddies
Oh, one of those, "it snows, I stop wheeling" I'd much rather break my neck in my jeep than on a snowboard. But, to each his own, however, I do have to admire you, I wouldn't have ripped apart my suspension this time of year for anything...
Oldguy is offline   Quote Quick Reply
Old 01-29-2012, 11:47 PM   #26
Show Me Your 8008135!

WF Supporting Member

s3nt3nc3d's Avatar

Join Date: Oct 2009
Location: Piqua, OH
Posts: 3,641
Send a message via AIM to s3nt3nc3d
I just wanted to say that this thread is awesome.
__________________
"We don't build great brakes because we think you don't know how to drive, we build them for the guy on the road in front of you that doesn't." - Black Magic Brakes
s3nt3nc3d is offline   Quote Quick Reply
Old 01-30-2012, 01:22 AM   #27
Jeeper

Firemangully's Avatar

Join Date: Sep 2010
Location: Texas
Posts: 396
^ Likewise!!!!
__________________
Finish each day and be done with it. You have done what you could.
Ralph Waldo Emerson OlllllllO

http://beachbodycoach.com/briangullickson
http://shakeology.com/briangullickson
Firemangully is offline   Quote Quick Reply
Old 02-06-2012, 11:19 AM   #28
Jeeper

WF Supporting Member

Oldguy's Avatar

Join Date: Nov 2011
Posts: 3,266
Quote:
Originally Posted by UnlimitedLJ04 View Post
Update for everyone...I have finished the evaluation. I bought the Teraflex track bar, and tested with my highly modified SOLID cover and a stock D30 diff cover.

Both the stock diff cover, and my highly modified "SOLI" require 3.75-4" of bumpstop extension to prevent major clearance issues with the Teraflex track bar. You would need 4" of lift just to maintain stock uptravel.

remember my goofy bend track bar? that uses 1.375" bumpstop extension, all other things being equal......now about that check...
Could you satisfy my curiosity about something?

You have 3 1/4 inch lift, right? Please correct if wrong.

What are the center to center lengths of your front upper and lower control arms?

I hope you are getting a chance to enjoy all the powder we got over the weekend
Oldguy is offline   Quote Quick Reply
Old 02-06-2012, 12:42 PM   #29
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,396
Quote:
Originally Posted by Oldguy View Post
Could you satisfy my curiosity about something?

You have 3 1/4 inch lift, right? Please correct if wrong.

What are the center to center lengths of your front upper and lower control arms?

I hope you are getting a chance to enjoy all the powder we got over the weekend
honestly, i don't know what my "lift height" is anymore. i stopped paying attention a long time ago, and started focusing on gained uptravel & downtravel instead.

That said, my control arms lengths are close to stock. Uppers are a stock length (15" eye to eye), and the lowers are 16-1/8" (stock is 15.75"), which got me to 6.5° of caster. Thats approx. the same length as stock arms + cam bolts (which I ran before replacing the arms).
UnlimitedLJ04 is online now   Quote Quick Reply
Old 02-06-2012, 09:11 PM   #30
Jeeper

WF Supporting Member

Oldguy's Avatar

Join Date: Nov 2011
Posts: 3,266
Quote:
Originally Posted by UnlimitedLJ04 View Post
honestly, i don't know what my "lift height" is anymore. i stopped paying attention a long time ago, and started focusing on gained uptravel & downtravel instead.

That said, my control arms lengths are close to stock. Uppers are a stock length (15" eye to eye), and the lowers are 16-1/8" (stock is 15.75"), which got me to 6.5° of caster. Thats approx. the same length as stock arms + cam bolts (which I ran before replacing the arms).
Gee, you almost sound like Imped Actually, I agree,suspension travel and articulation are really what matter. I was using "lift as a rough reference point.

If you would indulge me a bit further, could you give me your distance from the frame just behind the tire to the ground on a level surface and your tire diameter?

As I say, this has gotten me curious and as I have been studying my suspension I noticed an anomaly in my steering geometry and I am curious as to how it relates to yours. See, my control arms are almost exactly the same as yours (lower is 1/8 longer, upper the same). So I am looking at the effective "length" of the lower control arm relative to the angle of said arm. Hence my question about "lift".

Oldguy is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
need a quality affordable adj track bar for 4" lift twistid TJ General Discussion Forum 4 12-18-2011 10:07 PM
Lift kit list. Decide on a lift from this! 97wrangler-242 TJ General Discussion Forum 27 10-10-2011 08:04 PM
Rusty's 3.25 lift? SJ21XDC JK General Discussion Forum 4 07-23-2010 09:41 AM
Front axle still centered after 2.5 lift? bluethunder TJ Tech Forum 8 06-26-2010 02:02 PM
Support mods for 3.25'' lift ? LMG23 TJ General Discussion Forum 11 08-19-2009 05:12 AM



Download our Mobile App

» Featured Product

All times are GMT -5. The time now is 10:23 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
