Old 11-16-2011, 08:49 PM   #121
Jeeper

tailhole's Avatar

Join Date: Jul 2010
Location: oxford. ms.
Posts: 938
Yea, make sure to keep the rod and rod cap together. they cant be mismatched. mark the rod and cap in a way that they cant get mixed up. Number or letter stamps, even a center punch or chisel can work. Cant remember if there numbered from the factory or not.

Also i make little marks on engines where studs go when i tear them down so that i know where they go when i put them back together. Its not bad on a 4.0 jeep, few on the valve cover, some have a couple on the chain cover. take a look at a 4.6 ford if you want to see a motor that went over board on studs. lol. its like ford got a new machine that made bolts with studs on the end and they put them every where

tailhole is offline   Quote Quick Reply
Old 11-17-2011, 11:51 AM   #122
Jeeper

Itsfun00's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 304
Good tips. I am always worried that I am going to get something out of place. I used the blue painters tape and number method when I pulled the head off... It looked like I had a fight with blue tape in the engine compartment. It worked well though, I didn't get anything out of place, thank goodness.

I will start removing everything tonight (radiator, exhaust manifolds, exhaust, etc..) don't know how far I will get, but should go smooth. I shouldn't have to remove the head to pull the engine right?

I guess we should document the tear down for everyone with pics. I will post pics if you all will label and comment...lol

Itsfun00 is offline   Quote Quick Reply
Old 11-17-2011, 12:05 PM   #123
Jeeper

Tonycrd's Avatar

Join Date: Oct 2011
Location: Spain
Posts: 548
You can leave the head on the block no problem
__________________
'98 TJ 2.5 - 2,5" lift - 31"s on Pro-Comps
'02 KJ 2.5 - 3" lift - 245's on Moabs - Diesel
Tonycrd is offline   Quote Quick Reply
Old 11-18-2011, 08:40 PM   #124
Jeeper

Itsfun00's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 304
Ok, this should be an easy part to remove but what's the trick? I have the 36mm tool but can't fit my socket in between to hold the thing still. Tried 30 different ways.

Click image for larger version

Name:	ForumRunner_20111118_204040.jpg
Views:	114
Size:	77.5 KB
ID:	78365
__________________
JEEP Its a four letter word....

""".....looking at the input shaft and the output shaft....the two should be very much synchronized....if they are not, you have slop in the box"""
Itsfun00 is offline   Quote Quick Reply
Old 11-19-2011, 07:59 AM   #125
Jeeper

tailhole's Avatar

Join Date: Jul 2010
Location: oxford. ms.
Posts: 938
Quote:
Originally Posted by Itsfun00 View Post
Ok, this should be an easy part to remove but what's the trick? I have the 36mm tool but can't fit my socket in between to hold the thing still. Tried 30 different ways.

Attachment 78365
Smack your wrench with a hammer. (leave the belt on)
tailhole is offline   Quote Quick Reply
Old 11-19-2011, 12:12 PM   #126
Jeeper

Tonycrd's Avatar

Join Date: Oct 2011
Location: Spain
Posts: 548
Yeah, use a BFH..like this 2.2Lbs one:

__________________
'98 TJ 2.5 - 2,5" lift - 31"s on Pro-Comps
'02 KJ 2.5 - 3" lift - 245's on Moabs - Diesel
Tonycrd is offline   Quote Quick Reply
Old 11-19-2011, 02:41 PM   #127
Jeeper

E-A2002TJ's Avatar

Join Date: Jul 2011
Location: Gladstone, Michigan
Posts: 53
By any chance would that be reverse threads. I don't know for sure, never took one off. Does anybody know for sure?
E-A2002TJ is offline   Quote Quick Reply
Old 11-19-2011, 03:44 PM   #128
Jeeper

tailhole's Avatar

Join Date: Jul 2010
Location: oxford. ms.
Posts: 938
its right hand thread.
tailhole is offline   Quote Quick Reply
Old 11-19-2011, 05:02 PM   #129
Jeeper

Itsfun00's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 304
What do I hold the pully with to keep it from spinning? These don't fit.

Click image for larger version

Name:	ForumRunner_20111119_165940.jpg
Views:	68
Size:	78.8 KB
ID:	78455

Well, the bottom one is the right size but the bolts don't stick out far enough for it to work.

Click image for larger version

Name:	ForumRunner_20111119_170128.jpg
Views:	605
Size:	75.9 KB
ID:	78458

And it appears from the marks, someone has tightened the heck out of it in the past with an impact.
__________________
JEEP Its a four letter word....

""".....looking at the input shaft and the output shaft....the two should be very much synchronized....if they are not, you have slop in the box"""
Itsfun00 is offline   Quote Quick Reply
Old 11-19-2011, 06:19 PM   #130
Jeeper

Itsfun00's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 304
This one thing is holding me up from having the engine out by Sunday night... Lol... I'm optimistic
__________________
JEEP Its a four letter word....

""".....looking at the input shaft and the output shaft....the two should be very much synchronized....if they are not, you have slop in the box"""
Itsfun00 is offline   Quote Quick Reply
Old 11-19-2011, 06:44 PM   #131
Jeeper

Itsfun00's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 304
Am i supposed to be removing the huge 36mm nut (to take the fan off before the pully) or the 4 bolts, and the fan is attached to that
Itsfun00 is offline   Quote Quick Reply
Old 11-19-2011, 08:24 PM   #132
Jeeper

tailhole's Avatar

Join Date: Jul 2010
Location: oxford. ms.
Posts: 938
Need to unscrew the big nut. I have used Chanel locks before to hold the pulley.
I know a guy that swears by a strap wrench and it works pretty good on lots of stuff. I think its sold as a oil filter wrench, not sure, It has a rubber,nylon type strap, like one inch wide and maybe 18-20 in long. One side is attached to a handle and then raps around a object and fits back in to a slot in the handle.

The more pressure thats put on the handle the more it clamps down and holds.

I've had good luck with just a wrench and a hammer.
tailhole is offline   Quote Quick Reply
Old 11-19-2011, 08:48 PM   #133
Jeeper

necromancer_tat's Avatar

Join Date: Feb 2011
Location: Norfolk Virginia
Posts: 1,793
Subscribed for some really good information!
necromancer_tat is offline   Quote Quick Reply
Old 11-21-2011, 06:00 AM   #134
Jeeper

Tonycrd's Avatar

Join Date: Oct 2011
Location: Spain
Posts: 548
Quote:
Originally Posted by Itsfun00 View Post


And it appears from the marks, someone has tightened the heck out of it in the past with an impact.
Since the nut unscrews when moved to the left, it seems someone banged it loose (or tried to) before you...

You could try the same, take a metal rod or a chisel for metal or something and put that on the edge of the nut. Give it a good bang and usualy the nut gives. Then you can spin the fan off by hand.
__________________
'98 TJ 2.5 - 2,5" lift - 31"s on Pro-Comps
'02 KJ 2.5 - 3" lift - 245's on Moabs - Diesel
Tonycrd is offline   Quote Quick Reply
Old 11-21-2011, 08:44 AM   #135
Jeep Ninja

WF Supporting Member

scgeek12's Avatar

Join Date: Feb 2011
Location: Norfolk VA
Posts: 1,825
just a thought but would pulling the 4 bolts holding the fan blades in place out and removing the blades give you more room to get better leverage? or would the pulley spin if you took the blades out? not sure if your having to hold them at the same time or not
__________________
"if it aint broke, fix it till' it is!"
my build- http://www.wranglerforum.com/f5/scge...ad-117592.html
scgeek12 is offline   Quote Quick Reply
Old 11-21-2011, 10:47 AM   #136
Jeeper

Itsfun00's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 304

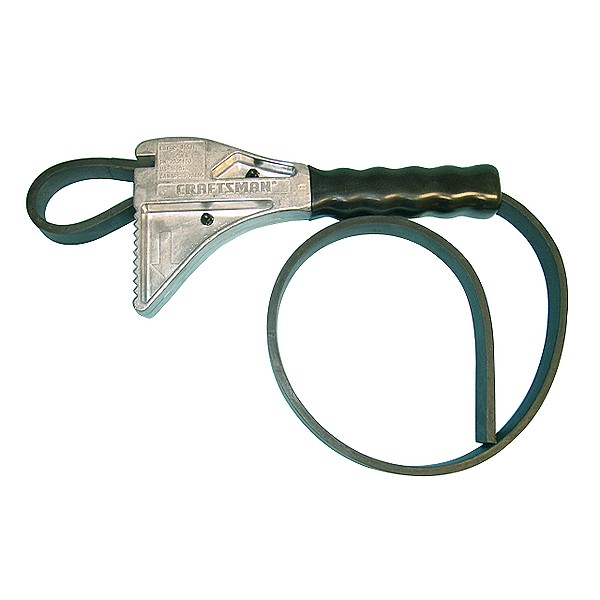

Just ordered this for $12. Pick up at lunch and after work there will be no issue and I will have another tool
Itsfun00 is offline   Quote Quick Reply
Old 11-21-2011, 12:13 PM   #137
Jeeper

tailhole's Avatar

Join Date: Jul 2010
Location: oxford. ms.
Posts: 938
Quote:
Originally Posted by Itsfun00 View Post
Just ordered this for $12. Pick up at lunch and after work there will be no issue and I will have another tool
What tool is that?
tailhole is offline   Quote Quick Reply
Old 11-21-2011, 12:31 PM   #138
Jeeper

Tonycrd's Avatar

Join Date: Oct 2011
Location: Spain
Posts: 548
That's the filter wrench you were talking about, LOL..
__________________
'98 TJ 2.5 - 2,5" lift - 31"s on Pro-Comps
'02 KJ 2.5 - 3" lift - 245's on Moabs - Diesel
Tonycrd is offline   Quote Quick Reply
Old 11-21-2011, 12:39 PM   #139
Jeeper

Tonycrd's Avatar

Join Date: Oct 2011
Location: Spain
Posts: 548
Quote:
Originally Posted by scgeek12 View Post
just a thought but would pulling the 4 bolts holding the fan blades in place out and removing the blades give you more room to get better leverage? or would the pulley spin if you took the blades out? not sure if your having to hold them at the same time or not
The fan is bolted to the backside of the viscous clutch, so if you take the bolts out you still cannot get the blades off. With the engine cold, the blades spin free so you cannot hold anything with them. Taking the bolts out the pulley only makes a bigger mess since then the pulley will be flopping about over the fan nut.

The fan is fitted to the waterpump's main axle.



__________________
'98 TJ 2.5 - 2,5" lift - 31"s on Pro-Comps
'02 KJ 2.5 - 3" lift - 245's on Moabs - Diesel
Tonycrd is offline   Quote Quick Reply
Old 11-21-2011, 02:39 PM   #140
Jeeper

prowler's Avatar

Join Date: Aug 2011
Posts: 140
Tailhole - I've been watching this thread with some interest and I'm curious why you asked about the adjustable filter wrench Itsfun00 bought for this job. Isn't this the type of strap wrench you suggested he try? Just curious.

You wrote earlier, "I know a guy that swears by a strap wrench and it works pretty good on lots of stuff. I think its sold as a oil filter wrench, not sure, It has a rubber,nylon type strap, like one inch wide and maybe 18-20 in long. One side is attached to a handle and then raps around a object and fits back in to a slot in the handle. The more pressure thats put on the handle the more it clamps down and holds."
prowler is offline   Quote Quick Reply
Old 11-21-2011, 02:54 PM   #141
Jeep Ninja

WF Supporting Member

scgeek12's Avatar

Join Date: Feb 2011
Location: Norfolk VA
Posts: 1,825
Quote:
Originally Posted by Tonycrd View Post
The fan is bolted to the backside of the viscous clutch, so if you take the bolts out you still cannot get the blades off. With the engine cold, the blades spin free so you cannot hold anything with them. Taking the bolts out the pulley only makes a bigger mess since then the pulley will be flopping about over the fan nut.

The fan is fitted to the waterpump's main axle.



good to know, like i said just an idea ive only taken the fan out of an S10 and a 68 ford pickup before and it just required taking the bolts out, i was actually thinking about pulling my fan and painting it red but i guess i wont be doing that lol!
__________________
"if it aint broke, fix it till' it is!"
my build- http://www.wranglerforum.com/f5/scge...ad-117592.html
scgeek12 is offline   Quote Quick Reply
Old 11-21-2011, 05:09 PM   #142
Jeeper

necromancer_tat's Avatar

Join Date: Feb 2011
Location: Norfolk Virginia
Posts: 1,793
Here's how I would try to do it:

Take a socket of the correct size that fits one of the 4 bolts on the serpintine pully at the water pump, stick the socket on the upper right hand bolt, then take same size 12 point box end wrench and put it on the left hand upper bolt so that the handle is aranged to be above the socket on the first bolt as close as you can get it to the socket.

Then take your large wrench that you're trying to loosen the large fan mounting nut/whatever it's really called, and try to loosen it. As you turn the large wrench the small wrench should tighten sligtly and jam itself against the socket, you might need to slip a larger box end wrench over the open end side of the smaller wrench to give you more leverage kinda like a cheater bar, and you might need to place the tip of your thumb against the socket on the top right bolt head to prevent the socket from falling off the bolt head, but then you should be able to prevent the pully from free spinning and hopefully be able to remove the fan assembly.

I'm not 100% it would work, but that's what I would try if I was going to do it.


In the picture above it looks like the Strap wrench would work well if you have the serpentine belt removed from the pully.
necromancer_tat is offline   Quote Quick Reply
Old 11-21-2011, 05:47 PM   #143
Jeeper

tailhole's Avatar

Join Date: Jul 2010
Location: oxford. ms.
Posts: 938
Quote:
Originally Posted by Tonycrd View Post
That's the filter wrench you were talking about, LOL..
Sorry, sorry. my bad. when I seen the post at lunch there was no Picture
tailhole is offline   Quote Quick Reply
Old 11-21-2011, 06:06 PM   #144
Jeeper

tailhole's Avatar

Join Date: Jul 2010
Location: oxford. ms.
Posts: 938
Quote:
Originally Posted by Itsfun00 View Post
Just ordered this for $12. Pick up at lunch and after work there will be no issue and I will have another tool
Yes, that is it. Sorry i swear there wasnt a pix when I first looked. lol.

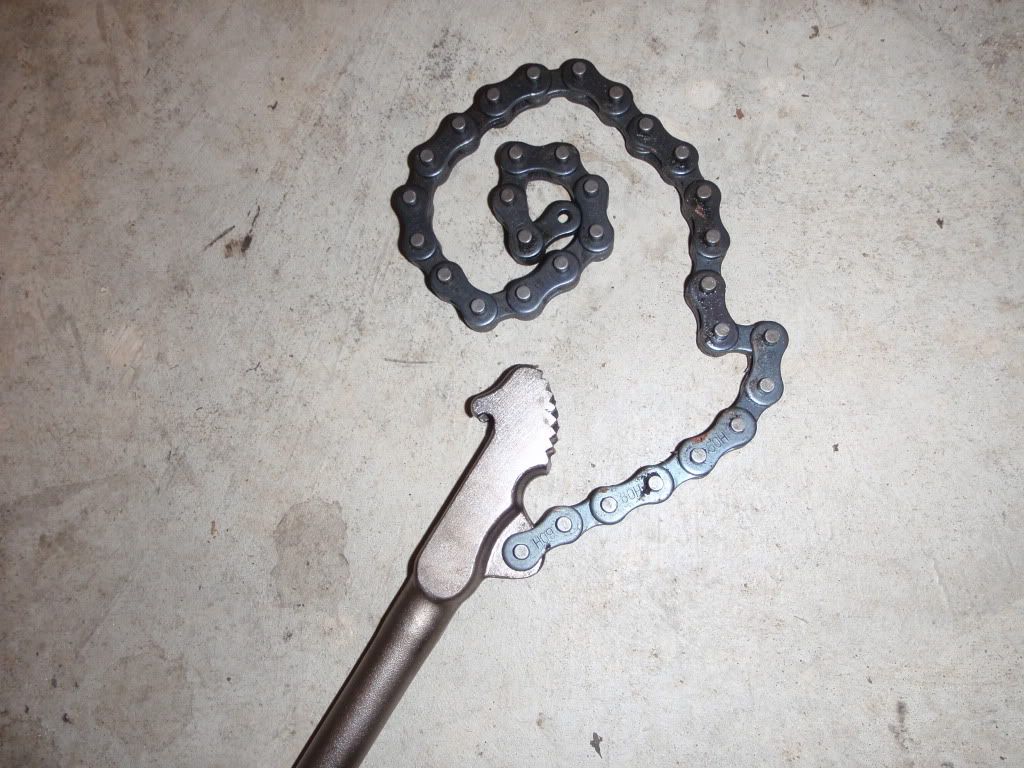

Its a real handy tool. I dont have the rubber/nylon strap one, I have been wanting one just dont think about it till i need it.

The one I got is a little more heavy duty but it leaves marks.

tailhole is offline   Quote Quick Reply
Old 11-21-2011, 07:56 PM   #145
Jeeper

prowler's Avatar

Join Date: Aug 2011
Posts: 140
Yeah, but I bet your chain works a ton better than the various "band" types. I have one of those like the Craftsman photo and the band stretches at the wrong time ... and I have one that is more like leather which tends to slip when you most want it to hold tight. Arrgh!

Good luck with your Craftsman, Itsfun00. Last thing I want to do is jinx your work by telling old war stories.
prowler is offline   Quote Quick Reply
Old 11-21-2011, 08:17 PM   #146
Jeeper

tailhole's Avatar

Join Date: Jul 2010
Location: oxford. ms.
Posts: 938
Quote:
Originally Posted by prowler View Post
Yeah, but I bet your chain works a ton better than the various "band" types. I have one of those like the Craftsman photo and the band stretches at the wrong time ... and I have one that is more like leather which tends to slip when you most want it to hold tight. Arrgh!

Good luck with your Craftsman, Itsfun00. Last thing I want to do is jinx your work by telling old war stories.
The one I've got does grip better. It just leaves scares from where it's been.
I just believe the one with the rubber/nylon strap will grab and not nick up the pulley.
tailhole is offline   Quote Quick Reply
Old 11-21-2011, 08:22 PM   #147
Jeeper

Itsfun00's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 304
Quote:
Originally Posted by tailhole View Post
The one I got is a little more heavy duty but it leaves marks.

Thats a beast, i need one. I didnt get to use mine yet. It was 45 and raining when i got home so i wussed out. That and Monday night football is on...
Itsfun00 is offline   Quote Quick Reply
Old 11-21-2011, 08:32 PM   #148
Jeeper

Itsfun00's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 304
Quote:
Originally Posted by prowler View Post
Yeah, but I bet your chain works a ton better than the various "band" types. I have one of those like the Craftsman photo and the band stretches at the wrong time ... and I have one that is more like leather which tends to slip when you most want it to hold tight. Arrgh!

Good luck with your Craftsman, Itsfun00. Last thing I want to do is jinx your work by telling old war stories.
I didnt see replacement straps, so eventually i will have to replace the whole tool. But it was cheap and the strap is thick and sort of sticky so it will grab the pully. Hopefully I only have to do this once...
Itsfun00 is offline   Quote Quick Reply
Old 11-21-2011, 08:40 PM   #149
Jeeper

Itsfun00's Avatar

Join Date: Oct 2011
Location: Carrollton, TX
Posts: 304
Quote:
Originally Posted by Tonycrd View Post
The fan is bolted to the backside of the viscous clutch, so if you take the bolts out you still cannot get the blades off. With the engine cold, the blades spin free so you cannot hold anything with them. Taking the bolts out the pulley only makes a bigger mess since then the pulley will be flopping about over the fan nut.

The fan is fitted to the waterpump's main axle.

ok, I will hold the pully w the strap and break it free.
Itsfun00 is offline   Quote Quick Reply
Old 11-22-2011, 07:24 AM   #150
Jeeper

Tonycrd's Avatar

Join Date: Oct 2011
Location: Spain
Posts: 548
Yep, that's the way to go. Maybe have a buddy help you hold the pulley, the fan normally needs a good wack to scare loose....

__________________
'98 TJ 2.5 - 2,5" lift - 31"s on Pro-Comps
'02 KJ 2.5 - 3" lift - 245's on Moabs - Diesel
Tonycrd is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
2.5 engine replacement now no spark or check engine light tdfeickert YJ Tech Forum 2 02-23-2012 10:53 PM
Engine rebuild kits...anyone done this b4? vajeeper TJ Tech Forum 14 12-25-2010 10:49 PM
1st Jeep! / 95 2.5 Engine Rebuild amoujaffar YJ Tech Forum 15 12-05-2010 09:09 PM
engine rebuild and sending unit installation scooter18155 YJ Tech Forum 9 01-11-2007 09:14 PM



» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 09:14 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
