Aftermarket Diff. Cover or not?

I keep hearing tons of negative info on clearance issues with new differential covers such as riddler, etc.

I have a 2005 Wrangler Se, 2" Lift,anyone have picture of what cover they use and does it clear everything?
Also is there a good way to measure the clearance I have now?

Laramie05TJ is offline   Quote Quick Reply
Old 08-06-2011, 11:33 AM   #2
Jeeper

Join Date: Dec 2010
Posts: 1,101
x2 That's a good question! I'd like to put some diff covers on but don't want to hit the track bar in the front. I like the ARB covers because they have drain and fill plugs, but I've read that the front cover of this brand will make contact with the differential.

Arch Stanton is offline   Quote Quick Reply
Old 08-06-2011, 11:34 AM   #3
Jeeper

WF Supporting Member

Laramie05TJ's Avatar

Join Date: Jul 2011
Posts: 77
I feel like it is a great upgrade for anyone ! Im tired of all that rust ha
I hear tons of clearance issues with gastank, or rear bars (not sure which one)
Laramie05TJ is offline   Quote Quick Reply
Old 08-06-2011, 11:44 AM   #4
Jeeper

Join Date: Dec 2010
Posts: 1,101
I'd like a more protection and the option of of a drain plug so the cover didn't have to be removed when changing the gear oil. Some have recommended the use of skid plates for the differentials instead of heavy duty covers.


Quote:
Originally Posted by Laramie05TJ View Post
I feel like it is a great upgrade for anyone ! Im tired of all that rust ha
I hear tons of clearance issues with gastank, or rear bars (not sure which one)
Arch Stanton is offline   Quote Quick Reply
Old 08-06-2011, 11:52 AM   #5
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,694
They usually only hit if your running ALOT of lift, in excess of 6 inches I would say. I am runing about 4 inches up front and I have no issues :

__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is online now   Quote Quick Reply
Old 08-06-2011, 12:28 PM   #6
Jeeper

jeepr's Avatar

Join Date: Jun 2010
Location: Littleton Colorado
Posts: 390
Quote:
Originally Posted by GoldenSahara00 View Post
They usually only hit if your running ALOT of lift, in excess of 6 inches I would say. I am runing about 4 inches up front and I have no issues :

Are you still running your stock track bar? because most of the complaints I hear are when people are running an aftermarket diff cover and track bar and the track bar doesnt clear because it doesnt bend around the diff as much as stock. Jks is the one i hear most complaining about.
jeepr is offline   Quote Quick Reply
Old 08-06-2011, 12:36 PM   #7
Jeeper

WF Supporting Member

Laramie05TJ's Avatar

Join Date: Jul 2011
Posts: 77
ya see I have an aftermarket trac bar
Laramie05TJ is offline   Quote Quick Reply
Old 08-06-2011, 01:04 PM   #8
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,694
I have the stock trac bar for now. You can get interference with gas tank on rear diff/diff cover very easy with more lift. this is why alot of people tummy tuck to raise the tank up and away from the rear axle. the front diff can hit the track bar but I am not as educated on that. usually its on higher lifts and the bigger covers. my PS was only about an inch and a half deeper than stock.
__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is online now   Quote Quick Reply
Old 08-06-2011, 02:05 PM   #9
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,392
Quote:
Originally Posted by Laramie05TJ View Post
I keep hearing tons of negative info on clearance issues with new differential covers such as riddler, etc.

I have a 2005 Wrangler Se, 2" Lift,anyone have picture of what cover they use and does it clear everything?
Also is there a good way to measure the clearance I have now?
The stock cover is the best option. Trust me on this one.

If you want to beef the diff up a bit, use a bolt on skid like Warn or Rugged Ridge...or buy a Barnett skid.
UnlimitedLJ04 is offline   Quote Quick Reply
Old 08-06-2011, 02:57 PM   #10
Jeeper

WF Supporting Member

Laramie05TJ's Avatar

Join Date: Jul 2011
Posts: 77
I like the warn skid, is it guaranteed for clearance or is it still iffy?
Laramie05TJ is offline   Quote Quick Reply
Old 08-06-2011, 03:37 PM   #11
Jeeper

MikeMTJ's Avatar

Join Date: Nov 2009
Location: If only I knew....
Posts: 2,113
Send a message via AIM to MikeMTJ
Quote:
Originally Posted by UnlimitedLJ04

The stock cover is the best option. Trust me on this one.

If you want to beef the diff up a bit, use a bolt on skid like Warn or Rugged Ridge...or buy a Barnett skid.
I too like the stock diff cover. If you bend it, pull it off and hammer it back. If you really bent it, go to a pick and pull.
MikeMTJ is offline   Quote Quick Reply
Old 08-19-2012, 10:35 AM   #12
Jeeper

Join Date: Sep 2010
Location: Mass
Posts: 636
Or you could add a half diff cover.
Attached Thumbnails
Click image for larger version

Name:	front diff guard.jpg
Views:	63
Size:	48.7 KB
ID:	151691
__________________
RubiconRich (7th Jeep)PatriotJeepers,Inc
86 CJ7,T18,TC146,Dana 44's,lockers 35",8274,OBA
05 TJ Rubicon,Superwinch,OBA
51 M100 1/4 trailer
RubiconRich is offline   Quote Quick Reply
Old 08-19-2012, 10:46 AM   #13
Jeeper

freeskier's Avatar

Join Date: Mar 2011
Location: Longmont, CO
Posts: 2,562
Quote:
Originally Posted by MikeMTJ View Post
I too like the stock diff cover. If you bend it, pull it off and hammer it back. If you really bent it, go to a pick and pull.
Yep, great plan. What happens though if you smash it into the ring gear?

freeskier is offline   Quote Quick Reply
Old 08-19-2012, 10:52 AM   #14
Jeeper

snopro269's Avatar

Join Date: Sep 2010
Location: Southern Minnesota
Posts: 460
The issue is when a person increases suspension lift and the rear axle gets pushed back for centering rear wheelwell the Trackbar is mounted via frame on passenger side and rear axle on drivers side. I had to remove my rear Trackbar relocate for awhile to raise up my rear Trackbar on the passenger side.
I believe if you get a relocate via axle housing it lifts the Trackbar upwards to level it and not downwards
snopro269 is offline   Quote Quick Reply
Old 08-19-2012, 10:57 AM   #15
Sponsoring Vendor

JPi1's Avatar

Join Date: Nov 2011
Location: So Cal
Posts: 4,633
If you like to use your jeep in the rocks, you will eventually hit the bottom edge of the housing/cover and it will start leaking. When you take the rear cover off to fix the leak, you will see the diff housing is peeling metal back into the gasket area, which needs to be ground off before you bolt the cover back on.
Running a good aftermarket cover, like a poison spyder, $130,riddler, $110, blue torch fab, $150, or the expensive ARB, $187, will stop this and you wont need hammers or trail repairs like we've seen over and over with the stock ones. I've seen damage on the trail range from a slight leak, to removing the stock cover to beat it flat again.
__________________
32215 Dunlap Blvd.
Yucaipa, CA
92399
877-795-JEEP
Www.jeeperformanceinc.com
www.facebook.com/Jeeperformanceinc
JPi1 is offline   Quote Quick Reply
Old 08-19-2012, 01:11 PM   #16
Jeeper

Derp's Avatar

Join Date: Jul 2012
Location: Huntington Beach CA
Posts: 583
Quote:
Originally Posted by JPi1
If you like to use your jeep in the rocks, you will eventually hit the bottom edge of the housing/cover and it will start leaking. When you take the rear cover off to fix the leak, you will see the diff housing is peeling metal back into the gasket area, which needs to be ground off before you bolt the cover back on.
Running a good aftermarket cover, like a poison spyder, $130,riddler, $110, blue torch fab, $150, or the expensive ARB, $187, will stop this and you wont need hammers or trail repairs like we've seen over and over with the stock ones. I've seen damage on the trail range from a slight leak, to removing the stock cover to beat it flat again.
So what do you reccomend with my 2" Bds coil lift? I do plan to go to 4" eventually so I want one that will work then too.
Derp is offline   Quote Quick Reply
Old 08-19-2012, 01:41 PM   #17
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,269
Images: 2
The guard shown above in post #12 is a good choice. It hugs the OE diff cover and doesn't normally cause any interference problems problem. Warn makes one just like it which is available at http://www.warn.com/truck/mounting-s...al_plate.shtml

The below from Currie is a design I like. They take a stock cover and weld a ramped double-wall to the lower half of the cover. The benefit to this design is that while it beefs up the lower half to resist damage, it leaves the upper half stock so it clears front suspension components.



You can find it at http://www.currieenterprises.com/ces...ie/JS-HD30.jpg for the front Dana 30 and and Dana 44 as well. I had one just like Currie's on my previous TJ from T&J but it doesn't appear T&J still makes or sells it.
__________________
Gone wheeling, back late sunday...
Remember that having a different opinion doesn't also require one to be a jerk when expressing it.

When you have a choice, buy American.

Jerry Bransford is offline   Quote Quick Reply
Old 08-19-2012, 01:44 PM   #18
Jeeper

kylekae's Avatar

Join Date: Sep 2011
Location: Georgia
Posts: 692
What do you guys think of the g2 diff cover
__________________
follow my build at http://www.wranglerforum.com/f5/my-j...ss-154212.html
kylekae is offline   Quote Quick Reply
Old 08-19-2012, 01:50 PM   #19
Rock-Rubber

WF Supporting Member

GoldenSahara00's Avatar

Join Date: Aug 2010
Location: SCPA
Posts: 16,694

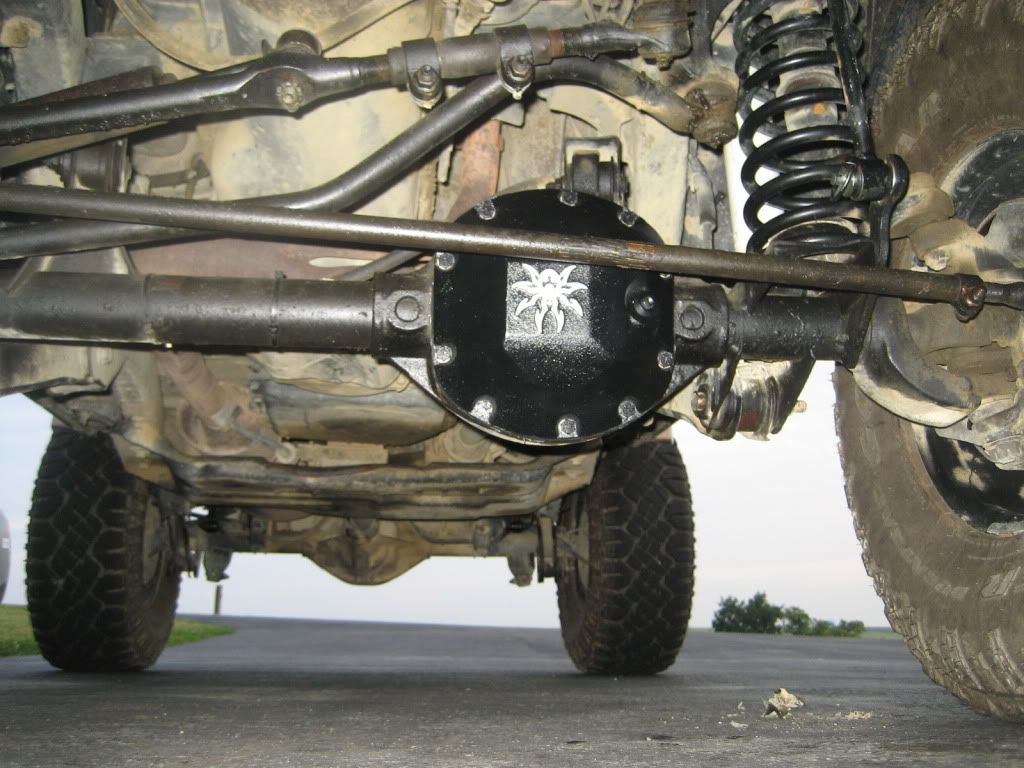

Still haven't had any issues with my PSC and I have used it quite a lot. It sits nearly as tight as the stock cover.
__________________
Ryan - A good eye, a light foot, and a smart rig.
Bolt-ons are boring
AMERICAN JEEPER
My Build - http://www.wranglerforum.com/f118/pr...a00-74622.html
Rausch Creek Trip: 2014 Trip Coming Soon
GoldenSahara00 is online now   Quote Quick Reply
Old 08-19-2012, 02:13 PM   #20
Supporting Member

WF Supporting Member

scott howard's Avatar

Join Date: Dec 2009
Location: wichita falls texas
Posts: 1,035
you can always drill and tap the stock cover and add fill and drain plugs and have the best of both worlds
__________________
Scott Howard
940-444-1972
scott howard is offline   Quote Quick Reply
Old 08-19-2012, 02:16 PM   #21
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,269
Images: 2
There is more to adding a drain plug to the stock cover than just drilling and tapping it since the metal isn't thick enough as is to tap.
__________________
Gone wheeling, back late sunday...
Remember that having a different opinion doesn't also require one to be a jerk when expressing it.

When you have a choice, buy American.

Jerry Bransford is offline   Quote Quick Reply
Old 08-19-2012, 03:38 PM   #22
Creepy Crawler

WF Supporting Member

BLK00TJ's Avatar

Join Date: Nov 2010
Posts: 3,194
If I were in the market for an aftermarket diff cover, I'd go with a welded plate steel cover over a fancy cast iron cover. You're going to have to try really hard to crack these guys or even bend them.

3/8" thick from RoughStuff


1/4" steel plate from UCF
__________________
Wheel. Break/Test. Repair/Upgrade. Repeat
BLK00TJ's YouTube Channel -- BLK00TJ's Build
BLK00TJ is offline   Quote Quick Reply
Old 08-19-2012, 03:51 PM   #23
Supporting Member

WF Supporting Member

scott howard's Avatar

Join Date: Dec 2009
Location: wichita falls texas
Posts: 1,035
Quote:
Originally Posted by Jerry Bransford View Post
There is more to adding a drain plug to the stock cover than just drilling and tapping it since the metal isn't thick enough as is to tap.
well your right about the tapping .
I drilled and welded a shallow nut to the cover.
But it helps that I work at cater Aerospace and we are in the business of making experimental parts all day...lol

but it really is pretty darn easy
__________________
Scott Howard
940-444-1972
scott howard is offline   Quote Quick Reply
Old 08-19-2012, 04:08 PM   #24
Jeeper

freeskier's Avatar

Join Date: Mar 2011
Location: Longmont, CO
Posts: 2,562
Quote:
Originally Posted by BLK00TJ View Post
If I were in the market for an aftermarket diff cover, I'd go with a welded plate steel cover over a fancy cast iron cover. You're going to have to try really hard to crack these guys or even bend them.
Those are ungodly massive. If your cracking cast iron covers you need to stop driving like a bulldozer. My 8.8 SOLID diff cover has more clearance than the stock cover and only cost 60$.
freeskier is offline   Quote Quick Reply
Old 08-19-2012, 04:20 PM   #25
Jeeper

Derp's Avatar

Join Date: Jul 2012
Location: Huntington Beach CA
Posts: 583
Quote:
Originally Posted by BLK00TJ
If I were in the market for an aftermarket diff cover, I'd go with a welded plate steel cover over a fancy cast iron cover. You're going to have to try really hard to crack these guys or even bend them.

3/8" thick from RoughStuff

1/4" steel plate from UCF
How is clearance on that UCF cover?
Derp is offline   Quote Quick Reply
Old 08-19-2012, 04:29 PM   #26
Creepy Crawler

WF Supporting Member

BLK00TJ's Avatar

Join Date: Nov 2010
Posts: 3,194
Quote:
Originally Posted by Derp View Post
How is clearance on that UCF cover?
You'd have to call and ask them. If you call them, ask them how deep it is and they may even be able to tell you how deep it is compared to stock.

The reason I'd prefer a plate steel over a cast iron cover is that it doesn't have to be as thick to offer the same protection. Cast iron will crack before it bends. I myself don't run an aftermarket cover yet. Many more mods are in line before I get to that point. In the mean time I just put my tires on the biggest rocks in my way and try to keep my diffs out of harms way.
__________________
Wheel. Break/Test. Repair/Upgrade. Repeat
BLK00TJ's YouTube Channel -- BLK00TJ's Build
BLK00TJ is offline   Quote Quick Reply
Old 08-19-2012, 04:44 PM   #27
Jeeper

kylekae's Avatar

Join Date: Sep 2011
Location: Georgia
Posts: 692
What about g2 diff covers
__________________
follow my build at http://www.wranglerforum.com/f5/my-j...ss-154212.html
kylekae is offline   Quote Quick Reply
Old 08-19-2012, 05:43 PM   #28
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 7,392
Quote:
Originally Posted by kylekae View Post
What about g2 diff covers
the ones that are basically the same mold as Solid, Rockcrusher, Rancho, Dynatrac, and a couple others? try looking at reviews of those...same thing.

In front, I run what used to be a Solid. Even with a custom high clearance track bar, I had to cut half the front face off and weld it closed to clear.



more: http://www.jeepforum.com/forum/f9/un...l#post11060714

UnlimitedLJ04 is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Diff cover art? Jp90Talon General Jeep Discussion 26 11-01-2012 02:13 PM
Rear Diff cover TwistedWhispers YJ Tech Forum 0 03-04-2011 06:55 PM
ford 8.8 swap diff cover dogsbollocks TJ General Discussion Forum 10 02-20-2011 02:03 PM
crane d44 diff cover brownsburg,in Indyrubi Classifieds Archive 5 03-01-2010 06:11 PM
Trail Cover Review nutmegger1957 JK Pics Forum 8 04-29-2009 10:52 PM



Download our Mobile App

» Featured Product

All times are GMT -5. The time now is 11:50 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
