can someone please help me my frame is rusted where transmission crossmember bolts go - Jeep Wrangler Forum
Jeep Wrangler Forum

Go Back   Jeep Wrangler Forum > TJ Jeep Wrangler Forum > TJ General Discussion Forum

Join Wrangler Forum Today


Reply

Thread Tools

Please support our sponsors and let them know you heard about them on WranglerForum.com
Old 07-21-2012, 10:52 PM   #1
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
Question can someone please help me my frame is rusted where transmission crossmember bolts go

On the driver side, the three holes on the frame where my transmission crossmember bolts goes is rusted out. There is a big rusted hole where two of the bolts go. Only one bolt is holding the crossmember in the drive side. In the passenger side it fine. Im afraid when im driving im putting stress on my transmission and transfer case. and when i hit a bump, that one bolt holding is going to snap off. please someone help me what can i do

timothy is offline   Quote Quick Reply
Old 07-21-2012, 11:46 PM   #2
Jeeper

Join Date: Jul 2012
Posts: 79
You can get the "Safe T Cap" repair section installed...it's basically a repair section that welds over the existing frame. I did it to mine and it worked great.

I see you are from CT....the company that makes it is based in Rhode Island and they do great work.

Safe-T-Cap - Auto Rust Technicians

Shippey-ki-yay is offline   Quote Quick Reply
Old 07-21-2012, 11:51 PM   #3
Jeeper

Richlw3's Avatar

Join Date: Mar 2012
Posts: 99
I had the same problem. I just drilled through the top of the frame and put 6" bolts through. I did that about 5 months and it's still solid. My frame doesn't have much life left so I didn't bother welding the replacement piece in, but if I needed it to last I would have done it.
Attached Thumbnails
Click image for larger version

Name:	image-1872955937.jpg
Views:	154
Size:	145.9 KB
ID:	143089
Richlw3 is offline   Quote Quick Reply
Old 07-22-2012, 07:51 AM   #4
Jeeper

Leeroy Jeepkins's Avatar

Join Date: Nov 2010
Location: Bucks County,PA
Posts: 488
Quote:
Originally Posted by Richlw3 View Post
I had the same problem. I just drilled through the top of the frame and put 6" bolts through. I did that about 5 months and it's still solid. My frame doesn't have much life left so I didn't bother welding the replacement piece in, but if I needed it to last I would have done it.

looks pretty scary under there
Leeroy Jeepkins is offline   Quote Quick Reply
Old 07-22-2012, 09:00 AM   #5
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
these sound like good ideas. i was thinking to take down the skid plate and weld a peace of meadow in the bottom where the frame rusted and find something i can put where the hole go to put the bolts.im not sure this is a good idea. are there any other way to fix this problem
timothy is offline   Quote Quick Reply
Old 07-22-2012, 10:30 AM   #6
Jeeper

Join Date: Jul 2012
Posts: 79
I have seen people weld in new nutserts, but that all depends on how much un rusted metal is left under your frame. If the nutserts pulled out you probably don't have much to weld to. i'd still recommend the Safe t cap.
Shippey-ki-yay is offline   Quote Quick Reply
Old 07-22-2012, 10:40 AM   #7
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
Quote:
Originally Posted by Shippey-ki-yay View Post
I have seen people weld in new nutserts, but that all depends on how much un rusted metal is left under your frame. If the nutserts pulled out you probably don't have much to weld to. i'd still recommend the Safe t cap.
does the safe t cap come with the nut inserts. and do the safe t cap just go over the frame or do i have to cut that peace of the frame out and weld the peace in. i dont really get how the kit works. can u please tell me how it works
timothy is offline   Quote Quick Reply
Old 07-22-2012, 10:53 AM   #8
Jeeper

Join Date: Jul 2012
Posts: 79

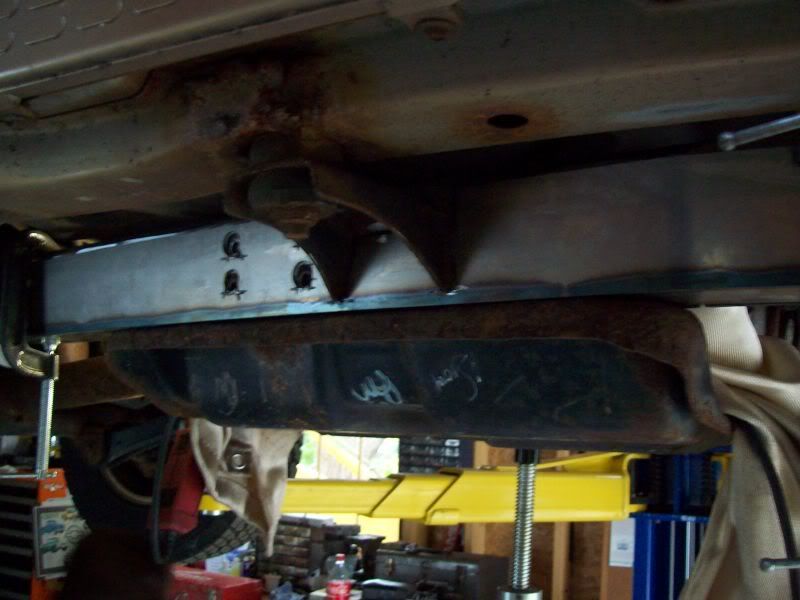

Yup ....Heres a pic of the part when I installed it
Shippey-ki-yay is offline   Quote Quick Reply
Old 07-22-2012, 11:02 AM   #9
Jeeper

Evpjr's Avatar

Join Date: May 2012
Location: Bakersfield
Posts: 314
Images: 1
Were I you, I would consider a remanufactured frame, or even one out of a wreck. Yours looks like it has seen better days!
Evpjr is offline   Quote Quick Reply
Old 07-22-2012, 11:08 AM   #10
Jeeper

Join Date: Jul 2012
Posts: 79
The safe t cap slips over the frame so you don't have to cut the entire section out, but you do have to cut the rusted bottom portion out. it lined up just about perfectly.

being from the Boston area it was only a 45 minute drive to their shop so I went there to pick up the part. They were very helpful and while I was there I got to see some examples of the part installed.
Shippey-ki-yay is offline   Quote Quick Reply
Old 07-22-2012, 11:08 AM   #11
Jeeper

LilYeller's Avatar

Join Date: Apr 2011
Location: South Florida U.S.A
Posts: 2,590
This is such a common problem, Im lucky to have caught mine before it got this bad, I only had to grind off the rust and paint the frame. But If I had to fix it then that Safe T cap is the way I would go, or if I had the tools and time then a frame swap.
__________________

Random Guy: "Is there anywhere that thing cant go?"
Me: "Yea, past a gas station..."

Build thread: My Lil' Yeller Jeep, Paracord Grab handles ~ how to make your own
Keep on Jeepin on!
LilYeller is offline   Quote Quick Reply
Old 07-22-2012, 11:14 AM   #12
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
ok it looks like i dont have to cut the frame out. look like i just slid the part in and weld it right. can it be that easy or am i think it wrong.
timothy is offline   Quote Quick Reply
Old 07-22-2012, 11:15 AM   #13
OIIIIIO

WF Supporting Member

T2000J's Avatar

Join Date: Sep 2010
Location: PA
Posts: 886
Quote:
Originally Posted by Shippey-ki-yay View Post
Yup ....Heres a pic of the part when I installed it
Now to adress that tub mount
__________________


JEEP WRANGLER
T2000J is offline   Quote Quick Reply
Old 07-22-2012, 11:22 AM   #14
Jeeper

Join Date: Jul 2012
Posts: 79
Quote:
Originally Posted by timothy View Post
ok it looks like i dont have to cut the frame out. look like i just slid the part in and weld it right. can it be that easy or am i think it wrong.
You do have to cut out the rusted bottom portion of the frame rail, but otherwise that's all you have to do.

Also the fuel lines run down that side of the frame, so you have to either remove them or pull them out of the way (I pulled them out of the way and wrapped them in a welding blanket which is probably not the safest way, but it worked)
Shippey-ki-yay is offline   Quote Quick Reply
Old 07-22-2012, 11:57 AM   #15
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
Quote:
Originally Posted by Shippey-ki-yay View Post
You do have to cut out the rusted bottom portion of the frame rail, but otherwise that's all you have to do.

Also the fuel lines run down that side of the frame, so you have to either remove them or pull them out of the way (I pulled them out of the way and wrapped them in a welding blanket which is probably not the safest way, but it worked)
ok ill do that. how long did the job take to do all that. and where can i find the nut inserts for the skid plate bolts. im not sure the size nuts and where to find them.
timothy is offline   Quote Quick Reply
Old 07-22-2012, 12:08 PM   #16
Jeeper

Join Date: Jul 2012
Posts: 79
The most time consuming and labor intensive part of the job was the prep....cutting the rusted area out (I used a cut-off wheel and a sawzall ...in hindsight if I was to do it again, I'd try to rent or borrow a plasma cutter) and grinding along the top of the frame to expose clean metal to weld to

I had limited lift time, so the job stretched out over a few days, but as far as the welding portion, it took maybe 3 hours or so
Shippey-ki-yay is offline   Quote Quick Reply
Old 07-22-2012, 12:21 PM   #17
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
Quote:
Originally Posted by Shippey-ki-yay View Post
The most time consuming and labor intensive part of the job was the prep....cutting the rusted area out (I used a cut-off wheel and a sawzall ...in hindsight if I was to do it again, I'd try to rent or borrow a plasma cutter) and grinding along the top of the frame to expose clean metal to weld to

I had limited lift time, so the job stretched out over a few days, but as far as the welding portion, it took maybe 3 hours or so
where can i find the nut inserts for the skid plate bolts. im not sure the size nuts and where to find them.
timothy is offline   Quote Quick Reply
Old 07-22-2012, 12:33 PM   #18
Jeeper

Join Date: Jul 2012
Posts: 79
the nutserts are already installed in the safe t cap
Shippey-ki-yay is offline   Quote Quick Reply
Old 07-22-2012, 12:56 PM   #19
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
Quote:
Originally Posted by Shippey-ki-yay View Post
the nutserts are already installed in the safe t cap
oh and there threaded already. to fit the bolt that i have.
timothy is offline   Quote Quick Reply
Old 07-22-2012, 12:58 PM   #20
Jeeper

Join Date: Jul 2012
Posts: 79
If you can get your bolts out, yes.....I had to get new ones from the dealership
Shippey-ki-yay is offline   Quote Quick Reply
Old 07-22-2012, 01:10 PM   #21
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
Quote:
Originally Posted by Shippey-ki-yay View Post
If you can get your bolts out, yes.....I had to get new ones from the dealership
i cant go to auto parts store to get those bolts. or are they like special order.
timothy is offline   Quote Quick Reply
Old 07-22-2012, 01:27 PM   #22
Jeeper

Join Date: Jul 2012
Posts: 79
I believe they are a standard thread but they have a taper at the end of the thread below the head .....I'm sure you could just replace them with a similar bolt from a hardware store ( I believe they are 1/2", but I think certain years used 12 mm)
Shippey-ki-yay is offline   Quote Quick Reply
Old 07-22-2012, 01:44 PM   #23
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
Quote:
Originally Posted by Shippey-ki-yay View Post
I believe they are a standard thread but they have a taper at the end of the thread below the head .....I'm sure you could just replace them with a similar bolt from a hardware store ( I believe they are 1/2", but I think certain years used 12 mm)
just for now what can i use to hold the skid plate up if you have any ideas.
timothy is offline   Quote Quick Reply
Old 07-22-2012, 01:50 PM   #24
Jeeper

Join Date: Jul 2012
Posts: 79
What I did to move my Jeep in and out of the garage was use C-clamps between the top of the frame and the skid cranked down as hard as I could to hold the skid up while I pulled it in and out of the garage .....I don't know if I'd recommend driving on the road like that
Shippey-ki-yay is offline   Quote Quick Reply
Old 07-22-2012, 01:52 PM   #25
Jeeper

Join Date: Jul 2012
Posts: 79
You could do like Richl3 said and chase the bolt holes through the top of the frame and through-bolt it into place with long bolts
Shippey-ki-yay is offline   Quote Quick Reply
Old 07-22-2012, 01:55 PM   #26
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
Quote:
Originally Posted by Shippey-ki-yay View Post
What I did to move my Jeep in and out of the garage was use C-clamps between the top of the frame and the skid cranked down as hard as I could to hold the skid up while I pulled it in and out of the garage .....I don't know if I'd recommend driving on the road like that
ok thank for all the help. im going to order the part and new bolt. ill keep you posted to let you know what happen next. thank again
timothy is offline   Quote Quick Reply
Old 07-22-2012, 04:46 PM   #27
Jeeper

Join Date: Mar 2012
Posts: 82
If you order from Safe T Cap, they should give you the bolts. They did when I bought mine, so you shouldn't need them.
Z0827 is offline   Quote Quick Reply
Old 08-29-2012, 01:35 PM   #28
Jeeper

mcppat's Avatar

Join Date: May 2011
Location: Fairfield, CT
Posts: 40
Hey, just wondering how the repair went. I have the same issue, though not quite as bad (yet). I was considering using the Safe T Caps on both sides. Just need to figure out where to borrow/rent a welder.
mcppat is offline   Quote Quick Reply
Old 08-29-2012, 07:32 PM   #29
Jeeper

Join Date: Feb 2012
Location: west burbs of Chicago
Posts: 22
In my opinion..Instead of buying safe t caps, cutting the bottom section of your frame out and welding in the safe t cap. For less money. You could cut the bottom section of your frame out, which your going to do anyway, and get a new strip of 3/16 or 1/4 steel. You could make a template, cut it out, and weld in the new piece. What I did was marked my three points where the nutserts were, drilled my three holes, welded new 1/2" extra heavy nuts to the backside of my replacement piece, then welded the patch piece back into the frame. I did that so I dont have to worry about messing with the nutserts ever again. I coated the inside with eastwood internal frame and the outside with por-15. It turned out great. My frame was not that bad though. I was cleaning out the inside of my frame to get ready for some eastwood coating. When I tried to take the skid down, two of my nutserts spun. After I fought with it and took it down. I hit the frame with a hammer and had some bad spots around the nutserts and the frame dented a little on the bottom. The top and the sides of the frame were awesome. It was just getting a little thin on the bottom where the skid mounted. So I decided to cut it out.
BLK01 is offline   Quote Quick Reply
Old 08-30-2012, 02:04 AM   #30
Jeeper

timothy's Avatar

Join Date: Oct 2011
Location: Bridgeport, CT
Posts: 284
Quote:
Originally Posted by BLK01 View Post
In my opinion..Instead of buying safe t caps, cutting the bottom section of your frame out and welding in the safe t cap. For less money. You could cut the bottom section of your frame out, which your going to do anyway, and get a new strip of 3/16 or 1/4 steel. You could make a template, cut it out, and weld in the new piece. What I did was marked my three points where the nutserts were, drilled my three holes, welded new 1/2" extra heavy nuts to the backside of my replacement piece, then welded the patch piece back into the frame. I did that so I dont have to worry about messing with the nutserts ever again. I coated the inside with eastwood internal frame and the outside with por-15. It turned out great. My frame was not that bad though. I was cleaning out the inside of my frame to get ready for some eastwood coating. When I tried to take the skid down, two of my nutserts spun. After I fought with it and took it down. I hit the frame with a hammer and had some bad spots around the nutserts and the frame dented a little on the bottom. The top and the sides of the frame were awesome. It was just getting a little thin on the bottom where the skid mounted. So I decided to cut it out.
do you have any pic of your frame.

timothy is offline   Quote Quick Reply
