How can I tell what size lift I have?

Yes i'm new here, and to Jeeps, and to offroading, and to automotive work in general... So if I say anything stupid, forgive me!

Just got a 04 Sahara and the dealership guy said it had a 5 inch fabtech longarm lift. How can I confirm this? I know it is fabtech because it says it on the front shocks. And it has 35 inch mickey thompson baja mtz on it, if that helps.

Wandering because I want to purchase new shocks and I have learned that lift determines what shocks to buy. If it is indeed a 5 inch longarm, what are the best on/offroad shocks? .. for the money!

And what would you guys recommend doing to it? I'm talking basic care!?! Tune up? Oil change? lube everyhting up?(It is a little squeeky) Check the brakes? Remember i'm new to all of this so go easy on me!... please

Oh and i'm Rob, HOWDY

xwolfmanxx is offline   Quote Quick Reply
Old 01-23-2010, 11:41 PM   #2
Moderator

WF Supporting Member
::WF Moderator::

schnutzy's Avatar

Join Date: Sep 2009
Location: ring side seats to the the country's largest circus
Posts: 28,181
Send a message via AIM to schnutzy
go ahead and post up a pic of it, we can help you better if we can see it(and we just like pics on this forum)

also you can measure the height of the bumper off the ground, and compare that to stock height.

just fyi, just cause it says fabtech on the shocks doesnt mean thats who its from.

__________________
clinging on to sanity, one motorcycle at a time.
schnutzy is offline   Quote Quick Reply
Old 01-23-2010, 11:44 PM   #3
Moderator

WF Supporting Member
::WF Moderator::

schnutzy's Avatar

Join Date: Sep 2009
Location: ring side seats to the the country's largest circus
Posts: 28,181
Send a message via AIM to schnutzy
i just popped over to the fabtech website. if it is from them, it would have to be a 6 inch kit. also all the lift hardware is going to be blue
__________________
clinging on to sanity, one motorcycle at a time.
schnutzy is offline   Quote Quick Reply
Old 01-23-2010, 11:48 PM   #4
Jeeper

xwolfmanxx's Avatar

Join Date: Jan 2010
Location: Sarasota, FL
Posts: 96
Send a message via AIM to xwolfmanxx
Can't post a pic right now but I will tomorrow!

Nothing is blue, all black, and white shocks! There is also boddy armor (not sure if thats the right term?)under the middle that says fabtech. I saw the blue kit too, and thought maybe it is the new kits that are blue and the lift may be a few years old... I dont know?!
xwolfmanxx is offline   Quote Quick Reply
Old 01-23-2010, 11:52 PM   #5
Jeeper

Join Date: Oct 2009
Location: San Diego
Posts: 759
uh I dont even think they make 5" long arm. 6" longarm they do though
terrible2 is offline   Quote Quick Reply
Old 01-23-2010, 11:53 PM   #6
Jeeper

Join Date: Oct 2009
Location: San Diego
Posts: 759
No they wont be blue, I have a fabtech and its black springs, its good you have skid plates. Check to see if you ahve D44 in the rear with those 35's. honestly theres pictures posted up of what they look like but I cant tell you what they are off the top of my head. D44 do have a metal fill plug though, if its rubber then its nto D44
terrible2 is offline   Quote Quick Reply
Old 01-23-2010, 11:59 PM   #7
Jeeper

xwolfmanxx's Avatar

Join Date: Jan 2010
Location: Sarasota, FL
Posts: 96
Send a message via AIM to xwolfmanxx
It's dark here in florida haha but I will tomorrow. Does it make a difference which ones I have? I saw a post on here with all of them listed with pics but I dont remember where?!
xwolfmanxx is offline   Quote Quick Reply
Old 01-24-2010, 12:03 AM   #8
Moderator

WF Supporting Member
::WF Moderator::

schnutzy's Avatar

Join Date: Sep 2009
Location: ring side seats to the the country's largest circus
Posts: 28,181
Send a message via AIM to schnutzy
well i thought it was all blue, but i guess they are black to. i guess it could be a 6 inch kit. the dealer just thought it was a 5.
__________________
clinging on to sanity, one motorcycle at a time.
schnutzy is offline   Quote Quick Reply
Old 01-24-2010, 01:25 AM   #9
Jeeper

Join Date: Oct 2009
Location: San Diego
Posts: 759
I seriously dont think they make 5" suspension long arm. Maybe 4"+ 1" BL or somethign but if he thinks its 5" then hes an idiot...unless of course he thinks it was a 6" and it sagged down to 5". But from my previous experience with dealership mechanics they dont know shit.
terrible2 is offline   Quote Quick Reply
Old 01-24-2010, 02:36 AM   #10
Show Me Your 8008135!

WF Supporting Member

s3nt3nc3d's Avatar

Join Date: Oct 2009
Location: Piqua, OH
Posts: 3,641
Send a message via AIM to s3nt3nc3d
Gotta remember...dealers aren't mechanics and even their mechanics aren't necessarily trained in aftermarket stuff for the vehicles they work on...so either they'll make something up based on their best guess or they'll take the previous owner's word when it comes to aftermarket modifications.
__________________
"We don't build great brakes because we think you don't know how to drive, we build them for the guy on the road in front of you that doesn't." - Black Magic Brakes
s3nt3nc3d is offline   Quote Quick Reply
Old 01-24-2010, 03:07 AM   #11
Jeeper

RatherBNarizona's Avatar

Join Date: Oct 2006
Location: Arizona
Posts: 12,283
Post up some pics and we can help ya figure out what it is
RatherBNarizona is offline   Quote Quick Reply
Old 01-24-2010, 09:35 AM   #12
Jeeper

catITguy's Avatar

Join Date: Feb 2009
Location: Metamora, IL
Posts: 449
Send a message via AIM to catITguy
found this on another site, but it sure is useful for just your problem:
__________________
TJ Boot Camp Thread from Jeep Forum

2000 Wrangler Sport, 4.0L auto
OME 2.5" Suspension Lift
1.25" JKS BL and 1" MML
33x12.5 GoodYear Wrangler Duratracs
catITguy is offline   Quote Quick Reply
Old 01-24-2010, 12:13 PM   #13
Jeeper

Join Date: May 2009
Posts: 17
I think I remember that the Fabtechwebsite etates that the blue is only for display, advertising etc. Product will be black.
blackjeep51 is offline   Quote Quick Reply
Old 01-24-2010, 01:48 PM   #14
Jeeper

VARedLeg82's Avatar

Join Date: Oct 2009
Location: Schofield Barracks, HI
Posts: 76
First off, welcome!

OK, for the pictures, we need to see:

1) the lower control arms. On each side both axles you'll see two control arms, one above and one below the axle, attaching the axle to the frame.

2) the tops of your coil springs. This will show if there's a coil spring spacer lift installed

3) the tub mounts. this will show if there's a body lift installed

if you can post these three pictures you should get some pretty straight answers on what type and how much lift you've got
__________________
kickin' it Hawaiian-style, topless year-round

yeah, it is another red wrangler....
VARedLeg82 is offline   Quote Quick Reply
Old 01-24-2010, 02:21 PM   #15
Jeeper

xwolfmanxx's Avatar

Join Date: Jan 2010
Location: Sarasota, FL
Posts: 96
Send a message via AIM to xwolfmanxx
I'm at work now, but as soon as I get home i'll put her in the back garage where i can get some light for decent pictures! I'll take a bunch of pics! And that chart will prob help big time! Thank you for that catITguy!

Any reccomendations on shocks and springs to get? Best for the money preferrably! I do want to get colored parts to add some life under there! I was thinking old man emu shocks and steering stabilizers! Do they sell the springs in yellow also? .. and are they a good brand?
xwolfmanxx is offline   Quote Quick Reply
Old 01-24-2010, 05:18 PM   #16
Jeeper

xwolfmanxx's Avatar

Join Date: Jan 2010
Location: Sarasota, FL
Posts: 96
Send a message via AIM to xwolfmanxx

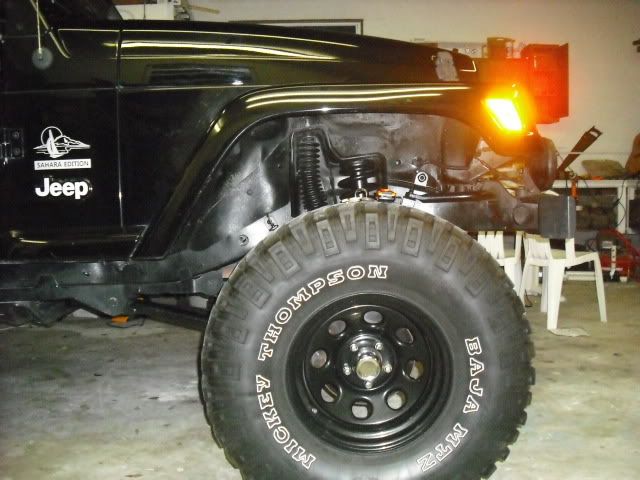

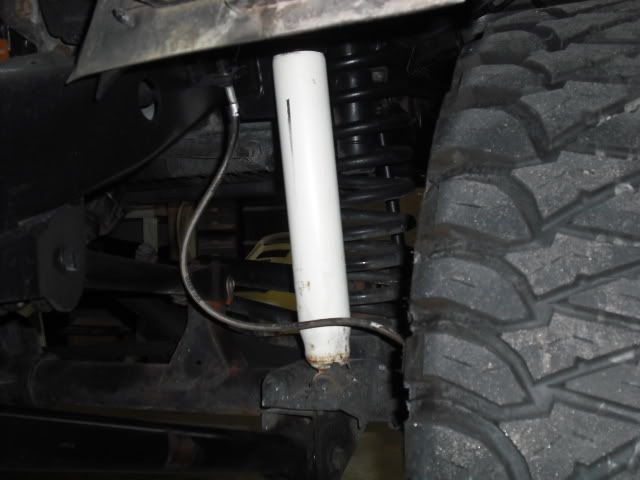

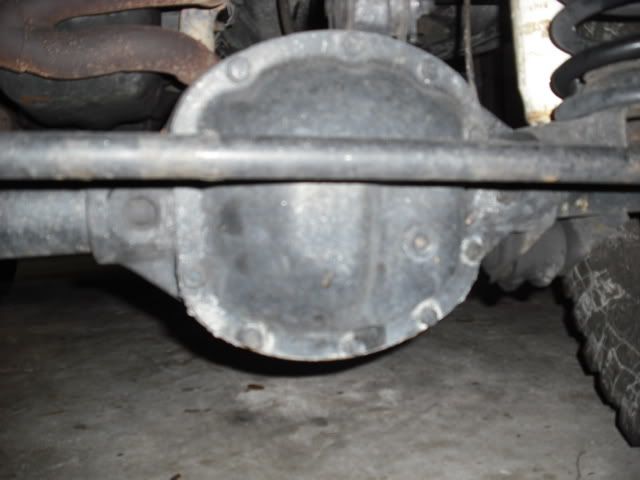

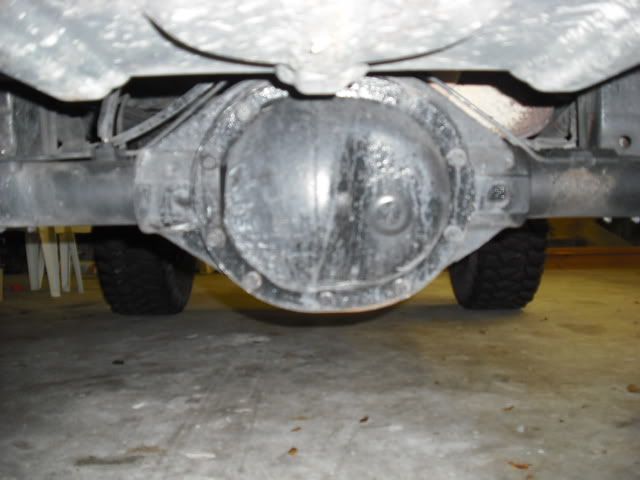

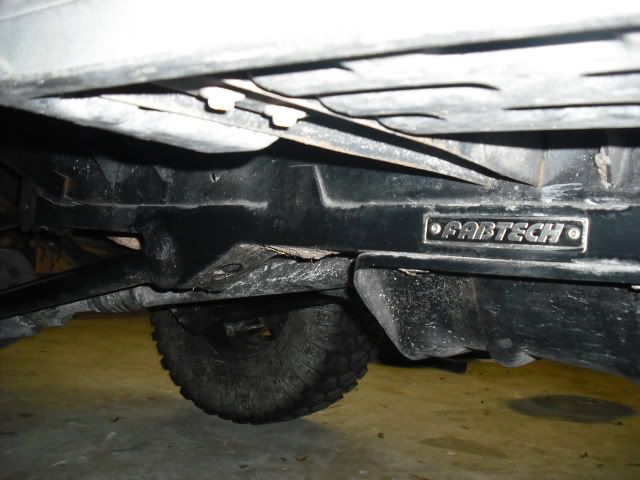

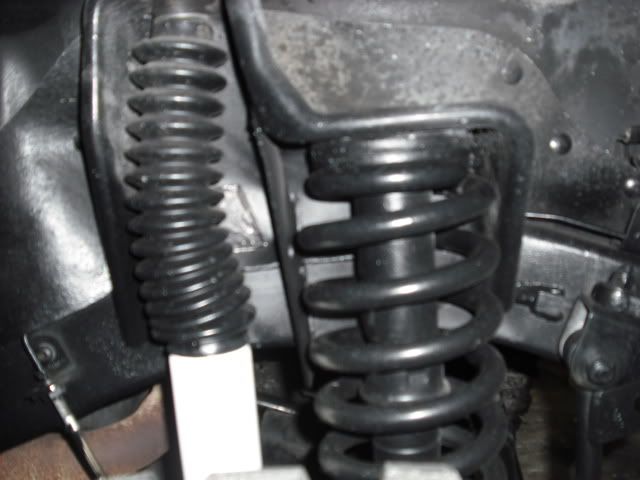

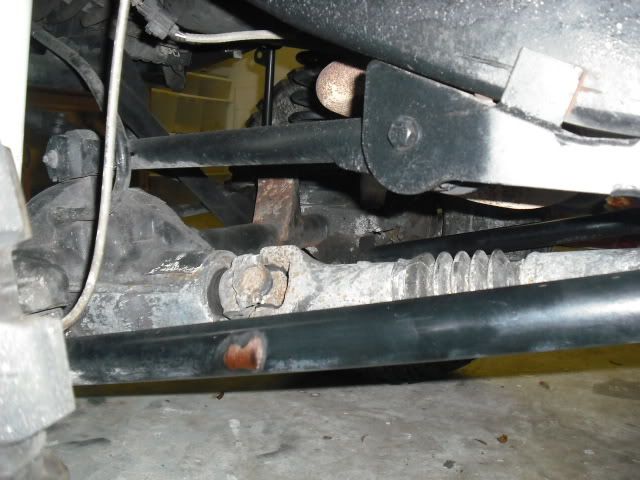

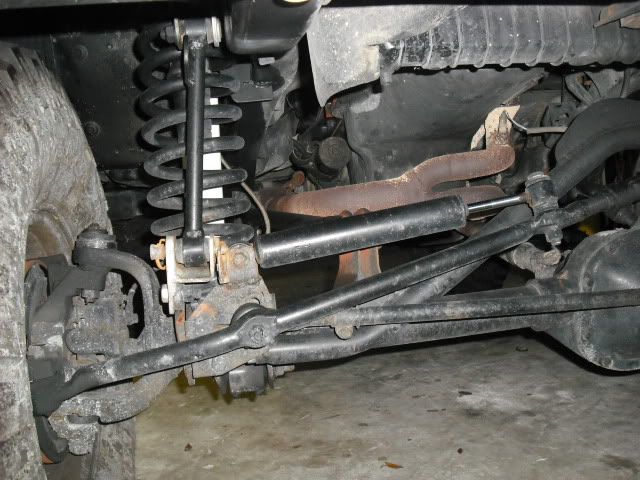

Ok huys, I took a few pics.. well about 15 actually! Of the axles, shocks, springs, arms, and the whole Jeep!



[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]
xwolfmanxx is offline   Quote Quick Reply
Old 01-24-2010, 05:47 PM   #17
Jeeper

xwolfmanxx's Avatar

Join Date: Jan 2010
Location: Sarasota, FL
Posts: 96
Send a message via AIM to xwolfmanxx
According to that chart I measured 18 inches on the front springs and 14 on the rear! So apparently I have a 6 inch fabtech lift kit!

What shocks should I buy? I know I may not need them but I want to replace as much as I can, to keep track of everything I do from here out. Shoud I also get steering stabilizers? and new coil springs?

What would you guys do to an 04 jeep that you just purchased? Like what kind of basic automotive care?
xwolfmanxx is offline   Quote Quick Reply
Old 01-25-2010, 12:32 AM   #18
Jeeper

VARedLeg82's Avatar

Join Date: Oct 2009
Location: Schofield Barracks, HI
Posts: 76
OME shocks always get great reviews. I've never run them, but I've never heard anything bad about them.

As far as buying a used vehicle, I like to give anything used a good, complete service. That means all fluids (tranny and both diffs, coolant and oil), fuel and air filters, plugs, and, depending on the condition thereof, a new battery. One other thing to look at is the radiator. I bought my '99 with only 51k on the odometer, and it needed a new radiator because the factory gurus decided to use plastic/metal radiators that tend to leak.

Last thing you need to do is take her out and get 'er reeeally dirty

__________________
kickin' it Hawaiian-style, topless year-round

yeah, it is another red wrangler....
VARedLeg82 is offline   Quote Quick Reply
