Need help on TJ suspension

Time to help an newbie if you will please. I have what I believe to be an older Skyjacker 2.5 kit on my 97 TJ. I know it replaced the arms, coils, and dropped the transfer case. It also has discos but I am not sure if they were part or that kit. I need to replace the 31's and was going to buy a bigger KM2's to replace the worn Truxus M/T's. My question is can I thrown coil spacers on top of my Skyjacker lift? I do not want a body lift and I cant think of any reason why I cant but thats why I came to the professionals. I dont want a SYE, new brake lines or anything like that. Im looking for maybe another 1.5 inches and I want to run 32's. Could someone steer me in the right direction please for my DD TJ!

4LOW97 is offline   Quote Quick Reply
Old 01-22-2011, 08:20 AM   #2
Jeeper

T2000J's Avatar

Join Date: Sep 2010
Location: PA
Posts: 896
You should be able to run 32's now I have a 2 1/4 lift and i'm running 32's .

Yes you can add spacers but you will be pusing the limits with brake lines , sye, track bars , every jeep is differnt so it's hard to say

T2000J is offline   Quote Quick Reply
Old 01-22-2011, 09:12 AM   #3
J10
Jeeper

J10's Avatar

Join Date: Oct 2010
Posts: 210
I did a 3.25" lift with no thought about brake line or SYE. I think its 4" when that becomes something you have to look into compensating for. You may want to adjust your track bar but if the original work was done right there may be no noticeable difference.
But like T2000J says you should be able to run 32s as is but you might want to look into some different bumpstops

Nice choice on tires btw
J10 is offline   Quote Quick Reply
Old 01-22-2011, 10:52 AM   #4
Jeeper

Gumpy2030's Avatar

Join Date: Jan 2010
Location: Idaho
Posts: 278
When I bought my Jeep it had 2" BB and was running 32's. If you add 2" on top of the 2.5" you already have you will hit that size that other problems are very likely. Like mentioned earlier every Jeep is different but with 4+" of lift you very well could have issues with track bars, sway bars, brake lines, sye.
I bet you could just add 3/4" spacer to what you have since they may have sagged a bit and be able to clear 32's.
__________________
"The problem with arguing with an idiot is others can't tell which one the idiot is"
Gumpy2030 is offline   Quote Quick Reply
Old 01-22-2011, 07:38 PM   #5
Jeeper

4LOW97's Avatar

Join Date: Dec 2010
Posts: 17
Wink

I am thinking I have some spring sag but 31s and 2.5 inch lift look proportianal to me. Maybe my flares are giving me the illusion its sagging? So its not unreasonable to say I could add 1 inch spacers on top of my lift and MAYBE a 1 inch body lift? Would like to have plenty of clearance for 32x11.5x15's.
4LOW97 is offline   Quote Quick Reply
Old 01-22-2011, 08:35 PM   #6
Jeeper

SurfNaked2010's Avatar

Join Date: May 2009
Location: Bayville, New Jersey
Posts: 432
Send a message via AIM to SurfNaked2010
that would be plenty of lift for 32's post some pix of the jeep!
SurfNaked2010 is offline   Quote Quick Reply
Old 01-23-2011, 12:19 AM   #7
Jeeper

Garner's Avatar

Join Date: Nov 2010
Location: al
Posts: 233
Images: 3
what dose the bump stop do?
__________________
WHEN IN DOUBT GAS ON IT !
Garner is offline   Quote Quick Reply
Old 01-23-2011, 12:33 AM   #8
Jeeper

jeep41's Avatar

Join Date: Jul 2009
Location: Delaware
Posts: 1,936
The bump stop prevents the axle from continuing up during suspension travel. Basically it stops the axle and tires from hitting things their not suppose to.
__________________
Quote:
Originally Posted by jeep41 View Post
Chilli and beer the breakfast of champions
jeep41 is offline   Quote Quick Reply
Old 01-23-2011, 12:34 AM   #9
Jeeper

WVRUBI's Avatar

Join Date: Jan 2011
Location: WV
Posts: 170
Quote:
Originally Posted by Garner
what dose the bump stop do?
The bump stop is there to limit the amount of upward travel. Ive seen people remove them for more flex but its really not a good idea, you can get shorter bump stops and that would be fine but that puts you back to watching your brake lines and other parts because of the added flex.
__________________
"that sure is a nasty habit you got there"
WVRUBI is offline   Quote Quick Reply
Old 01-23-2011, 12:45 AM   #10
Jeeper

Garner's Avatar

Join Date: Nov 2010
Location: al
Posts: 233
Images: 3
Quote:
Originally Posted by WVRUBI View Post
The bump stop is there to limit the amount of upward travel. Ive seen people remove them for more flex but its really not a good idea, you can get shorter bump stops and that would be fine but that puts you back to watching your brake lines and other parts because of the added flex.
so how do you know how long you need them
__________________
WHEN IN DOUBT GAS ON IT !
Garner is offline   Quote Quick Reply
Old 01-23-2011, 12:56 AM   #11
Jeeper

WVRUBI's Avatar

Join Date: Jan 2011
Location: WV
Posts: 170
Quote:
Originally Posted by Garner

so how do you know how long you need them
Im no expert but the way i would do it is to flex the jeep with a jack or by driving on something "safe of course" and inspecting to make sure your axle hits the bump stop before it over extends any thing or your tires get in to your jeep. Hope that helps!
__________________
"that sure is a nasty habit you got there"
WVRUBI is offline   Quote Quick Reply
Old 01-23-2011, 01:27 AM   #12
Jeeper

4LOW97's Avatar

Join Date: Dec 2010
Posts: 17
Quote:
Originally Posted by blacknjtj1226 View Post
that would be plenty of lift for 32's post some pix of the jeep!

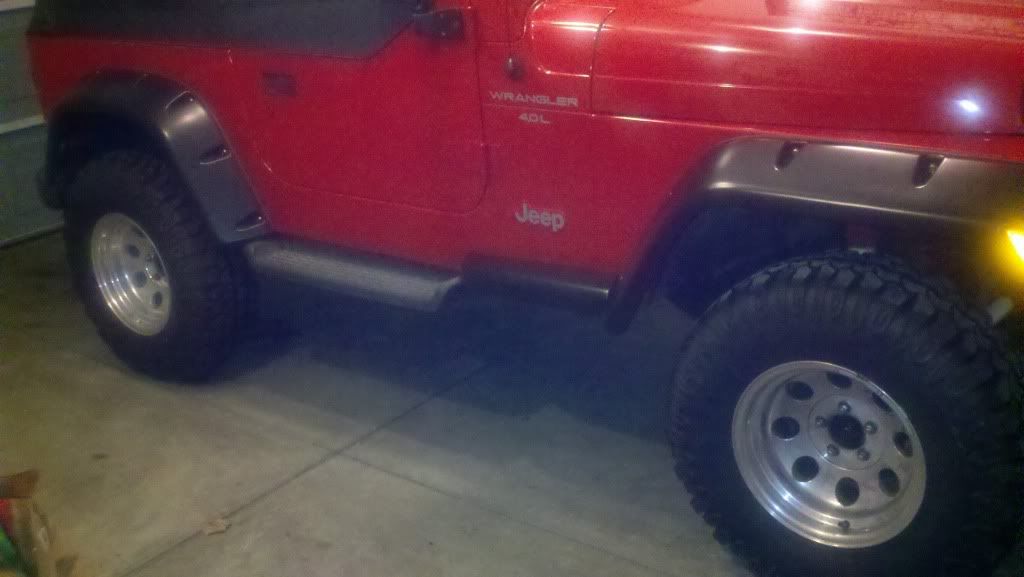

not the best but here is the way it sits.

4LOW97 is offline   Quote Quick Reply
Old 01-23-2011, 01:46 AM   #13
Jeeper

Join Date: Jan 2011
Posts: 16
OK so you want to go from 31s to 32s. Half will be above the axle and half below, so 1/2" closer to the wheel wells, and you're wanting to add two more inches of lift? Any problem at all with clearance of the 31s? I think you would need a lot more mods to make 2" spacers work with a 2 1/2" lift.
4play is offline   Quote Quick Reply
Old 01-23-2011, 02:17 AM   #14
Jeeper

4LOW97's Avatar

Join Date: Dec 2010
Posts: 17
Moreless I want 1 to 1.5 inches more lift without a body lift. Forget about the tires I know I can fit them. I hope I have not confused anyone.I want to accomplish this with a 1 or 1.5 inch spacer on top of my coils. I am hoping that I can just add spacers and no other mods. Thanks for you guys help so far. I m just a stupid newbie to Jeeps.
4LOW97 is offline   Quote Quick Reply
Old 01-23-2011, 06:22 PM   #15
Jeeper

Gumpy2030's Avatar

Join Date: Jan 2010
Location: Idaho
Posts: 278
Quote:
Originally Posted by 4LOW97 View Post
Moreless I want 1 to 1.5 inches more lift without a body lift. Forget about the tires I know I can fit them. I hope I have not confused anyone.I want to accomplish this with a 1 or 1.5 inch spacer on top of my coils. I am hoping that I can just add spacers and no other mods. Thanks for you guys help so far. I m just a stupid newbie to Jeeps.
Adding 1" of spacer most likely would be fine but start pushing 1.5 to 2" and you most likely will have other mods to worry about. Every Jeep is different and there is no way to tell for sure until you do it.

__________________
"The problem with arguing with an idiot is others can't tell which one the idiot is"
Gumpy2030 is offline   Quote Quick Reply
