off road lights and light bar

ok so i purchased 4 7'' lights to go on my light bar and installed them had to cut and splice and all that good stuff to get them installed with the wiring inside the light bar. the stock switch's that came with each pair were horrible and intermittently worked. so i wanted to wire it to one switch, i got a 50amp switch so that has enough power, then where i spliced the 2 sets of lights to the switch i have 10gauge wiring. and 30amp fuses in the fuse slots. but its still burning up, any suggestions?

__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-10-2009, 06:07 PM   #2
Jeeper

nicolas-eric's Avatar

Join Date: Jan 2007
Location: Hamburg, Germany
Posts: 5,892
Send a message via ICQ to nicolas-eric Send a message via AIM to nicolas-eric Send a message via MSN to nicolas-eric Send a message via Yahoo to nicolas-eric
Dont wire it up with only a switch. Use a switch and a relay.

Sorry it´s in German...


nicolas-eric is offline   Quote Quick Reply
Old 04-10-2009, 06:26 PM   #3
Jeeper

slf41002's Avatar

Join Date: Feb 2008
Location: Augusta,KY
Posts: 1,163
X2 but even then I would say go with two relays(one for each set of lights)with separate feeds to the relay but one common feed to the switch so they all come on with one switch.That way you will only pull very little amps to trigger the relays but then the relays pull the heavy load from two separate sources!!!!
__________________
I like for it to shine even thought it is muddy most of the time!
http://www.myspace.com/shermanf
slf41002 is offline   Quote Quick Reply
Old 04-10-2009, 06:29 PM   #4
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
each pair of lights has its own relay already, i think they are all wired with 16g wire tho, 16 or 18 idk. should i try to rewire it all with 10g? since i want all 4 lights on a single switch
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-10-2009, 06:33 PM   #5
Jeeper

nicolas-eric's Avatar

Join Date: Jan 2007
Location: Hamburg, Germany
Posts: 5,892
Send a message via ICQ to nicolas-eric Send a message via AIM to nicolas-eric Send a message via MSN to nicolas-eric Send a message via Yahoo to nicolas-eric
Are that 100W bulbs? Then you should use at least 3-4 mm˛ wire for every pair. don´t know how thick 10 gauge wire is. Here´s a list: American wire gauge - Wikipedia, the free encyclopedia
nicolas-eric is offline   Quote Quick Reply
Old 04-10-2009, 06:34 PM   #6
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
they are 55watts each
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-10-2009, 06:36 PM   #7
Jeeper

nicolas-eric's Avatar

Join Date: Jan 2007
Location: Hamburg, Germany
Posts: 5,892
Send a message via ICQ to nicolas-eric Send a message via AIM to nicolas-eric Send a message via MSN to nicolas-eric Send a message via Yahoo to nicolas-eric
Then 2-2.5 mm˛ wire is ok for every pair.
nicolas-eric is offline   Quote Quick Reply
Old 04-10-2009, 06:48 PM   #8
Jeeper

slf41002's Avatar

Join Date: Feb 2008
Location: Augusta,KY
Posts: 1,163
Do you have it wired like this and what is melting down the wire or the switch???? If it is the switch you have something wired wrong because you should only be using the switch to trigger the relay and that is very little current.If it is the main feed wire going to the relay and or the wires going to the lights then yes you will have to go heavier.(sorry for stealing your pic nico)
Attached Thumbnails
Click image for larger version

Name:	Relais.jpg
Views:	6
Size:	55.0 KB
ID:	7535
__________________
I like for it to shine even thought it is muddy most of the time!
http://www.myspace.com/shermanf
slf41002 is offline   Quote Quick Reply
Old 04-10-2009, 09:27 PM   #9
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
i will check it just to check my buddy helped me install it so i will get back to you with exactly how it is and possibly pictures so you can see it.
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-10-2009, 09:28 PM   #10
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
i have 2 seperate relays that are not connecting the 2 light sets, only 1 light set per relay
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-10-2009, 11:45 PM   #11
Jeeper

pyro's Avatar

Join Date: Nov 2008
Location: Philly
Posts: 539
what is burning up?
pyro is offline   Quote Quick Reply
Old 04-11-2009, 12:22 AM   #12
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
here are some pics
the lights


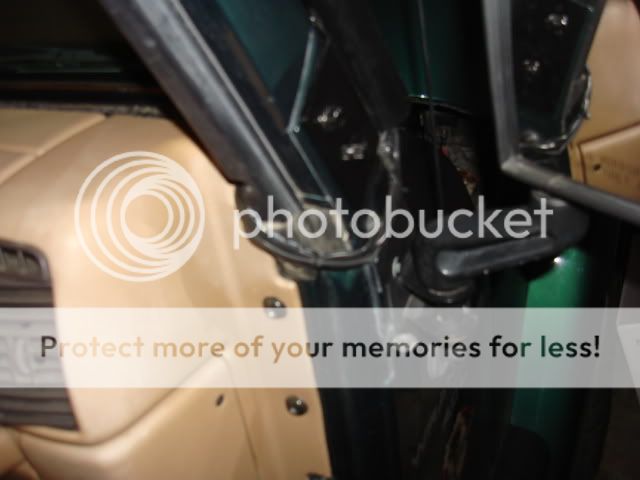

wiring getting pushed behind the dash

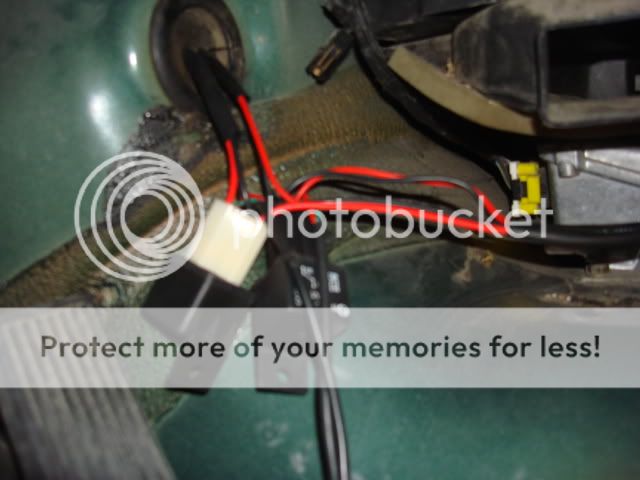

direct from the lights to the relay than to the switch and the battery through the grommet on the drivers side.

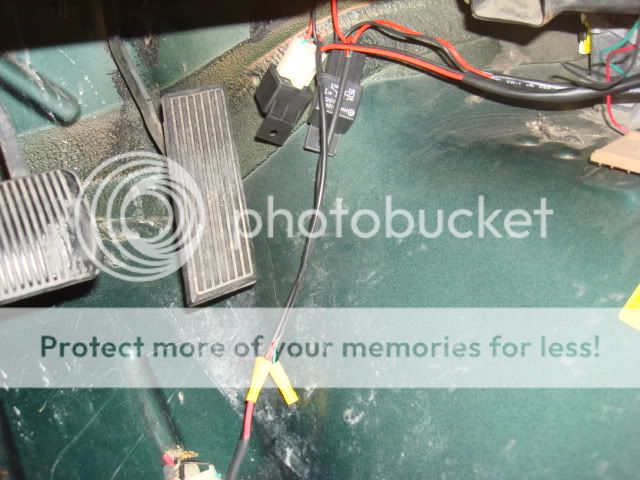

the 2 original switch wires now spliced together, they were burning up at the yellow butt connectors.

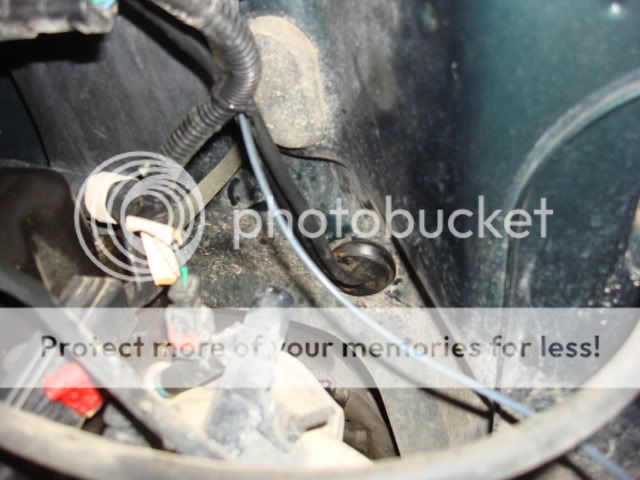

coming out of the drivers side under the hood.

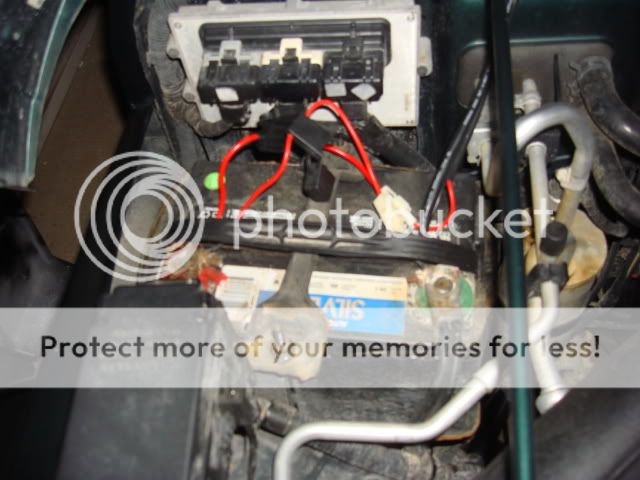

connected to the battery of course with fuses out. i had to jump from the 15amp original fuses to 30amp now.
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-11-2009, 12:42 AM   #13
Jeeper

pyro's Avatar

Join Date: Nov 2008
Location: Philly
Posts: 539
start with checking all your connections. loose conections generate heat. when did the wires burn? how long were they on b4 the conn burnt? were u driving or sitting stilll? if the kit recomends 15amp fuses it should work w/ 15s
pyro is offline   Quote Quick Reply
Old 04-11-2009, 12:47 AM   #14
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
we just put in the fuses when it started to burn at the yellow butt connectors, so standing still. we were trying 15amp fuses and they would pop if they looked at the ports. so we put in 30s and they dont pop. and i did notice the wiring at the yellow connectors is about 18 gauge so i might have it replace that with 10 gauge
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-11-2009, 01:15 AM   #15
Jeeper

pyro's Avatar

Join Date: Nov 2008
Location: Philly
Posts: 539
how many amps is the system rated at? 18 to 10 is a prety big jump. what did the system come with?
pyro is offline   Quote Quick Reply
Old 04-11-2009, 01:24 AM   #16
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
what we are trying to do is wire 2 separate systems together, so all 4 lights are controlled by a single switch, they were 15 amp single but now that they are connected it increased the ampherage to 30
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-11-2009, 01:30 AM   #17
Jeeper

pyro's Avatar

Join Date: Nov 2008
Location: Philly
Posts: 539
but from what your pics look like, each system is hooked up to power seperately, and they only hook together at the switch, so it should still only pull 15.
pyro is offline   Quote Quick Reply
Old 04-11-2009, 01:41 AM   #18
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
at the switch they are connected putting 30 through the switch wiring. but the 30 stops at the relay. so now i will have to just replace that wiring for the switch with the 10g and it should be good right?
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-11-2009, 01:59 AM   #19
Jeeper

pyro's Avatar

Join Date: Nov 2008
Location: Philly
Posts: 539
should be. u said its a 50a switch right? is that what the yellow conns were for the switch to the rest of the system?
pyro is offline   Quote Quick Reply
Old 04-11-2009, 02:02 AM   #20
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
yes the yellow connectors next stop was the 50a switch
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-11-2009, 02:04 AM   #21
Jeeper

pyro's Avatar

Join Date: Nov 2008
Location: Philly
Posts: 539
make sure the conection is TIGHT. the switch should b fine
pyro is offline   Quote Quick Reply
Old 04-11-2009, 02:06 AM   #22
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
yea im going to replace that wire tomorrow morning, its 1am here ... well this morning. with a name like pyro im not sure i want to trust yoru electrical work lol dont want to burn my house down..
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-11-2009, 02:13 AM   #23
Jeeper

pyro's Avatar

Join Date: Nov 2008
Location: Philly
Posts: 539
its ok Im a fireman. I was an electrician b4 that
pyro is offline   Quote Quick Reply
Old 04-11-2009, 02:17 AM   #24
Jeeper

TerryFaust's Avatar

Join Date: Oct 2008
Posts: 137
youll come to TX and put out my houseand jeep?
__________________
2000 Jeep Wrangler Sahara TJ
S&B Cold Air Intake
31'' BFG A/T
4.0L I-6 5SPD Man
"going topless"
Roads? Where were going we dont need roads.
TerryFaust is offline   Quote Quick Reply
Old 04-11-2009, 02:37 AM   #25
Jeeper

pyro's Avatar

Join Date: Nov 2008
Location: Philly
Posts: 539
if theres fire, I will come
pyro is offline   Quote Quick Reply
Old 04-16-2009, 10:39 PM   #26
Jeeper

pyro's Avatar

Join Date: Nov 2008
Location: Philly
Posts: 539
did u ever figure this out? Im looking at light bars now and wanted to get your input. what kind do u have? where did u get it? do u like it?

pyro is offline   Quote Quick Reply
