PORTAL AXLES.. Are they worth it?

Hey everyone, so I am looking to do an axle swap and I have been trying to do some research on different options and came across "Portal axles". I am wondering if anyone on here has done them in there TJ and if they are even worth looking at..

I have found a set of them from a Volvo c303 1 1/4 TON Military vehicle for 3000$.. I know it will take a TON of work to get them in and going so is it worth it?

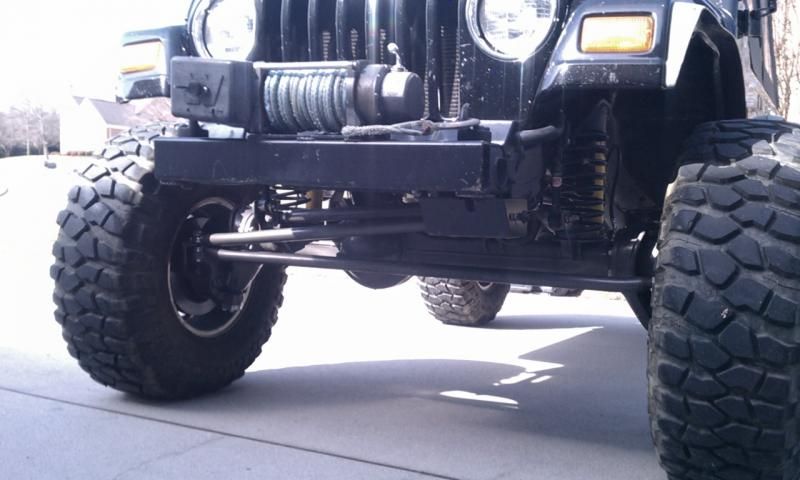

Here is a picture from what I found online.

[IMG][/IMG]

[IMG][/IMG]

DANGItsVictor is offline   Quote Quick Reply
Old 05-15-2013, 06:47 PM   #2
Jeeper

DANGItsVictor's Avatar

Join Date: Apr 2013
Location: Cape Cod, MA
Posts: 103

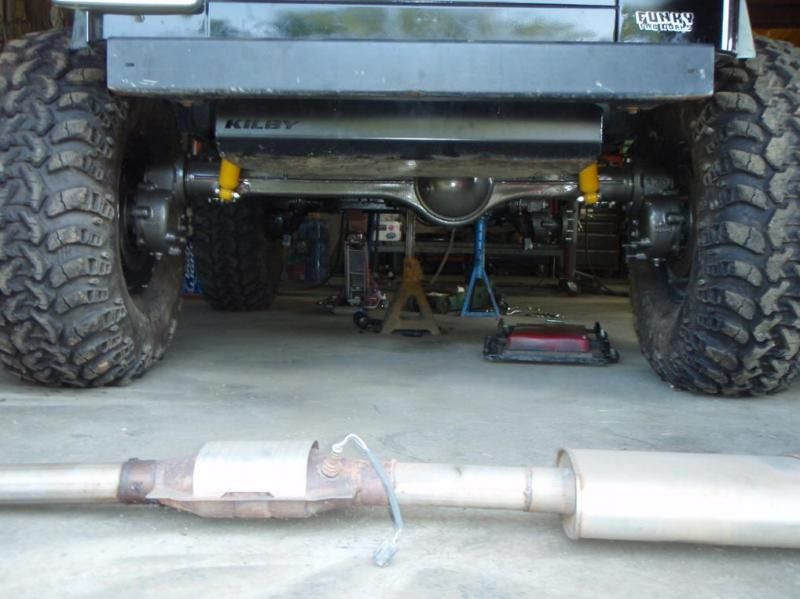

Here is a shot of the rear..

[IMG][/IMG]

DANGItsVictor is offline   Quote Quick Reply
Old 05-15-2013, 08:38 PM   #3
Jeeper

K.wag's Avatar

Join Date: Oct 2012
Location: Roseburg, Oregon
Posts: 508
I have definitely drooled over portal jeeps... awesome way to gain a couple inches axle clearance with a smaller pumpkin too.
But I am assuming it is a lot of work and money to custom fit them and make them work right.
K.wag is offline   Quote Quick Reply
Old 05-15-2013, 08:46 PM   #4
Jeeper

DANGItsVictor's Avatar

Join Date: Apr 2013
Location: Cape Cod, MA
Posts: 103
Quote:
Originally Posted by K.wag View Post
I have definitely drooled over portal jeeps... awesome way to gain a couple inches axle clearance with a smaller pumpkin too.
But I am assuming it is a lot of work and money to custom fit them and make them work right.
Yeah, tons of money im sure.. but the guy who has this one says its about 4-5 inches more of clearance, which is pretty great. 3,000 for the pair and another 3,000 to fit and get them in most likely.
DANGItsVictor is offline   Quote Quick Reply
Old 05-15-2013, 09:03 PM   #5
Jeeper

OpieDP's Avatar

Join Date: Jul 2012
Posts: 51
How much do they weigh?
OpieDP is offline   Quote Quick Reply
Old 05-15-2013, 09:06 PM   #6
Jeeper

DANGItsVictor's Avatar

Join Date: Apr 2013
Location: Cape Cod, MA
Posts: 103
Quote:
Originally Posted by OpieDP View Post
How much do they weigh?
I'm not sure. Sorry.
DANGItsVictor is offline   Quote Quick Reply
Old 05-15-2013, 09:42 PM   #7
Jeeper

OpieDP's Avatar

Join Date: Jul 2012
Posts: 51
That seems to me a very important detail in your decision if this is a commuter/drive to trail rig.
OpieDP is offline   Quote Quick Reply
Old 05-15-2013, 09:48 PM   #8
Jeeper

freeskier's Avatar

Join Date: Mar 2011
Location: Longmont, CO
Posts: 2,362
I wouldn't run portals if they were given to me for free. Don't get enamored by the clearance. The reduction gears in the portals are a weak link and the axle puts a massive stress on your suspension links.
__________________
CU Boulder Aerospace Engineering
freeskier is offline   Quote Quick Reply
Old 05-15-2013, 11:03 PM   #9
Jeeper

K.wag's Avatar

Join Date: Oct 2012
Location: Roseburg, Oregon
Posts: 508
Quote:
3,000 to fit and get them in most likely.
That is what I have seen in brief research
Quote:
How much do they weigh?
More but not significantly more. Gearing is at the hub yes, but the center differential is also smaller. Nothing like 100% more or anything like that. The commuting issue is more about the function of the portals than the weight. Portals are not great for highways.
Quote:
The reduction gears in the portals are a weak link and the axle puts a massive stress on your suspension links.
Can't be too weak or the military wouldn't use it in H1's.
and the stress on the suspension links is part of that $3k in extras to get them installed correctly.
K.wag is offline   Quote Quick Reply
Old 05-15-2013, 11:26 PM   #10
Jeeper

sduncan's Avatar

Join Date: May 2012
Location: Bakersfield
Posts: 140
Sorry...cant see $6+ grand is those to get them to work...Did you notice the passenger side diff and the offset rear? You're talking tons of drivetrain mods/replacements to make them work.
If you're wanting to replace your axles, I think you'd be better off spending the $$ on something like a Currie F9 with a Tru Hi-9 thirds or RockJock 60s. Total cost may...may mind you, be a little more but at least they fit, they work, and are virtually bulletproof for 99% of us.
__________________
98 TJ 5.7 Hemi, 545RFE, G2 D44, HP30, 4.10s & ARBs, RE 4.5 LA, 35 in MTRs on 15x10 alloys, Gen Right G3 Aluminum fenders/rear flares, Warn 9.5 CTi w/ Amsteel Blue, Premier Welder, Savvy rockers, Rampage top, a few other goodies..
Link to build thread..http://www.jeepforum.com/forum/f22/s...rsion-1277803/
sduncan is offline   Quote Quick Reply
Old 05-16-2013, 12:03 AM   #11
Jeeper

Join Date: Aug 2010
Location: NW burbs IL
Posts: 1,066
Quote:
Originally Posted by sduncan View Post
Sorry...cant see $6+ grand is those to get them to work...Did you notice the passenger side diff and the offset rear? You're talking tons of drivetrain mods/replacements to make them work.
If you're wanting to replace your axles, I think you'd be better off spending the $$ on something like a Currie F9 with a Tru Hi-9 thirds or RockJock 60s. Total cost may...may mind you, be a little more but at least they fit, they work, and are virtually bulletproof for 99% of us.
I think it would be a cool build, and for changing the driveline. I had to do that on my Dana 44/ford 9" swap on my '97 SE. if your going to swap in new axles you better expect to dish out 5 Grand minimum.
97flexy is offline   Quote Quick Reply
Old 05-16-2013, 07:58 AM   #12
Jeeper

s14sh3r's Avatar

Join Date: Sep 2011
Location: Clayton, OK
Posts: 2,049
Quote:
Originally Posted by K.wag View Post
That is what I have seen in brief research

More but not significantly more. Gearing is at the hub yes, but the center differential is also smaller. Nothing like 100% more or anything like that. The commuting issue is more about the function of the portals than the weight. Portals are not great for highways.

Can't be too weak or the military wouldn't use it in H1's.
and the stress on the suspension links is part of that $3k in extras to get them installed correctly.
Humvees don't use portal axles, they use independent suspension.
s14sh3r is offline   Quote Quick Reply
Old 05-16-2013, 08:20 AM   #13
Moderator

WF Supporting Member
::WF Moderator::

schnutzy's Avatar

Join Date: Sep 2009
Location: ring side seats to the the country's largest circus
Posts: 28,069
Send a message via AIM to schnutzy
OP, i strongly doubt you would be able to put those under your jeep for 3 grand. if you were to do everything yourself, then maybe you might come close to that. but if you have to have some one install them, you are talking serious money.

Quote:
Originally Posted by s14sh3r View Post
Humvees don't use portal axles, they use independent suspension.
they have both.
the H1 has a portal hub
__________________
clinging on to sanity, one motorcycle at a time.
schnutzy is offline   Quote Quick Reply
Old 05-16-2013, 08:28 AM   #14
Sponsoring Vendor

WF Supporting Member

Black Magic Brakes's Avatar

Join Date: May 2011
Posts: 1,804
Quote:
Originally Posted by s14sh3r View Post
Humvees don't use portal axles, they use independent suspension.

They typically refer to them as geared hubs, but they are for all intents and purposes a portal due to the half shaft driving a reduction gear connected to the drive hub giving much higher clearance under the rig.
__________________
I am Savvy, I am the brake Wizard.
http://blackmagicbrakes.com
Black Magic Brakes is offline   Quote Quick Reply
Old 05-16-2013, 08:36 AM   #15
Jeeper

s14sh3r's Avatar

Join Date: Sep 2011
Location: Clayton, OK
Posts: 2,049
Quote:
Originally Posted by schnutzy View Post
OP, i strongly doubt you would be able to put those under your jeep for 3 grand. if you were to do everything yourself, then maybe you might come close to that. but if you have to have some one install them, you are talking serious money.



they have both.
the H1 has a portal hub
Quote:
Originally Posted by Black Magic Brakes View Post
They typically refer to them as geared hubs, but they are for all intents and purposes a portal due to the half shaft driving a reduction gear connected to the drive hub giving much higher clearance under the rig.
See? I learned something today. I stand corrected.
s14sh3r is offline   Quote Quick Reply
Old 05-16-2013, 08:38 AM   #16
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 6,887
Quote:
Originally Posted by schnutzy View Post
they have both.
the H1 has a portal hub
bingo. AMC20 center sections with portals in the IFS/IRS. 2.73-3.08 axle ratios w/ 1.92 gear reduction from the portals.

Hummers & HMMWV's Compared

Quote:
Originally Posted by DANGItsVictor View Post
I have found a set of them from a Volvo c303 1 1/4 TON Military vehicle for 3000$.. I know it will take a TON of work to get them in and going so is it worth it?
looks like they're offset the wrong way. mid-passenger side drop on both sides. will certainly introduce some issues with driveline, suspension and exhaust.
UnlimitedLJ04 is offline   Quote Quick Reply
Old 05-16-2013, 10:10 AM   #17
Sponsoring Vendor

WF Supporting Member

Black Magic Brakes's Avatar

Join Date: May 2011
Posts: 1,804
Quote:
Originally Posted by s14sh3r View Post
See? I learned something today. I stand corrected.
We both did. I've always referred to them as portals because a lot of the comp guys have built axles around them and they are the "strength" standard for the smaller stuff that Volvo and others get compared to.

It wasn't until I went looking for an image of a Hummer Portal that I saw them referred to as geared hubs.
__________________
I am Savvy, I am the brake Wizard.
http://blackmagicbrakes.com
Black Magic Brakes is offline   Quote Quick Reply
Old 05-16-2013, 10:23 AM   #18
Jeeper

freeskier's Avatar

Join Date: Mar 2011
Location: Longmont, CO
Posts: 2,362
I had to look that one up to. And the military is no standard for reliability...
__________________
CU Boulder Aerospace Engineering
freeskier is offline   Quote Quick Reply
Old 05-16-2013, 04:28 PM   #19
Full Size Jeep Dr.

WF Supporting Member

lindel's Avatar

Join Date: Nov 2011
Location: The land of Salted Iron
Posts: 1,761
Unimog axles are decently beefy, but would take mega $$ to make work in a Jeep of any kind.
__________________
His: 1999 Flame Red TJ, With a few mods...

Hers: 1987 Grand Wagoneer, stock w/Falken Wildpeak ATs
lindel is offline   Quote Quick Reply
Old 05-16-2013, 04:49 PM   #20
Jeeper

s14sh3r's Avatar

Join Date: Sep 2011
Location: Clayton, OK
Posts: 2,049
If you were doing overland stuff, I think they'd be great because of the increased clearance. I don't know how well they'd hold up to rock crawling, though.
