Smittybilt steel glovebox install w/ pics - Jeep Wrangler Forum
Jeep Wrangler Forum

Go Back   Jeep Wrangler Forum > TJ Jeep Wrangler Forum > TJ General Discussion Forum

Join Wrangler Forum Today


Reply

Thread Tools

Please support our sponsors and let them know you heard about them on WranglerForum.com
Old 01-10-2009, 06:14 PM   #1
Jeeper

ExDementia's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 1,221
Smittybilt steel glovebox install w/ pics

My girlfriends parents got this for me for Christmas but it didn't come until yesterday. I am impressed with the quality of materials here, it is very solid (16 gauge steel) and is surprisingly heavy. It took me about 30 minutes overall to install, Longer than it should have but the end product was worth it. The instructions sucked, and the pictures were horrible. I couldn't find a write up for this anywhere so I decided to make my own.

First it wouldn't unlock, so I took the lock out, took it apart and found that one of the gears was facing the wrong way, making the latch want to move the opposite way it should. No biggie, but it still took 15 minutes just in that!






After taking the factory glove box out, remove the 8 surrounding screws.





Then put on the supplied nylon foam for fit.



And remove the factory lock latch.


__________________
1991 XJ Cherokee, 4.0, AW4, NP-242, SYE
HP D30, Rusty's axle truss, Currie HD steering, diff. slider
C8.25, Powertrax locker
4.5" RE up front and Rough Country out back
33" BFG A/T's 15" soft 8's
Suspension seats, rock sliders, plated rear corner panels,
trimmed fenders, CB, exhaust, lights, remote locks and start, etc.
Past jeeps:97 TJ, 99 TJ

Quote:
Originally Posted by Geoff@Bestop View Post
In video games, the bad guy's bullets travel much slower than the good guy's bullets.
ExDementia is offline   Quote Quick Reply
Old 01-10-2009, 06:15 PM   #2
Jeeper

ExDementia's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 1,221
Continued...

Line it up with the factory holes, make sure to remember the bolt pattern.



And here's where I ran into a problem, after screwing in the top two screws, I tried to line the rest up but in order to do that I had to push it in which made the mounting bracket bow out and away from the screw holes.



So after fiddling with it and trying to adjust where it sits into the slot, I decided to just try and screw them in anyway. This worked great, it fit in nicely after this.




After the bracket is mounted up, its time to install the catch to stop it from falling all the way open and spilling your stuff.

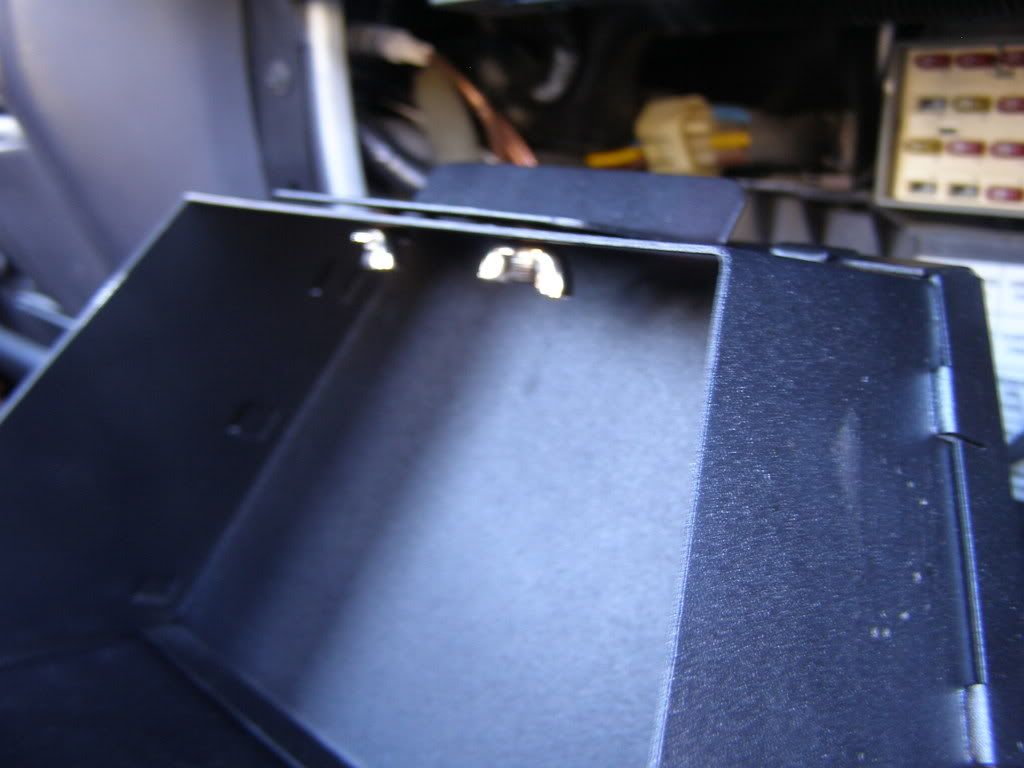

Put the posts through the holes and loosely screw on the supplied wing nuts.


RIGHT^^^^

WRONG^^^^

Slide the bracket back as far as it will go, then close the glove box enough for it the clear the top lock latch. Then slide it towards you and tighten the wing nuts so the bracket stops itself on the latch.




And that's it, close it up, lock it up, and forget about it! it has a pretty decent fit, it does stick out a bit towards the bottom but that's not manufacturer error, its designed that way. (the Tuffy ones do the same thing) This thing only cost $45 when the Tuffy one costs around $160, Of course the Tuffy one is very high quality but the Smittybilt one really isn't bad. I was very impressed.

__________________
1991 XJ Cherokee, 4.0, AW4, NP-242, SYE
HP D30, Rusty's axle truss, Currie HD steering, diff. slider
C8.25, Powertrax locker
4.5" RE up front and Rough Country out back
33" BFG A/T's 15" soft 8's
Suspension seats, rock sliders, plated rear corner panels,
trimmed fenders, CB, exhaust, lights, remote locks and start, etc.
Past jeeps:97 TJ, 99 TJ

Quote:
Originally Posted by Geoff@Bestop View Post
In video games, the bad guy's bullets travel much slower than the good guy's bullets.
ExDementia is offline   Quote Quick Reply
Old 01-10-2009, 06:20 PM   #3
Jeeper

ExDementia's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 1,221
__________________
1991 XJ Cherokee, 4.0, AW4, NP-242, SYE
HP D30, Rusty's axle truss, Currie HD steering, diff. slider
C8.25, Powertrax locker
4.5" RE up front and Rough Country out back
33" BFG A/T's 15" soft 8's
Suspension seats, rock sliders, plated rear corner panels,
trimmed fenders, CB, exhaust, lights, remote locks and start, etc.
Past jeeps:97 TJ, 99 TJ

Quote:
Originally Posted by Geoff@Bestop View Post
In video games, the bad guy's bullets travel much slower than the good guy's bullets.
ExDementia is offline   Quote Quick Reply
Old 01-10-2009, 06:24 PM   #4
Genius!

WF Supporting Member
::WF Moderator::

Coyote_94YJ's Avatar

Join Date: Feb 2008
Location: Germany
Posts: 20,888
Send a message via ICQ to Coyote_94YJ Send a message via Yahoo to Coyote_94YJ
Looks nice. I almost got one for my YJ a few years ago. The YJ one has a grab bar on it.
Coyote_94YJ is offline   Quote Quick Reply
Old 01-10-2009, 06:32 PM   #5
Jeeper

afrats's Avatar

Join Date: Dec 2008
Location: Colorado Springs, CO
Posts: 1,531
Send a message via MSN to afrats
That's nice. Thanks for the instructions.
__________________
My strength is made
perfect in weakness.
2 Corinthians 12:9


afrats is offline   Quote Quick Reply
Old 01-11-2009, 01:38 AM   #6
Jack Lives Here!!!

WF Supporting Member

1BLKJP's Avatar

Join Date: Apr 2005
Location: Phoenix, AZ
Posts: 7,764
Nice pics and install. Thanks for the write up. However I'm going to move this to the TJ section as it is an out of the box install and not something you built yourself.
__________________
Thanks,
Jack Hickman

President - Arizona Off-Highway Vehicle Coalition
Vice-President - ASA4WDC
Arizona Rock Rats
1BLKJP is offline   Quote Quick Reply
Old 01-11-2009, 03:46 AM   #7
Jeeper

ExDementia's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 1,221
Quote:
Originally Posted by 1BLKJP View Post
Nice pics and install. Thanks for the write up. However I'm going to move this to the TJ section as it is an out of the box install and not something you built yourself.
Ok, good deal, I thought "Fabrications, Modifications & Buildups" meant all modifications, built yourself or not. Now I know.
__________________
1991 XJ Cherokee, 4.0, AW4, NP-242, SYE
HP D30, Rusty's axle truss, Currie HD steering, diff. slider
C8.25, Powertrax locker
4.5" RE up front and Rough Country out back
33" BFG A/T's 15" soft 8's
Suspension seats, rock sliders, plated rear corner panels,
trimmed fenders, CB, exhaust, lights, remote locks and start, etc.
Past jeeps:97 TJ, 99 TJ

Quote:
Originally Posted by Geoff@Bestop View Post
In video games, the bad guy's bullets travel much slower than the good guy's bullets.
ExDementia is offline   Quote Quick Reply
Old 01-11-2009, 05:57 AM   #8
Jeeper

Badboy's Avatar

Join Date: Dec 2008
Location: Godley,Tx.
Posts: 51
I got one for Christmas too...very impressed with the quality. Install was pretty easy, and I had the same problem with lock gear also.
__________________
2000 Tj work in progress...
Badboy is offline   Quote Quick Reply
Old 01-11-2009, 07:30 AM   #9
Jeeper

orange05tj's Avatar

Join Date: Jun 2007
Location: Stop having a boring tuna. Stop having a boring life.
Posts: 3,897
looks good bud. nice write up.
__________________
You'll be in a great mood all day because you'll be slapping all your troubles away.
orange05tj is offline   Quote Quick Reply
Old 01-11-2009, 09:13 AM   #10
Jeeper

Join Date: Jul 2007
Location: maine
Posts: 44
Send a message via Yahoo to polarscott
looks nice
__________________

'98 Sahara 4.0L
polarscott is offline   Quote Quick Reply
Old 01-11-2009, 10:41 AM   #11
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,385
Images: 2
Do you have a closeup of the lock from the inside? I'm curious how it compares to to the Tuffy glove box I have that it appears to be a clone of.
__________________
When you have a choice, buy American.

Jerry Bransford is online now   Quote Quick Reply
Old 01-11-2009, 12:45 PM   #12
Jeeper

ExDementia's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 1,221
Quote:
Originally Posted by Jerry Bransford View Post
Do you have a closeup of the lock from the inside? I'm curious how it compares to to the Tuffy glove box I have that it appears to be a clone of.
Ill take a picture later today, my friend borrowed my camera. I'm interested to know too.
__________________
1991 XJ Cherokee, 4.0, AW4, NP-242, SYE
HP D30, Rusty's axle truss, Currie HD steering, diff. slider
C8.25, Powertrax locker
4.5" RE up front and Rough Country out back
33" BFG A/T's 15" soft 8's
Suspension seats, rock sliders, plated rear corner panels,
trimmed fenders, CB, exhaust, lights, remote locks and start, etc.
Past jeeps:97 TJ, 99 TJ

Quote:
Originally Posted by Geoff@Bestop View Post
In video games, the bad guy's bullets travel much slower than the good guy's bullets.
ExDementia is offline   Quote Quick Reply
Old 10-21-2009, 05:50 PM   #13
Jeeper

ExDementia's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 1,221
Long term update:

The lock fell apart on me, the pins and springs came out and jammed the lock shut. After I got it open I took out all the springs and pins then reinstalled it. So it still works, just its not really secure, you can stick something in there and turn it open easily. I guess it still works as a deterrent right?







Anyone know if this type of lock is common? Could I go out and buy one that will fit?
__________________
1991 XJ Cherokee, 4.0, AW4, NP-242, SYE
HP D30, Rusty's axle truss, Currie HD steering, diff. slider
C8.25, Powertrax locker
4.5" RE up front and Rough Country out back
33" BFG A/T's 15" soft 8's
Suspension seats, rock sliders, plated rear corner panels,
trimmed fenders, CB, exhaust, lights, remote locks and start, etc.
Past jeeps:97 TJ, 99 TJ

Quote:
Originally Posted by Geoff@Bestop View Post
In video games, the bad guy's bullets travel much slower than the good guy's bullets.
ExDementia is offline   Quote Quick Reply
Old 10-21-2009, 06:00 PM   #14
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,385
Images: 2
That looks very similar to the one my Tuffy products use except their products use a standard key.

By the way, it looks like Smittybilt just bought a Tuffy glove box and sent it to China to have it reverse engineered and manufactured... but the Chinese built lock eventually fell apart. That's one reason why I'm no fan of Smittbilt's and other Chinese products that are rip-offs of American product designs.
__________________
When you have a choice, buy American.

Jerry Bransford is online now   Quote Quick Reply
Old 10-21-2009, 06:01 PM   #15
Jeeper

ExDementia's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 1,221
Quote:
Originally Posted by Jerry Bransford View Post
That looks very similar to the one my Tuffy products use except their products use a standard key.
Though the Tuffy is undoubtedly higher quality, I wonder if I can order one form them to work
__________________
1991 XJ Cherokee, 4.0, AW4, NP-242, SYE
HP D30, Rusty's axle truss, Currie HD steering, diff. slider
C8.25, Powertrax locker
4.5" RE up front and Rough Country out back
33" BFG A/T's 15" soft 8's
Suspension seats, rock sliders, plated rear corner panels,
trimmed fenders, CB, exhaust, lights, remote locks and start, etc.
Past jeeps:97 TJ, 99 TJ

Quote:
Originally Posted by Geoff@Bestop View Post
In video games, the bad guy's bullets travel much slower than the good guy's bullets.
ExDementia is offline   Quote Quick Reply
Old 10-21-2009, 06:07 PM   #16
Knows a couple things...

WF Supporting Member

Jerry Bransford's Avatar

Join Date: Nov 2005
Location: Escondido, Calif.
Posts: 32,385
Images: 2
I may have one of my old Tuffy locks that I removed so I could get all matching locks, I'll see if it's still in one of my junk boxes within a day or two. PM me later, perhaps tomorrow, to remind me to look.
__________________
When you have a choice, buy American.

Jerry Bransford is online now   Quote Quick Reply
Old 10-21-2009, 06:35 PM   #17
Jeeper

ExDementia's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 1,221
Will do, thanks man!
__________________
1991 XJ Cherokee, 4.0, AW4, NP-242, SYE
HP D30, Rusty's axle truss, Currie HD steering, diff. slider
C8.25, Powertrax locker
4.5" RE up front and Rough Country out back
33" BFG A/T's 15" soft 8's
Suspension seats, rock sliders, plated rear corner panels,
trimmed fenders, CB, exhaust, lights, remote locks and start, etc.
Past jeeps:97 TJ, 99 TJ

Quote:
Originally Posted by Geoff@Bestop View Post
In video games, the bad guy's bullets travel much slower than the good guy's bullets.
ExDementia is offline   Quote Quick Reply
Old 01-04-2013, 11:23 PM   #18
Newb

Join Date: Nov 2012
Posts: 2
Smittybuilt vaulted glovebox

Hating my new Xmas present of a new smittybuilt vaulted glovebox right now. Installation always easy. However now I can't get it to latch closed short of breaking out a crowbar or a grinder I am out of ideas. Anyone?
baw51473 is offline   Quote Quick Reply
Old 01-05-2013, 02:56 AM   #19
Jeeper

Join Date: Mar 2011
Posts: 426
The radio antenna cable is just behind the glovebox, covered in gray foam plastic. Make sure it is routed out of the way or even the stock box won't want to close.
__________________
Gary
1967 Kaiser Commando
2001 Grand Cherokee WJ
2003 Rubicon TJ
KaiserJeep is offline   Quote Quick Reply
Old 01-05-2013, 03:50 AM   #20
Jeeper

Join Date: Apr 2012
Posts: 67
Quote:
Originally Posted by baw51473 View Post
Hating my new Xmas present of a new smittybuilt vaulted glovebox right now. Installation always easy. However now I can't get it to latch closed short of breaking out a crowbar or a grinder I am out of ideas. Anyone?
Smitty built always sells me with their prices but quickly lose me with their cheap Chinese built garbage. Looks good but won't last... Buy American, you won't regret it...
NCCoumbe is offline   Quote Quick Reply
Old 01-05-2013, 07:24 AM   #21
Jeeper

Join Date: Nov 2010
Location: Baltimore, MD
Posts: 612
it does look exactly as a tuffy....scary
__________________
1999 TJ Sport
1999 Ram 2500 (daily)
2008 DGCV SXT (family)
2005 LS430 (wife's)
trust earned, never given
Ebxgsxr is offline   Quote Quick Reply
Old 01-05-2013, 07:45 AM   #22
Jeeper

Mello Mike's Avatar

Join Date: May 2012
Location: Mesa, AZ
Posts: 72
Thanks for posting the write up. Can you take a pic of the glove box with it open? i'd like to see what the inside looks like. Does this new one provide more room than the OEM glove box?
__________________
2004 Solar Yellow TJ, 4.0L, 5-spd manual
Retired Navy
Mello Mike is offline   Quote Quick Reply
Old 01-05-2013, 07:48 AM   #23
Jeeper

Join Date: Nov 2010
Location: Baltimore, MD
Posts: 612
my tuffy seems to be a bit smaller. i don't really keep anything in my glove box, so it was never an issue for me.
__________________
1999 TJ Sport
1999 Ram 2500 (daily)
2008 DGCV SXT (family)
2005 LS430 (wife's)
trust earned, never given
Ebxgsxr is offline   Quote Quick Reply
Old 01-06-2013, 01:02 AM   #24
Newb

Join Date: Nov 2012
Posts: 2
No it's not the radio antenna after further investigation it's the welds on the door that attach the lock bars. The only fix is going to be to grind them down and hope that allows the door to latch. And believe me I'm a buy american buy union guy and thi is exactly why but since it was a Xmas gift I can just blame my wife haha.

baw51473 is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Smittybilt bumper pics (finally!) Rogue TJ General Discussion Forum 21 01-14-2009 05:52 PM
question on front spacers and pics of install speepdaedeesi TJ General Discussion Forum 10 01-10-2009 06:41 PM
wheels.. alloy or steel? pics please bpowa TJ Pics Forum 36 01-15-2008 01:14 PM
How to install stainless steel brake lines? nicolas-eric TJ General Discussion Forum 23 06-20-2007 10:04 AM
Cb ant install pics please Gwjvw California Jeep Forum 8 05-13-2007 11:55 AM



Download our Mobile App

» Featured Product

All times are GMT -5. The time now is 12:43 PM.



Jeep, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
