Old 02-26-2013, 11:41 AM   #931
Jeeper

Join Date: Apr 2012
Posts: 314
Yeah no problem at all. The folks at SuperBrightLED's are very helpful and their prices are not bad at all. You can do the dome and footwell lights for less than $20 The dash lights are around $3 each and I believe I need 7 of them.

If anyone knows the exact stuff to order for a 97 I would appreciate it. I have in the cart thus far
7 #74's high powered in red
1 # 74 high powered in blue for the high beam light.
2 #67-x15 for the footwell lights
1 #4410-x9 for the hardtop dome light
1 #WLED-xHP5 for the sound bar dome light

Am I right thus far? Have I left anything out?

BurlySoldier is offline   Quote Quick Reply
Old 02-26-2013, 02:30 PM   #932
Jeeper

viperx6x9x's Avatar

Join Date: Dec 2012
Location: Norfolk Va.
Posts: 1,076
Mine is a 2002, 5 behind the gauge cluster, 3 on the HVAC controls. The guage pod isn't difficult to get out to double check before you order. With mine it reset the trip meter when i disconnected it. I use the trip to tell me when it's time for an oil change, so write that number down before you pull the plug if you need it.

It takes a while but browse through the thread. a ways back someone posted a pic of the back side of the gages and circled which bulbs you need to replace

__________________
War does not determine who is right, it determines who is left.
viperx6x9x is offline   Quote Quick Reply
Old 02-26-2013, 02:56 PM   #933
Commercial Member

WF Supporting Member

Big Sarge's Avatar

Join Date: Dec 2012
Location: Chester Virginia
Posts: 3,233
Quote:
Originally Posted by viperx6x9x View Post
I use the trip to tell me when it's time for an oil change,
Really? it only goes to 999 miles????? you change your oil that often?
__________________
click the link below to view my Custom Jeep shifters, pool ball shifters. College Teams, NFL, NBA, MLB. Rock like Pool balls!!
http://www.wranglerforum.com/f37/custom-camo-pool-ball-shifters-224388.html

_______
/l ,[____],
l---L -OlllllllO-
()_) ()_)--o-)_)
Big Sarge is online now   Quote Quick Reply
Old 02-26-2013, 03:05 PM   #934
Jeeper

viperx6x9x's Avatar

Join Date: Dec 2012
Location: Norfolk Va.
Posts: 1,076
I thought it went further. This was a practice I used with my last vehicle, that I just carried over. I haven't had the jeep for 999 miles yet so I didn't know this. Thanks for the heads up.
__________________
War does not determine who is right, it determines who is left.
viperx6x9x is offline   Quote Quick Reply
Old 02-26-2013, 03:17 PM   #935
Commercial Member

WF Supporting Member

Big Sarge's Avatar

Join Date: Dec 2012
Location: Chester Virginia
Posts: 3,233
I was just kidding around with you. I have no clue how far it actually goes as I use mine for fuel fill ups.
__________________
click the link below to view my Custom Jeep shifters, pool ball shifters. College Teams, NFL, NBA, MLB. Rock like Pool balls!!
http://www.wranglerforum.com/f37/custom-camo-pool-ball-shifters-224388.html

_______
/l ,[____],
l---L -OlllllllO-
()_) ()_)--o-)_)
Big Sarge is online now   Quote Quick Reply
Old 02-26-2013, 03:24 PM   #936
Jeeper

eagle223's Avatar

Join Date: Jun 2011
Location: Bay Area, CA
Posts: 515
Quote:
Originally Posted by Big Sarge
I was just kidding around with you. I have no clue how far it actually goes as I use mine for fuel fill ups.
It does restart after 999 miles
eagle223 is offline   Quote Quick Reply
Old 02-26-2013, 03:52 PM   #937
Jeeper

viperx6x9x's Avatar

Join Date: Dec 2012
Location: Norfolk Va.
Posts: 1,076
either way 999 does me no good, might as well just use it to estimate mileage now. lol

Oh wel, maybe I will get around to ordering the led's one of these days. Still working gradually on the regular maintenance stuff I need to do since I just bought it. Fluids, spark plugs, all that good stuff. After taxes i should be able to get the led's though. Probably doing red.
__________________
War does not determine who is right, it determines who is left.
viperx6x9x is offline   Quote Quick Reply
Old 02-27-2013, 04:57 PM   #938
Jeeper

Join Date: Feb 2013
Location: Salt Lake, UT
Posts: 105
Well, you guys convinced me. I just ordered my Red lights.

I also have another modification I'm going to make with them. Going to add a dim led to the interior door handles, as no one can find my handles in the dark.
Qurtyslyn is offline   Quote Quick Reply
Old 02-28-2013, 05:45 PM   #939
Newb

hazeguitar's Avatar

Join Date: Feb 2013
Location: San Antonio
Posts: 6
Got mine on the way should be fun
hazeguitar is offline   Quote Quick Reply
Old 02-28-2013, 07:29 PM   #940
Jeeper

fxsxux's Avatar

Join Date: Feb 2013
Location: NJ
Posts: 102
I have no real skills when it comes to this and it took me 20 minutes! Brilliant!!
fxsxux is offline   Quote Quick Reply
Old 02-28-2013, 10:38 PM   #941
Jeeper

Join Date: Apr 2012
Posts: 314
Just replaced the interior Dome lights and footwell lights with red L.E.D on my 97.
I ordered them from SuperBright and it looks awesome.
Mine has a hardtop with a dome light in it so I swapped that out as well.
Total of 4 L.E.D's and here are the part #'s

2 67-x15: 15-LED BA15S bulb 67-R15: Red $4.95
1 4410-x9: 578 LED Bulb - 9 LED Festoon 4410-R9: Red $2.49 (HARDTOP DOME LIGHT)
1 WLED-xHP5: 194 LED Bulb - 5 SMD LED Wide Angle Wedge Base WLED-RHP5: Red

Install took under a minute and my Jeep looks like its on defcon 4 or some kind of hunt for red october submarine. Cheap Fun bro's!! love it!


Can anyone point me in the direction of how to do the other L.E.D's behind the dash
"..in under 20 minutes" as you guys have stated? I keep finding tutorials that seem way too extensive (steering wheel, airbag etc)

Thank you!!!
BurlySoldier is offline   Quote Quick Reply
Old 03-01-2013, 08:02 AM   #942
Jeeper

Neil F.'s Avatar

Join Date: Nov 2007
Location: Marlton, NJ
Posts: 5,510
Images: 1
You do not do anything with the steering wheel and airbag. Instructions are in ths thread and others. Note it will take a bit longer than 20 min
__________________
2003 TJ, 33" BFG AT, 2" BL, 2" BDS spring lift, Truck Lite headlights, Homemade sunrider top.
Neil F. is online now   Quote Quick Reply
Old 03-01-2013, 10:52 AM   #943
Jeeper

wwch99tj's Avatar

Join Date: Mar 2011
Location: Felton Delaware
Posts: 4,828
wwch99tj is offline   Quote Quick Reply
Old 03-01-2013, 11:17 AM   #944
Newb

03GUNNY's Avatar

Join Date: Feb 2013
Posts: 6
Awesome job, thanks!!!
03GUNNY is offline   Quote Quick Reply
Old 03-01-2013, 07:43 PM   #945
Jeeper

Join Date: Apr 2012
Posts: 314
Quote:
Originally Posted by wwch99tj View Post
Thank you! That helped alot. The search feature on the forum wasn't working so well for me and I appreciate you posting that.
BurlySoldier is offline   Quote Quick Reply
Old 03-01-2013, 08:20 PM   #946
Jeeper

wwch99tj's Avatar

Join Date: Mar 2011
Location: Felton Delaware
Posts: 4,828
Quote:
Originally Posted by BurlySoldier View Post

Thank you! That helped alot. The search feature on the forum wasn't working so well for me and I appreciate you posting that.
No problem
wwch99tj is offline   Quote Quick Reply
Old 03-02-2013, 07:20 PM   #947
Jeeper

Join Date: Apr 2012
Posts: 314
Quote:
Originally Posted by wwch99tj View Post
No problem
I really appreciate all of your help guys. Did the L.E.D swap and it went off no problem. I'd had the dash apart once before but this time I really had no problems. The pics do not do it any justice.


I also swapped the high beam bulb for a blue l.e.d from superbright. Looks really good. I did however make one mistake. I need a new clockspring and this has my airbag light set off. I saw this light had a bulb and decided to pull it. And thus my seatbelt light is now on No big deal I can make some adjustments tomorrow.
Thanks again!
BurlySoldier is offline   Quote Quick Reply
Old 03-03-2013, 04:07 PM   #948
Jeeper

Double_a914's Avatar

Join Date: May 2012
Location: Gray, TN
Posts: 718
Quote:
Originally Posted by Motowithy View Post
Just an idea also. I got a gage face cover off eBay for $20 because I liked the look better than just changing the bulbs and it matched the led's I put in the air vents.
I really like this. I did amber in the dash and hvac in august because of the yellow jeep, but for christmas santa brought me a red sony headunit, so now I want it all to match. I love the way that cover looks, and here's my question(s):
1: does it have its own lights, or does it use the light from the dash? I know its probably a stupid question, but on the page a pic shows it having what looks like a wire running to it, so just making sure.
2: do you have to have red leds? If I need to change over to red I'll do it, but if I can just put the cover on it and not change them, I'll just take the lazy route.

Side note, Also I wanna get these now

http://www.amazon.com/gp/aw/d/B000I0...pi=SL500_SS115
__________________
- Aaron
Double_a914 is offline   Quote Quick Reply
Old 03-04-2013, 10:45 AM   #949
Jeeper

Neil F.'s Avatar

Join Date: Nov 2007
Location: Marlton, NJ
Posts: 5,510
Images: 1
I've had a guage face (not that one)

The guage face itself has illumination (glows). The only thing the cluster bulbs illiminate are the needles.

I eventually got rid of mine and went with LEDs. I had continued issued with the face raising up under the needles and the needles getting hung up. It takes very little friction to keep the needles from moving. A wed site that sold face, per thir installation tip said to use rubber cement under the face which is a good idea and I did do that but over time and as the temperature changed, it came up aroung the needle hole. I worked crazy glue under the face around the hole with a toothpick a number of times but gave up after a while.

Also note (I did not look at the link), a lot of the gauge face sellers indicate 97-06 but 97-02, 03-06 are different. Most if not all of the faces are for 97-02. The check engine went to a symbol and moved 03-06. I did some creative modification to make it work with my 03.
__________________
2003 TJ, 33" BFG AT, 2" BL, 2" BDS spring lift, Truck Lite headlights, Homemade sunrider top.
Neil F. is online now   Quote Quick Reply
Old 03-04-2013, 08:16 PM   #950
Jeeper

rbkelley89's Avatar

Join Date: Jun 2012
Posts: 155
how do i install wire these into the dome lights is it the white plug an adapter into the led?
Attached Thumbnails
Click image for larger version

Name:	2013-03-04 18.13.43.jpg
Views:	122
Size:	225.7 KB
ID:	217946
__________________
2001 orange tj 2.5L (113,000) 35" Km2 Black rims, lp d30 front and d35 with lock rear
1"BD MML, 1.25" BL, 4" RC Lift, Flat tc Skid, Adj rear ca's (front soon) TW rear DS, Novak shifter cable, JB ss SYE, RE angled rear trackbar, 8,000Lb Mile marker, Custom front and rear (w/swing) bumpers. Homemade CAI. Lots more to come.
rbkelley89 is online now   Quote Quick Reply
Old 03-04-2013, 08:56 PM   #951
Jeeper

rbkelley89's Avatar

Join Date: Jun 2012
Posts: 155
never mind i figured it out trial and error!! big difference haha they have a bad fit though i recommend a smaller led pad
Attached Thumbnails
Click image for larger version

Name:	2013-03-04 18.43.11.jpg
Views:	91
Size:	126.9 KB
ID:	217976
__________________
2001 orange tj 2.5L (113,000) 35" Km2 Black rims, lp d30 front and d35 with lock rear
1"BD MML, 1.25" BL, 4" RC Lift, Flat tc Skid, Adj rear ca's (front soon) TW rear DS, Novak shifter cable, JB ss SYE, RE angled rear trackbar, 8,000Lb Mile marker, Custom front and rear (w/swing) bumpers. Homemade CAI. Lots more to come.
rbkelley89 is online now   Quote Quick Reply
Old 03-04-2013, 08:59 PM   #952
Jeeper

blueskiesbill's Avatar

Join Date: May 2012
Location: Baltimore
Posts: 726
Quote:
Originally Posted by rbkelley89 View Post
how do i install wire these into the dome lights is it the white plug an adapter into the led?
I think it's just what you decided to work on top of that's making it confusing. I have never dealt with these but it seems as though you have the old style regular light bulb base that you plug in And just hook your new LED wires up to the wires comin out of the old school bulb bottom looking thing. (My apologies for the intelligent vocabulary in previous post)
__________________
'when people look like ants -- Pull. when the ants look like people -- too late'

'if at first you do not succeed, skydiving is not for you'
blueskiesbill is offline   Quote Quick Reply
Old 03-05-2013, 08:15 PM   #953
Jeeper

Join Date: Feb 2013
Location: Salt Lake, UT
Posts: 105

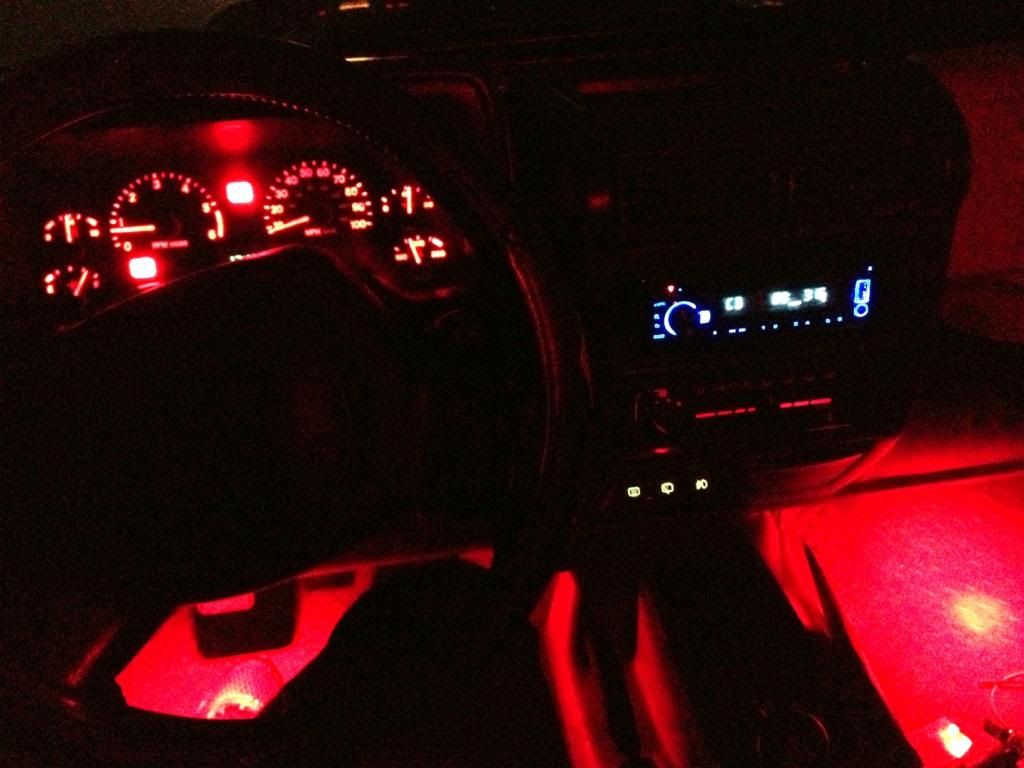

Mine turned out nicely. Still have to do the floor lights and the door lights I want to make, but they'll have to wait until Saturday when I have more than an hour of daylight.
Qurtyslyn is offline   Quote Quick Reply
Old 03-05-2013, 08:25 PM   #954
Jeeper

Join Date: Apr 2012
Posts: 314
Looks good! I also replaced the high beam bulb with a blue LED. Looks really good so I am going to replace the turn signal bulbs with green LED's, the 4x4 with yellow etc. My slider bulbs are not as bright as I would like and have to think through what I would like to do to make those pop.
For the dome light on the hardtop I found a clear cover for it on Ebay, $15. I bought it saturday and it arrived, from california, on monday afternoon.
A must if you're doing the hardtop dome.
BurlySoldier is offline   Quote Quick Reply
Old 03-05-2013, 09:07 PM   #955
Jeeper

rbkelley89's Avatar

Join Date: Jun 2012
Posts: 155
Quote:
Originally Posted by blueskiesbill View Post
I think it's just what you decided to work on top of that's making it confusing. I have never dealt with these but it seems as though you have the old style regular light bulb base that you plug in And just hook your new LED wires up to the wires coming out of the old school bulb bottom looking thing. (My apologies for the intelligent vocabulary in previous post)
Lol yeah accounting can be confusing!
It was just the white adapter wedge type to the led lights. Fitments is an issue and i might try and find a single wedge style led instead and put these in my durango or at the footwells. anyone know of the wedge style number to be used in the dome lights? superbright leds doesnt seem right to me it says i have festoon style and i know its not. my hardtop has the festoon but that light doesnt work.
__________________
2001 orange tj 2.5L (113,000) 35" Km2 Black rims, lp d30 front and d35 with lock rear
1"BD MML, 1.25" BL, 4" RC Lift, Flat tc Skid, Adj rear ca's (front soon) TW rear DS, Novak shifter cable, JB ss SYE, RE angled rear trackbar, 8,000Lb Mile marker, Custom front and rear (w/swing) bumpers. Homemade CAI. Lots more to come.
rbkelley89 is online now   Quote Quick Reply
Old 03-06-2013, 08:38 AM   #956
Jeeper

rgroesbeck1's Avatar

Join Date: Jul 2012
Location: Beavercreek. OH
Posts: 186
I know this has been covered repeatedly, so I apologize in advance. I have a 2004 with manual, so don't need the automatic shifter light. I just don't want to order, send back, etc. When I look at the superbrightled web site, there are two types of lights listed for dash light replacement. One is the 194 and the other the 74. The 194 does not have the sockets, but I assume (yeah, I know what that means) you pull the bulbs from the original socket and plug in the new ones. The 74 bulb does come with the socket.

So which do I need? How many of each to do the instrument cluster and HVAC.



I really appreciate it, folks.
rgroesbeck1 is offline   Quote Quick Reply
Old 03-06-2013, 09:23 AM   #957
Jeeper

wwch99tj's Avatar

Join Date: Mar 2011
Location: Felton Delaware
Posts: 4,828
I got the 74xhp x5 cluster and neo4mm x3 for the hvac
I pulled the original bulbs out of the socket and put in the new LED, the Neo 4 mm bulbs have a socket with them

http://www.superbrightleds.com/morei...edge-base/227/

http://www.superbrightleds.com/morei...panel-led/220/
wwch99tj is offline   Quote Quick Reply
Old 03-06-2013, 04:04 PM   #958
Jeeper

rgroesbeck1's Avatar

Join Date: Jul 2012
Location: Beavercreek. OH
Posts: 186
Quote:
Originally Posted by wwch99tj View Post
I got the 74xhp x5 cluster and neo4mm x3 for the hvac
I pulled the original bulbs out of the socket and put in the new LED, the Neo 4 mm bulbs have a socket with them

74 LED Bulb - 1 SMD LED Wedge Base | Instrument Cluster and Gauge | LED Car Bulbs | Super Bright LEDs

NEOx LED Bulb - Instrument Panel LED | Instrument Cluster and Gauge | LED Car Bulbs | Super Bright LEDs
Thank you very much. I appreciate it. Sometimes the sheer volume of a post like this can be confusing, as people find different ways to skin the cat. Then the info on the web site, while clear, doesn't provide a lot of insight. I will proceed accordingly.
rgroesbeck1 is offline   Quote Quick Reply
Old 03-06-2013, 04:14 PM   #959
Jeeper

rgroesbeck1's Avatar

Join Date: Jul 2012
Location: Beavercreek. OH
Posts: 186
So I got on the superbrightled web site. Found the 74 bulb fine, but the neo4mm is not listed. I've seen people's order sheets with them listed, so I wonder if there has been a change. Perhaps I should call them. Everyone says they are very helpful.

Thanks
rgroesbeck1 is offline   Quote Quick Reply
Old 03-06-2013, 04:27 PM   #960
Jeeper

rgroesbeck1's Avatar

Join Date: Jul 2012
Location: Beavercreek. OH
Posts: 186
Finally found it, did the order, and can't wait. Thanks again.

rgroesbeck1 is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Cheap, Easy Mod for the Doors Off Guys (and Gals) 05GT-O.C.D. TJ General Discussion Forum 31 09-22-2013 03:53 PM
honestly cheap and easy. surf-jeep Tires & Wheels 10 04-21-2011 07:06 PM
Cheap fog lights, worth my time? Mr_RPM TJ General Discussion Forum 12 02-09-2011 11:38 PM
Cheap ($17.89) easy mod..... Bobthegod TJ General Discussion Forum 7 05-04-2010 09:38 PM
Cheap and Easy Stereo Install kirkf Communications and Electronics 0 08-24-2009 09:43 AM



Download our Mobile App

» Featured Product

All times are GMT -5. The time now is 09:53 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
