? windshieldmount lights

I have the brackets mounted on the windshield, where do you run the wires ? Is there a diagram that may have came with the brackets ?

thanks

willy05 is offline   Quote Quick Reply
Old 06-01-2010, 06:48 PM   #2
Jeeper

abw0004's Avatar

Join Date: Nov 2009
Location: Auburn University and Alpharetta, Ga
Posts: 257
Some people run them through the windshield right below the brackets and to the side but that can cause leaks, but not all the time. Some people havent had any problems there but most of the people I know have had problems. I ran mine through the door on the side and through the dash. The bolt that isnt flush with the bracket, you can put a loop bracket thing that holds the wire to the body of the car so it doesnt flop around. It isnt bulky either. It has worked perfect for me. I dont have a diagram though. If you are looking for lights, i would recommend IPF's if you have the money.

__________________
4 liter in line six, Bestop Highrock bumpers, Warn winch, light guards, grill guard, Westin running boards, Dick Cepec DC-1's on 33" Mickey Thompson MTZ's, pocket style fender flares, d-rings, hard top, tinted windows, a completely redone sound system with Alpine Type S in rollbar, Arc speakers in the dash and an Alpine headunit, Iggee's seat covers, 3" suspension lift, MBRP Exhaust System, IPF fog lights, steering stabilizers, a woofer, 12" ported Rockford Fosgate subwoofer and amp.
abw0004 is offline   Quote Quick Reply
Old 06-01-2010, 06:51 PM   #3
Jeeper

jerryj's Avatar

Join Date: May 2009
Location: Idyllwild
Posts: 670
I drilled a hole on each side of the vent piece that comes off to work on the wipers then pulled them through to the back of the dash.
jerryj is offline   Quote Quick Reply
Old 06-01-2010, 06:56 PM   #4
Jeeper

OklaTJ's Avatar

Join Date: May 2010
Posts: 5,279
I have mine thru the door I dont like it that way but it does work!
OklaTJ is offline   Quote Quick Reply
Old 06-01-2010, 06:59 PM   #5
Jeeper

Jalus Cornerious's Avatar

Join Date: Oct 2009
Location: Georgia
Posts: 99
^^^^ I did the same.
__________________
_____________________
As low as a Jeep's top speed is...I wouldn't recommend trying to reach it
Jalus Cornerious is offline   Quote Quick Reply
Old 06-01-2010, 07:25 PM   #6
Jeeper

2002Apex's Avatar

Join Date: Jun 2007
Location: Birmingham
Posts: 277
I have 4" KC's on my windshield and they didnt have the metal shroud around the wires, which made it easier to hide the wires. I pushed my wires in the crevice at the windshield fold-down bracket and then ran them into the jeep through the door joint. no leaks, no drilling, no problem.
__________________

If in FIRST you dont succeed, hit SECOND and gas it!
2002Apex is offline   Quote Quick Reply
Old 06-01-2010, 10:04 PM   #7
Jeeper

AtcoTrailsINC's Avatar

Join Date: Feb 2010
Location: Camden County NJ
Posts: 411
Send a message via AIM to AtcoTrailsINC
i ran mine down the cracks to the bottom of the hood then across to the battery side in the engine compartment that way i could run the wires inside through a whole in the firewall which led rite intot he glove box and then the switch panel. A little more wire but saved taking a chance on leaks and on a plus side the wires hide nicely
__________________
2000 wrangler sport. 4.0 3 speed auto. DD
AtcoTrailsINC is offline   Quote Quick Reply
Old 06-01-2010, 10:05 PM   #8
Jeeper

rketr's Avatar

Join Date: Sep 2007
Location: San Antonio, TX
Posts: 866

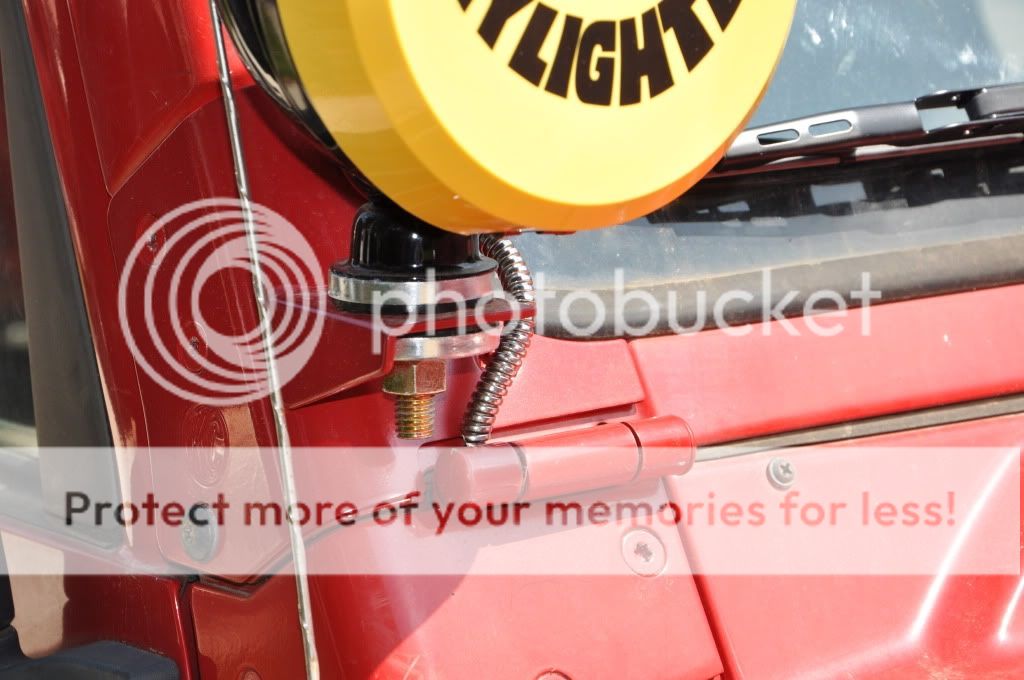

Ran the wires under the windshield hinge and under the panel where the wipers are.

__________________
Quote:
Originally Posted by tiny terror View Post
I curse like a drunk sailor
Obama -> The Presidency to Nowhere
rketr is offline   Quote Quick Reply
Old 06-02-2010, 01:20 AM   #9
Jeeper

davis_use's Avatar

Join Date: Mar 2010
Location: The Woodlands, TX
Posts: 68
Images: 1
I ran my wire along the groove under the bracket to the door, then behind the dash after that. What I did, however, was attach a very small black zip-strip to the wire every couple of inches and left the ends long and intact. These ends I put behind the light mounting bracket (between the bracket and the body) before I tightened it up completely, and it holds the wires very securely!
I also wrapped the wires with waterproof electrical tape first, so there's just a single neat strand. Since I bed-lined the brackets black, it blends well and can hardly be seen.
__________________
(0lllllll0) Wanna Ride Topless?
davis_use is offline   Quote Quick Reply
Old 06-02-2010, 08:16 AM   #10
Supporting Member

WF Supporting Member

cavediverjc's Avatar

Join Date: Mar 2007
Location: On the grassy knoll...
Posts: 6,834
Quote:
Originally Posted by rketr View Post
Ran the wires under the windshield hinge and under the panel where the wipers are.

I did the same. Clean, functional, and easy. My three favorite words when it comes to modding the Jeep.
__________________
Americans sleep safely in their beds because rough men stand ready in the night to visit violence on those who would do them harm...

Happiness is a Barrett M82A1 .50 caliber and a target at least a click out........

I come in peace. I didn't bring artillery. But I'm pleading with you with tears in my eyes, if you f**k with me, I'll kill you all.....
cavediverjc is online now   Quote Quick Reply
Old 06-02-2010, 08:21 AM   #11
Jeeper

OklaTJ's Avatar

Join Date: May 2010
Posts: 5,279
rketr:

Could you give me some info on how you ran your lights like that? I have mine going thru a relay under the dash so it will be a mid size job I'm sure!
OklaTJ is offline   Quote Quick Reply
Old 06-02-2010, 09:22 AM   #12
Jeeper

rketr's Avatar

Join Date: Sep 2007
Location: San Antonio, TX
Posts: 866
Quote:
Originally Posted by Wrangler V8 View Post
rketr:

Could you give me some info on how you ran your lights like that? I have mine going thru a relay under the dash so it will be a mid size job I'm sure!
Worked out rather well so far.

In short,
- mount the light bracket (I used the KC light brackets but sanded 'em and painted 'em red to match)
- pull of the panel where the windshield wipers are. If I remember right, there are 7 screws holding it
- doing one side at a time, unbolt the windshield hinge from the bottom (and the black bolt on the top 1/2) and swing the hinge up. Had to push up on the roof a bit to let the hinge separate a little and allow it to swing up.
- run the wire directly under the hinge. It is a little snug, but there is just enough room. Put the hinge back in place before doing the other side.
- Ran the wires into the engine compartment via the air vent hole under the panel. It enters above the engine just below where the hood's grounding strap is.
- From there, just ran the rest of the relays, fuses, and switch as needed for the rest of the kit.

Can get more pics if you like.
__________________
Quote:
Originally Posted by tiny terror View Post
I curse like a drunk sailor
Obama -> The Presidency to Nowhere
rketr is offline   Quote Quick Reply
Old 06-02-2010, 02:15 PM   #13
Jeeper

pwroth58's Avatar

Join Date: Mar 2010
Posts: 65
RKETR i would like to see more pictures. I am looking into getting some just like that and want to keep everything looking neat and clean.
pwroth58 is offline   Quote Quick Reply
Old 06-02-2010, 06:29 PM   #14
Jeeper

rketr's Avatar

Join Date: Sep 2007
Location: San Antonio, TX
Posts: 866
No prob. The Heep is at the shop right now getting an alignment. Once I get it back I'll snap some pics.
__________________
Quote:
Originally Posted by tiny terror View Post
I curse like a drunk sailor
Obama -> The Presidency to Nowhere
rketr is offline   Quote Quick Reply
Old 06-02-2010, 06:50 PM   #15
Jeeper

sonofabeach's Avatar

Join Date: Feb 2008
Location: Green Cove Springs, Fl.
Posts: 1,679
Would those interfere with folding the windshield down? I've been thinking about some lights but I do fold my window down from time to time.
__________________
"I'd rather die while I'm living than live while I'm dead"
sonofabeach is offline   Quote Quick Reply
Old 06-03-2010, 01:23 AM   #16
Jeeper

rketr's Avatar

Join Date: Sep 2007
Location: San Antonio, TX
Posts: 866
Quote:
Originally Posted by sonofabeach View Post
Would those interfere with folding the windshield down? I've been thinking about some lights but I do fold my window down from time to time.
No idea. I've never put my windshield down. The brackets and lights do look like they'll bump the hood. My guess is that they would impede having the windshield lay flat.

__________________
Quote:
Originally Posted by tiny terror View Post
I curse like a drunk sailor
Obama -> The Presidency to Nowhere
rketr is offline   Quote Quick Reply
