Old 04-17-2014, 10:14 PM   #571
Aussie in Exile

WF Supporting Member

tomba's Avatar

Join Date: Feb 2014
Location: PWC, NOVA
Posts: 451
Images: 3
Quote:
Originally Posted by jherrington View Post
Good luck! The most valuable suggestion to doing this whole swap would be to save save save your money, and buy an e-rod engine from chevy performance. It will come with everything you need to make your engine pass inspection. Then buy yourself a new trans and new transfer case.

You'll end up spending probably $10,000 or more, but you'll have a warranty on everything and you know everything was built right. I know, it's not NEARLY as "fun" as my path, but I would imagine it would make your and anyone's swap a lot easier!
Actually found a good source for both, but now I'm wondering if I can squeeze the GM 6.0 in the Jeep. Doesn't seem to be so easy finding harness' and reprogrammed ECM though.

__________________
Current Jeeps:
1998 Jeep XJ- SOLD!
2014 Granite JKU Rubicon X 730n/ Dual Top/ 6SP Manual
tomba is offline   Quote Quick Reply
Old 04-17-2014, 10:28 PM   #572
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
The 6.0 is nearly the same size block as the 5.3 if I remember correctly. The ls3 is a 6.2 and it fits.

So, you're telling me you've got an engine with no harness?
The 6.0 isn't as popular as the 5.3 and I'm not sure what the differences are between the 5.3 harnesses an the 6.0s.. I would think your best bet is getting one from separatech or some company of that nature.

__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-17-2014, 11:16 PM   #573
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
What I plan to do is tune the computer to where it will pass. If it does, I'll leave everything be. If it doesn't, I've got all summer to work on it.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-18-2014, 09:24 PM   #574
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
If you're looking for a relocation bracket for your air conditioner, check this link below. its only 185. I was planning to purchase this, but I bought the 15-20185 compressor(the one that fits the novak bracket) instead of the 15-20227 which is the one that is used in the link below.

Welcome to LS Brackets

I of course ordered the one that novak suggests.. and since then, the price of the compressor went up from $170 to $215 for the needed compressor and from $149 to 215 for the one I bought... I think the compressor that I have would work with the bracket listed above because the only difference that I see between them is the size of the pulley.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-19-2014, 05:16 AM   #575
Jeeper

HSL 4X4's Avatar

Join Date: Sep 2013
Location: Jacksonville FL
Posts: 228
Great read, I appreciate the effort you're putting into this thread for the benefit of the rest of us!
HSL 4X4 is offline   Quote Quick Reply
Old 04-19-2014, 10:57 AM   #576
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
Quote:
Originally Posted by HSL 4X4 View Post
Great read, I appreciate the effort you're putting into this thread for the benefit of the rest of us!
My loss is everyone's gain!
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-19-2014, 11:40 AM   #577
Jeeper

HSL 4X4's Avatar

Join Date: Sep 2013
Location: Jacksonville FL
Posts: 228
I'm planning on putting a 5.3 (among other things) into a grand wagoneer I just got my hands on so this thread has definitely helped me!
HSL 4X4 is offline   Quote Quick Reply
Old 04-19-2014, 07:22 PM   #578
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
Just dropped some cash on getting this thing legal.. Turns out a 2006 sierra showed up at the junk yard yesterday. So I spend the better part of this afternoon stripping it.

Got the engine wiring harness, the harness for the fuel pump and evap system, the fuel pump, the TAC, the DBW throttle body, and the gas pedal. So there's that.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-19-2014, 08:11 PM   #579
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
The harness I got built is integrated into my stock jeep fuse box... Ill wait until another day to figure out how I will put this harness together...

edit: Ill probably just plug in the the jeep fuse box in, find out the wires that I need to cut for the gauges, and transfer them to the other harness. It shouldn't be TOO bad. Ill keep the Chevy fuse box that I have and use that for the rest of everything else. no big deal. If you guys have any ideas, or see something I'm missing, or just want to know what in the world I'm doing or talking about, let me know!

edit2: In case someone is wondering why the hell I got a 2006 harness... Well, from the years 2003 and up, the LS engines don't have EGR's(exhaust gas return)... Well whats that have to do with anything? The stock exhaust manifolds are way too wide to fit inside the frame of the jeep frame and those are the ones that have the EGR on them. I need the EGR to remain legal for emissions testing. So that means I need an engine from the 2003 year and up.. Since the engines are the same between the years, I just need the computer and the harness. I'll match up whatever I need to make it work and boom. You follow?

Needless to say, I've learned a lot from this swap.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-22-2014, 06:14 PM   #580
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
I just want to thank rockauto. If you need electrical connectors, see them. Napa and everywhere else has this 6 prong weather tight connector for $30 rockauto(PN # 85398) has them for $6. Just ran through the 06 harness and its got both the transmission range selector switch plugs cut and the transmission shifting plug cut. Other than that, shes good..

Jim used these quick disconnect plugs to go back and forth between the fuse box harness and the engine harness. one of the connectors is specifically for gauges so i will plug right into that to work the gauges.. Other than that, by using the stock chevy fuse box, all should work fine.... I may grab my junk and try to adapt the jeep fuse box to the chevy harness... but I probably wont.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-22-2014, 11:59 PM   #581
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
Chevy needs 12v to turn the a/c compressor on. Jeep sends out a ground when you have your A/C set to a setting which needs the compressor. To fix this, wire your ground which comes out from the small gray plug under the dash by your left foot as the wiring enters through the firewall(connection number 6 on the plug).

If you're running an electric fan, jumper over your power wire that turns on via the relay that you just hooked up and then the fan will come on when you turn the A/C on.

If I'm not clear, tell me.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-26-2014, 07:02 PM   #582
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
http://public.dm1.livefilestore.com/...rdrts=72836601

here is the hvac wiring for 2003?+ chevy's.

I dont think you need to have the three prong wire hooked up. but this isnt for certain.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-26-2014, 07:36 PM   #583
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
Quote:
Originally Posted by jherrington View Post
http://public.dm1.livefilestore.com/...rdrts=72836601

here is the hvac wiring for 2003?+ chevy's.

I dont think you need to have the three prong wire hooked up. but this isnt for certain.

99%sure you don't need to use the data wire hookup. You can just wire it up like the jeep has it wired.. depending on your year, it should be similar to this.

https://w05.dealerconnect.chrysler.c...S/tj709183.gif
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-26-2014, 10:33 PM   #584
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
As for the fuel pump. The 06 top plate has a diameter of 6in while the stock jeep pump is 5 3/4in. I'm not sure if this will make a difference with the screw on apparatus that jeep used to hold down the fuel pump Other than that and somehow getting the fuel tank level sender in the tank, it should fit fine.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-27-2014, 11:07 PM   #585
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
Im now checking if I can use my modified jeep pump instead of the chevy.. After taking the chevy assembly apart, there's nothing special about it besides the internal regulator and the tubes at the top.

The chevy pump assembly has three tubes..
Vent, fuel, and evap.. Something like that.

One is used to help fill the tank by releasing air back through the top of the fill tube, the other is hooked directly to the evap canister, and the third is your fuel line..

The evap canister has a port that comes from the fuel tank, which splits into two lines. One that goes to the evap line on the pump, and one that goes to the roll over valve.

I'm going to see if sealing the main one that goes to the pump and only connecting the one that goes to the roll over valve will work.

The other line that goes to the evap canister is the one from the intake.

The GM computer needs to see the pressure of the fuel tank and the level of fuel in the fuel tank. I think i can just swap over a chevy fuel level sending unit on side of the jeep pump, and then drill a hole for the GM pressure sensor, all should work... We will find out. I'm asking Wayne on pirate. He's great with this stuff.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 04-30-2014, 10:26 PM   #586
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
just working out the new harness.. not too bad.

Hey guys, if you need the tcc hookup, tap into the black connector that goes out to the jeep fuse block. connection number 9 on it. It has 12v resting and with the pedal pressed it goes to zero.

no need for a relay..
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 05-02-2014, 10:58 PM   #587
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024

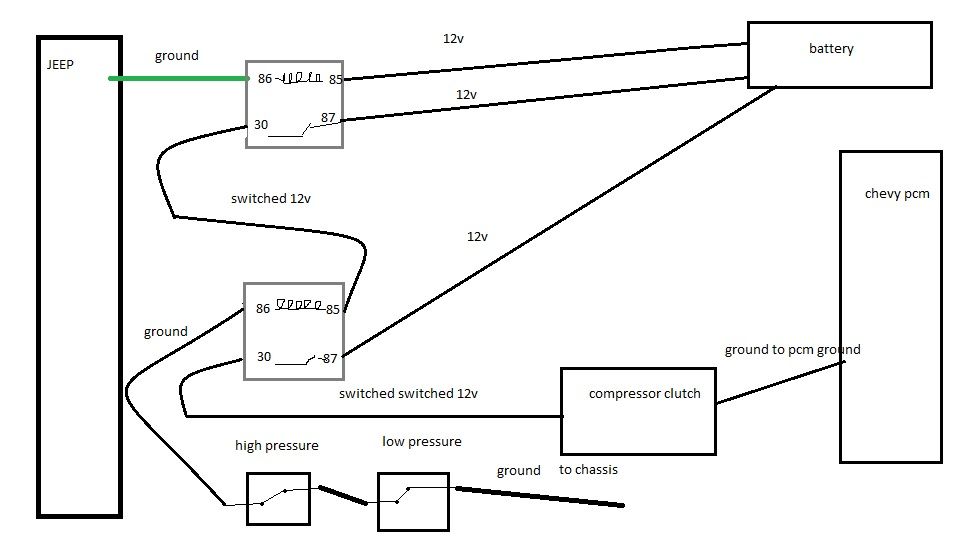

here is how I will be running A/C in the jeep. This way will bypass the chevy PCM and I won't need the chevy climate controls.

I haven't tried this out yet, but it's what I've come up with.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 05-05-2014, 10:28 PM   #588
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
I'm going to say the easiest year to swap would be 2002. No egr and still drive by cable. That way you're legal, and you don't have to fadangle the GM gas pedal in... Turns out in 06 the pedal went from metal and plastic, to all plastic.. So cut and weld to make it for right.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 05-06-2014, 05:17 PM   #589
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
Not too much getting done right now. just waiting for the neutral safety switch/trans range selector to come in from amazon, the correct plug for that switch, and the 06 fuse box... I thought all of the fuse boxes were the same so i left the one at the junk yard... turns out, the two i have at home would work perfectly fine for a 2001( the years they came from) so, I ordered one and i put the other two that I have on ebay.

Did a couple of test fits with the fan and the radiator.. Looks like It will work fine. I'm working on an array of things, but getting the DBW petal installed is on the top of the list.

Reflecting back on this build, if you want ease, spend the money and keep the manual transmission. Holy Hell this whole thing would have been TONS EASIER..
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 05-06-2014, 06:08 PM   #590
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
I see we have a lively crowd thread watching..
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 05-07-2014, 04:32 AM   #591
Jeeper

HSL 4X4's Avatar

Join Date: Sep 2013
Location: Jacksonville FL
Posts: 228
Quote:
Originally Posted by jherrington View Post
I see we have a lively crowd thread watching..
Just soaking it all in...
HSL 4X4 is offline   Quote Quick Reply
Old 05-07-2014, 06:43 PM   #592
Jeeper

George C's Avatar

Join Date: Dec 2012
Location: Southwestern PA
Posts: 163
i just wonder why you decided to make things harder then needed to be with all the data ive provided when i did mine. Yours should of been a cake walk


and no im very wise on what i do and using a shop vac with gas would of never happened...youre lucky to be alive
__________________
2000 Wrangler, 5.3 LSX swap, 5 speed with little bit of lift and some rumble
George C is offline   Quote Quick Reply
Old 05-14-2014, 10:43 AM   #593
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
Sorry guys, not much progress has been getting done. I'm soldering the wires for the trans range selector/nss and stuff like that.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 05-15-2014, 02:57 PM   #594
Jeeper

u_konreaper's Avatar

Join Date: Jun 2012
Posts: 26
It makes sense to follow in the steps of others when you can, but nothing teaches you more than making your own mistakes and overcoming those challenges. I'm a fan of what you're doing here. Keep it up. Excited to see the final product here.
__________________
1979 CJ7
1993 Grand Cherokee
2004 Wrangler TJ Rubicon
u_konreaper is offline   Quote Quick Reply
Old 05-16-2014, 11:11 AM   #595
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
Yeah, George did a couple of things differently. He's not emissions compliant, he's not running AC and he's not running an auto trans, so EVERYTHING past the bellhousing, is stock.. Well maybe not the driveshafts, but that's expected.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 05-16-2014, 06:35 PM   #596
Jeeper

George C's Avatar

Join Date: Dec 2012
Location: Southwestern PA
Posts: 163
I can go to any inspection station and have my jeep plugged into their system and it will pass with flying colors for emissions. As where i live they dont require a sniffer and only a OBDII test



some of my statements are referring how you did the fuel. there is no need to buy the swap parts many sell. the LS motor will run all day long on the jeeps factory fuel system besides a pump swap

yes no AC here as my jeep is the basic model and its a jeep..when its hot out the doors are off
__________________
2000 Wrangler, 5.3 LSX swap, 5 speed with little bit of lift and some rumble
George C is offline   Quote Quick Reply
Old 05-22-2014, 07:36 PM   #597
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
I will never understand someone who goes through all of the trouble for an engine swap all for a 350... Waste of money.
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 05-22-2014, 11:18 PM   #598
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
here are some possibly useful diagrams for you guys.



Notice the purple wire... In my harness, mine was actually pink. So I went and traced them back via lt1 swap with the circuit number back to the fuse box plug. No big deal.

Heres the pin outs for the older two plug style sensors.

trans range sensor connector, glued in? - The 1947 - Present Chevrolet & GMC Truck Message Board Network

Hey, this build is finially getting somewhere!
__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Old 05-24-2014, 07:46 AM   #599
Jeeper

Join Date: Feb 2010
Location: Atlanta
Posts: 20
Out of curiosity, how much $$$ are you into this project at present time?
jtrain1978 is offline   Quote Quick Reply
Old 05-24-2014, 10:33 AM   #600
Jeeper

jherrington's Avatar

Join Date: Jan 2012
Location: Baton Rouge
Posts: 2,024
Quote:
Originally Posted by jtrain1978 View Post
Out of curiosity, how much $$$ are you into this project at present time?
too much.
I'd say 8,000

__________________
98 TJ sport 4.0L I6 356,000 miles.
No Engine, axle, tranny, or t-case rebuilds.
Check out my 5.3 swap in progress here!
jherrington is offline   Quote Quick Reply
Reply

Tags
4.8 , 5.3 , chevy , swap , vortec

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




» Featured Product

All times are GMT -5. The time now is 01:20 PM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
