High School 98 Sahara Resto

On March 12 I bought a 98 Sahara with intentions to daily drive it. I knew the rear upper control arms were broken, but the frame seemed solid enough that i could patch and get away with driving for a while. Unfortunately some time with a hammer revealed that this was not the case.

The following week I started to tear it down for a whole frame swap. As always one thing leads to another. Being on a high school budget I haven't been able to get too crazy as I don't make a significant amount of money.

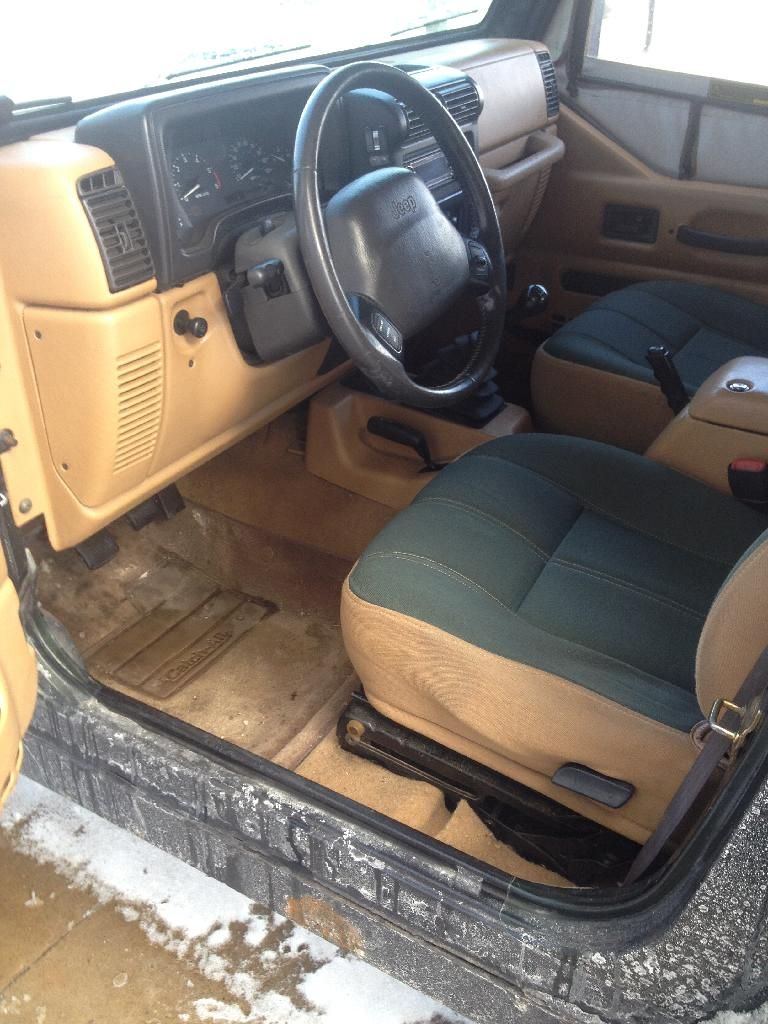

I bought it looking like so.


It has 107k miles and seemed to run well. Transmission seemed smooth for all 30 seconds I drove it.. Hopefully I don't run into any mechanical issues when it's back together, but if so we'll deal with them.

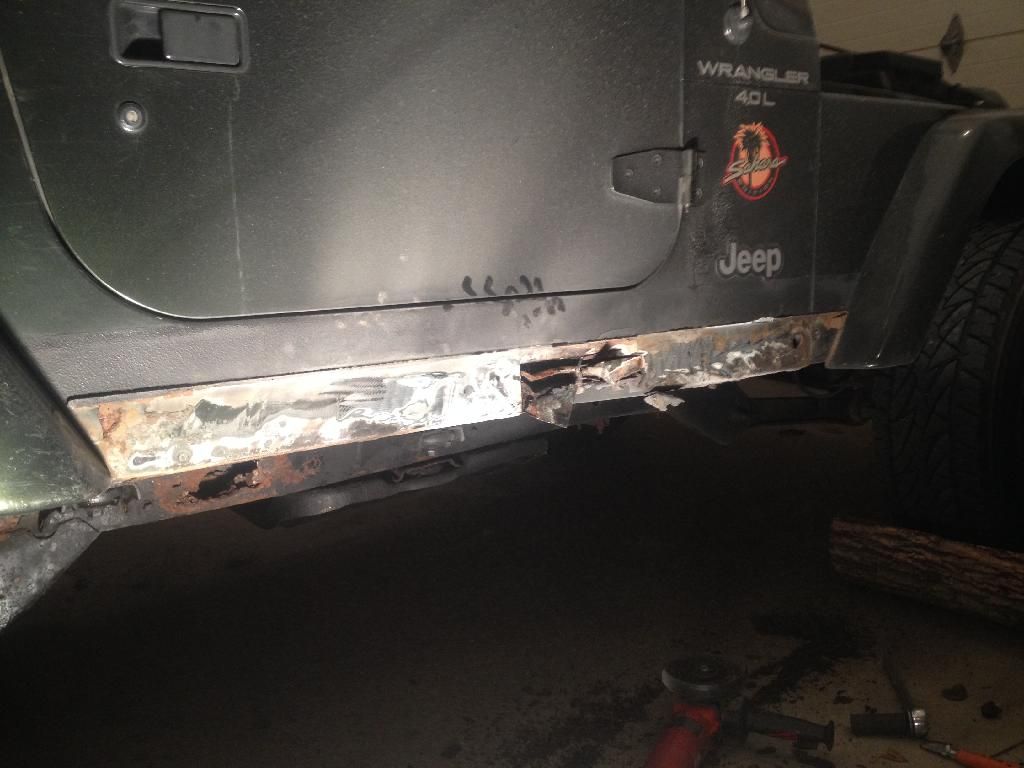

Found rust under the rocker guards (shocker)

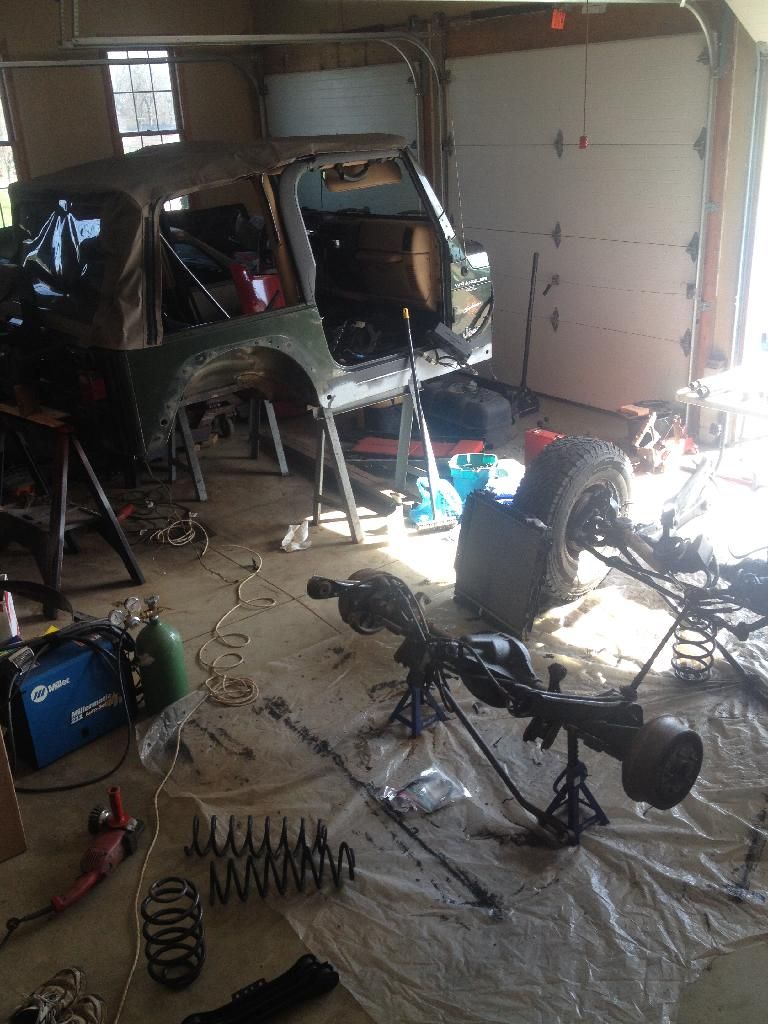

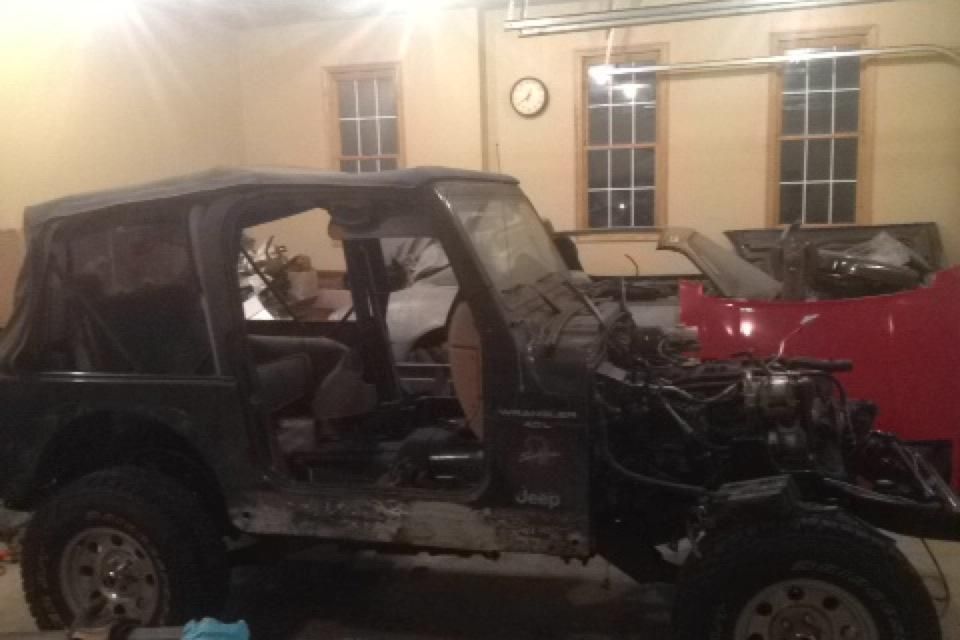

Started the tear down.

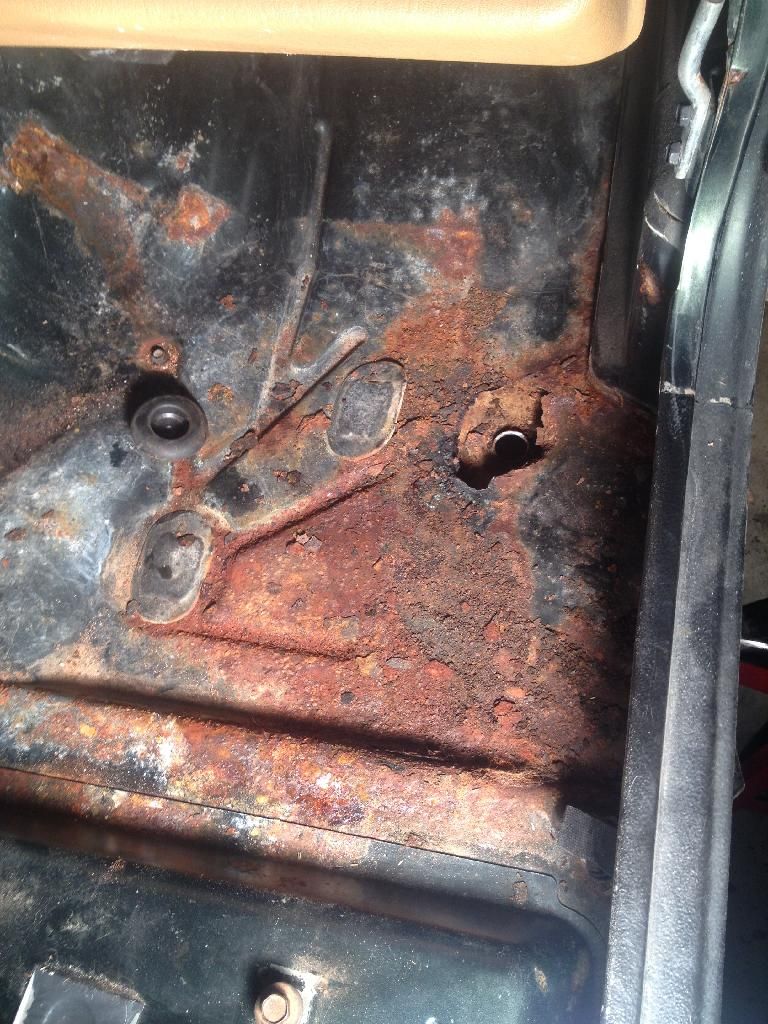

Rust in the floor (now fixed)

Bought the new frame. Had to patch a little but otherwise extremely solid.


Painted it

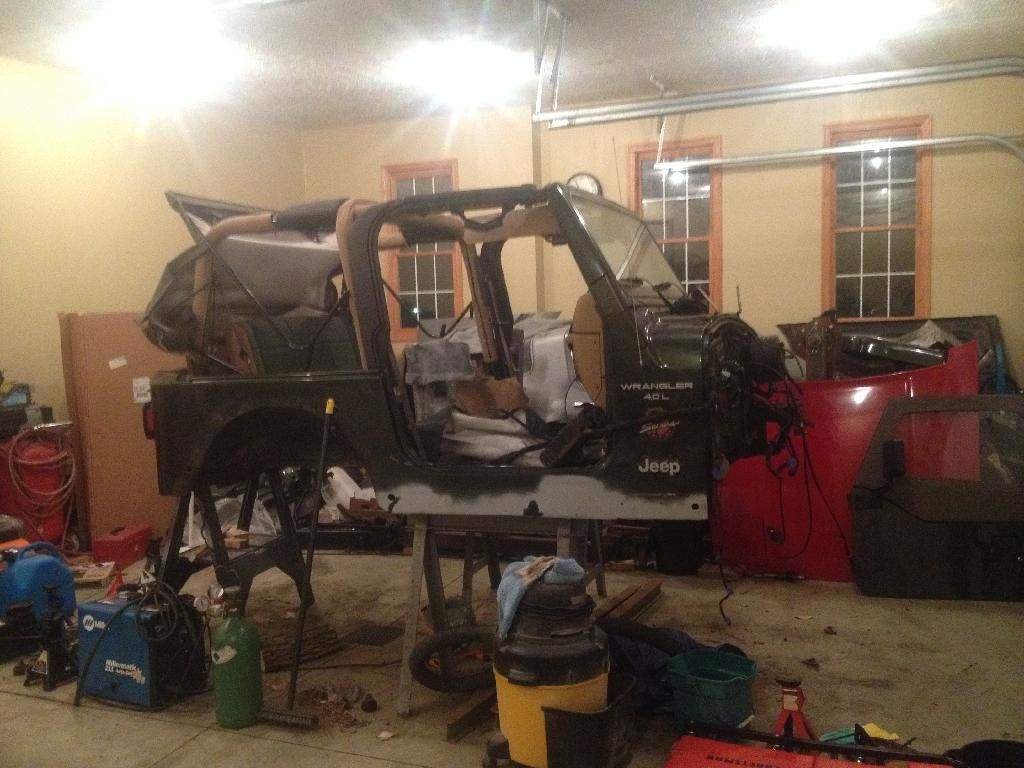

Removed the body and patched rockers

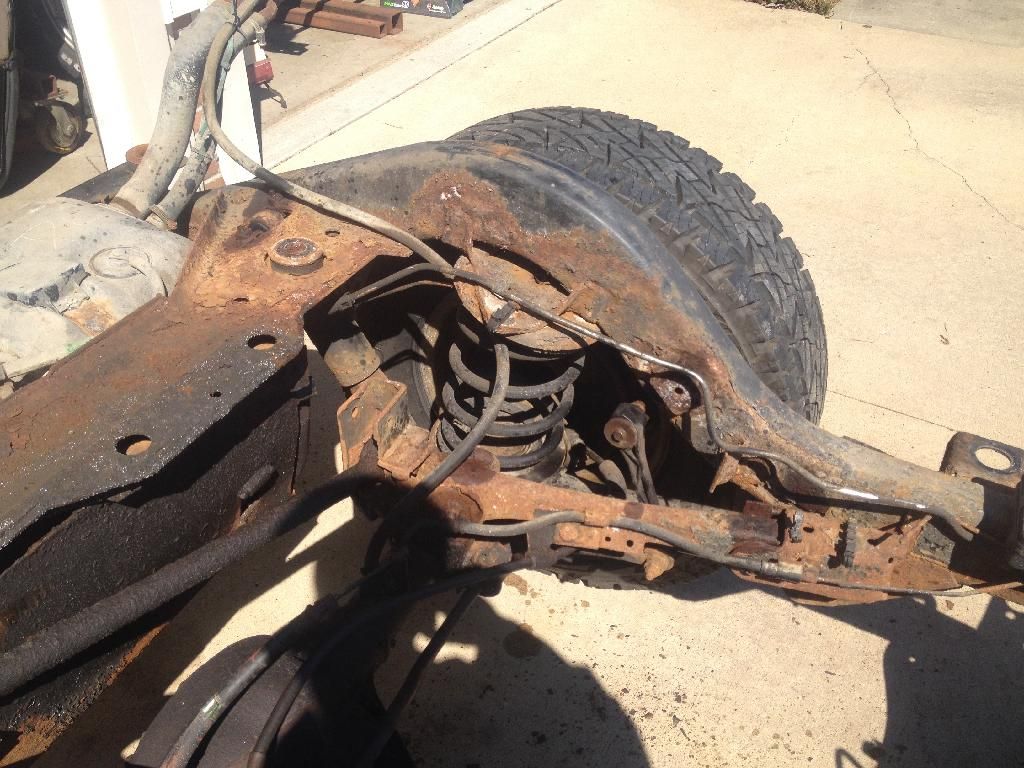

The old



The one side of rails


Shank2015 is offline   Quote Quick Reply
Old 04-21-2014, 01:42 AM   #2
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Donor tub

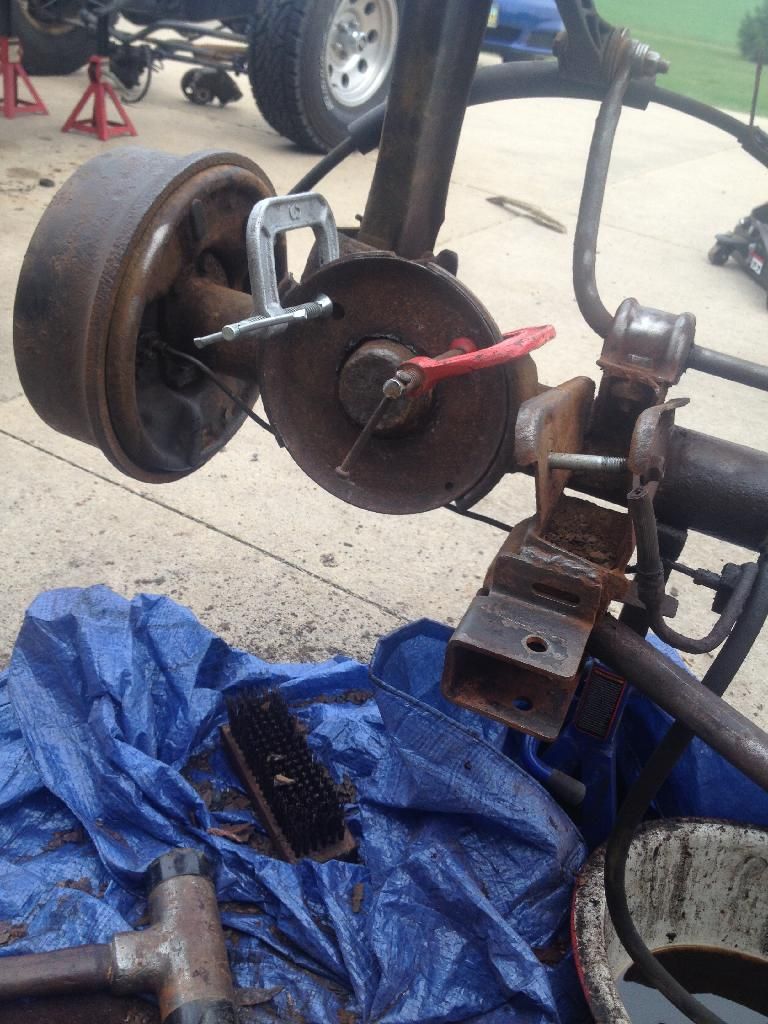

Brackets for coils were bad, I took the top one off the old frame, cut out center, and fit into the bracket on the axle, welded in.


Random mess photo

Small patch on drivers side.

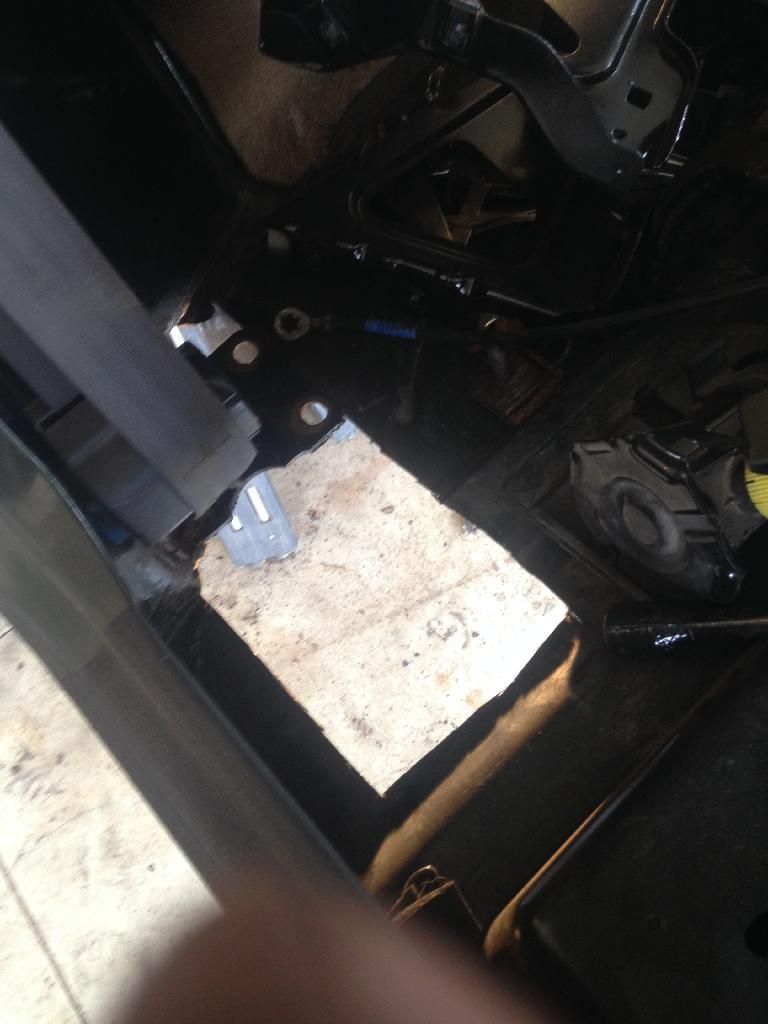

Floor was bad under roll bar.

I used the section from the old tub. Not a perfect fit but close.

Old rails

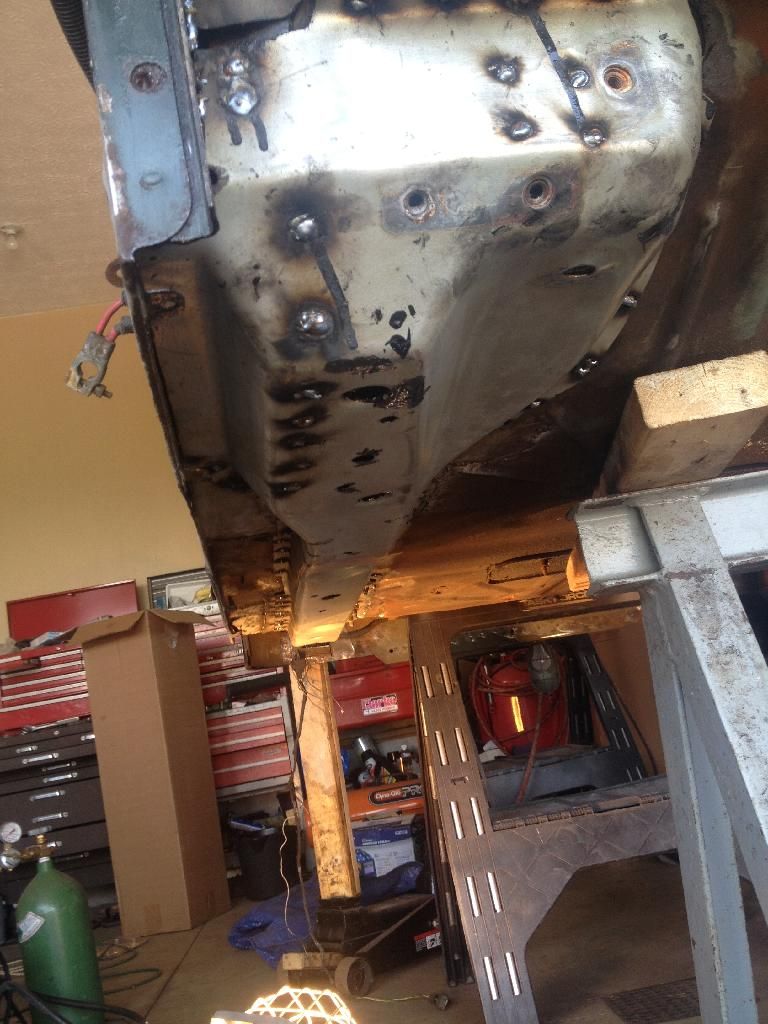

One side is in. The other is will be done by the end of the week. Have to patch some floors on the drivers side first.

That's all for now.

Shank2015 is offline   Quote Quick Reply
Old 04-21-2014, 01:47 AM   #3
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Having Daveys Jeeps under 10 minutes away is a giant advantage.
Shank2015 is offline   Quote Quick Reply
Old 04-22-2014, 08:56 PM   #4
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222

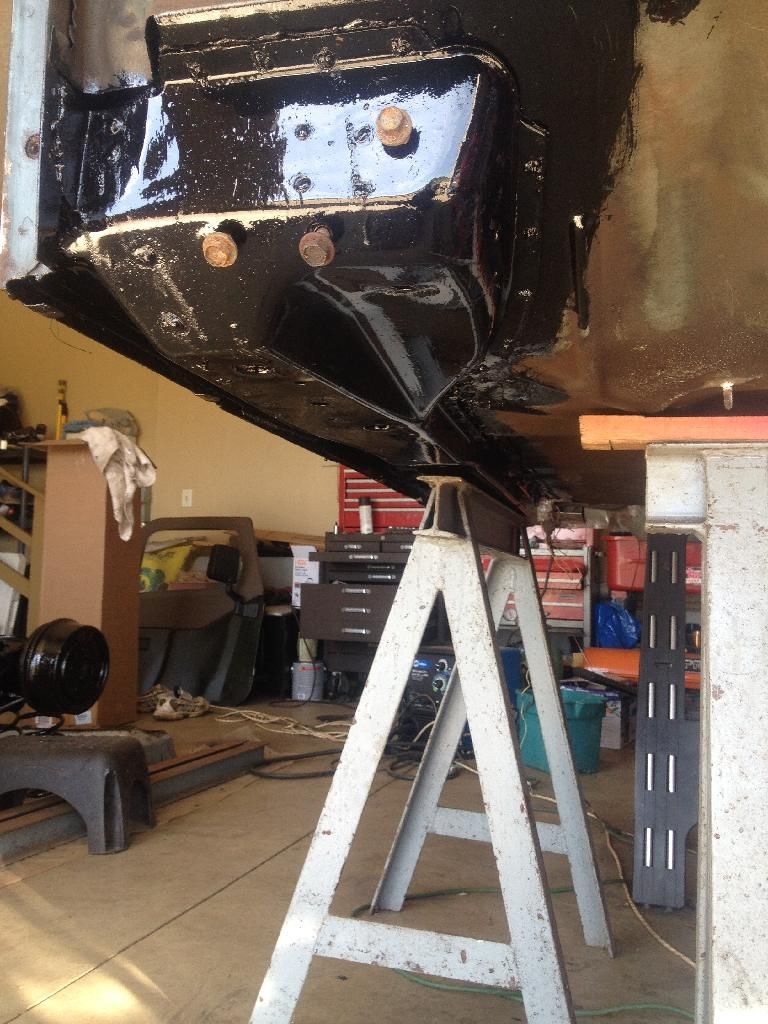

One rail is painted

Going to paint the hole underside before it goes back together.

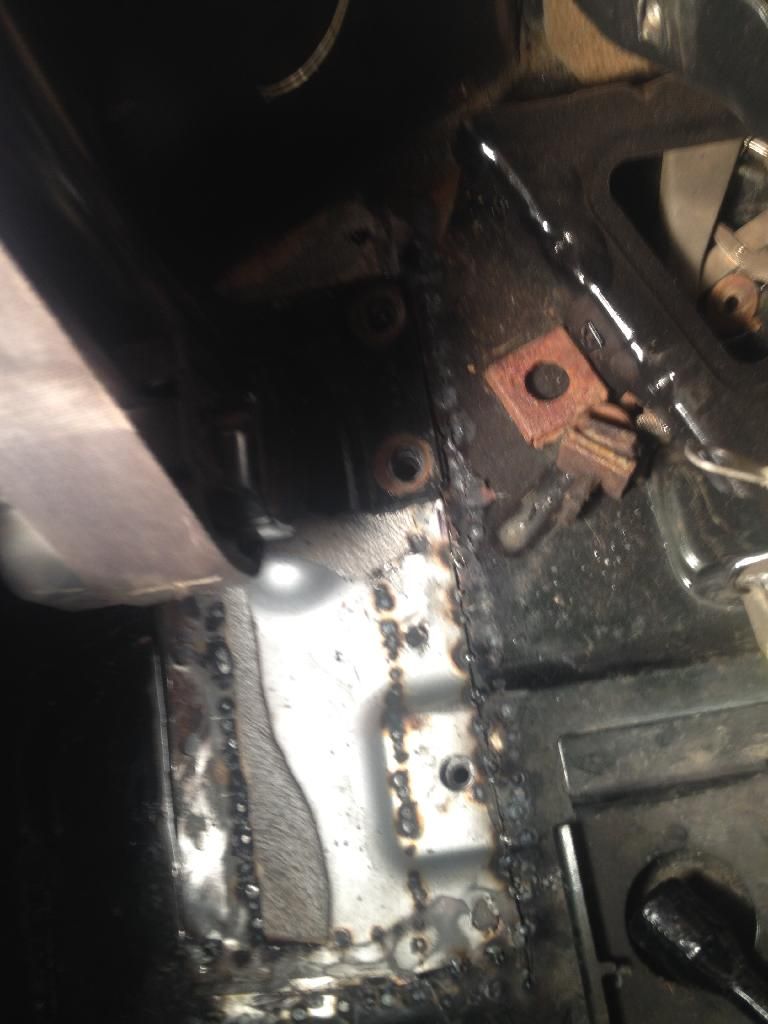

Driver side floor under roll bar is patched

I'm certainly no professional welder but I think they are pretty strong.
Shank2015 is offline   Quote Quick Reply
Old 04-23-2014, 08:58 AM   #5
Jeeper

ArthurTJ04's Avatar

Join Date: Jul 2013
Location: NJ
Posts: 420
Looking nice
ArthurTJ04 is offline   Quote Quick Reply
Old 04-23-2014, 09:16 AM   #6
Jeeper

mrpotatohead's Avatar

Join Date: Jun 2012
Location: Happy Valley
Posts: 780
Davey's Jeeps is definitely a huge advantage. I would kill for something like that out west. Looks good so far especially on a high school budget. My high school budget was usually, "yeah, that's not getting fixed.... ever."
mrpotatohead is offline   Quote Quick Reply
Old 04-23-2014, 11:29 AM   #7
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Thanks
Shank2015 is offline   Quote Quick Reply
Old 04-23-2014, 11:31 AM   #8
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Quote:
Originally Posted by mrpotatohead View Post
Davey's Jeeps is definitely a huge advantage. I would kill for something like that out west. Looks good so far especially on a high school budget. My high school budget was usually, "yeah, that's not getting fixed.... ever."
Haha thanks. It is great. Unfortunately all my money from work goes toward the Jeep. Yeah i didnt really have a choice on this one
Shank2015 is offline   Quote Quick Reply
Old 04-26-2014, 09:51 PM   #9
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222

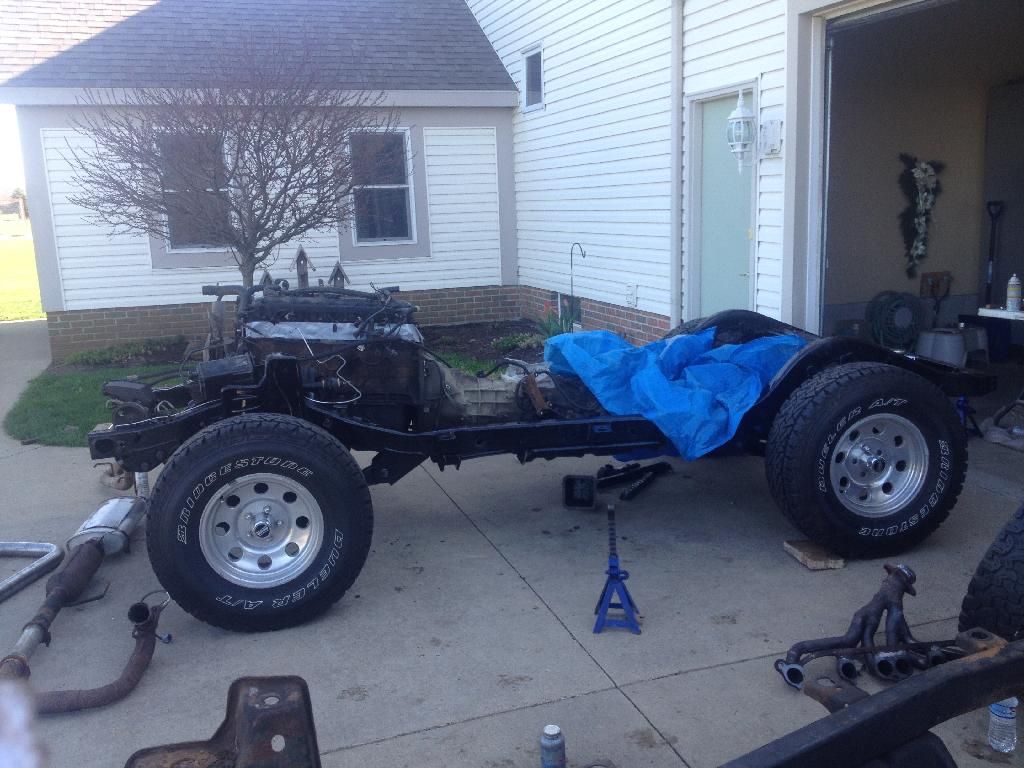

Got the front axle on and swapped over motor, trans, transfer case.



Just need to take the bumper off and then off to the scrap yard.

Body may go on tomorrow.
Shank2015 is offline   Quote Quick Reply
Old 04-27-2014, 08:52 AM   #10
Jeeper

EatTacoCatTea's Avatar

Join Date: Dec 2013
Location: Richmond, TX
Posts: 953
Geez those rusted frame pics make me wince.

Good job taking matters into your own hands getting your Jeep back to new. Keep the updates coming. We are looking forward to seeing the Jeep "healthy"
EatTacoCatTea is online now   Quote Quick Reply
Old 04-27-2014, 02:59 PM   #11
Jeeper

3025826's Avatar

Join Date: Mar 2010
Location: Kansas
Posts: 179
Images: 1
Impressive. The good news is you know that jeep from the frame up. Hope you picked that up on the cheap, that's a lot of work.
3025826 is offline   Quote Quick Reply
Old 04-27-2014, 08:49 PM   #12
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Quote:
Originally Posted by EatTacoCatTea View Post
Geez those rusted frame pics make me wince.

Good job taking matters into your own hands getting your Jeep back to new. Keep the updates coming. We are looking forward to seeing the Jeep "healthy"
Thanks! It has been a cool project. Quite the learning experience.
Quote:
Originally Posted by 3025826 View Post
Impressive. The good news is you know that jeep from the frame up. Hope you picked that up on the cheap, that's a lot of work.
Thanks! Yes I there isn't anything I'm scared to tear apart now. One of the last vehicles I owned my dad and I rebuild the motor and transmission... Hopefully that knowledge isn't needed here.
I got it fairly cheap..... Not cheap enough really when you consider the work. On the plus side I have way under what it's worth into it... That is once it's finished.
Shank2015 is offline   Quote Quick Reply
Old 04-27-2014, 08:57 PM   #13
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Got all my brake and fuel lines run today. Torqued all my suspension. I fabbed up the exhaust mount on the trans mount since I went from a 98 to a 2003 frame. I had to relocate one hole for the steering box since they are different between those years too. I got the body on today.

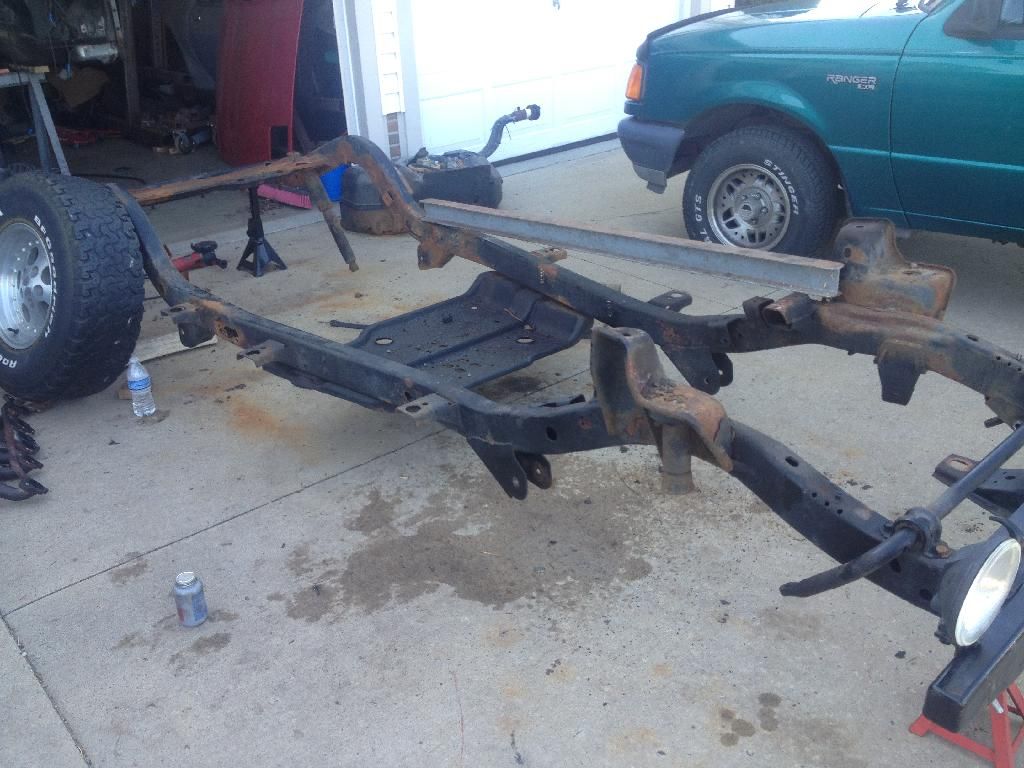

Old stuff ready to be scrapped
Shank2015 is offline   Quote Quick Reply
Old 04-27-2014, 09:15 PM   #14
Newb

Join Date: Oct 2013
Posts: 4
I'm from Il and all about that nasty salt, you are doin some good work!
geontemt is offline   Quote Quick Reply
Old 04-27-2014, 09:45 PM   #15
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Quote:
Originally Posted by geontemt View Post
I'm from Il and all about that nasty salt, you are doin some good work!
Ouch i bet it's bad there too. It's kind of crazy how fast they go. Thanks!
Shank2015 is offline   Quote Quick Reply
Old 05-10-2014, 11:02 PM   #16
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222

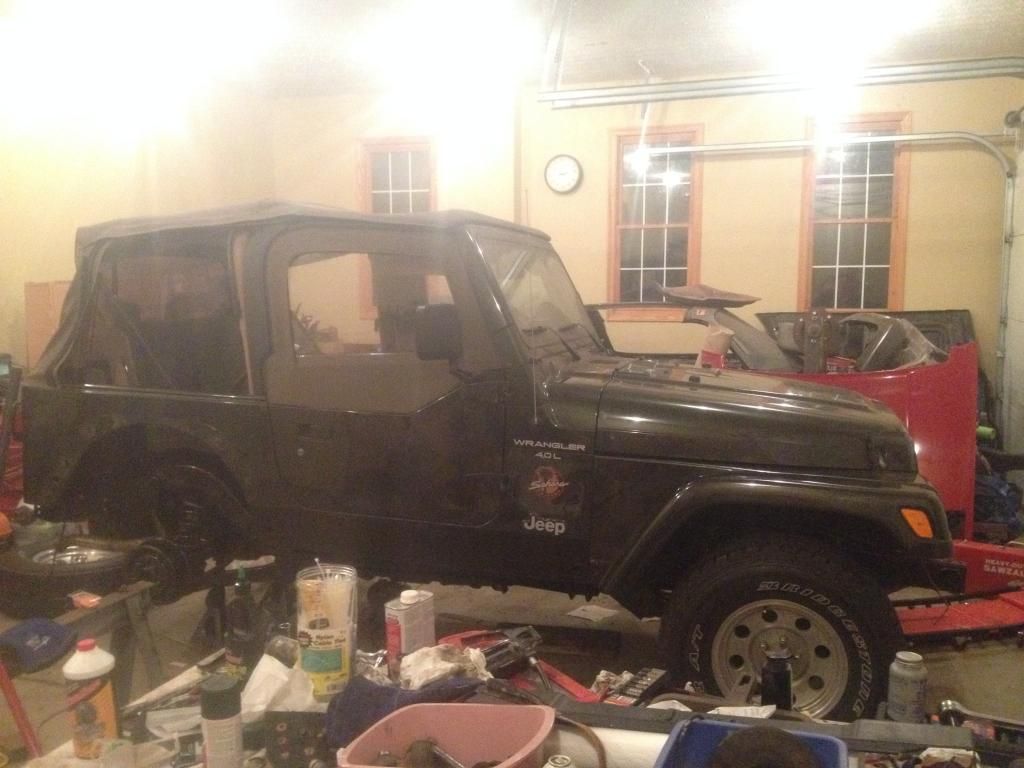

Doesn't look much different, but a lot more hours in and it's running. Going to test drive it tomorrow.

No more rust.. exciting.
Shank2015 is offline   Quote Quick Reply
Old 05-11-2014, 08:01 PM   #17
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Test driven today. Pretty much finished.

Shank2015 is offline   Quote Quick Reply
Old 05-12-2014, 06:52 AM   #18
Jeeper

EatTacoCatTea's Avatar

Join Date: Dec 2013
Location: Richmond, TX
Posts: 953
Nicely done. It's good you can now get to the fun part of owning a Jeep
EatTacoCatTea is online now   Quote Quick Reply
Old 05-12-2014, 02:06 PM   #19
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Quote:
Originally Posted by EatTacoCatTea View Post
Nicely done. It's good you can now get to the fun part of owning a Jeep
Thanks! Looking forward to it. I need to figure out something for the door switches. I think i want to get a switch for the dash. It may have some little bugs but seems good so far. Before i started driving my transfer case was almost empty. Will have to keep an eye on it
Shank2015 is offline   Quote Quick Reply
Old 05-12-2014, 02:42 PM   #20
Jeeper

EatTacoCatTea's Avatar

Join Date: Dec 2013
Location: Richmond, TX
Posts: 953
Quote:
Originally Posted by Shank2015 View Post

Thanks! Looking forward to it. I need to figure out something for the door switches. I think i want to get a switch for the dash. It may have some little bugs but seems good so far. Before i started driving my transfer case was almost empty. Will have to keep an eye on it
Definitely check the fluids and then make sure you don't have a bad seal. That would suck since you just rebuilt the damn thing.

For your doors, honestly, I would just stick with the good old manual locks. You should do a dash mod
EatTacoCatTea is online now   Quote Quick Reply
Old 05-12-2014, 10:14 PM   #21
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Quote:
Originally Posted by EatTacoCatTea View Post
Definitely check the fluids and then make sure you don't have a bad seal. That would suck since you just rebuilt the damn thing.

For your doors, honestly, I would just stick with the good old manual locks. You should do a dash mod
Yeah would have been easy to look at the tcase then... oh well. It hasn't leaked any yet. I checked every other fluid. Seems the rear end may be popping... wondering if it needs additive for trac-lok
Oh I meant for the dome light so I can turn it off.
I actually got an ok photo of it.
Shank2015 is offline   Quote Quick Reply
Old 05-12-2014, 10:40 PM   #22
Jeeper

Join Date: Feb 2014
Location: Ohio
Posts: 69
Great work young man....you should be proud of yourself for sure!! Good job from one buckeye to another!
9935todd is offline   Quote Quick Reply
Old 05-13-2014, 06:58 AM   #23
Jeeper

EatTacoCatTea's Avatar

Join Date: Dec 2013
Location: Richmond, TX
Posts: 953
Quote:
Originally Posted by Shank2015 View Post
Yeah would have been easy to look at the tcase then... oh well. It hasn't leaked any yet. I checked every other fluid. Seems the rear end may be popping... wondering if it needs additive for trac-lok
Oh I meant for the dome light so I can turn it off.
I actually got an ok photo of it.
Some trac-lok will make it run smoother usually. Do you happen to know if you have synthetic gear oil? Reason I ask, is because most synthetic differential fluids have a limited slip/trac-lok already added. If that's the case, you may want to pop open your rear axle and check that everything is running smooth with no signs of grinding and wear.
EatTacoCatTea is online now   Quote Quick Reply
Old 05-13-2014, 08:00 AM   #24
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Quote:
Originally Posted by 9935todd View Post
Great work young man....you should be proud of yourself for sure!! Good job from one buckeye to another!
Thank you! I am very happy with it!
Quote:
Originally Posted by EatTacoCatTea View Post
Some trac-lok will make it run smoother usually. Do you happen to know if you have synthetic gear oil? Reason I ask, is because most synthetic differential fluids have a limited slip/trac-lok already added. If that's the case, you may want to pop open your rear axle and check that everything is running smooth with no signs of grinding and wear.
Not sure what's in it. I'm going to probably change it at the end of the week and go from there.
Shank2015 is offline   Quote Quick Reply
Old 05-13-2014, 08:11 AM   #25
Jeeper

EatTacoCatTea's Avatar

Join Date: Dec 2013
Location: Richmond, TX
Posts: 953
Quote:
Originally Posted by Shank2015 View Post
Not sure what's in it. I'm going to probably change it at the end of the week and go from there.
RP 75-90 or 75-85 is some good stuff. Expensive but you are paying for quality and efficiency.
EatTacoCatTea is online now   Quote Quick Reply
Old 05-13-2014, 09:38 AM   #26
Jeeper

hudsonp's Avatar

Join Date: May 2014
Location: NEO
Posts: 53
mighty damn impressive! i'm very close to you too, I got my 98 about a week ago, already been to Davey's and planning more trips out there soon!
hudsonp is offline   Quote Quick Reply
Old 05-13-2014, 03:12 PM   #27
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
Quote:
Originally Posted by EatTacoCatTea View Post
RP 75-90 or 75-85 is some good stuff. Expensive but you are paying for quality and efficiency.
I'll look into the Royal Purple.
Thanks!
Quote:
Originally Posted by hudsonp View Post
mighty damn impressive! i'm very close to you too, I got my 98 about a week ago, already been to Davey's and planning more trips out there soon!
Thank you! Where are you located? Davey's is a great place and he's a great guy to do business with.
Shank2015 is offline   Quote Quick Reply
Old 05-13-2014, 06:55 PM   #28
Jeeper

hudsonp's Avatar

Join Date: May 2014
Location: NEO
Posts: 53
Quote:
Originally Posted by Shank2015 View Post
I'll look into the Royal Purple.
Thanks!

Thank you! Where are you located? Davey's is a great place and he's a great guy to do business with.
I'm in Youngstown - but I work in Salem
hudsonp is offline   Quote Quick Reply
Old 05-13-2014, 09:36 PM   #29
Jeeper

Shank2015's Avatar

Join Date: Nov 2009
Location: NE Ohio
Posts: 222
I took it on a trip today with the top and doors off. The rear diff is definitely making the noise. It has to be the LSD. Will get new fluid in it Friday. That's the only issue I have found. Suspension and steering are tight. It may need an alignment but working at a dealership will help me get that done I still need to get the rocker guards on and get the A/C charged. I'm going to have the interior detailed this summer. I'm also going to get new fenders, get the flairs repainted, and fix the back corner rust and get corner guards painted body color.
Davey at Davey's jeeps thought mine was lifted until he looked at suspension. I'm not sure why it sits higher than most.




Quote:
Originally Posted by hudsonp View Post
I'm in Youngstown - but I work in Salem
Awesome. It's great being so close to so many jeep parts!
Shank2015 is offline   Quote Quick Reply
Old 05-13-2014, 09:56 PM   #30
Jeeper

EatTacoCatTea's Avatar

Join Date: Dec 2013
Location: Richmond, TX
Posts: 953
It's probably exciting listing all your future mods you want to do after taking so much time to fix that frame rot

EatTacoCatTea is online now   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




» Featured Product

All times are GMT -5. The time now is 08:10 PM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
