pic request: rock sliders

So me and my father in law are thinking about making some sliders for our jeeps since we have access to steel and he welds pretty often, we have seen pics of lots of different ones but none really show how they mount to the tub from the inside so I'm looking to get some pics or ideas so we can decide how to go about doing this. I was thinking about using a piece of steel on the inside and just a regular nut and bolt but if I can c how other brands do it I may do it different, thanks

__________________
98 sport, 4inch skyjacker lift, 35" goodyear wrangler mtrs with kevlar on 15x10 black streetlock wheels, smittybuilt rear bumber with tire carrier, warn m8000 winch, windshield mount hellas, and a rhinolined interior, with aussie locked dana 30 front dana 44 rear with a yukon grizzly locker, 4.10 gears with a 3speed 32rh
98 tj sport is offline   Quote Quick Reply
Old 12-02-2012, 12:57 AM   #2
Supporting Member

WF Supporting Member

FireMike's Avatar

Join Date: Oct 2012
Location: Forest Grove, OR
Posts: 514

FireMike is offline   Quote Quick Reply
Old 12-02-2012, 02:45 PM   #3
Supporting Member

WF Supporting Member

98 tj sport's Avatar

Join Date: Apr 2012
Location: eden nc
Posts: 1,371
Images: 1
Yea I've seen that thread but I'm really looking for interior pics so I can c how those screws are held in, just like sheet metal screws that screw through the tub, if they have a bracket or brace on the inside, or if its just like bolts that are bolted down.
__________________
98 sport, 4inch skyjacker lift, 35" goodyear wrangler mtrs with kevlar on 15x10 black streetlock wheels, smittybuilt rear bumber with tire carrier, warn m8000 winch, windshield mount hellas, and a rhinolined interior, with aussie locked dana 30 front dana 44 rear with a yukon grizzly locker, 4.10 gears with a 3speed 32rh
98 tj sport is offline   Quote Quick Reply
Old 12-02-2012, 03:03 PM   #4
Supporting Member

WF Supporting Member

Water Dog's Avatar

Join Date: Mar 2011
Location: Roseville, CA
Posts: 6,128
Images: 11
My Rokman sliders use 1/8" x 1 1/2" pieces of aluminum as backup plates for the 5/16" stainless flathead bolts that are bolted through the bottom and the sides of the tub. The installation is solid and they have been over many rocks as well as being used as a jack point.
__________________
Dennis
Water Dog is offline   Quote Quick Reply
Old 12-02-2012, 03:10 PM   #5
Jeeper

Brad48178's Avatar

Join Date: Jan 2012
Location: Michigan
Posts: 416
Brooks custom concepts on a 05 unlimited.
Brad48178 is offline   Quote Quick Reply
Old 12-02-2012, 04:39 PM   #6
Jeeper

TnDz TJ's Avatar

Join Date: Apr 2011
Location: Reno, NV
Posts: 2,925
Images: 220
I made mine from factory rubicon rockers I got for free...

Rockers are held on with nutserts.... but you can use regular hardware for the sides...















__________________
~Todd~ 2004 X 4.0 5 speed---SOLD
4" Lift, 4.56's, 33" Duratracs on M/T Classics
RR SYE, Tatton CV, MML, BL, TT, Dynomax Exhaust
Hella Lighting: Driving, Fogs and H4 E-Codes
NOPE! ... and NEVER will be...
TnDz TJ is offline   Quote Quick Reply
Old 12-02-2012, 05:13 PM   #7
Jeeper

Brad48178's Avatar

Join Date: Jan 2012
Location: Michigan
Posts: 416
Quote:
Originally Posted by TnDz TJ
I made mine from factory rubicon rockers I got for free...

Rockers are held on with nutserts.... but you can use regular hardware for the sides...
Nice job looks awesome.
Brad48178 is offline   Quote Quick Reply
Old 12-02-2012, 05:50 PM   #8
Jeeper

phraza's Avatar

Join Date: Apr 2012
Location: Auckland, New Zealand
Posts: 90
Rugged Ridge:

__________________
New Zealand - 97 TJ Wrangler
Because a Jeep isn't a Jeep until its lifted and outfitted with oversized wheels and tires. www.youtube.com/phraza1
phraza is offline   Quote Quick Reply
Old 12-02-2012, 07:00 PM   #9
Jeeper

DeepSouthJeeper's Avatar

Join Date: Mar 2012
Location: Baton Rouge
Posts: 1,668
Quote:
Originally Posted by Brad48178
Brooks custom concepts on a 05 unlimited.
I'm loving the "paved roads" sticker man!
DeepSouthJeeper is offline   Quote Quick Reply
Old 12-02-2012, 07:51 PM   #10
Jeeper

Brad48178's Avatar

Join Date: Jan 2012
Location: Michigan
Posts: 416
Quote:
Originally Posted by DeepSouthJeeper

I'm loving the "paved roads" sticker man!
Thanks,I got it at all things jeep.com if your interested.
Brad48178 is offline   Quote Quick Reply
Old 12-02-2012, 09:25 PM   #11
Supporting Member

WF Supporting Member

98 tj sport's Avatar

Join Date: Apr 2012
Location: eden nc
Posts: 1,371
Images: 1
Quote:
Originally Posted by TnDz TJ
I made mine from factory rubicon rockers I got for free...

Rockers are held on with nutserts.... but you can use regular hardware for the sides...
Nice I will deffinatly be looking on cl for some of those rubi guards
__________________
98 sport, 4inch skyjacker lift, 35" goodyear wrangler mtrs with kevlar on 15x10 black streetlock wheels, smittybuilt rear bumber with tire carrier, warn m8000 winch, windshield mount hellas, and a rhinolined interior, with aussie locked dana 30 front dana 44 rear with a yukon grizzly locker, 4.10 gears with a 3speed 32rh
98 tj sport is offline   Quote Quick Reply
Old 12-02-2012, 11:22 PM   #12
Jeeper

DevilDogDoc's Avatar

Join Date: Jun 2010
Location: Yucca Valley CA 20 miles from JV
Posts: 2,362

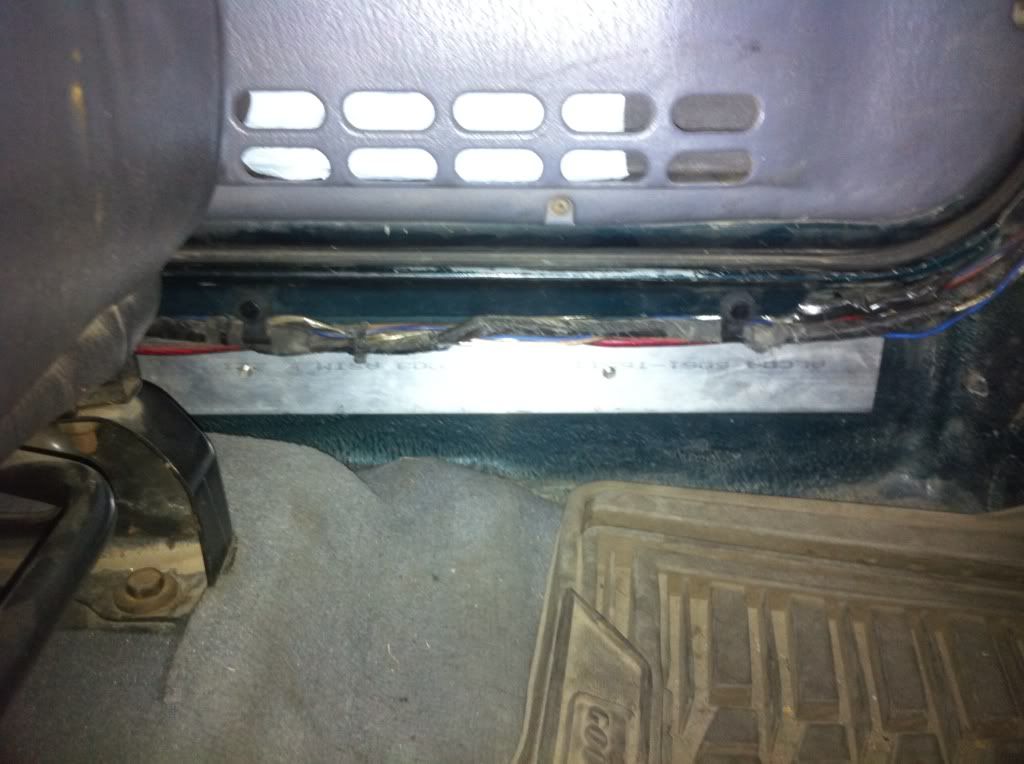

My Curries mount the same as the Savvy's do with nutserts in the blind areas and a backing strip of aluminum in the area under the door as seen here.

Seems like those Rokmen sliders don't use nutserts which explains the little strip inside the tub.....
__________________
Violence may not be the answer but it sure cuts down on the stupid questions
DevilDogDoc is offline   Quote Quick Reply
Old 12-04-2012, 08:58 AM   #13
Supporting Member

WF Supporting Member

98 tj sport's Avatar

Join Date: Apr 2012
Location: eden nc
Posts: 1,371
Images: 1
Well while on craigslist looking for some rubicon rocker guards to do like tndz did I ran acroos someone selling some skid row offroad rocker guards with all the hardware, talked him down to 140 for the set. So as long as no one gets them before saturday when I have a chance to go were he is at ill be getting these and just adding some tube steps to them as tndz did with the rubi rockers
__________________
98 sport, 4inch skyjacker lift, 35" goodyear wrangler mtrs with kevlar on 15x10 black streetlock wheels, smittybuilt rear bumber with tire carrier, warn m8000 winch, windshield mount hellas, and a rhinolined interior, with aussie locked dana 30 front dana 44 rear with a yukon grizzly locker, 4.10 gears with a 3speed 32rh
98 tj sport is offline   Quote Quick Reply
Old 12-04-2012, 09:01 AM   #14
Jeeper

TnDz TJ's Avatar

Join Date: Apr 2011
Location: Reno, NV
Posts: 2,925
Images: 220
Quote:
Originally Posted by 98 tj sport View Post
Well while on craigslist looking for some rubicon rocker guards to do like tndz did I ran acroos someone selling some skid row offroad rocker guards with all the hardware, talked him down to 140 for the set. So as long as no one gets them before saturday when I have a chance to go were he is at ill be getting these and just adding some tube steps to them as tndz did with the rubi rockers

Good deal!!!!
__________________
~Todd~ 2004 X 4.0 5 speed---SOLD
4" Lift, 4.56's, 33" Duratracs on M/T Classics
RR SYE, Tatton CV, MML, BL, TT, Dynomax Exhaust
Hella Lighting: Driving, Fogs and H4 E-Codes
NOPE! ... and NEVER will be...
TnDz TJ is offline   Quote Quick Reply
Old 12-04-2012, 10:45 AM   #15
Supporting Member

WF Supporting Member

98 tj sport's Avatar

Join Date: Apr 2012
Location: eden nc
Posts: 1,371
Images: 1
Quote:
Originally Posted by TnDz TJ

Good deal!!!!
Yea thanks for the idea never woulda thought to just get some regular sliders and weld tube on, wish I would have cuz I remember seeing some rubi guards. A while ago for like 50 bucks

__________________
98 sport, 4inch skyjacker lift, 35" goodyear wrangler mtrs with kevlar on 15x10 black streetlock wheels, smittybuilt rear bumber with tire carrier, warn m8000 winch, windshield mount hellas, and a rhinolined interior, with aussie locked dana 30 front dana 44 rear with a yukon grizzly locker, 4.10 gears with a 3speed 32rh
98 tj sport is offline   Quote Quick Reply
