Sub for TJ console

Has any one built a sub box for in a factory TJ console. I know they sell them but I like to fabricate my oen stuff.

__________________
Asphalt!! We don't need no stinking asphalt!!
Peanut1560 is offline   Quote Quick Reply
Old 08-20-2012, 02:20 PM   #2
Jeeper

eboven's Avatar

Join Date: May 2012
Location: Black Hawk, CO
Posts: 656
There have been plenty of people who replace the factory sub with something a bit more beefy, but they usually use the factory enclosure and just modify it according to their needs. If you don't have a factory sub, you are in for a bit more work, as everything will have to be fabricated.

eboven is offline   Quote Quick Reply
Old 08-20-2012, 08:53 PM   #3
Jeeper

Jma20a's Avatar

Join Date: Apr 2007
Location: Fairfield, CT
Posts: 3,046
pioneer has a sub that fits in the factory console location with no new holes having to be drilled. use the search feature, it will take you far.
Jma20a is offline   Quote Quick Reply
Old 08-21-2012, 09:03 AM   #4
Jeeper

Peanut1560's Avatar

Join Date: Apr 2012
Location: Nashville,NC.
Posts: 228
Thanks. Ive got a 10" sub. Just doing a little reaserch befofe I hack up a perfectly good console. Or would an 8" sub be a better application.
__________________
Asphalt!! We don't need no stinking asphalt!!
Peanut1560 is offline   Quote Quick Reply
Old 08-21-2012, 12:01 PM   #5
Jeeper

bobthetj03's Avatar

Join Date: Aug 2011
Location: Lake County, NorCal.
Posts: 1,743
Quote:
Originally Posted by Peanut1560 View Post
Thanks. Ive got a 10" sub. Just doing a little reaserch befofe I hack up a perfectly good console. Or would an 8" sub be a better application.
An 8" slimline sub fits with a little modification.
__________________
I like banter!

"The little Jeep that could!"
bobthetj03 is offline   Quote Quick Reply
Old 08-21-2012, 12:26 PM   #6
Jeeper

eboven's Avatar

Join Date: May 2012
Location: Black Hawk, CO
Posts: 656
I would think a 10 is going to be too large; even if you get it crammed in there, it won't have enough airspace to perform well. I would look at an 8" designed for small enclosures... the TJ console can't have more than .5 cf of airspace.

I would look at the Kicker compVT 8" or even the 6.5" sub. The stock TJ sub is a 6.5" if I'm not mistaken, so that would be the closest to bolting right in. Obviously, you will want an external amp for that sub; the stock sub amp is not nearly enough for any serious upgrade.
eboven is offline   Quote Quick Reply
Old 08-21-2012, 12:35 PM   #7
Jeeper

bobthetj03's Avatar

Join Date: Aug 2011
Location: Lake County, NorCal.
Posts: 1,743
SWS The Original Shallow Woofer

For sure an external amp and add some dynamat to the enclosure to help dampen rattles. Also polyfill inside the enclosure helps.
__________________
I like banter!

"The little Jeep that could!"
bobthetj03 is offline   Quote Quick Reply
Old 08-21-2012, 12:50 PM   #8
Jeeper

eboven's Avatar

Join Date: May 2012
Location: Black Hawk, CO
Posts: 656
Nice, always cool to find companies that I haven't heard of in the car audio business. Do you have experience with the SWS10, by any chance? I am looking for a good 10" slim mount sub that will perform well in a small enclosure. I don't care so much about the SPL levels, the SQ of the sub is really what I am looking at.
eboven is offline   Quote Quick Reply
Old 08-21-2012, 01:06 PM   #9
Jeeper

bobthetj03's Avatar

Join Date: Aug 2011
Location: Lake County, NorCal.
Posts: 1,743
Quote:
Originally Posted by eboven View Post
Nice, always cool to find companies that I haven't heard of in the car audio business. Do you have experience with the SWS10, by any chance? I am looking for a good 10" slim mount sub that will perform well in a small enclosure. I don't care so much about the SPL levels, the SQ of the sub is really what I am looking at.
I have the SWS8 in my center console powered by a 300watt external amp. The amp is a little much for the sub, so it's dialed down considerably. It works quite well. So well that I sold my 2 10's that I had in a custom enclosure that fit behind my rear seat. It also helps that I have the pods and dash speakers amped as well. My center console didn't come with the factory sub, so I had to modify the storage pocket as an enclosure.
__________________
I like banter!

"The little Jeep that could!"
bobthetj03 is offline   Quote Quick Reply
Old 08-21-2012, 02:49 PM   #10
Jeeper

Peanut1560's Avatar

Join Date: Apr 2012
Location: Nashville,NC.
Posts: 228
I would have to build a enclosure correct
__________________
Asphalt!! We don't need no stinking asphalt!!
Peanut1560 is offline   Quote Quick Reply
Old 08-21-2012, 03:08 PM   #11
Jeeper

eboven's Avatar

Join Date: May 2012
Location: Black Hawk, CO
Posts: 656
do you have the stock sub, or is your console a wide open abyss?
eboven is offline   Quote Quick Reply
Old 08-21-2012, 03:20 PM   #12
Jeeper

bobthetj03's Avatar

Join Date: Aug 2011
Location: Lake County, NorCal.
Posts: 1,743
Quote:
Originally Posted by Peanut1560 View Post
I would have to build a enclosure correct
Sort of. The enclosure's already there. It just needs some modifying to make it work. I had to fabricate a top piece for the enclosure and epoxy it to the storage pocket in order to seal the enclosure.

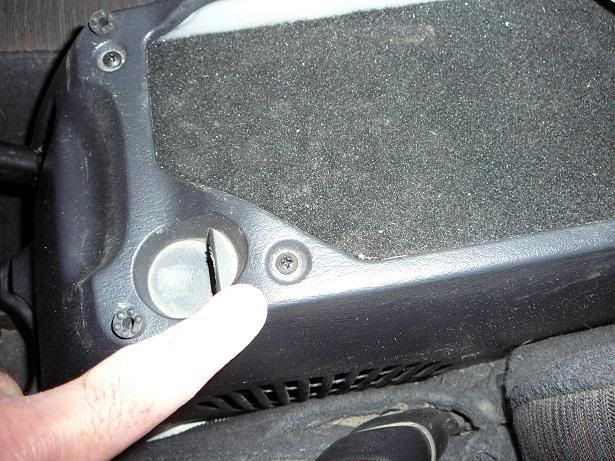

You have to drill out these rivets to remove the inner pocket. This picture doesn't show rivets since I already drilled them out and just replaced them with sheetmetal screws.

You can see where I fabbed a top with MDF and covered it with carpet.
The side of my console already had a cutout for where the speaker would go, so it just took a little trimming to fit the 8" sub.
__________________
I like banter!

"The little Jeep that could!"
bobthetj03 is offline   Quote Quick Reply
Old 08-21-2012, 04:21 PM   #13
Jeeper

Peanut1560's Avatar

Join Date: Apr 2012
Location: Nashville,NC.
Posts: 228
Stock console
__________________
Asphalt!! We don't need no stinking asphalt!!
Peanut1560 is offline   Quote Quick Reply
Old 08-21-2012, 04:46 PM   #14
Jeeper

eboven's Avatar

Join Date: May 2012
Location: Black Hawk, CO
Posts: 656
Yes, I understand that your console is stock. What I am trying to find out is if it has the factory subwoofer already installed, or if it's just a large storage compartment. If you have the factory subwoofer in there already, you won't have to do much; you can modify it to make a new sub fit in. If you don't have the factory subwoofer, than you will need to either purchase a factory console that had the sub, or fabricate the entire enclosure - like bobthetj03 did in the above pictures.
eboven is offline   Quote Quick Reply
Old 08-21-2012, 10:26 PM   #15
Jeeper

WF Supporting Member

willybTJ's Avatar

Join Date: Mar 2011
Location: Texas
Posts: 293
Images: 1
I did the 6.5 Kicker CVT install running off of 2 channels of a 4 channel alpine. It's provides nice mid-bass, but I've also got 2 10 inch downfires in the back so it almost seems null in void.

I've only heard of people maxing at an 8 inch thin with some major modification to the stock sub box, which I decided against since the air capacity would be greatly limited...who knows.

I've been considering this below, which I think is a great option except for the price....

Amazon.com: SSV Works Jeep Wrangler TJ Center Console Subwoofer Enclosure designed for a Thin Mount 10" Speaker: Automotive

If I had any experience with box building or fiberglassing I would try to mimmic the design of the link above.
__________________
_____________________________
Some videos of my Jeep Installs

Life is Good.
willybTJ is offline   Quote Quick Reply
Old 08-22-2012, 12:48 AM   #16
Jeeper

DNKC's Avatar

Join Date: Jul 2012
Location: Independence MO
Posts: 248
I literally just finished building this today:








I followed the instructions from here:
8" sub console project, pics inside... - JeepForum.com

I finished the fiberglass and painted it with Rustoleum bedliner paint today. Mounted an 8" Rockford Fosgate sub I already had in it.

I will caution that it was a huge undertaking lol. Basically the link he provides to someone else's plans show the outside measurements. I built the sides top & bottom and then had to hand fit the rest of the wood, and fiberglass the e-brake side.

I have pics of it finished but haven't gotten them uploaded yet. I will try to get that done in the next couple days and post them up.

I had the factory sub in my console. This replaces it completely, and it is a very snug fit! After painting it I put a piece of standard sub box carpet on the top piece as there is about a 2.5-3" area left now under the console lid on top of the box. Perfect for storing the head unit face plate and gps as I can use the factory lock still. Not fool proof obviously but keeps honest people honest.
DNKC is offline   Quote Quick Reply
Old 08-22-2012, 06:40 AM   #17
Jeeper

Peanut1560's Avatar

Join Date: Apr 2012
Location: Nashville,NC.
Posts: 228
I have the console that is ready for the sub. But no sub.
__________________
Asphalt!! We don't need no stinking asphalt!!
Peanut1560 is offline   Quote Quick Reply
Old 08-23-2012, 12:42 PM   #18
Jeeper

04whitetj's Avatar

Join Date: May 2012
Location: Salt Lake City, UT
Posts: 145
I just used my factory enclosure and put a 8" Kicker CVT8. I ran it off the factory amp and it sounds just fine. All you have to do is trim down the fins at the bottom of where the stock sub would go and it fits in easy. Took all of about 20 minutes.
04whitetj is offline   Quote Quick Reply
Old 08-23-2012, 05:32 PM   #19
Jeeper

Peanut1560's Avatar

Join Date: Apr 2012
Location: Nashville,NC.
Posts: 228
Cool! Any sound dampening needing for the console? Much virating noise?
__________________
Asphalt!! We don't need no stinking asphalt!!
Peanut1560 is offline   Quote Quick Reply
Old 08-24-2012, 10:29 AM   #20
Jeeper

eboven's Avatar

Join Date: May 2012
Location: Black Hawk, CO
Posts: 656
When you say it's ready for the sub but doesn't have one, do you mean someone just took the actual speaker itself out? If you have tons of room in your center console, than you don't have the sub enclosure. If there seems to be a false floor of sorts in your center console and your storage only goes down a few inches, than you may have the enclosure.

My TJ has a center console that has the grille for the sub visible on the outside, but the inside is just a big white tub for storage. It looks like it's ready for a sub on the outside, but the enclosure isn't there.
eboven is offline   Quote Quick Reply
Old 08-24-2012, 10:40 AM   #21
Jeeper

bobthetj03's Avatar

Join Date: Aug 2011
Location: Lake County, NorCal.
Posts: 1,743
Quote:
Originally Posted by eboven View Post
My TJ has a center console that has the grille for the sub visible on the outside, but the inside is just a big white tub for storage. It looks like it's ready for a sub on the outside, but the enclosure isn't there.
That big white tub makes for a good enclosure. Just have to fab a top lid for it and line it with Dynamat.
__________________
I like banter!

"The little Jeep that could!"
bobthetj03 is offline   Quote Quick Reply
Old 08-24-2012, 04:55 PM   #22
Jeeper

04whitetj's Avatar

Join Date: May 2012
Location: Salt Lake City, UT
Posts: 145
Quote:
Originally Posted by Peanut1560
Cool! Any sound dampening needing for the console? Much virating noise?
If there used to be a sub in there and you're just replacing it then no. Its as easy as swapping it in.
04whitetj is offline   Quote Quick Reply
Old 08-24-2012, 06:35 PM   #23
Jeeper

Peanut1560's Avatar

Join Date: Apr 2012
Location: Nashville,NC.
Posts: 228
Probly go the Bob route. Just a stock console with grate and white box on the inside. Is it worth the trouble the sound quality
__________________
Asphalt!! We don't need no stinking asphalt!!
Peanut1560 is offline   Quote Quick Reply
Old 08-24-2012, 06:39 PM   #24
Jeeper

bobthetj03's Avatar

Join Date: Aug 2011
Location: Lake County, NorCal.
Posts: 1,743
Quote:
Originally Posted by Peanut1560 View Post
Probly go the Bob route. Just a stock console with grate and white box on the inside. Is it worth the trouble the sound quality
I think it is. As long as you dampen the enclosure well, you wont' get any rattles and pick a good sub plus a good amp to power it and you'll be amazed how good it sounds!
__________________
I like banter!

"The little Jeep that could!"
bobthetj03 is offline   Quote Quick Reply
Old 08-24-2012, 06:41 PM   #25
Jeeper

Peanut1560's Avatar

Join Date: Apr 2012
Location: Nashville,NC.
Posts: 228
*for the sound quality
__________________
Asphalt!! We don't need no stinking asphalt!!
Peanut1560 is offline   Quote Quick Reply
Old 08-26-2012, 02:03 AM   #26
Jeeper

WF Supporting Member

willybTJ's Avatar

Join Date: Mar 2011
Location: Texas
Posts: 293
Images: 1
I bit the bullet and bought the 10" SSV sub console replacement off of amazon (since I question my box building), as well as a pioneer slim 10" 1b flat....against my wife's best wishes....

Since the specs will be less than the .5 cbft I need, I plan on using pollyfil (pillow stuffing) to help offset....we'll see.
__________________
_____________________________
Some videos of my Jeep Installs

Life is Good.
willybTJ is offline   Quote Quick Reply
Old 03-01-2013, 08:34 AM   #27
Jeeper

BeerChameleon's Avatar

Join Date: Jan 2013
Location: Tucson,AZ
Posts: 138
Quote:
Originally Posted by willybTJ View Post
I bit the bullet and bought the 10" SSV sub console replacement off of amazon (since I question my box building), as well as a pioneer slim 10" 1b flat....against my wife's best wishes....

Since the specs will be less than the .5 cbft I need, I plan on using pollyfil (pillow stuffing) to help offset....we'll see.
Bumping old thread!

I recently ordered that too!! Considering it is made of fiber glass, i think it will sound great! I will probaly use polyfilly as well.

It was a hard time finding slim mount 10's

But i splurged a little and bought one of the nice alpine slims
BeerChameleon is offline   Quote Quick Reply
Old 03-01-2013, 11:49 AM   #28
Jeeper

JRoweMDN's Avatar

Join Date: Apr 2012
Location: Keystone Heights
Posts: 330
Can either of you give a review? I am really trying to decide between the stock enclosure and an 8" or going to this and a 10".
JRoweMDN is offline   Quote Quick Reply
Old 03-01-2013, 01:07 PM   #29
Jeeper

BeerChameleon's Avatar

Join Date: Jan 2013
Location: Tucson,AZ
Posts: 138
Quote:
Originally Posted by JRoweMDN View Post
Can either of you give a review? I am really trying to decide between the stock enclosure and an 8" or going to this and a 10".
I will review after I get it and install lol
BeerChameleon is offline   Quote Quick Reply
Old 09-19-2013, 12:49 AM   #30
Jeeper

VTBalla34's Avatar

Join Date: Nov 2012
Location: Alexandria, VA
Posts: 223
Bump. Any updates to that SSV console and 10" slim fit? I have been reading up on this all night, and had settled on the 6.5" Kicker before reading this thread, which moved me to an 8", then a 10" lol...really need to decide something soon.

I am going to take a leap and assume there is no room for a small amp inside of that box, so did you just mount it up in the back or under a seat or somewhere?

VTBalla34 is offline   Quote Quick Reply
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Jeep Wrangler Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




» Network Links
»Jeep Parts
» Featured Product

All times are GMT -5. The time now is 08:55 AM.



Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, and Grand Cherokee are copyrighted and trademarked to Chrysler Motors LLC.
Wranglerforum.com is not in any way associated with the Chrysler Motors LLC
