|02-19-2012 01:46 AM|
|tyler1234567||If i have a weber carb, would i benefit from the nuttering|
|02-19-2012 01:03 AM|
|02-18-2012 12:16 PM|
|VinceTj||does that work on a 2.5?|
|02-18-2012 12:15 PM|

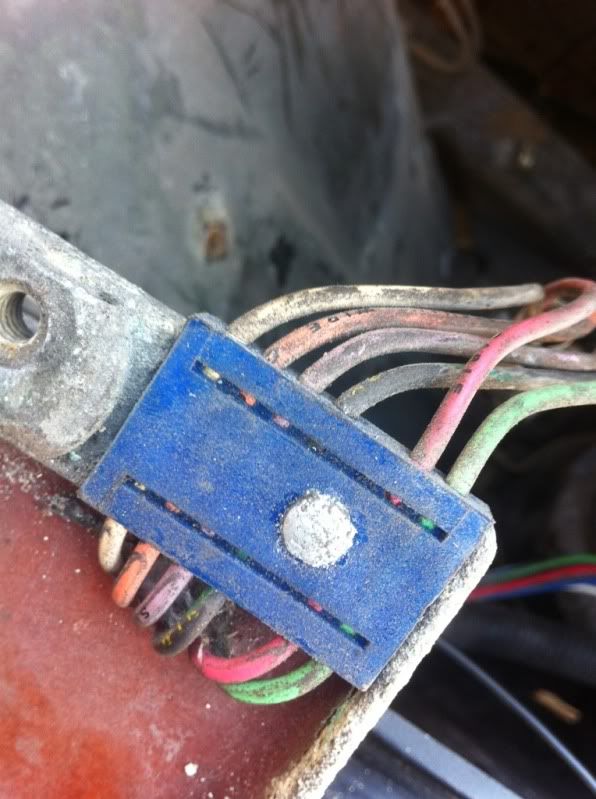

|1fast lorinser||I didn't see this in time and I attempted the nutter by pass and kinda guessed Nd tried to see what happened, so I connected the orange from the distributor to the really light orange wire u see in the picture, the first 1 on the left and then connected the purple from the distributor to the pinkish white wire u see in the picture, which is the 2nd wire from the left in the first picture and it started and ran pretty good, if I did the nutter bypass wrong, would the car still run? Now I'm worried that I did it wrong ?|
|02-18-2012 10:13 AM|
|shoepick||The differance that this bypass made on my 89 is night and day. Top end on the highway is 100% improvement and it has way better throtle response now.|
|02-18-2012 10:07 AM|
|Cavemans89YJ||It may not help you out any but on mine i actually changed out the icm to one from an 84 Ford F150. My dad just happened to have one laying around at his shop after i mentioned my problem to him and it had the purple and orange wire coming from it and it works fine . Just some FYI in case you know someone. I think most 80's model Fords have have it.|
|02-18-2012 10:04 AM|
|shoepick||I just did the nutter bypass on my 89 yesterday. The pic u have is the correct wires the purple wire from the dist. Needs to tie into the wire that goes into the plug in the picture but dosent come out the other side. On mine the orange wire changed colors on the other side of the plug, its green with a black stripe i just traced it over to were the wires go threw the firewall to the comp cut it there and hooked it up to the orange wire from the dist.|
|02-18-2012 09:19 AM|
|ljjp10||Are you sure you have the right set of wires? You should have 4 wires in and only 3 out.|
|02-17-2012 02:23 PM|
The last picture is the icm unbolted and flipped over to see if the colors showed better underneath but it's the same. Anyone?
|02-17-2012 02:09 PM|
I'm having the same issue right now. I'm working on the jeep right now and from the icm under the washer fluid there's only 1 orange wire 1 dark green wire 1 light green wire and 1 pinkish white wire ???? There is no purple ??
Can anyone help us out ???
|01-21-2012 08:27 PM|
|ethomas||If you have the 4.2 do the HEI DISTRIBUTOR swap mine runs like a beast now|
|01-19-2012 09:07 PM|
|Cavemans89YJ||its not just purple like all the pictures show, should it have a green stripe on it?|
|01-19-2012 08:55 PM|
|scott howard||the org and purple on the icm|
|01-19-2012 07:31 PM|
nutter bypass question. please help!
im trying to do the nutter bypass on my 89 yj. the step by step picture shows an orange, purple, black and blue wire coming out of the ignition control module but i have a orange, green, blue, and either purple and green or black and green wires(hard to see at night). i've got the orange and purple traced from the distributor i just need to know which 2 coming from the icm to splice to? please help!
