07-15-2014 12:13 PM
chargermop
Quote:
Originally Posted by WaltA View Post

Best Buy can re-program/flash the computer to enable the rear camera (XAC)?
Dont bother they can't this is a dealer only.
07-15-2014 06:08 AM
WaltA
Quote:
Originally Posted by laollis View Post
Lithia seems high to me. Best Buy says they do it for $75.00. hmm...
Best Buy can re-program/flash the computer to enable the rear camera (XAC)?
07-14-2014 09:15 PM
KPM171
Quote:
Originally Posted by basecamper View Post
Perfect thanks!! Great build blog, love your Jeep! I stole your tweeter mod as well and have ordered all the parts for both mods.
Thanks man! Feel free to PM me if you get stuck or have any questions. Oh, and I can't take credit for the tweeter mod. That was all Pressurized, but it's a good one.


Quote:
Originally Posted by ltlbigfoot View Post
Sorry of this is a dumb question I'm confusing myself reading all this stuff and now I'm over thinking it all-
If I have a 430N and just picked up a
My Gig Lock Pick for another member here do I still need any of this other stuff besides the back up camera itself???
If you have a MyGig LockPick, I believe you can skip the part about going to the dealership & the harness with the camera connection should have come with the MyGig LockPick. So, all you really need is the camera itself. This all comes from personal research as I don't have a LockPick, so anyone that has one feel free to chime in and correct me if I've misspoken.
07-14-2014 09:09 PM
ltlbigfoot Sorry of this is a dumb question I'm confusing myself reading all this stuff and now I'm over thinking it all-
If I have a 430N and just picked up a
My Gig Lock Pick for another member here do I still need any of this other stuff besides the back up camera itself???
07-14-2014 09:03 PM
basecamper
Quote:
Originally Posted by KPM171 View Post
The camera kit I used (listed below) came with an RCA cable long enough (16.5') to get from the head unit to the mounting location. The only part you haven't listed is the video retention cable that connects the RCA video feed to the back of the head unit. If you have that, you should be all set. Good luck!

Amazon.com : 1/4" CCD Flush Mount Waterproof Truck Car Reverse Backup Rear View Camera : Vehicle Backup Cameras : Car Electronics

Amazon.com: PAC CHYRVD Rear Video Retention Cable For Select Chrysler/Dodge/Jeep Vehicles: Car Electronics
Perfect thanks!! Great build blog, love your Jeep! I stole your tweeter mod as well and have ordered all the parts for both mods.
07-14-2014 08:59 PM
KPM171
Quote:
Originally Posted by Bent jeep View Post


Holy cow.

230 for the module. 65 for the harness and 85 for the camera?...

Almost 400 dollars for a backup camera? Am I looking at the wrong equipment?
$11 for the camera - 1/4" CCD Flush Mount Waterproof Backup Camera

$25 for the retention cable - PAC CHYRVD Rear Video Retention Cable

Plus whatever it costs you to get the dealership to flash your CPU.
07-14-2014 08:55 PM
KPM171
Quote:
Originally Posted by basecamper View Post
KPM171 So other than a camera, Dealer Flash, camera mount, and these two parts what else if anything is required? Do you need a RCA cable long enough to go from back of jeep to the radio? 15'

Thanks in advance for all the info here and on your blog!!
The camera kit I used (listed below) came with an RCA cable long enough (16.5') to get from the head unit to the mounting location. The only part you haven't listed is the video retention cable that connects the RCA video feed to the back of the head unit. If you have that, you should be all set. Good luck!

1/4" CCD Flush Mount Waterproof Backup Camera

PAC CHYRVD Rear Video Retention Cable
07-14-2014 08:36 PM
Bent jeep

Holy cow.

230 for the module. 65 for the harness and 85 for the camera?...

Almost 400 dollars for a backup camera? Am I looking at the wrong equipment?
07-14-2014 08:31 PM
laollis
Quote:
Originally Posted by KPM171 View Post
What exactly are they installing? If you are having them run the wiring to the back of the Jeep and get behind the dash for you in addition to flashing the CPU, that sounds like around $160 to me. Just guessing here.
Lithia seems high to me. Best Buy says they do it for $75.00. hmm...
07-14-2014 07:07 PM
basecamper
Quote:
Originally Posted by KPM171 View Post
Following up as promised... I helped a buddy wire up his camera to the 430N head unit in a 2013 Rubi using the Rear Video Retention Cable from amazon this weekend and it worked great!

Rear Video Retention Cable:
Amazon.com: PAC CHYRVD Rear Video Retention Cable For Select Chrysler/Dodge/Jeep Vehicles: Car Electronics

You do need to add a female to female RCA adapter to the harness to plug in the camera. It's available at any radio shack or you can pick it up here:
Amazon.com: C2G / Cables to Go 03169 RCA Female/Female Gold Coupler: Electronics
KPM171 So other than a camera, Dealer Flash, camera mount, and these two parts what else if anything is required? Do you need a RCA cable long enough to go from back of jeep to the radio? 15'

Thanks in advance for all the info here and on your blog!!
07-14-2014 03:18 PM
KPM171
Quote:
Originally Posted by laollis View Post
Lithia Dodge Jeep wants $160.00 to install and I have to drill my own hole in the bumper.
What exactly are they installing? If you are having them run the wiring to the back of the Jeep and get behind the dash for you in addition to flashing the CPU, that sounds like around $160 to me. Just guessing here.
07-14-2014 03:15 PM
laollis Lithia Dodge Jeep wants $160.00 to install and I have to drill my own hole in the bumper.
07-14-2014 10:44 AM
KPM171
Quote:
Originally Posted by JKMigs View Post
What they charge?
I don't think I've gotten the same answer to that question from two people, but I believe it should be 0.5 labor hours or less. Some folks get it done for free, others get quoted an insane amount. I've found 0.5 labor hours to be a happy medium. At the current shop rate + tax, budget around $50 out the door.
07-14-2014 10:41 AM
JKMigs
Quote:
Originally Posted by KPM171 View Post
Yeah, the dealer had to flash the CPU to accept the XAC code to enable the back up camera feature on the factory head unit.
What they charge?
07-14-2014 10:24 AM
KPM171
Quote:
Originally Posted by JKMigs View Post
How did you get it to work? The dealer flash it?
Yeah, the dealer had to flash the CPU to accept the XAC code to enable the back up camera feature on the factory head unit.
07-14-2014 10:21 AM
JKMigs
Quote:
Originally Posted by KPM171 View Post
Following up as promised... I helped a buddy wire up his camera to the 430N head unit in a 2013 Rubi using the Rear Video Retention Cable from amazon this weekend and it worked great! Rear Video Retention Cable: Amazon.com: PAC CHYRVD Rear Video Retention Cable For Select Chrysler/Dodge/Jeep Vehicles: Car Electronics You do need to add a female to female RCA adapter to the harness to plug in the camera. It's available at any radio shack or you can pick it up here: http://amzn.com/B0002J1LDE
How did you get it to work? The dealer flash it?
07-14-2014 09:32 AM
KPM171
Quote:
Originally Posted by KPM171 View Post
I'll admit this isn't the exact cable I used, but it looks identical to it. I popped the 22 pin in the spare port on the back of the 430, used one of the attached RCA plugs for my camera feed, and covered up all the extra connectors with a little piece of foam (I hate rattles). No cutting or splicing needed. I'm picking up one of these to do a camera in another rubi. I'll let you guys know how it goes. And If I'm dead wrong on this, I'll fess up to that too. =)
Following up as promised... I helped a buddy wire up his camera to the 430N head unit in a 2013 Rubi using the Rear Video Retention Cable from amazon this weekend and it worked great!

Rear Video Retention Cable:
Amazon.com: PAC CHYRVD Rear Video Retention Cable For Select Chrysler/Dodge/Jeep Vehicles: Car Electronics

You do need to add a female to female RCA adapter to the harness to plug in the camera. It's available at any radio shack or you can pick it up here:
http://amzn.com/B0002J1LDE
07-13-2014 05:40 PM
laollis NavTool on sale 50% off. JEEP WRANGLER 2007-2013 NavTool video interfaces
07-04-2014 11:56 AM
Jaker jk
Quote:
Originally Posted by Ciampa View Post
Waste of money. How bad of a driver can you possibly be.

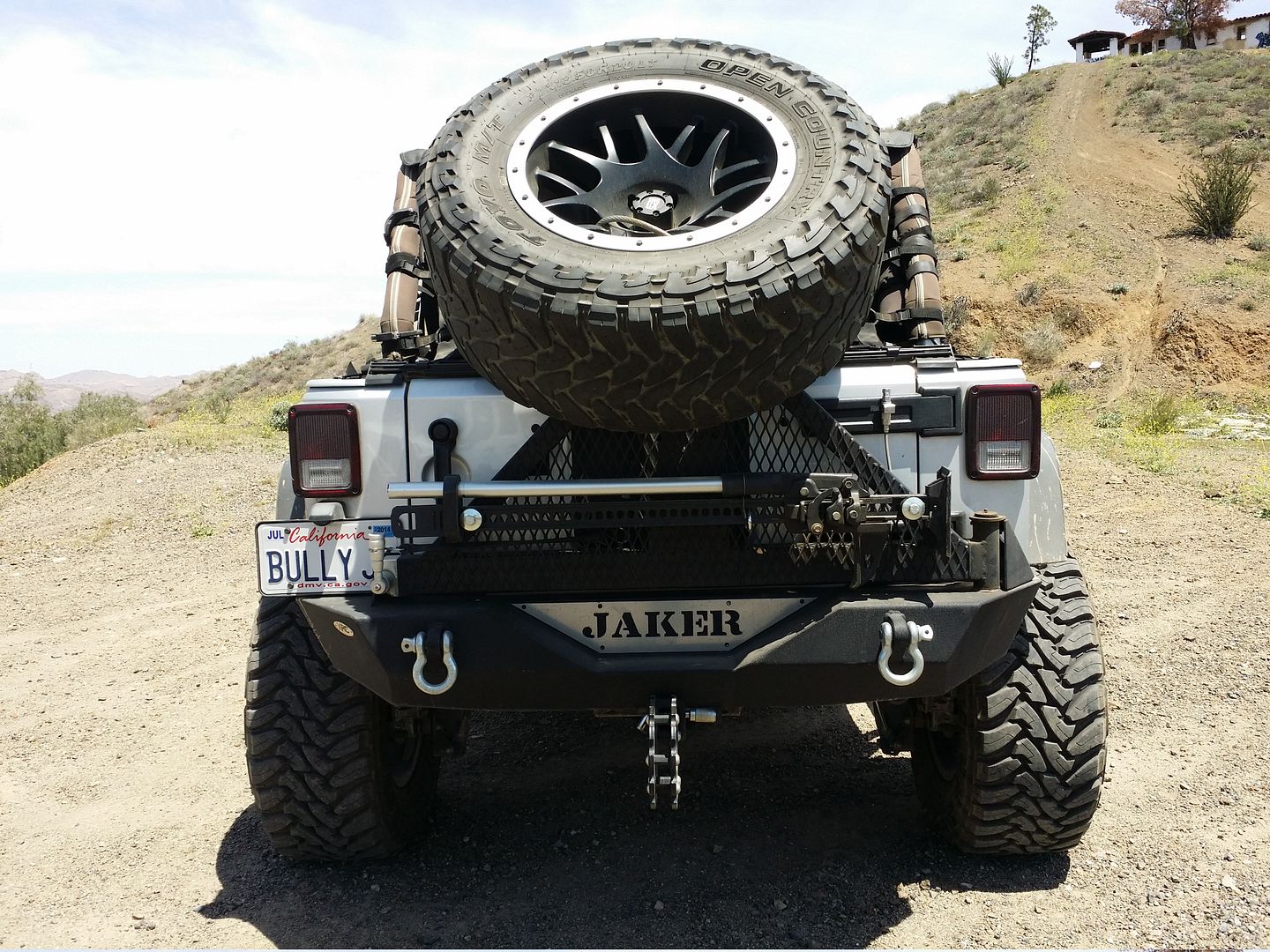

Having a BACKUP camera has nothing to do with driving , it has to do with backing up

I backup everywhere I park so being able to see my rear makes it a lot easier also having one helps when backing period

But it might be my fault since I put a tire in the way of the rear window


07-04-2014 10:48 AM
chargermop
Quote:
Originally Posted by WaltA View Post

If one actually ever actually drove a Wrangler, one would know that there is a spare tire out back that blocks the view.
Especially when you hang a giant 35 or 37 of the back it becomes a little interesting to backup.
07-04-2014 10:46 AM
WaltA
Quote:
Originally Posted by Ciampa View Post
Waste of money. How bad of a driver can you possibly be.
If one actually ever actually drove a Wrangler, one would know that there is a spare tire out back that blocks the view.
07-04-2014 10:20 AM
Ciampa Waste of money. How bad of a driver can you possibly be.
07-04-2014 10:18 AM
cprsac
Back it up!

Quote:
Originally Posted by happyfirst View Post
The sensor system is a complete aftermarket self contained kit. It doesn't integrate with the car at all. It comes with 4 sensors, a remote display/beeper, and a control box. I ran the wire for the display/beeper to the front, the control box is underneath that rear tray, and then everything plugs into the control box. The control box power is connected to the same wires as the backup camera.

A common complaint of a lot of these aftermarket rear sensor kits is that they beep when you are moving the transmission from park to drive and as you pass reverse, they let out a warning beep letting you know they are on. This one does it too. It's an easy fix with either a timer relay or a capacitor, but the beep doesn't bother me.
Thanks for the tip and the link on the backup sensor system. The beep when going through reverse is not a problem. At least you know it's working.
06-29-2014 06:16 PM
votoc
Quote:
Originally Posted by Bad_Dog View Post
How did you mount the camera?
I took some scrap metal and bent it into a box. Then used automotive double sided tape to attach everything.

Also the $55 was from oemautopartsco
06-28-2014 12:13 PM
WaltA
Quote:
Originally Posted by mmoffitt9241 View Post
I'm interested in your connector! Please message me.
Sorry too late. After a month, it finally sold. But thanks for your interest.
06-28-2014 07:38 AM
mmoffitt9241 I'm interested in your connector! Please message me.

Mike

Quote:
Originally Posted by WaltA View Post
In a moment of self-promotion, I guess I could mention this: http://www.wranglerforum.com/f14/av-...0n-718185.html



He had the dealer activate (unlock) it. That's what I did too.
06-26-2014 11:34 AM
JKmuder
Quote:
Originally Posted by JKMigs View Post

Where you find the Nav-TV cable for that price? Does it also unlock the DVD?
Search Amazon that's where I picked up the cam and cable.. free shipping
06-26-2014 06:06 AM
WaltA
Quote:
Originally Posted by JKMigs View Post
Where you find the Nav-TV cable for that price?
In a moment of self-promotion, I guess I could mention this: http://www.wranglerforum.com/f14/av-...0n-718185.html

Quote:
Originally Posted by JKMigs View Post
Does it also unlock the DVD?
He had the dealer activate (unlock) it. That's what I did too.
Quote:
Originally Posted by votoc View Post
... and then had the dealer activate the functionality.
06-25-2014 11:47 PM
JKMigs
Quote:
Originally Posted by votoc View Post
I purchased a camera for $15, the NAT-tv cable for $55 and then had the dealer activate the functionality. Attached is a picture of the mounting location. The camera works great!
Where you find the Nav-TV cable for that price? Does it also unlock the DVD?
06-25-2014 10:26 PM
Bad_Dog
Quote:
Originally Posted by votoc View Post
I purchased a camera for $15, the NAT-tv cable for $55 and then had the dealer activate the functionality.
Attached is a picture of the mounting location.
The camera works great!
How did you mount the camera?
