Another AZ JK

Greetings from Mesa, AZ! Although I'm new to the forum, I'm not new to Jeeps. My first was a CJ-7 in high school. Since then I've owned a few wranglers, a cherokee, and a grand cherokee.

Currently, I building up a JKU Sahara that I purchased new in 2008. It's been lifted about 3" using JKS adjustable spacers and an OME spring/shock kit. JKS front and rear trackbars, front swaybar disconnects, and rear swaybar endlinks have also been installed. It sits on 33" Nitto terra grapplers mounted to 17" black rhino wheels.

I tried the Banks CAI and exhaust, but have noticed little difference in the anemic output of the 3.8L... so, the next big step will be a 6.0L LS aiming for around 450hp/torque! It will be mated to a 6L80e tranny. Engine build under way, but it will be a while before it's installed.

Anyway, that's about it for now. Next interim upgrade will be a big brake kit. Looking forward to all the information the forum has to offer! Cheers!

JeepRad is offline   Quote
Old 05-30-2016, 02:19 PM   #2
::WF Moderator::

5-Year WF Supporting Member
WF Lifetime Member
::WF Moderator::

Old Dogger's Avatar

Join Date: May 2012
Location: AZ. In the Ponderosa Pine Country, where the Bears are hungry..
Posts: 26,102
to the Forum..

__________________
1974 CJ5, 2003 TJ, 2013 2 door Black Rubicon, auto, with 4.10 ratio.
Shaking at 40-70 MPH, Read this!!!

The Mighty Grizzly is not concerned,
with
the needs of the Hunter....


Click here and become a WF supporting Member
Old Dogger is online now   Quote
Old 05-30-2016, 02:23 PM   #3
I drive Papa Smurf

WF Lifetime Member
WF Supporting Member
::WF Moderator::

Pressurized's Avatar

Join Date: Jan 2014
Location: Gilbert, AZ
Posts: 13,834
Quote:
Originally Posted by JeepRad View Post
Greetings from Mesa, AZ! Although I'm new to the forum, I'm not new to Jeeps. My first was a CJ-7 in high school. Since then I've owned a few wranglers, a cherokee, and a grand cherokee.

Currently, I building up a JKU Sahara that I purchased new in 2008. It's been lifted about 3" using JKS adjustable spacers and an OME spring/shock kit. JKS front and rear trackbars, front swaybar disconnects, and rear swaybar endlinks have also been installed. It sits on 33" Nitto terra grapplers mounted to 17" black rhino wheels.

I tried the Banks CAI and exhaust, but have noticed little difference in the anemic output of the 3.8L... so, the next big step will be a 6.0L LS aiming for around 450hp/torque! It will be mated to a 6L80e tranny. Engine build under way, but it will be a while before it's installed.

Anyway, that's about it for now. Next interim upgrade will be a big brake kit. Looking forward to all the information the forum has to offer! Cheers!
Welcome to WF and stay out of the heat!!!
__________________
2006 LJ Rubicon - Solar Yellow - Very Stock'ish - The Press Casual LJ-R build
2012 JKU Sahara - Pro Comp LED Headlights - PRS Audio mod- SWS - GraBars - Bestop Cargo Cover
- Mopar 2" Frankenlift - Teraflex Falcon Shocks - RE TB/Brackets - JKS mount/Bilstein stabilizer -
Rugged Ridge XHD
bumper- Yukon Gears - G2 Diff Covers - Pro Comp 8186 - Milestar Patagonia 35's

- TORQ Locker - 1310 Driveshaft - PowerTrax Grip Pro - Full Core 4x4 Control Arms and Track Bars
Pressurized is online now   Quote
Sponsored Links
Advertisement

Old 05-30-2016, 04:01 PM   #4
Thank you Veterans

5-Year WF Supporting Member
WF Lifetime Member
::WF Moderator::

Beastmaster's Avatar

Join Date: Aug 2011
Location: The Old Pubelo
Posts: 41,335
Welcome to the forum from Tucson!

Here's a thread you may want to check out: How many members from Arizona and what do you drive?


Click here for tips to help you use the forum

_______
/l ,[____],
l---L -OlllllllO-
()_) ()_)--o-)_)
Beastmaster is offline   Quote
Old 05-30-2016, 08:40 PM   #5
JEEP OUT

5-Year WF Supporting Member

dabolt55's Avatar

Join Date: Jul 2011
Location: Clinton, Tn.
Posts: 19,096
Welcome to the forum, be sure and get your "JEEP OUT"...
__________________
Nothing to it but to do it.
SIMPLE AS THAT.

'04 TJ RUBICON, 4.0l auto... #JEEPOUT
2"BDS coils, Fox shocks, 33/12.50/15 yellowed out, Black steel D's.
JEEP OUT>> https://www.wranglerforum.com/f115/ge...l#post23475417
dabolt55 is offline   Quote
Old 05-30-2016, 09:21 PM
Thread Starter
  #6
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37

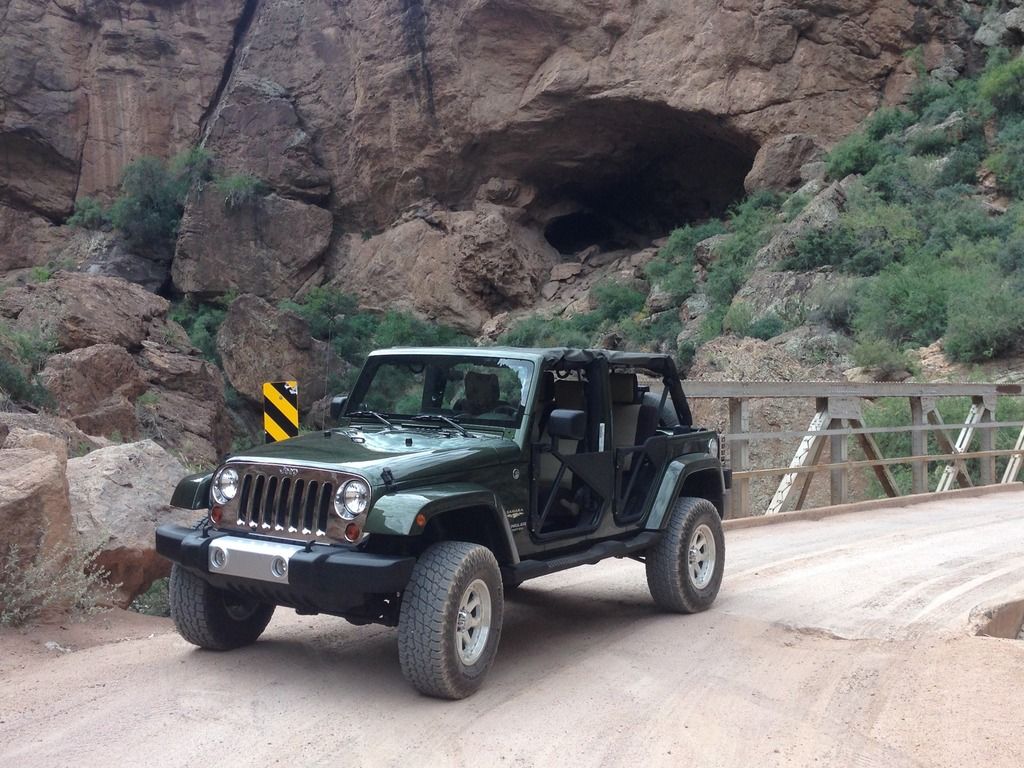

Thanks for the warm welcome! I'll post more pics when time permits.

[IMG][/IMG]
JeepRad is offline   Quote
Old 05-30-2016, 09:28 PM
Thread Starter
  #7
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37

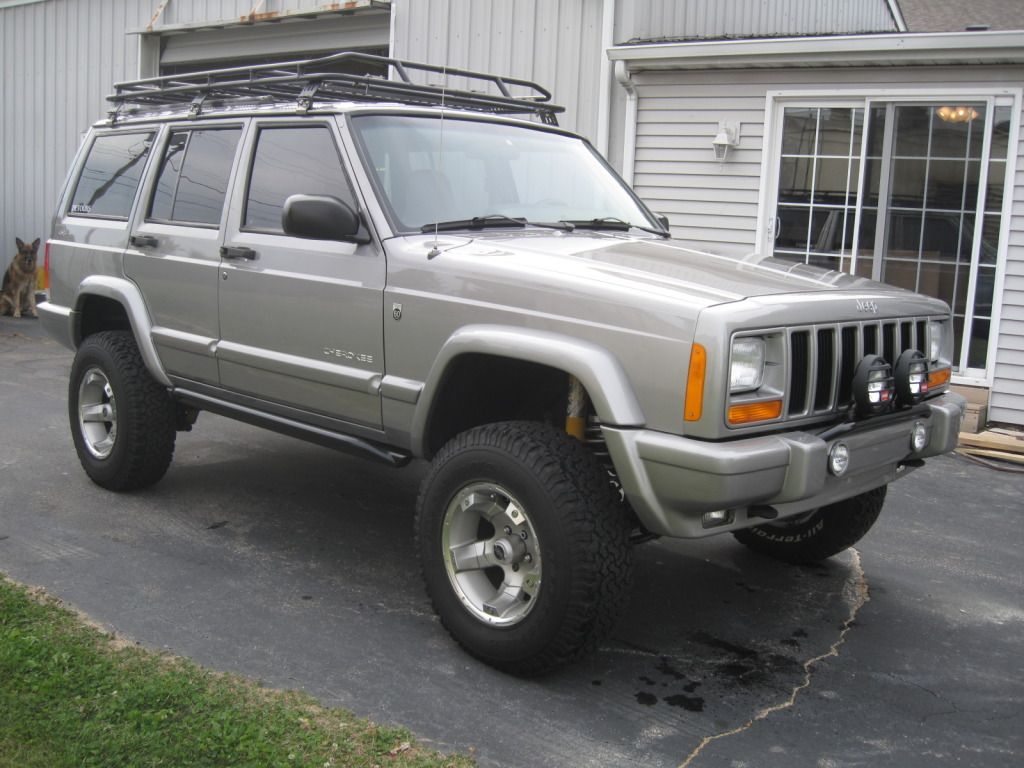

And just for fun... here is a pic of my 2001 XJ.

[IMG][/IMG]
JeepRad is offline   Quote
Old 05-31-2016, 03:52 AM   #8
Jeeper

MrSig's Avatar

Join Date: Aug 2011
Location: Davie, Fl
Posts: 33,442
and enjoy the forum!
__________________
07 JKUSR to see my mods or Jeep in action go to http://www.aaof.us/jeep.htm
CEO of Black Sheep 4x4s org,
Member of CCJ, White Jeep Club Member #137.
MrSig is offline   Quote
Old 10-01-2017, 11:14 AM
Thread Starter
  #9
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
Greetings all! So I left everyone hanging almost 1.5 years ago! Sorry about that! It took about a year for the 6.0L build and install. I've been driving it for about 3 months (2000 miles) and couldn't be happier. Had a few hiccups along the way, but the engine swap was definitely worth it. I will provide a few pics and some detail regarding the build, please ask any specific questions and I will do my best to answer.
JeepRad is offline   Quote
Old 10-01-2017, 11:21 AM
Thread Starter
  #10
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
Major vendors/suppliers:

My engine was built by Brooks Racing in Tempe, AZ, and installed by Richard Harp, working out of the same shop.

My LS swap kit was purchased from RPMextreme. Excellent customer service, these guys are topnotch!

Full custom exhaust (long tube headers to tailpipe, with magnaflow muffler) fabricated by Redline Performance Manufacturing in Mesa.

Driveshafts by Tom Woods in Utah.

I went with all new OEM GM(ACDelco) accessories.
JeepRad is offline   Quote
Old 10-01-2017, 11:37 AM
Thread Starter
  #11
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
Powerplant:



For the engine, we started with a new GM 6.0L block. Internals include:

Molnar 4" stroke crank
Molnar billet rods
JE Pistons
ARP main studs
Cam Motion custom ground cam (near stock, for drivability)
COMP Rocker arm trunion kit
Hardened Push Rods
GM rocker arms, lifters,

We also added RHS performance heads, 61# injectors, and (not pictured) the TrailBlazer SS intake and Throttle body.

The remaining engine parts and covers (oil pan, valve covers, etc.) were reused from a 4.8L LS that was given to me by a friend.
JeepRad is offline   Quote
Old 10-01-2017, 11:41 AM
Thread Starter
  #12
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
The transmission is a GM 6L80e (4x4) purchased used with 55k miles. The transfer case is original to the JK, and the adapter supplied in the swap kit by RPMextreme.

The engine build took appox 9 months. Brooks Racing moved to a new location part way thru my build which really delayed things. I am extremely happy with the final result, but it took far too long to get there.
JeepRad is offline   Quote
Old 10-01-2017, 11:47 AM
Thread Starter
  #13
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
A few build pics:

First step... body off, then out with the old 3.8L!





sorry for the poor quality, taken by my installer on his phone...
JeepRad is offline   Quote
Old 10-01-2017, 11:50 AM
Thread Starter
  #14
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37




JeepRad is offline   Quote
Old 10-01-2017, 11:52 AM
Thread Starter
  #15
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
a few more pics, including trans and driveshafts...





JeepRad is offline   Quote
Old 10-01-2017, 11:53 AM
Thread Starter
  #16
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37


JeepRad is offline   Quote
Old 10-01-2017, 11:56 AM
Thread Starter
  #17
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
So, with the tbss intake and larger injectors, it was necessary to replace the fuel pump. I don't have pics, but my installer modified a GM fuel pump to fit in the stock fuel tank to provide the necessary fuel for a very thirsty engine!
JeepRad is offline   Quote
Old 10-01-2017, 12:07 PM
Thread Starter
  #18
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
Because I live in the desert, we also decided to replace the original radiator/fan with a dual core aluminum radiator supplied by RPMextreme as well as the Pentastar fan. The radiator is excellent quality with inlets/outlets and mounting tabs already welded in the correct location for the swap.





JeepRad is offline   Quote
Old 10-01-2017, 12:21 PM
Thread Starter
  #19
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
With the body back on... it was off to RPM in Mesa for exhaust fabrication.





Left:



Right:

JeepRad is offline   Quote
Old 10-01-2017, 12:25 PM
Thread Starter
  #20
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
Exhaust installed!







JeepRad is offline   Quote
Old 10-01-2017, 12:31 PM
Thread Starter
  #21
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
Once the exhaust was complete, CAI installed and everything else buttoned up, it was sent to NicD tuning for the final tune.

so the results... my jeep dyno'd at:

435rwhp
430 lb ft torque

JeepRad is offline   Quote
Old 10-01-2017, 12:47 PM
Thread Starter
  #22
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
Overall a smooth process, although there were a few hiccups along the way...

1. At different times both the ecu and tcu required a reflash and had to be sent to RPMextreme, resulting in about 10 day turn around each time.

2. A few issues with hose fittings, etc. to be expected.

3. Even with the swap kit and parts to strip from the 4.8L LS, the additional parts required for the project was over 3 pages in length!


The first 2000 miles have been great! One mildly signficant failure, the input/output shaft speed sensor in the trans, which resulted in abnormal shift pattern and threw a check engine light. It never left me stranded tho.

Also, I overheated the battery. The alternator and electrical system checked out, so it was thought the most likely cause was a bad cell.

I was concerned about the underhood temps, being in Phoenix, so I went with the AEV heat reduction hood and love it!



JeepRad is offline   Quote
Old 10-01-2017, 12:49 PM
Thread Starter
  #23
Jeeper

Join Date: May 2016
Location: Mesa, AZ
Posts: 37
Also, wanted to thank quadratec, here on the forums for their help and supplying the hood, bumper, and rock rails. Thanks!!
