Bracket to move rear trackbar back 1"

Hey all - did a long arm lift on my 08 JK, and moved the axle back in the process. Now the trackbar does not line up front-to-back with the axle - it sits at an angle. I swear I saw that someone made a relocation bracket to move the frame-side back 1" to match, but can't seem to find that now - anyone know who makes one of those? (again - this is not for up and down angle (I have the axle side trackbar relocation bracket for that, but something to move the frame-side back about an inch.)

Thanks!

-randy

rrands1 is offline   Quote
Old 12-25-2015, 06:20 PM   #2
Jeeper

Tweak's Avatar

Join Date: Jan 2013
Location: Whidbey Island, WA
Posts: 6,202
If you can weld, it's not a huge deal to cut off the old one and weld on a new one. I got mine from ruffstuff.

__________________
Billet 2013 2 door
Dana 60 front, 14 Bolt rear, ARB's, 5.38's, 35 spline Yukon shafts, Reid Knuckles, 40" Comp Trepadors, 3 link front, triangulated 4 link rear, 14" coilovers front and rear, Tom Woods 1310 front, Adams 1350 rear, PSC Hydro assist, SuperWinch 9500,
https://www.wranglerforum.com/f314/t...ad-272841.html
Tweak is offline   Quote
Old 12-25-2015, 09:38 PM   #3
Jeeper

Unstuck 16's Avatar

Join Date: Aug 2015
Location: Fort Lauderdale, FL
Posts: 4,017
I moved my rear sway bar back about 1" by using the rear factory hole as the new front hole position and drilling a new rear hole and using a self tapping screw in the new location. As you can see in the pic below the pink area was covered by the old position, and you can see the old factory location on the left side.

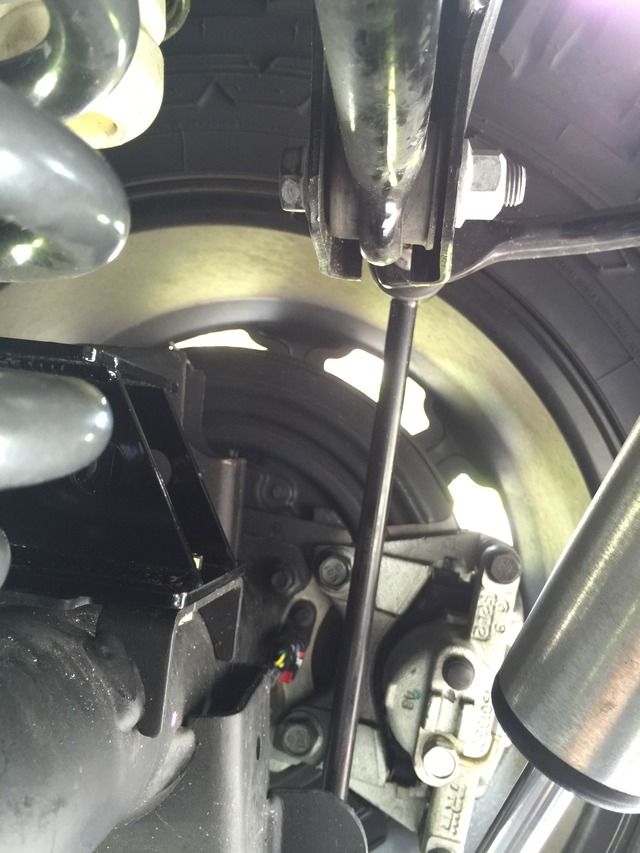

It brought my rear sway bar link angles from this (had AEV 3" bump stops)

To this (Rock Krawler angled 3" bump stops)
__________________
2016 JKU HR★AEV 3.5" DS RS★Rock Krawler Arms★Fuel Octane★Nitto Trail Grappler 35"★Adams 1310 D-Shafts★FOX ATS★TeraFlex TB★ARB Dif Covers★Gibson Exhaust★TeraFlex Hinge★TNT Sliders★JWS J-Series★JKS★Yeti DL&TR★MyGIGAir★Lukas★Viper5706★Maximus3★sPod★Rigid ★Springtail★Kicker★Genesis★Optima★Superchips TD2★Wilwood★ ★★★My Build★★★
Unstuck 16 is offline   Quote
Sponsored Links
Advertisement

Old 12-26-2015, 12:01 AM
Thread Starter
  #4
Newb

Join Date: Dec 2013
Posts: 14
Thanks, RoughStuff - I was actually asking about the TrackBar though, not the sway bar... I think I might want to move that also, but the people who did my long arm chinzed out on the labor and just bent my sway bar links instead of moving them like they should have done to do it right. (I am *not* happy about that, but did not know any better when they did it...)

Quote:
Originally Posted by Unstuck 16 View Post
I moved my rear sway bar back about 1" by using the rear factory hole as the new front hole position and drilling a new rear hole and using a self tapping screw in the new location. As you can see in the pic below the pink area was covered by the old position, and you can see the old factory location on the left side.


It brought my rear sway bar link angles from this (had AEV 3" bump stops)

To this (Rock Krawler angled 3" bump stops)
rrands1 is offline   Quote
Old 12-26-2015, 12:08 AM
Thread Starter
  #5
Newb

Join Date: Dec 2013
Posts: 14
Thanks - this is what I am trying to do - I might do that - what did you get from RuffStuff though? I can't see any kind of bracket from them for this on their site? I did find someone who made their own (my son welds, so this is a very good possibility) - here's the link: Finally my build thread 3.5" RK Lift w/ 40's.. - Page 14 - JKowners.com : Jeep Wrangler JK Forum
See post 239 for the pic.
rrands1 is offline   Quote
Old 12-26-2015, 12:09 AM
Thread Starter
  #6
Newb

Join Date: Dec 2013
Posts: 14
(Above post was for Tweak's response - thought it would put it under theirs, but it did not... )
rrands1 is offline   Quote
Old 12-26-2015, 12:36 AM   #7
Newb

Join Date: Dec 2015
Posts: 2
well,i got it,thank you
zaaftgi is offline   Quote
Old 12-26-2015, 01:45 AM   #8
WF Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

kjeeper10's Avatar

Join Date: Feb 2011
Location: Connecticut
Posts: 53,757
This is why i chose not to move my axle back 1".
Another option is to simply double shear of the stock bracket.
kjeeper10 is offline   Quote
Old 12-26-2015, 08:01 AM   #9
Jeeper

Unstuck 16's Avatar

Join Date: Aug 2015
Location: Fort Lauderdale, FL
Posts: 4,017
Thumbs up

Quote:
Originally Posted by rrands1 View Post
Thanks, RoughStuff - I was actually asking about the TrackBar though, not the sway bar... I think I might want to move that also, but the people who did my long arm chinzed out on the labor and just bent my sway bar links instead of moving them like they should have done to do it right. (I am *not* happy about that, but did not know any better when they did it...)
Hehee, I was half-asleep last night. Glad I can atleast help a little with the sway bar .
__________________
2016 JKU HR★AEV 3.5" DS RS★Rock Krawler Arms★Fuel Octane★Nitto Trail Grappler 35"★Adams 1310 D-Shafts★FOX ATS★TeraFlex TB★ARB Dif Covers★Gibson Exhaust★TeraFlex Hinge★TNT Sliders★JWS J-Series★JKS★Yeti DL&TR★MyGIGAir★Lukas★Viper5706★Maximus3★sPod★Rigid ★Springtail★Kicker★Genesis★Optima★Superchips TD2★Wilwood★ ★★★My Build★★★
Unstuck 16 is offline   Quote
Old 12-26-2015, 11:04 AM   #10
Jeeper

Tweak's Avatar

Join Date: Jan 2013
Location: Whidbey Island, WA
Posts: 6,202
Here is the one that I used. Be sure to check clearances and length of your trackbar before committing to that thought!

Frame Outside Panhard Bracket - RuffStuff Specialties

__________________
Billet 2013 2 door
Dana 60 front, 14 Bolt rear, ARB's, 5.38's, 35 spline Yukon shafts, Reid Knuckles, 40" Comp Trepadors, 3 link front, triangulated 4 link rear, 14" coilovers front and rear, Tom Woods 1310 front, Adams 1350 rear, PSC Hydro assist, SuperWinch 9500,
https://www.wranglerforum.com/f314/t...ad-272841.html
Tweak is offline   Quote
