Prime candidate for front sway bar links?

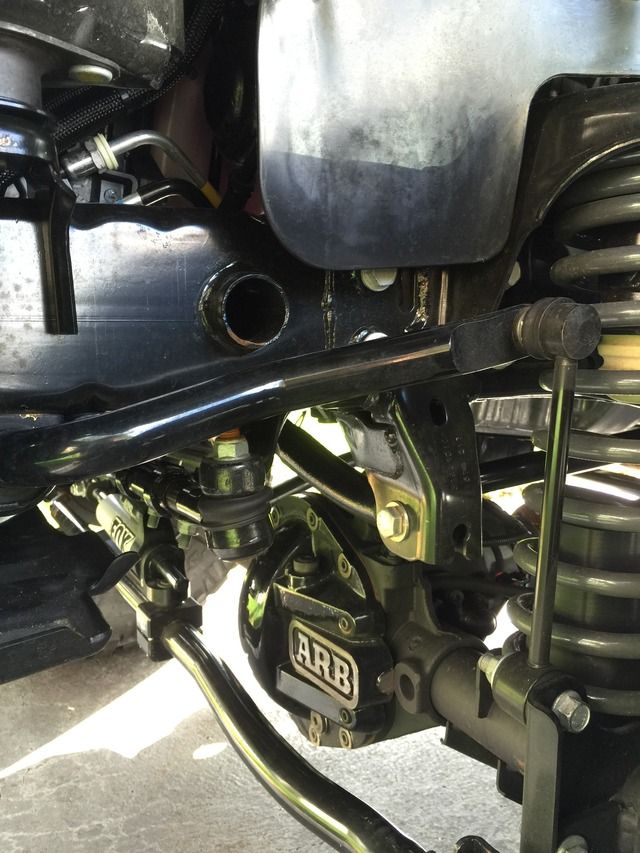

Looks like I should replace my front sway bar links, took the angle pro to them and I am about 10* angled up (pics below). I have the AEV 3.5" Duel Sport RS lift and I guess they replace the front links with the rears which appear to be to long.


Guess I will go with the JKS quick disconnects in the 2.5"-6" lift size to get my front sway bar back to level as possible.
JKS Manufacturing JKS2030 - JKS Manufacturing Quicker Disconnects™ for 07-16 Jeep® Wrangler & Wrangler Unlimited JK - Quadratec
Sound good? Oh Yea, Happy Thanksgiving!!

__________________
2016 JKU HR★AEV 3.5" DS RS★Rock Krawler Arms★Fuel Octane★Nitto Trail Grappler 35"★Adams 1310 D-Shafts★FOX ATS★TeraFlex TB★ARB Dif Covers★Gibson Exhaust★TeraFlex Hinge★TNT Sliders★JWS J-Series★JKS★Yeti DL&TR★MyGIGAir★Lukas★Viper5706★Maximus3★sPod★Rigid ★Springtail★Kicker★Genesis★Optima★Superchips TD2★Wilwood★ ★★★My Build★★★
Unstuck 16 is offline   Quote
Old 11-26-2015, 09:27 AM   #2
WF Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

kjeeper10's Avatar

Join Date: Feb 2011
Location: Connecticut
Posts: 53,757
10° up front is fine.

kjeeper10 is offline   Quote
Old 11-26-2015, 09:47 AM
Thread Starter
  #3
Jeeper

Unstuck 16's Avatar

Join Date: Aug 2015
Location: Fort Lauderdale, FL
Posts: 4,017
Quote:
Originally Posted by kjeeper10 View Post
10° up front is fine.
I'm actually about 10.75*. Hmm, thought JKS's site says 0* to 5* was what you were aiming for.
__________________
2016 JKU HR★AEV 3.5" DS RS★Rock Krawler Arms★Fuel Octane★Nitto Trail Grappler 35"★Adams 1310 D-Shafts★FOX ATS★TeraFlex TB★ARB Dif Covers★Gibson Exhaust★TeraFlex Hinge★TNT Sliders★JWS J-Series★JKS★Yeti DL&TR★MyGIGAir★Lukas★Viper5706★Maximus3★sPod★Rigid ★Springtail★Kicker★Genesis★Optima★Superchips TD2★Wilwood★ ★★★My Build★★★
Unstuck 16 is offline   Quote
Sponsored Links
Advertisement

Old 11-26-2015, 10:15 AM   #5
I drive Papa Smurf

WF Lifetime Member
WF Supporting Member
::WF Moderator::

Pressurized's Avatar

Join Date: Jan 2014
Location: Gilbert, AZ
Posts: 14,504
Quote:
Originally Posted by Unstuck 16 View Post
Looks like I should replace my front sway bar links, took the angle pro to them and I am about 10* angled up (pics below). I have the AEV 3.5" Duel Sport RS lift and I guess they replace the front links with the rears which appear to be to long.


Guess I will go with the JKS quick disconnects in the 2.5"-6" lift size to get my front sway bar back to level as possible.
JKS Manufacturing JKS2030 - JKS Manufacturing Quicker Disconnects™ for 07-16 Jeep® Wrangler & Wrangler Unlimited JK - Quadratec
Sound good? Oh Yea, Happy Thanksgiving!!


WAIT!!!! Just get rid of the AEV brackets and bolt the longer links to the factory holes.

Or get the premium disconnects and dump the brackets anyways...
__________________
2006 LJ Rubicon - Solar Yellow - Very Stock'ish - The Press Casual LJ-R build
2012 JKU Sahara - Pro Comp LED Headlights - PRS Audio mod- SWS - GraBars - Bestop Cargo Cover
- Mopar 2" Frankenlift - Teraflex Falcon Shocks - RE TB/Brackets - JKS mount/Bilstein stabilizer -
Rugged Ridge XHD
bumper - Yukon Gears - G2 Diff Covers - Pro Comp 8186 - Milestar Patagonia 35's - Teraflex BRK
- TORQ Locker - 1310 Driveshaft - PowerTrax Grip Pro - Full Core 4x4 Control Arms and Track Bars
Pressurized is offline   Quote
Old 11-26-2015, 10:21 AM
Thread Starter
  #6
Jeeper

Unstuck 16's Avatar

Join Date: Aug 2015
Location: Fort Lauderdale, FL
Posts: 4,017
Thx Guy!!
__________________
2016 JKU HR★AEV 3.5" DS RS★Rock Krawler Arms★Fuel Octane★Nitto Trail Grappler 35"★Adams 1310 D-Shafts★FOX ATS★TeraFlex TB★ARB Dif Covers★Gibson Exhaust★TeraFlex Hinge★TNT Sliders★JWS J-Series★JKS★Yeti DL&TR★MyGIGAir★Lukas★Viper5706★Maximus3★sPod★Rigid ★Springtail★Kicker★Genesis★Optima★Superchips TD2★Wilwood★ ★★★My Build★★★
Unstuck 16 is offline   Quote
Old 11-26-2015, 10:34 AM   #7
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,919
or better yet add some flexlinks with yellow springs and adust them where you want them. I think if you remove the brackets you will be a little short. you could drill a hole lower on the bracket if it bothers you but as jkeeper said wont hurt being high.

I think pressurized and I both hate the aev brackets equally.
__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 11-26-2015, 11:36 AM   #8
Jeeper

Paul04tj's Avatar

Join Date: Oct 2012
Location: Shelby Twp. MI
Posts: 852
Go with the JKS and remove the brackets.
Then you can disconnect on the trail.
Even if you're not rock crawling and flexing, disconnecting really smooths out the ride.
__________________
Bright White 2 door soft top 6 speed MOAB..
Paul04tj is offline   Quote
Old 11-26-2015, 11:38 AM   #9
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,919
Quote:
Originally Posted by Paul04tj View Post
Go with the JKS and remove the brackets.
Then you can disconnect on the trail.
Even if you're not rock crawling and flexing, disconnecting really smooths out the ride.
while I agree, he does have electronic disconnects already.
__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 11-26-2015, 11:40 AM
Thread Starter
  #10
Jeeper

Unstuck 16's Avatar

Join Date: Aug 2015
Location: Fort Lauderdale, FL
Posts: 4,017
Quote:
Originally Posted by Pressurized View Post
WAIT!!!! Just get rid of the AEV brackets and bolt the longer links to the factory holes.

Or get the premium disconnects and dump the brackets anyways...
Quote:
Originally Posted by jadmt View Post
or better yet add some flexlinks with yellow springs and adust them where you want them. I think if you remove the brackets you will be a little short. you could drill a hole lower on the bracket if it bothers you but as jkeeper said wont hurt being high.

I think pressurized and I both hate the aev brackets equally.
The passenger side bracket relocates the track bar and the steering stabilizer.
__________________
2016 JKU HR★AEV 3.5" DS RS★Rock Krawler Arms★Fuel Octane★Nitto Trail Grappler 35"★Adams 1310 D-Shafts★FOX ATS★TeraFlex TB★ARB Dif Covers★Gibson Exhaust★TeraFlex Hinge★TNT Sliders★JWS J-Series★JKS★Yeti DL&TR★MyGIGAir★Lukas★Viper5706★Maximus3★sPod★Rigid ★Springtail★Kicker★Genesis★Optima★Superchips TD2★Wilwood★ ★★★My Build★★★
Unstuck 16 is offline   Quote
Old 11-26-2015, 11:44 AM   #11
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,919
Quote:
Originally Posted by Unstuck 16 View Post
The passenger side bracket relocates the track bar and the steering stabilizer.
I forgot about that on the 3.5-4.5" lifts. Like JKeeper says you are fine. If you are really anal (I am) you can get adjustable jks links or flexlink and get your 5* you are looking for. you can also grind down or swazall the tube thru the frame to keep it from hitting the swaybar. looks like yours already has made contact. you can redrill the bracket and lower the link on the bracket which should be easy too.
__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 11-26-2015, 11:44 AM   #12
Jeeper

Paul04tj's Avatar

Join Date: Oct 2012
Location: Shelby Twp. MI
Posts: 852
Oops, missed the Hard Rock part.
__________________
Bright White 2 door soft top 6 speed MOAB..
Paul04tj is offline   Quote
Old 11-26-2015, 12:22 PM
Thread Starter
  #13
Jeeper

Unstuck 16's Avatar

Join Date: Aug 2015
Location: Fort Lauderdale, FL
Posts: 4,017
Quote:
Originally Posted by jadmt View Post
I forgot about that on the 3.5-4.5" lifts. Like JKeeper says you are fine. If you are really anal (I am) you can get adjustable jks links or flexlink and get your 5* you are looking for. you can also grind down or swazall the tube thru the frame to keep it from hitting the swaybar. looks like yours already has made contact. you can redrill the bracket and lower the link on the bracket which should be easy too.
Yea, I noticed the contact with the tube sticking out of the frame. Was another reason for trying to lower the sway bar. I will be cutting or grinding the tube area, I think the shock housing could use a very small grind too.
__________________
2016 JKU HR★AEV 3.5" DS RS★Rock Krawler Arms★Fuel Octane★Nitto Trail Grappler 35"★Adams 1310 D-Shafts★FOX ATS★TeraFlex TB★ARB Dif Covers★Gibson Exhaust★TeraFlex Hinge★TNT Sliders★JWS J-Series★JKS★Yeti DL&TR★MyGIGAir★Lukas★Viper5706★Maximus3★sPod★Rigid ★Springtail★Kicker★Genesis★Optima★Superchips TD2★Wilwood★ ★★★My Build★★★
Unstuck 16 is offline   Quote
Old 11-26-2015, 12:42 PM   #14
I drive Papa Smurf

WF Lifetime Member
WF Supporting Member
::WF Moderator::

Pressurized's Avatar

Join Date: Jan 2014
Location: Gilbert, AZ
Posts: 14,504
Oh yes, forgot the 3.5 steering correction bracket...

You could do something like the Steinjagers and make them in to whatever length you wanted.

2007-2016 Wrangler JK
__________________
2006 LJ Rubicon - Solar Yellow - Very Stock'ish - The Press Casual LJ-R build
2012 JKU Sahara - Pro Comp LED Headlights - PRS Audio mod- SWS - GraBars - Bestop Cargo Cover
- Mopar 2" Frankenlift - Teraflex Falcon Shocks - RE TB/Brackets - JKS mount/Bilstein stabilizer -
Rugged Ridge XHD
bumper - Yukon Gears - G2 Diff Covers - Pro Comp 8186 - Milestar Patagonia 35's - Teraflex BRK
- TORQ Locker - 1310 Driveshaft - PowerTrax Grip Pro - Full Core 4x4 Control Arms and Track Bars
Pressurized is offline   Quote
Old 11-26-2015, 12:51 PM   #15
Jeeper

allrsdup's Avatar

Join Date: Oct 2009
Location: Sahuarita AZ
Posts: 257
i have the same lift and same exact issue i grinded the tubes on the frame so they dont clank. sound drove me nuts. i will be getting jks disconects and adjusting them down.
__________________
MC3.5" with Fox 2.0, kc ws brackets & led offroad lights, , smittybilt tailgate gear bags,17"mb tko wheels, 35x12.50 general grabber red letters, k&n air intake, rugged ridge hood latches. Olympic Boa rear bumper, Rugged Ridge Spartacus tire carrier.
build thread
https://www.wranglerforum.com/f314/al...d-1656049.html
allrsdup is offline   Quote
Old 11-26-2015, 01:46 PM   #17
Jeeper

Heynowwww's Avatar

Join Date: Sep 2014
Posts: 182
As others have mentioned I would get the JKS quicker disconnects or flex connects. My sway bar angle was high like yours and I noticed a difference when lowering. I can't comment on removing the brackets as I never had them installed.
