Old 01-23-2020, 10:27 PM
Thread Starter
  #1
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
So, just installed an AEV 2.5 lift and I have a question on the front brake line drop bracket.what's your's look like?) Is this how the cable for the sensor mounting is supposed to be routed?

The instructions were a bit vague and I haven't been able to see it clearly on paused videos or in zoomed photos....

This doesn't seem right...



Thanks all! I plan to make a post about the config I went with once I get the new wheels and tires tomorrow and get this figured out...

Thanks!
Dan

Attached Thumbnails
Click image for larger version

Name:	IMG_20200123_171630_1579836355906.jpg
Views:	28
Size:	156.7 KB
ID:	4197685   Click image for larger version

Name:	IMG_20200123_171623_1579836373005.jpg
Views:	29
Size:	144.4 KB
ID:	4197687

dmulk is offline   Quote
Old 01-23-2020, 11:43 PM   #2
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,490
If yours is a 2010 or older it looks right other than i would slide the slot into the slot on the bracket

__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 01-24-2020, 12:33 AM
Thread Starter
  #3
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Quote:
Originally Posted by jadmt View Post
If yours is a 2010 or older it looks right other than i would slide the slot into the slot on the bracket
Mine is a 2017...so newer.... Is it still right?

The directions said on 2011 and newer to separate and discard the brake line bracket at the foot of the shock. This definitely provided more brakeline slack....but the sensor wire is clipped to the brakeline and follows the same path....so....what have others done?

In other words.....the notch in the sensor wire doesn't appear to have the slack when following the brake line path. I think I would have to separate it a bit from the brake line to "free up" enough slack to get it to reach the slot....
dmulk is offline   Quote
Sponsored Links
Advertisement

Old 01-24-2020, 08:32 AM   #4
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,490
I have done several newer jk’s and do not use that bracket it is for the 2010 on down
dmulk likes this.
__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 01-24-2020, 08:41 AM   #5
Moderator

5-Year WF Supporting Member
WF Lifetime Member
::WF Moderator::

Join Date: Mar 2016
Location: Clear Spring, Md
Posts: 4,362
As jadmt said, the newer JK / JKUs have longer front brake lines and usually don't need the drop bracket at the frame. After separating the brake line from that bracket down by the base of the spring and shock you may want to invest in a pair of brackets from TeraFlex. They anchor the brake line and keep it from going somewhere it should not go (like into the spring or wheel / tire).
https://www.northridge4x4.com/part/b...ine-anchor-kit
dmulk, jadmt and DIRT BOY like this.
GuzziMoto is online now   Quote
Old 01-24-2020, 08:45 AM   #6
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,490
dmulk and Cummins_Powered like this.
__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 01-24-2020, 09:15 AM   #7
Jeeper

jdinny's Avatar

Join Date: May 2015
Location: In the woods, on a mountain, in NY
Posts: 2,542
I would not seperate the brake hose from the factory bracket.
Just pick up a set pf Pro Comp brake line drop brackets.
#90-7203, and 90-7204.

Makes for a nice clean install, and you do not have to fight to remove the OEM brackets.

dmulk, jadmt and BobTJ2006 like this.
__________________
'12 JK Gecko | AEV 2.5/wGCB's | 315 Cooper S/T MAXX | AEV Salta's | Enhanced sport rails | Trektop NX | Soft Doors | JW Speaker tail lights | M/T S1 bumper | Smitty X20-10 Comp | Factor 55 | Tactik HD spare carrier | ACE Halfback bumper | 4.10's | e-lockers | e-disconnect

ΜΟΛΩΝ ΛΑΒΕ!
jdinny is offline   Quote
Old 01-24-2020, 09:21 AM   #8
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,490
Quote:
Originally Posted by jdinny View Post
I would not seperate the brake hose from the factory bracket.
Just pick up a set pf Pro Comp brake line drop brackets.
#90-7203, and 90-7204.

Makes for a nice clean install, and you do not have to fight to remove the OEM brackets.

I wish had known about those I would have ordered a bunch. Definitely make life easier on installing. I love AEV suspensions but there are two areas they suck at and that is the way they have you do the front brake line on newer jks and the stupid swaybar link brackets.
dmulk, jdinny and DIRT BOY like this.
__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 01-24-2020, 09:25 AM   #9
Jeeper

Wild Weasel's Avatar

Join Date: Feb 2015
Location: Toronto
Posts: 1,856
I seem to recall only having a bracket in the back. Don't the AEV instructions say to zip-tie the lines to the shock body?

I didn't like that and eventually bought those holder gizmos from Teraflex.
dmulk likes this.
__________________
.
Wild Weasel is offline   Quote
Old 01-24-2020, 09:40 AM
Thread Starter
  #10
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Thumbs up

Quote:
Originally Posted by Wild Weasel View Post
I seem to recall only having a bracket in the back. Don't the AEV instructions say to zip-tie the lines to the shock body?

I didn't like that and eventually bought those holder gizmos from Teraflex.
They do, however they do not say anything about omitting the front drop brackets which now make sense. I need to see if the shop kept the lower OEM brake line mounts. I like the pro-comp drop brackets mentioned above.

Thank you all for the quick responses! As always, awesome pro knowledge base around here!

<D>
dmulk is offline   Quote
Old 01-24-2020, 09:55 AM   #11
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,490
Quote:
Originally Posted by dmulk View Post
They do, however they do not say anything about omitting the front drop brackets which now make sense. I need to see if the shop kept the lower OEM brake line mounts. I like the pro-comp drop brackets mentioned above.

Thank you all for the quick responses! As always, awesome pro knowledge base around here!

<D>
If the shop peeled the original brackets you are out of luck as they get destroyed. You would need new brake lines as the bracket is part of the brake line. just get the teraflex brake thing a ma bobs. They work great.
dmulk likes this.
__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 01-24-2020, 10:02 AM
Thread Starter
  #12
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Quote:
Originally Posted by GuzziMoto View Post
As jadmt said, the newer JK / JKUs have longer front brake lines and usually don't need the drop bracket at the frame. After separating the brake line from that bracket down by the base of the spring and shock you may want to invest in a pair of brackets from TeraFlex. They anchor the brake line and keep it from going somewhere it should not go (like into the spring or wheel / tire).
https://www.northridge4x4.com/part/b...ine-anchor-kit
Thanks guys! (and jadmt!) If I can't get the lower bracket to work (or it's mangled) I'll go with the TF brackets (I assume they are holding up well enough?)

<D>
dmulk is offline   Quote
Old 01-24-2020, 10:03 AM
Thread Starter
  #13
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Quote:
Originally Posted by jadmt View Post
If the shop peeled the original brackets you are out of luck as they get destroyed. You would need new brake lines as the bracket is part of the brake line. just get the teraflex brake thing a ma bobs. They work great.
Ok. Ordering now... Thank you!
dmulk is offline   Quote
Old 01-24-2020, 10:56 AM   #14
Jeeper

Cummins_Powered's Avatar

Join Date: Jan 2017
Location: Sacramento, CA
Posts: 1,817
Quote:
Originally Posted by dmulk View Post
Ok. Ordering now... Thank you!
Good call. I think they are a very good product, zero issues with mine paired with my Mopar lift.
dmulk likes this.
Cummins_Powered is online now   Quote
Old 01-24-2020, 11:21 AM
Thread Starter
  #15
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
I'm pretty sure I can get the shop to help with this but I might not want to wait for their time slot....so another question:

Since I need to re-route the brakeline/abs sensor bundle from in between the front of the shock and the spring to behind the rear of the shock in order to use these TF brackets, whats the easiest method for doing this?

I think it's pretty obvious that I would need to remove the bottom bolt from the shock, but will there be enough slack without touching the top mounting bolt of the shock to pull it away from the mount to pass the cables between the bottom of the shock and the mounting point? (I know on the passenger side the top mounting nut is a bit of a PITA).

Will I need to use my jack?

Thanks!
<D>
dmulk is offline   Quote
Old 01-24-2020, 11:28 AM   #16
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,490
yes jack your jeep up and put it no jack stands, remove the bottom shock bolt and drop the axle. If you have a helper just compress the shock and slide everthing underneath the shock. you can do it by yourself just be quick as the shock will decompress quickly. You do not have to touch the top bolt.
dmulk likes this.
__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 01-24-2020, 11:52 AM
Thread Starter
  #17
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Quote:
Originally Posted by jadmt View Post
yes jack your jeep up and put it no jack stands, remove the bottom shock bolt and drop the axle. If you have a helper just compress the shock and slide everthing underneath the shock. you can do it by yourself just be quick as the shock will decompress quickly. You do not have to touch the top bolt.

Excellent. Thank you. And I guess I *should* double confirm that moving the line from between the spring and shock to the back of the shock (between the back of the shock and the wheel well) is actually the right thing to do?

I was assuming because the AEV illustrations in their instructions show it routed between the shock and spring and most videos of the TF brackets show it routed behind the shock and "floating".

Thanks again for the patience and answering all my noob questions!

<D>
dmulk is offline   Quote
Old 01-24-2020, 11:59 AM
Thread Starter
  #18
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Ah.... actually.... here's a video that illustrates everything we have been talking about.



Thanks again guys! Really appreciate it!
<D>
dmulk is offline   Quote
Old 01-24-2020, 12:00 PM   #19
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,490

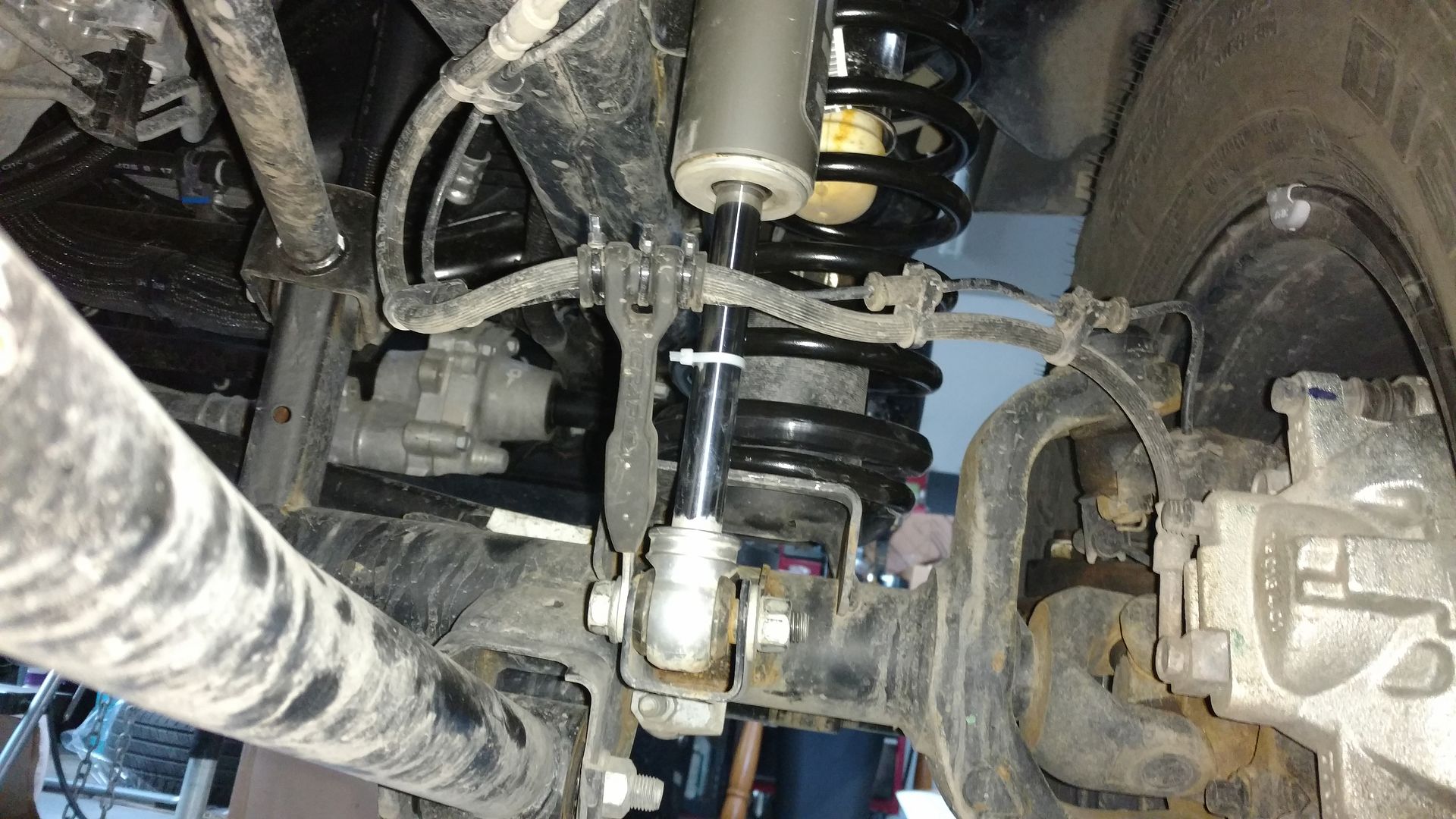

that is how I do it. Has always worked for me.
dmulk likes this.
__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 01-24-2020, 12:26 PM
Thread Starter
  #20
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Quote:
Originally Posted by jadmt View Post
that is how I do it. Has always worked for me.
Looks great! Thanks!
dmulk is offline   Quote
Old 01-24-2020, 02:02 PM   #21
Jeeper

Wild Weasel's Avatar

Join Date: Feb 2015
Location: Toronto
Posts: 1,856
Quote:
Originally Posted by dmulk View Post
They do, however they do not say anything about omitting the front drop brackets which now make sense.
https://www.aev-conversions.com/wp-c...Suspension.pdf

Step 8 under Front Suspension:
D. For 2011 or newer models, remove and discard factory bracket from the brake line

Step 10 c:
For 2007—2010 model year JKs install the front brake line drop brackets tightening to 8 ft lbs.
(2011 or newer refer to step 11)

Step 11:
For 2011 and newer models, use supplied zip ties to secure the brake line to the shock as shown
dmulk likes this.
__________________
.
Wild Weasel is offline   Quote
Old 01-24-2020, 02:26 PM
Thread Starter
  #22
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Yes, that's what I have. After re-reading it, it makes sense because it's implied. My point was that if it's called out specifically ("For 2011 and newer the front drop brackets are not used skip to step 11") there would be less chance that it could be misinterpreted (which is what happened in my case with the mechanic that completed that part of the install).

Either way, it's clear super clear now...

<D>



Quote:
Originally Posted by Wild Weasel View Post
https://www.aev-conversions.com/wp-c...Suspension.pdf

Step 8 under Front Suspension:
D. For 2011 or newer models, remove and discard factory bracket from the brake line

Step 10 c:
For 2007—2010 model year JKs install the front brake line drop brackets tightening to 8 ft lbs.
(2011 or newer refer to step 11)

Step 11:
For 2011 and newer models, use supplied zip ties to secure the brake line to the shock as shown
dmulk is offline   Quote
Old 01-24-2020, 03:17 PM   #23
Jeeper

jdinny's Avatar

Join Date: May 2015
Location: In the woods, on a mountain, in NY
Posts: 2,542
Quote:
Originally Posted by jadmt View Post
I wish had known about those I would have ordered a bunch. Definitely make life easier on installing. I love AEV suspensions but there are two areas they suck at and that is the way they have you do the front brake line on newer jks and the stupid swaybar link brackets.
That's for sure on that front brake line and brackets.
I agree, AEV makes an awesome product, but those sway bar extension brackets, really?
Those brake lines are a real bitch.
I did my JK before I found them. Stumbled across them before I did the wife's and son's JKUWW's.
dmulk likes this.
__________________
'12 JK Gecko | AEV 2.5/wGCB's | 315 Cooper S/T MAXX | AEV Salta's | Enhanced sport rails | Trektop NX | Soft Doors | JW Speaker tail lights | M/T S1 bumper | Smitty X20-10 Comp | Factor 55 | Tactik HD spare carrier | ACE Halfback bumper | 4.10's | e-lockers | e-disconnect

ΜΟΛΩΝ ΛΑΒΕ!
jdinny is offline   Quote
Old 01-26-2020, 11:59 AM   #24
Jeeper

Wild Weasel's Avatar

Join Date: Feb 2015
Location: Toronto
Posts: 1,856
There were a few tidbits of info I picked up before ordering my 2.5" AEV lift.

One was to get the geo brackets with it. The other was to get replacement rear sway bar links and then move the original rear ones to the front.

I later ended up getting quick-disconnects for the front so I've got Teraflex links all around now.
__________________
.
Wild Weasel is offline   Quote
Old 01-27-2020, 11:07 AM
Thread Starter
  #25
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Quote:
Originally Posted by Wild Weasel View Post
There were a few tidbits of info I picked up before ordering my 2.5" AEV lift.

One was to get the geo brackets with it. The other was to get replacement rear sway bar links and then move the original rear ones to the front.

I later ended up getting quick-disconnects for the front so I've got Teraflex links all around now.
Interesting. What lead you to replacing the rear swaybar links?

I just ordered a set of JKS adjustable front links to replace those goofy brackets.

<D>
dmulk is offline   Quote
Old 01-27-2020, 11:21 AM   #26
Moderator

WF Lifetime Member
WF Supporting Member
::WF Moderator::

jadmt's Avatar

Join Date: Sep 2012
Location: missoula
Posts: 21,490
Quote:
Originally Posted by dmulk View Post
Interesting. What lead you to replacing the rear swaybar links?

I just ordered a set of JKS adjustable front links to replace those goofy brackets.

<D>
with rear adjustable links you can set your rear swaybar at the perfect height. Not that it as important as in front it still gives me the warm and fuzzies.
dmulk likes this.
__________________
2018 Gobi Recon unlimited W/Mopar 2" lift coils combined with RK rear coils wedges, TF lower control arms, rear TF monster track bar and rear track bar bracket and Falcon 3.1 shocks, Cooper ST Maxx 315/75-17 on AEV Salta rims, Grabars, RE gas skid tank, mopar head liner, Warn VR10 and Maximus3 winch plate.
https://www.wranglerforum.com/f314/y...i-2192385.html
jadmt is offline   Quote
Old 01-27-2020, 01:06 PM   #27
Jeeper

Wild Weasel's Avatar

Join Date: Feb 2015
Location: Toronto
Posts: 1,856
Quote:
Originally Posted by dmulk View Post
Interesting. What lead you to replacing the rear swaybar links?
You want the arms to be more or less parallel to the ground. If you don't change them, they'll work well enough that AEV thought it was ok but it's still not ideal.

Since the original rear ones end up working well for the lifted front, getting proper-length rear ones solves both problems.

I can't honestly remember why I didn't end using the old rear ones in the front on mine. Do the instructions have you do the front first? If so, then that would explain it. Laziness. Since I wanted disconnects anyway I probably just couldn't be bothered to change them once it was back together.
dmulk likes this.
__________________
.
Wild Weasel is offline   Quote
Old 01-27-2020, 02:44 PM
Thread Starter
  #28
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Question

Thanks guys.....hmmm.....now I'm learning the whole JEEP = Just Empty Every Pocket....

Well....I'm now down the rabbit hole.... I had ordered those adjustable JKS front links to be able to ditch the brackets but now I'm thinking....why not have manual disconnects as a backup to the E-Disco... I have free returns to swap to a JKS manual setup.... any issues / negatives to going that route on a Rubicon so I can have both E-disco or manual in the event the e-disco starts acting up?

Also.... I had a guy give me a set of these....would they work in the rear (they are adjustable and seem to be in good shape?

Click image for larger version

Name:	MVIMG_20200125_154628.jpg
Views:	6
Size:	215.3 KB
ID:	4198629
dmulk is offline   Quote
Old 01-27-2020, 03:30 PM   #29
Moderator

5-Year WF Supporting Member
WF Lifetime Member
::WF Moderator::

Join Date: Mar 2016
Location: Clear Spring, Md
Posts: 4,362
Quote:
Originally Posted by dmulk View Post
Thanks guys.....hmmm.....now I'm learning the whole JEEP = Just Empty Every Pocket....

Well....I'm now down the rabbit hole.... I had ordered those adjustable JKS front links to be able to ditch the brackets but now I'm thinking....why not have manual disconnects as a backup to the E-Disco... I have free returns to swap to a JKS manual setup.... any issues / negatives to going that route on a Rubicon so I can have both E-disco or manual in the event the e-disco starts acting up?

Also.... I had a guy give me a set of these....would they work in the rear (they are adjustable and seem to be in good shape?

Attachment 4198629
That is a common way to go, using manual disconnects with the e-disco from a Rubicon. The e-diso works great for easier flexing, but for serious flexing it is good to actually disconnect the sway bar.
The key with links is the length. If the length is right they should work.
dmulk likes this.
GuzziMoto is online now   Quote
Old 01-27-2020, 04:02 PM
Thread Starter
  #30
Jeeper

dmulk's Avatar

Join Date: Nov 2011
Posts: 165
Gotcha, so I've ordered a set of these to replace the front "stock/AEV bracket" setup:

JKS 2035 Adjustable Links
https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1

But.... if I wanted to have a manual backup for the E-Disco....

Would this be the right one?:
JKS 2034

https://www.amazon.com/JKS-2034-Sway...omotive&sr=1-1

Thanks again. I'm going to end up owing a lot of you beer if we ever connect in real life....we'll likely need some sort of code word/secret hand shake or something...

<D>

dmulk is offline   Quote
Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off






All times are GMT -5. The time now is 12:25 PM.


Powered by vBulletin® Version 3.8.8
Copyright ©2000 - 2020, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.1
User Alert System provided by Advanced User Tagging v3.1.0 (Pro) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
vBulletin Security provided by vBSecurity v2.2.2 (Pro) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.

Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, Gladiator, Mopar and Grand Cherokee are copyrighted and trademarked to FCA US LLC.
Wranglerforum.com is not in any way associated with FCA US LLC.
