Arrow CB Mount

Anybody use the Rugged Ridge dash mount that puts your CB on the left side of your dash up top, by the door? I'm wondering how big of a CB it holds, including the wire plugs.

Rugged Ridge CB Radio Mounting Brackets 1355109 - Free Shipping on Orders Over $99 at Summit Racing

__________________
2002 TJ X
4.0, 4.5" Long Arm lift, FOX 2.0's, Tummy tucked, 35 KM2's, 456's D44 locked out back, Hp30 locked up front, custom bumpers and rock rails..
H8S PVMT is offline   Quote
Old 04-02-2016, 09:53 AM   #2
Jeeper

Join Date: Aug 2015
Location: Moore, OK
Posts: 335
I have been looking at that one and have the same questions as well.

Jeremy Martin is offline   Quote
Old 04-02-2016, 10:22 AM   #3
Jeeper

METT-TC's Avatar

Join Date: May 2015
Location: Vegas
Posts: 311
I do with a Uniden 520. That is about the limit of the size that can be used (520 is 4.5" wide and 6.75" deep). I took the original screw knobs (came with the Uniden) off and replaced with smaller bolts (simple swap at an Ace Hardware or comparable bolt store). I did this because the passenger side/right side bolt was hitting the plastic rise where the instrument cluster is). First pic shows the OEM knob, second the replacement bolts. Third/fourth pics shows the mount that comes for the mic.

Very easy install, stable, and I'm still a fan of it.







METT-TC is offline   Quote
Sponsored Links
Advertisement

Old 04-02-2016, 10:29 AM
Thread Starter
  #4
Jeeper

H8S PVMT's Avatar

Join Date: Apr 2014
Location: S.E. Michigan
Posts: 353
for your antenna did you have to use a 90* ? My ant. hook up is about an inch long on it's own.
__________________
2002 TJ X
4.0, 4.5" Long Arm lift, FOX 2.0's, Tummy tucked, 35 KM2's, 456's D44 locked out back, Hp30 locked up front, custom bumpers and rock rails..
H8S PVMT is offline   Quote
Old 04-02-2016, 11:09 AM   #5
Jeeper

METT-TC's Avatar

Join Date: May 2015
Location: Vegas
Posts: 311
I didn't. A 90 degree would work better, but the straights will work good enough (mine). Mine sounds like your's (a inch or so of coupling/unusable).

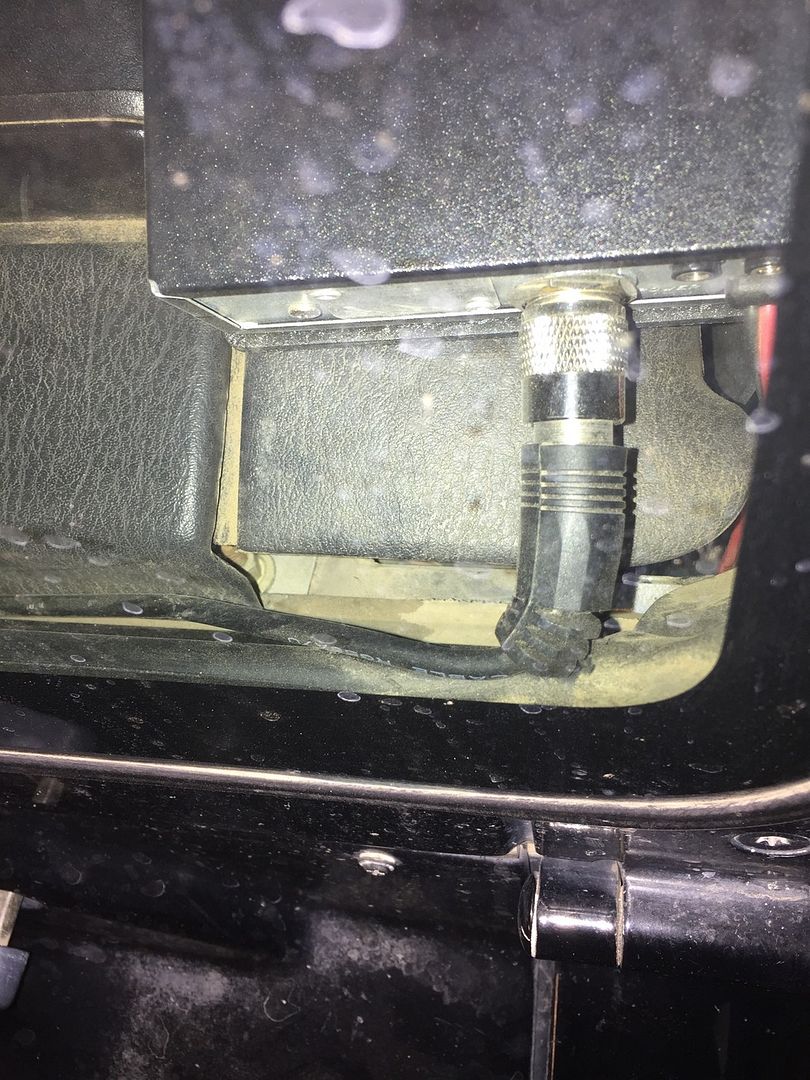

Edit: photo added (crap quality-flash + rain spots).
