Non body lift Tummy Tuck

Has anyone made a custom TT without installing a BL ? Anyone used the UCF non BL kit, or other manufacturers ? UCF says gains 2" clearance over stock w/no BL. Thoughts, pictures ? Thanks

C.Rohr is offline   Quote
Old 11-08-2015, 03:04 PM   #2
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 8,952
what's your objection to the BL?

if you want to raise the t-case up, you need to make room somehow...a BL is generally the easiest thing to accomplish the clearance needed.

__________________
Suggested Tech Readings
UnlimitedLJ04 is offline   Quote
Old 11-08-2015, 04:52 PM   #3
Jeeper

Join Date: Jan 2015
Location: Reno, NV
Posts: 315
'the Nth degree TT instructions say its possible. You would have clearance issues with the top of the trans and the pinch weld at the body seams. (They say to bend the weld with impact technology). I was going to try it however I got a good deal on a 1" BL from Amazon. Also found a 1" motor mount lift and did that as well. My tummy tucker project is nearing completion!
Loadedjeep is offline   Quote
Sponsored Links
Advertisement

Old 11-08-2015, 05:34 PM
Thread Starter
  #4
Jeeper

Join Date: Dec 2013
Location: Southeastern Ohio
Posts: 30
Quote:
Originally Posted by Loadedjeep View Post
'the Nth degree TT instructions say its possible. You would have clearance issues with the top of the trans and the pinch weld at the body seams. (They say to bend the weld with impact technology). I was going to try it however I got a good deal on a 1" BL from Amazon. Also found a 1" motor mount lift and did that as well. My tummy tucker project is nearing completion!
Are you fabricating your own or, any pics ?
C.Rohr is offline   Quote
Old 11-08-2015, 05:42 PM
Thread Starter
  #5
Jeeper

Join Date: Dec 2013
Location: Southeastern Ohio
Posts: 30
Quote:
Originally Posted by UnlimitedLJ04 View Post
what's your objection to the BL?

if you want to raise the t-case up, you need to make room somehow...a BL is generally the easiest thing to accomplish the clearance needed.
Not necessarily looking to raise the transfer, just that godawful skid (probably 2 1/2" between the two) ! Anyone done this ?
C.Rohr is offline   Quote
Old 11-08-2015, 06:09 PM   #6
Jeeper

Join Date: Jan 2015
Location: Reno, NV
Posts: 315
Quote:
Originally Posted by C.Rohr View Post
Are you fabricating your own or, any pics ?
Not fabing my own. I got a great deal on the TT on another forum. Now I have a 2" suspension lift, 1" body lift, and a 1" motor mount lift. I still need the auto trans mount for the TT and I am going to modify my transfer case linkage with the teraflex linkage kit (tera 4947100)

Don't be afraid of the body lift. I'm on 31's and its not going to be that tall (21" to the bottom of the sliders). The body lift looks almost stock. Great for a guy with short legs. I was told that the motor mount lift isn't required, it just decreases your pinion angle when your all done. You will still probably need the SYE kit for your Transfer case and a CV driveline.

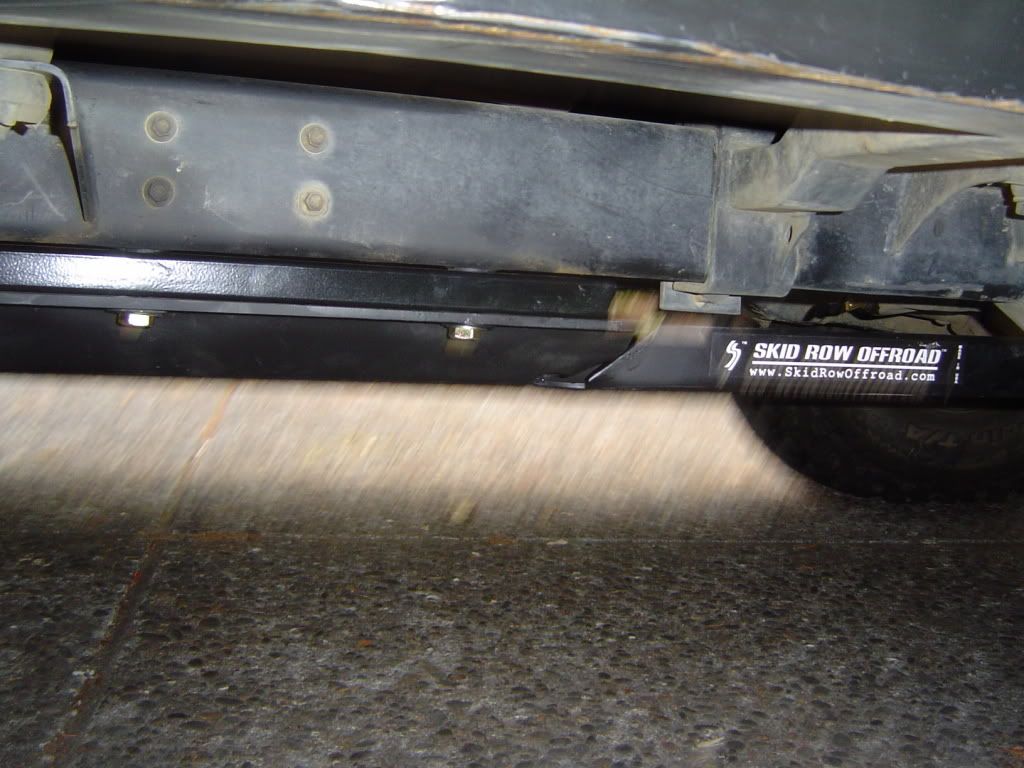

after daystar 1' body lift and brown dog 1" motor mount lift:






new to me nth degree tt plate:
Loadedjeep is offline   Quote
Old 11-08-2015, 06:30 PM   #7
Mostly old school..!

5-Year WF Supporting Member

Water Dog's Avatar

Join Date: Mar 2011
Location: Now searching for rocks in Sumner, TX
Posts: 12,149
Here's the UCF skid on mine with a 1" body lift. As mentioned above, nothing wrong with a small bl to get some clearance under the Jeep. This picture was taken before I added 35" tires.
Attached Thumbnails
Click image for larger version

Name:	TT 4.jpg
Views:	191
Size:	65.8 KB
ID:	2610497
__________________
Dennis
Water Dog is offline   Quote
Old 11-08-2015, 06:33 PM   #8
Jeeper

Join Date: May 2013
Location: Westchester, IL
Posts: 6,220
Quote:
Originally Posted by C.Rohr View Post
Not necessarily looking to raise the transfer, just that godawful skid (probably 2 1/2" between the two) ! Anyone done this ?
you cant change one without changing the other unless you change the trans mount to a lopro

what trans and tc do you have?
Ironhead Jed is offline   Quote
Old 11-08-2015, 10:20 PM
Thread Starter
  #9
Jeeper

Join Date: Dec 2013
Location: Southeastern Ohio
Posts: 30
Auto 32c, 231 transfer. My thoughts are: lo pro mount with skid formed around & up tighter to frame. I've been all over and haven't really seen what I'm thinkin. Right now leaning toward UCF mostly due to price (I've got a lot of other mods on the short list)! Thanks for all the input & pics.
C.Rohr is offline   Quote
Old 11-08-2015, 10:54 PM   #10
Jeeper

IslandTJ's Avatar

Join Date: Mar 2008
Location: where I wheel: N 45º 36.663' W 123º 20.935'
Posts: 3,136
Running a tummy tuck without a body lift is as easy as a transfer case skid spacer...

__________________
1998 TJ Moss Green Sahara w/ numerous scratches & dents whose playground is on a tropical island that's 33 miles long and 4-12 miles wide, in year-round 82 degree weather

Edit: "Now jeepin in Oregon"
IslandTJ is offline   Quote
Old 11-08-2015, 11:05 PM
Thread Starter
  #11
Jeeper

Join Date: Dec 2013
Location: Southeastern Ohio
Posts: 30
Quote:
Originally Posted by IslandTJ View Post
Running a tummy tuck without a body lift is as easy as a transfer case skid spacer...

Seems like that kinda defeats the whole purpose ?
C.Rohr is offline   Quote
Old 11-08-2015, 11:07 PM   #12
Jeeper

IslandTJ's Avatar

Join Date: Mar 2008
Location: where I wheel: N 45º 36.663' W 123º 20.935'
Posts: 3,136
It was temporary until my SYE was purchased and installed. It worked though...
__________________
1998 TJ Moss Green Sahara w/ numerous scratches & dents whose playground is on a tropical island that's 33 miles long and 4-12 miles wide, in year-round 82 degree weather

Edit: "Now jeepin in Oregon"
IslandTJ is offline   Quote
Old 11-09-2015, 06:35 AM   #13
Jeeper

UnlimitedLJ04's Avatar

Join Date: Aug 2010
Posts: 8,952
Quote:
Originally Posted by C.Rohr View Post
Seems like that kinda defeats the whole purpose ?
but you just said:

Quote:
Originally Posted by C.Rohr View Post
Not necessarily looking to raise the transfer, just that godawful skid (probably 2 1/2" between the two) ! Anyone done this ?
if you're not looking to raise the raise the t-case, why are you criticizing his tummy tuck - he got rid of the godawful stock skid, but he didn't raise the t-case.

what do you want? do you want to raise the t-case or not? If not, then you can get a tummy tuck and add a big t-case drop.

if you want to raise the skid, you're going to have to change your objection to a BL....or get good at sheet metal work and spend a lot of time/money modifying the tunnel.
__________________
Suggested Tech Readings
UnlimitedLJ04 is offline   Quote
Old 11-09-2015, 11:32 PM
Thread Starter
  #14
Jeeper

Join Date: Dec 2013
Location: Southeastern Ohio
Posts: 30
Quote:
Originally Posted by UnlimitedLJ04 View Post
but you just said:



if you're not looking to raise the raise the t-case, why are you criticizing his tummy tuck - he got rid of the godawful stock skid, but he didn't raise the t-case.

what do you want? do you want to raise the t-case or not? If not, then you can get a tummy tuck and add a big t-case drop.

if you want to raise the skid, you're going to have to change your objection to a BL....or get good at sheet metal work and spend a lot of time/money modifying the tunnel.
I think you misread the tone of my reply, not criticizing by any means. I was
asking an honest question. Was there any ground clearance at the skid actually gained after dropping it ? His next reply about being temporary made perfect sense. I know I'm talking major fabrication work, that's why I'm wondering if anyone else has tried. Thanks
C.Rohr is offline   Quote
Old 11-10-2015, 11:51 AM   #15
Jeeper

Alley Oop's Avatar

Join Date: May 2014
Location: Redlands, Ca.
Posts: 916
I did my UCF tummy tuck before I did my lift. I lifted the motor and body to make things work right. But when I put my 3.5" lift on I got what more lift than I was expecting, and ended up lowering the UCF skid by a few washers to get rid of some vibes. See picture below. Over all the tummy tuck still performs as supposed to. It's just not quite as high. To tell the truth I kind of like lowering the tranny/transfer case down some. It helps to lower the passenger foot well tempeture.
Attached Thumbnails
Click image for larger version

Name:	image.jpg
Views:	158
Size:	206.0 KB
ID:	2614433
__________________
It's not a toy to me,,,it's a fricken piece of survival equipment !

It's not just a vehicle with big tires and a winch and fold down top and removable doors, that's what a jeep has, but what a jeep is..... is FREEDOM !

I take the long way home...
Alley Oop is offline   Quote
Old 11-10-2015, 11:55 AM   #16
Jeeper

Alley Oop's Avatar

Join Date: May 2014
Location: Redlands, Ca.
Posts: 916
To continue, my TJ still has some pretty good ground to frame clearance.
Attached Thumbnails
Click image for larger version

Name:	image.jpg
Views:	143
Size:	229.3 KB
ID:	2614465
__________________
It's not a toy to me,,,it's a fricken piece of survival equipment !

It's not just a vehicle with big tires and a winch and fold down top and removable doors, that's what a jeep has, but what a jeep is..... is FREEDOM !

I take the long way home...
Alley Oop is offline   Quote
Old 11-10-2015, 12:28 PM   #17
Jeeper

JFjeld's Avatar

Join Date: Dec 2012
Location: Frederick, CO
Posts: 635
I recently installed the UCF UHC skid. You can likely either go LoPro mount OR use a 1" BL. I already had the body lift and, frankly, didn't want to use the LoPro, as it was more expense and has to be modified for use anyway. A 1" BL gives you just the added clearance so you don't have to modify your tunnel. A lot of folks use a 1" or 1.25" BL in conjunction with their suspension lift and other modifications. Its extremely easy to install.

Here's my setup. You can see that its pretty tight in there and that with the TT, the T-case is shoved up against the tunnel, which is where the body lift comes in-handy:



__________________
2001 2.5L TJ, HPD30/D44 with dual OX and 4.88, full armor, X20-8 winch, 35" STTs on TMI beadlocks, 1" BL, 1" Brown Dog MML, 4.5" suspension w/ fully adjustable control arms and tie rod upgrade, OBA, Novak Shifter, PS hood louver, Teraflex ESS SYE, UCF UHC tummy tuck, Adams Driveshaft
JFjeld is offline   Quote
Old 11-10-2015, 05:38 PM   #18
Jeeper

my996duc1's Avatar

Join Date: Mar 2013
Location: SoCal
Posts: 997
I did the LoPro mount and the UCF skid with no body lift.
Works great with zero issues. I would Call UCF and they can get you setup.

If you decide to do a body lift I would look into Savvy. They make some nice stuff.

Mine isn't flush but it is tucked as high as it can go without a body lift.
The case sits about 1/4" from the tub underneath so I'm out of room to shove it up any higher.
Attached Thumbnails
Click image for larger version

Name:	image.jpg
Views:	250
Size:	193.0 KB
ID:	2615073

__________________
2005 LJ Rubicon Sahara #0090

My build project : https://www.wranglerforum.com/f5/rubi...es-328649.html
