Thumbs up Krawdaddy's M416 build

I've been wanting one of these for a LONG time. My dad is a contractor at Ft Polk and has been trying to find one for me, but has been unsuccessful. Well, we finally found some on ebay that were listed locally (to him) in LA and grabbed one back in March. It was a little more than we wanted to spend, but it had all of the original parts. The tub is a little beat up, but I'm not taking it to parades, I'm going to use it!

We finally transported it from LA to GA... in the back of truck!

I have decided to paint it Oregano, which is a spray paint from Home Depot. It matches my Commando closely. Once it warms up again next year, I'll be using raptor liner in the bed. I need to get some new tires one day, but I won't be taking it on the interstate any time soon. Eventually, I'll stuff some modern LEDs inside the original taillight housings, for now, the Harbor Freight lights will work.

All wiring was removed and new installed.
Hereís what it looked like the first time I saw it, back in August. My dad did some work on it, mainly repacking the bearings.

Found this nice hook.. too bad I donít have a bro-mobile F250 to put it on

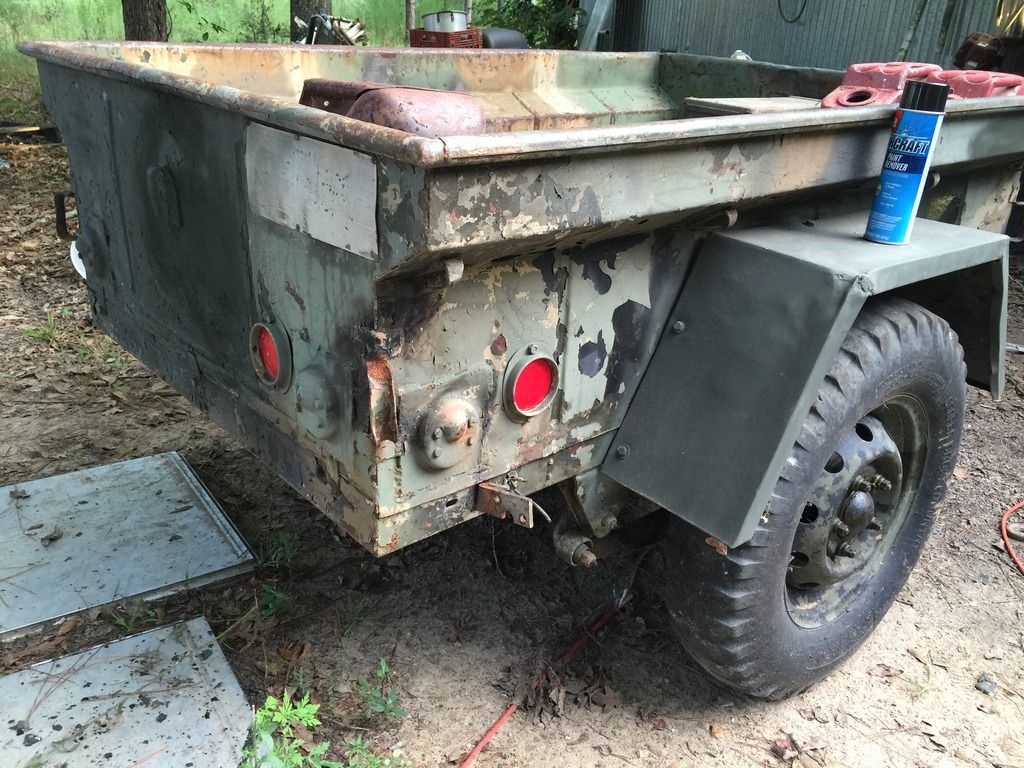

So many layers of paint! That aircraft paint remover works great:



This is how we transported it from LA to GA:


Original lights. I want to put LEDís inside of them at some point.



So much paint to remove. As you can see, my dad pulled the fenders off and put some paint on them



Mine has been modded with tie down points welded throughout. Itís no longer water proof, but I donít care about floating this thing!



Guess they didnít see the drain plugs, as someone drilled two holes to let the water drain


Original data plate. Iíll have to get a new one.


Some original lettering


__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 11-14-2015, 08:10 PM
Thread Starter
  #2
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
Sits well behind my JK. The ground is un-level… it sits fine


Removed tub from frame to work on frame first:




Removed all small parts that would come off

More lettering

Spent a few hours using my 3500psi pressure washer on it. I got a lot of old paint off, but that was just the beginning.





Can you see the star?



Wheel came out pretty good!

As did the frame:

__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 11-14-2015, 08:11 PM
Thread Starter
  #3
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
After heavy cleaning and degreasing, some wire wheel work, I went over the entire frame with Rustoleum Rust Reformer







Original lunette


Finished off the frame with rattle can bed liner



__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Sponsored Links
Advertisement

Old 11-14-2015, 08:12 PM
Thread Starter
  #4
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
Painted my wheels.. it was the closest color I could find to my Fuels



Wheel and body paint choices:

Everything else I’ve used so far:



The frame with wheels, done and out of the way



The real work begins. I spent many a night/weekend using chemicals to remove the old paint.








__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 11-14-2015, 08:13 PM
Thread Starter
  #5
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
Underside rust reformed


Then rubberized



Down to business. I got a big 7” grinder from HF, a few of the wire wheels and went to town on the tub. This part took the longest. Maybe 2 months’ worth of weekends. I would use the chems, and then wire wheel it. Once I got to bare, I used rust reformer for my primer, then painted over in Oregano






Lots of work around the welded in tie down points

Here’s the grinder I used
__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 11-14-2015, 08:13 PM
Thread Starter
  #6
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
I am very happy with the paint results








__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 11-14-2015, 08:14 PM
Thread Starter
  #7
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
Lights are from HF.. the LED ones. I got some heavier 16ga wire to use. I was able to reuse all of the grommets and wire loomed all the wires




Used a distribution block I got from home depot to wire the lights. I have a few more parts on order, such as a coiled connector and water proof box (got them from etrailer.com). I just needed to see if they worked for now


Wired up

And working!


I still have to clean and paint the inside of the tub. I plan on using raptor liner, so I will have to do it in the spring when it gets warmer. I have a media blaster connector I may attempt to use in the bed, but Iím not a fan of the dangers that stuff can cause to your lungs. I may just clean it up and paint it with cheap paint for the winter. I plan on using it quite a bit.


I still have to put the tub back on (hopefully this weekend), replace the reflectors (Iím missing one), replace data plate and mount license plate. Then Iíll need to replace the tires at some point and they are NOT cheap. About $120 each 
__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 11-14-2015, 08:49 PM   #8
Thank you Veterans

5-Year WF Supporting Member
::WF Moderator::

Beastmaster's Avatar

Join Date: Aug 2011
Location: The Old Pubelo
Posts: 40,451
Wow, great looking restro
Beastmaster is offline   Quote
Old 11-14-2015, 08:58 PM
Thread Starter
  #9
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
Thanks! I've been working on it since Sept. I don't know why I've waited this long to post. I've been posting pics in the M416 group on facebook pretty regularly. If not for the last 3 weeks of rain, I would probably be about done.
__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 11-14-2015, 09:04 PM   #10
Jeeper

Stitches1974's Avatar

Join Date: May 2015
Location: Florida
Posts: 2,397
Great job!
Stitches1974 is online now   Quote
Old 11-14-2015, 09:22 PM   #11
Supporting Member

5-Year WF Supporting Member

Gunner's Avatar

Join Date: Jun 2012
Location: Seal Beach
Posts: 8,887
Awesome job. I love watching old iron come back to life and get used.
Gunner is offline   Quote
Old 11-15-2015, 08:15 PM
Thread Starter
  #12
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
Well, she's back in one piece now... completely useable.










I couldn't help myself and put the wire wheel to the floor of the tub. Most of the rust ended up in my hair. Once cleaned, I put a coat of rust reformer on it. That's probably all I'll do to the bed for now, until spring.



Made my own "license plate bracket"


__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 11-15-2015, 08:18 PM
Thread Starter
  #13
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
for those that have used raptor liner, or other DIY bedliners, I know proper preparation is 90% of the equation when it comes to good adherence.... should I go down to bare metal and prime or just clean up the rust and leave the old paint. I would of course, scuff it up very well. Just curious as to what works.

Running a grinder inside that bed is a major PITA
__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 11-15-2015, 09:13 PM   #14
Thank you Veterans

5-Year WF Supporting Member
::WF Moderator::

Beastmaster's Avatar

Join Date: Aug 2011
Location: The Old Pubelo
Posts: 40,451
No need to go to bare metal but if you do while removing rust, make sure you cover it with primer.

I recommend you:
  • scuff it up well
  • get all the rust off
  • prime bare spots
  • wipe it all down with MEK.
You'll be good to go
Beastmaster is offline   Quote
Old 11-18-2015, 09:22 AM   #15
Supporting Member

5-Year WF Supporting Member

TjMtl's Avatar

Join Date: Feb 2014
Location: Canada
Posts: 1,012
Great job! You're much more patient than me that's for sure.
__________________
'03 TJ Sahara
'15 JKURHR
TjMtl is offline   Quote
Old 11-18-2015, 08:17 PM
Thread Starter
  #16
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
you say patient, I say cheap. As in, too cheap for sand blasting
__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 11-19-2015, 09:11 AM   #17
Newb

Corne's Avatar

Join Date: Nov 2015
Posts: 7
You did a good job. The car looks great. I agree, you need a lot of patience for that. I do not have it))
Corne is offline   Quote
Old 11-20-2015, 08:12 AM   #18
Supporting Member

5-Year WF Supporting Member

TjMtl's Avatar

Join Date: Feb 2014
Location: Canada
Posts: 1,012
Quote:
Originally Posted by krawdaddy View Post
you say patient, I say cheap. As in, too cheap for sand blasting
hehe, I would have probabkly gone the sandblast route, my wife would kill me if I was sanding in the driveway for that much time.

Though clearcoating the patina after stabilizing any rust would have been cool as well.
__________________
'03 TJ Sahara
'15 JKURHR
TjMtl is offline   Quote
Old 11-30-2015, 09:56 PM   #19
Jeeper

FLJeepGuy's Avatar

Join Date: Nov 2015
Location: Bradenton, FL
Posts: 17
nice work!
FLJeepGuy is offline   Quote
Old 12-14-2015, 08:31 PM
Thread Starter
  #20
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
Some finishing touches.. reflective decals




__________________
2013 JK Sahara Commando Green
Fuel Trophy D552's | 285/70 Duratracs | TF 2.5 Coils | Rancho Drops and RS9000's | Warn Elite & M8000 | ACE rear | Icom 5100 & DMN-NR73 | sPOD and some other random stuff
Previous - 02 TJ, Late 70's model CJ7
My M416 build thread
K5WGG
krawdaddy is offline   Quote
Old 03-16-2019, 08:09 PM
Thread Starter
  #21
Jeeper

krawdaddy's Avatar

Join Date: Jul 2012
Location: Roscoe, GA
Posts: 502
It's been awhile since I've messed with my trailer, but I have plans now! I have a rack for my RTT. Need to do some cutting to make it fit, but should be nice and sturdy!

I picked up a second one that's in better shape so I may restore it and use my old one for camping.
