Old 04-23-2017, 01:03 PM   #38971
Jeeper

Sailalong's Avatar

Join Date: Feb 2013
Location: Georgia
Posts: 25
Installed a Firestik to hopefully improve reception for my handheld in spite of the less than optimal location. I made the bracket wide enough to hold a nmo I have for my Diamond antenna so I can swap them out, but that will be next weekend.

Attached Thumbnails
Click image for larger version

Name:	20170423_120303.jpg
Views:	55
Size:	162.0 KB
ID:	3560882
Sailalong is offline   Quote
Old 04-23-2017, 02:18 PM   #38972
Jeeper

Cougarkid's Avatar

Join Date: Jan 2016
Location: Columbia, MO
Posts: 457
Not so much TO my TJ but FOR my TJ.

Reinstalled a track bar (yes, a lot like the Jeep ones) on the rear of our 42' RV. It pulls the TJ across the country for us, as we travel. GVRW 29,410 lbs
The axle end had come loose, allowing the rear end to move about 1-1/2" side to side. Had to remove it, clean-up the threads on the 1-1/8" diameter stud, get a new nut and then reinstall. Bar is about 30" long and weighs in at about 30 pounds. Lock washer, nut and loc-tite on and cranked down. All done 1050 miles from home, in a driveway, on my back with typical hand tools and a borrowed thread cleaner. (Back tires up on a curb for access to nut.) $25 in parts and sockets to get it done.

All in all, a good 2-day project.
Makes working ON the Jeep the seem a bit simpler.

__________________
Mike and Carla
2001 Sport, 4.0, 5-spd, Maroon, 2" Body Lift, Front Spartan Locker, Soft and Hard Tops, Winch, Roof Rack.
Here and There - We RV Full Time - Florida now
Cougarkid is offline   Quote
Old 04-23-2017, 02:32 PM   #38973
Jeeper

Jeepjay2004's Avatar

Join Date: Feb 2017
Posts: 229
Replaced u joint on driveshaft at front axle today. First time doing a u joint. Overall a very easy job except for removing the bolts at the transfer case. After a hour messing with u joint sockets and extensions I tried a small ratchet and it fit perfectly. Here's one of the end caps.
Attached Thumbnails
Click image for larger version

Name:	image_1492972339964.jpg
Views:	54
Size:	111.0 KB
ID:	3561106
Jeepjay2004 is offline   Quote
Sponsored Links
Advertisement

Old 04-23-2017, 04:21 PM   #38974
Jeeper

Wdkirk01's Avatar

Join Date: Aug 2010
Location: Lafayette, IN
Posts: 156
Added a Transmission Temp Gauge today.
Attached Images

RocknLJ, Farmboy73 and tomt509 like this.
Wdkirk01 is offline   Quote
Old 04-23-2017, 08:56 PM   #38975
Jeeper

NellieBoy's Avatar

Join Date: Feb 2015
Location: Orem, UT
Posts: 278
(Yesterday...) - did my axle swap with donor axles from 4cyl TJ meaning 4.10 gears replacing my 3.07 gears - YAY!!! Still a D35, but nice to have the better gears on the cheap (full axle swap front/rear for only $200). Install went great. No seized bolts and no surprises. First time doing an axle swap - took pretty much the afternoon to do it. Results...while still on 31's, I've got more zip now and can actually use 5th gear in town (used to only be able to use on the freeway) 4WD works just fine too and really crawls now. Am now ready to move to 33's!!!!!!
__________________
"Don't let the fear of striking out keep you from playing the game"

Yellow 98 TJ, 4.0 5-spd, 2" BDS Lift, 33x12.5x15 Mud Claw Extreme MT on AR26 15x8 wheels, Barrricade Rock sliders, color matched hard top / black soft top / safari top

Nellie's 98 TJ Build
NellieBoy is offline   Quote
Old 04-23-2017, 11:26 PM   #38976
Jeeper

tomt509's Avatar

Join Date: Mar 2017
Posts: 19
Put non-skid tape on doorsills

I had the typical dinged up nasty doorsills and, from a recommendation from a friend, put some 3M non-skid tape on them. Looks much better and practical, too.
Attached Thumbnails
Click image for larger version

Name:	jeep-doorsills.jpg
Views:	95
Size:	132.7 KB
ID:	3561786
__________________
2003 Jeep Wrangler Sahara - stock, for now....
tomt509 is offline   Quote
Old 04-23-2017, 11:43 PM   #38977
Jeeper

Jeeplover1's Avatar

Join Date: Mar 2012
Location: Arkansas
Posts: 16,932
Quote:
Originally Posted by tomt509 View Post
I had the typical dinged up nasty doorsills and, from a recommendation from a friend, put some 3M non-skid tape on them. Looks much better and practical, too.
where did you get the tape?
__________________
Im a Vet and bled for my beliefs and was willing to die for them, what have you done for yours?
Jeeplover1 is offline   Quote
Old 04-24-2017, 12:24 PM   #38978
Jeeper

RollWave's Avatar

Join Date: May 2010
Location: Eolia, MO
Posts: 116
(Yesterday)

Bought a factory hard top on CL and washed her up.
Click image for larger version

Name:	IMG_20170423_201106020.jpg
Views:	60
Size:	206.8 KB
ID:	3562698
Wdkirk01, jawkDNA and Push-Rod like this.
RollWave is offline   Quote
Old 04-24-2017, 12:29 PM   #38979
Jeeper

tomt509's Avatar

Join Date: Mar 2017
Posts: 19
@Jeeplover1 I purchased 2" 3M Safety-Walk from Home Depot. It was with the tapes by the paint section.
Wdkirk01 likes this.
__________________
2003 Jeep Wrangler Sahara - stock, for now....
tomt509 is offline   Quote
Old 04-24-2017, 12:57 PM   #38980
Jeeper

DBoat's Avatar

Join Date: Jul 2012
Location: The Big D
Posts: 2,003
Quote:
Originally Posted by Farmboy73 View Post
I have a friend who is a mechanic, I think I'm going to set him loose on this one. Any info you can get would be great!
its called a 2 bar map sensor.
DBoat is offline   Quote
Old 04-24-2017, 06:26 PM   #38981
Jeeper

Jeeplover1's Avatar

Join Date: Mar 2012
Location: Arkansas
Posts: 16,932
Quote:
Originally Posted by tomt509 View Post
@Jeeplover1 I purchased 2" 3M Safety-Walk from Home Depot. It was with the tapes by the paint section.


ty sir


Sent from my iPhone using Tapatalk
__________________
Im a Vet and bled for my beliefs and was willing to die for them, what have you done for yours?
Jeeplover1 is offline   Quote
Old 04-24-2017, 07:01 PM   #38982
Jeeper

tomt509's Avatar

Join Date: Mar 2017
Posts: 19
@Jeeplover1 No 'sir' necessary, Army... I was USAF enlisted in a very previous conflict.

You are, of course, most welcome!

__________________
2003 Jeep Wrangler Sahara - stock, for now....
tomt509 is offline   Quote
Old 04-24-2017, 09:38 PM   #38983
Jeeper

Laggy's Avatar

Join Date: Sep 2014
Posts: 3,682
Finally fixed my Vanco Big Brake Kit issue. Even during break-in it stops ridiculously well.

Time to put new Adams's front driveshaft in. The mount Rubicon locker compressors, plumb and wire up switches and indicators.

MichaelR likes this.
__________________
Laggy's 2013 JKUR Build
Laggy's 97 Build Thread SOLD

Here it is standing: atoms with consciousness; matter with curiosity. Stands at the sea, wonders at wondering: I, a universe of atoms an atom in the universe. - Richard Feynman
Laggy is offline   Quote
Old 04-25-2017, 05:22 AM   #38984
Jeeper

Join Date: Mar 2017
Posts: 159
Replaced the plugs. Not sure if ever done before, but gap was probably 1/8 inch, tab part was thin and rounded. either way, it needed done

sprayed the side of the engine down with a grease remover, seeing where the oil is comming from. prev owner stated he replaced valve cover gasket, not sure how good a job he did.
Backwoodsraider is offline   Quote
Old 04-25-2017, 05:32 AM   #38985
Jeeper

straight6er's Avatar

Join Date: Mar 2017
Posts: 41
Quote:
Originally Posted by NellieBoy View Post
(Yesterday...) - did my axle swap with donor axles from 4cyl TJ meaning 4.10 gears replacing my 3.07 gears - YAY!!! Still a D35, but nice to have the better gears on the cheap (full axle swap front/rear for only $200). Install went great. No seized bolts and no surprises. First time doing an axle swap - took pretty much the afternoon to do it. Results...while still on 31's, I've got more zip now and can actually use 5th gear in town (used to only be able to use on the freeway) 4WD works just fine too and really crawls now. Am now ready to move to 33's!!!!!!
I'm pretty handy but I would be afraid to try this myself. I too have 3.07 gears (puke in my mouth) but now I'm confused about where the numbers come from. Do you mean you swapped the entire axle housing with brakes on them etc?
thx
straight6er is offline   Quote
Old 04-25-2017, 06:30 AM   #38986
Jeeper

Laggy's Avatar

Join Date: Sep 2014
Posts: 3,682
Quote:
Originally Posted by straight6er View Post
I'm pretty handy but I would be afraid to try this myself. I too have 3.07 gears (puke in my mouth) but now I'm confused about where the numbers come from. Do you mean you swapped the entire axle housing with brakes on them etc?
thx
Yes, he swapped a rotor to rotor/drum to drum axle. It's fairly simple, especially in the rear. A lift affects how difficult the track bar install is, but other than that it's pretty simple. Farther up you can get the frame = lower you can drop axle = easier it is to just remove springs with no tools.

Gear ratio is relation of pinion gear to ring gear inside your diff. More importantly, it is also how many driveshaft rotations are needed to rotate the wheels 360, or a complete rotation (3.07:1, 4.10:1, etc). Diff gearing allows a given amount of power coming from engine, transmitted through driveshaft, to do work on the axle shaft. A higher numerical gear ratio (lower gearing) makes that work able to be performed much easier. Think of gearing down on a bicycle when you go up a hill. Those lower gears means your feet pedal a lot, but it's infinitely easier to get up a big hill. The lower a gear you go on your bicycle, the more the numerical ratio goes up. It's just a number. The important concept is the for the same power, lower gearing results in more work done. After a certain speed, there's diminishing return though. Although our jeeps don't go fast enough for this to be a realistic factor.

Lower gearing is important to jeeps for one main reason: bigger tires.
Lower gearing compensates for larger tires greater moment of inertia, which has to with mass and rotational motion.
Lower gearing helps you to regain your acceleration lost due to bigger tires. More mass is more resistant to motion for a given force. It takes more force to get bigger things moving, it takes more force to get bigger tires spinning. (Sidenote: technically bigger tires get you a higher top speed for a given amount of power, but it takes longer to get there).

I went from 4.10 on 35's to 4.88's and could not be happier with an inline 6. I couldn't imagine 3.07 or 3.55. Horrific. Different engines, trannies and tire sizes will dictate what's best.
NellieBoy likes this.
__________________
Laggy's 2013 JKUR Build
Laggy's 97 Build Thread SOLD

Here it is standing: atoms with consciousness; matter with curiosity. Stands at the sea, wonders at wondering: I, a universe of atoms an atom in the universe. - Richard Feynman
Laggy is offline   Quote
Old 04-25-2017, 10:05 AM   #38987
Jeeper

NellieBoy's Avatar

Join Date: Feb 2015
Location: Orem, UT
Posts: 278
Quote:
Originally Posted by straight6er View Post
I'm pretty handy but I would be afraid to try this myself. I too have 3.07 gears (puke in my mouth) but now I'm confused about where the numbers come from. Do you mean you swapped the entire axle housing with brakes on them etc?
thx
^^ What Laggy says

Working on Jeeps - especially TJ's (I find) are pretty easy really - just think of it as a puzzle...you take it apart, you put it back together. As long as you take your time and keep track of what you are doing, wrenching isn't really that bad...carbs, heads, suspension - I even did my alignment yesterday.

As to the swap - yes, what Laggy says. The donor axles came off a 4 cyl TJ which means it is a direct bolt on to my 98 4.0 6cyl. The donor axles had:
- axles (of course)
- brakes (disc on front...including calipers, drum on rear)
- track bars
- tie rod
- drag link (so basically, all the steering components)
- upper control arms
- lower control arms

So for me - it really was a 'drop old axle, install donor axle'. and also as Laggy says, and there are several writeups on this, but even with a 2" lift, getting the springs out is not a problem - it does take a little bit of work and muscle, but no spring compressors are needed.

Next big change for me....moving to the Ford 8.8 - with that, I'll probably do a tummy tuck and then all the other drive shaft mods that need to be done along with moving to a 3 or 4" lift. That's down the road a bit though. My immediate 'want' is to move to 33's now that I can handle them with the 4.10's under me.
__________________
"Don't let the fear of striking out keep you from playing the game"

Yellow 98 TJ, 4.0 5-spd, 2" BDS Lift, 33x12.5x15 Mud Claw Extreme MT on AR26 15x8 wheels, Barrricade Rock sliders, color matched hard top / black soft top / safari top

Nellie's 98 TJ Build
NellieBoy is offline   Quote
Old 04-25-2017, 11:25 AM   #38988
Jeeper

Farmboy73's Avatar

Join Date: Oct 2015
Location: Bonner Springs, Ks
Posts: 134
Quote:
Originally Posted by DBoat View Post
its called a 2 bar map sensor.
Thanks!
__________________
Making it safe to go flying.... From the basement at work....

'02 Wrangler X BDS 3 inch lift and Daystar 1 inch body lift.
Farmboy73 is offline   Quote
Old 04-25-2017, 07:17 PM   #38989
Jeeper

Wdkirk01's Avatar

Join Date: Aug 2010
Location: Lafayette, IN
Posts: 156
Added the Quadratec arm rest cover.

Someone tried to break into my center console and cracked the top of it. This covered it up.
Attached Thumbnails
Click image for larger version

Name:	Armrest.JPG
Views:	51
Size:	97.7 KB
ID:	3564994
tomhelzer likes this.
Wdkirk01 is offline   Quote
Old 04-25-2017, 07:18 PM   #38990
Jeeper

RocknLJ's Avatar

Join Date: Jul 2015
Location: Lancaster, Ca
Posts: 623
Quote:
Originally Posted by Wdkirk01 View Post
Added a Transmission Temp Gauge today.
Oooooh, I want that. I frequently tow an offroad trailer and think that would keep me safe with my notorious egg-shell tranny.
__________________
2006 Jeep Wrangler Unlimited Rubicon (Impact Orange)

Previous owner of: '01 KJ Renegade; '00 WJ Loredo; '99 XJ Sport; '06 WK Overland; '99 XJ Classic; '05 LJ Rubicon; '99 TJ Sport.
RocknLJ is offline   Quote
Old 04-25-2017, 08:14 PM   #38991
Jeeper

Laggy's Avatar

Join Date: Sep 2014
Posts: 3,682
Did another break-in cycle on Vanco Big Brake kit. Haven't got them to smoke yet, but I did get a touch of lock up on first couple stops. Brakes fade pretty quick during break-in though.
Farmboy73 likes this.
__________________
Laggy's 2013 JKUR Build
Laggy's 97 Build Thread SOLD

Here it is standing: atoms with consciousness; matter with curiosity. Stands at the sea, wonders at wondering: I, a universe of atoms an atom in the universe. - Richard Feynman
Laggy is offline   Quote
Old 04-26-2017, 06:53 PM   #38992
Jeeper

zipman35's Avatar

Join Date: Mar 2017
Posts: 523
Took my milk jugs off ? Much better...
Attached Thumbnails
Click image for larger version

Name:	IMG_8317_1493247183974.jpg
Views:	57
Size:	128.0 KB
ID:	3566137
zipman35 is offline   Quote
Old 04-27-2017, 05:44 AM   #38993
Jeeper

Wdkirk01's Avatar

Join Date: Aug 2010
Location: Lafayette, IN
Posts: 156
Had an older bikini top with the dreaded front window channel that never seemed to fit right.....I said screw that 30 minute change over and bought this mesh top.

Much faster and easier to install.

Bought it from Quadratec.

MasterTop™ ShadeMaker Mesh Bimini Top for 97-06 Jeep Wrangler TJ
Attached Thumbnails
Click image for larger version

Name:	MeshTop.jpg
Views:	54
Size:	36.4 KB
ID:	3566705   Click image for larger version

Name:	Meshtop2.jpg
Views:	63
Size:	31.3 KB
ID:	3566713

Wdkirk01 is offline   Quote
Old 04-27-2017, 09:39 AM   #38994
Jeeper

Join Date: Dec 2014
Location: Quebec, Charlevoix and North shore coast.
Posts: 425
Quote:
Originally Posted by Wdkirk01 View Post
Had an older bikini top with the dreaded front window channel that never seemed to fit right.....I said screw that 30 minute change over and bought this mesh top.

Much faster and easier to install.

Bought it from Quadratec.

MasterTop™ ShadeMaker Mesh Bimini Top for 97-06 Jeep Wrangler TJ
What is nice is that you do not need to remove those, ever. Works with hard and soft top.

And air still circulate and sun does not hit you on the body.
Wdkirk01 likes this.
Lucky j is offline   Quote
Old 04-27-2017, 10:46 PM   #38995
Jeeper

99er's Avatar

Join Date: May 2012
Location: Eugene, Oregon
Posts: 373

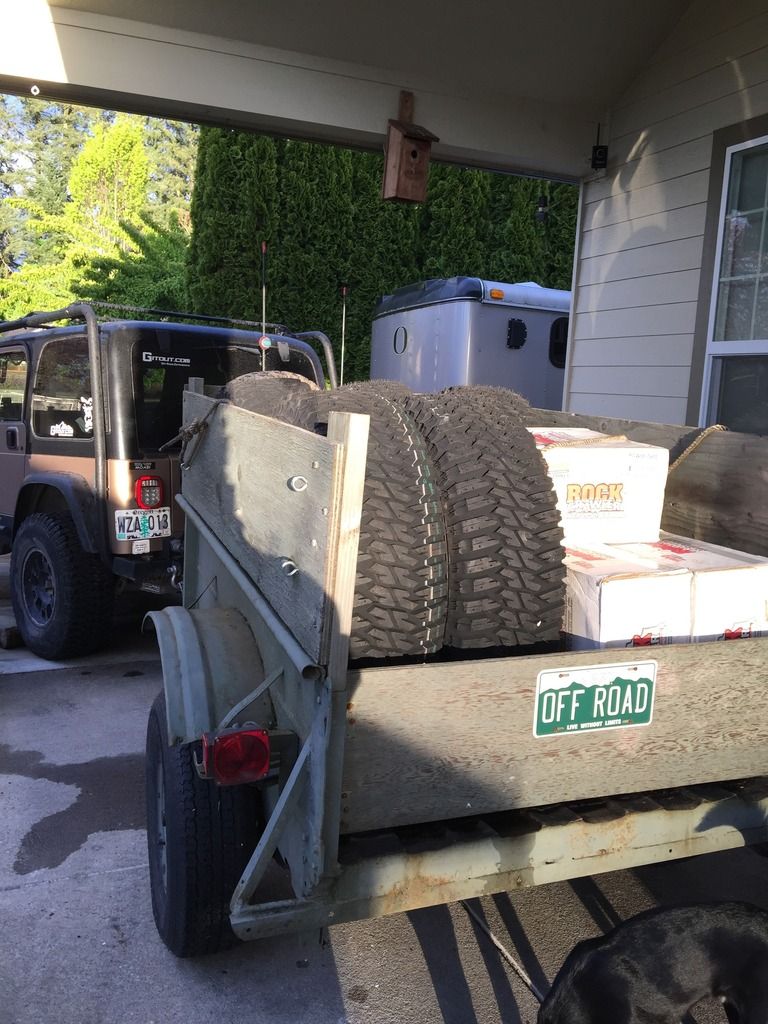

My Jeep is loaded up for some mounting and balancing! Going to the tire shop and putting on new 35"s and new 17" wheels.

Farmboy73 likes this.
__________________
99 Sahara - 5 speed swapped out to automatic
12,500 lb Winch, synthetic winch line, Spyder Front Bumper, Zone 4" Suspension Lift, 1" body lift.
35" Guard Dogs
4.56 Gears, Dana 44 Rear, Spartan Locker in Front, Powertrax No-Slip locker in the rear
99er is offline   Quote
Old 04-28-2017, 03:49 AM   #38996
Jeeper

Laggy's Avatar

Join Date: Sep 2014
Posts: 3,682
Quote:
Originally Posted by 99er View Post
My Jeep is loaded up for some mounting and balancing! Going to the tire shop and putting on new 35"s and new 17" wheels.

Gangster
99er likes this.
__________________
Laggy's 2013 JKUR Build
Laggy's 97 Build Thread SOLD

Here it is standing: atoms with consciousness; matter with curiosity. Stands at the sea, wonders at wondering: I, a universe of atoms an atom in the universe. - Richard Feynman
Laggy is offline   Quote
Old 04-28-2017, 06:56 PM   #38997
Jeeper

Farmboy73's Avatar

Join Date: Oct 2015
Location: Bonner Springs, Ks
Posts: 134
It's over the last couple of days, but I think I found the source of my misfire problems. I pulled the Crankshaft Position Sensor, it was cracked and just generally messed up.





I also cleaned out the throttle body, since it was kinda funky.

Today the turn signals quit working, so I had to replace the relay. This is the 2nd time I had to replace it in a year, so I think the multifunction switch had other problems besides having a broken hazard switch. When I bought the Jeep, The PO had gotten a new steering column with wheel to replace the messed up steering wheel it came with. He gave it to me when I bought the Jeep. I just threw it in the garage and didn't give it much thought. So today I raided it for the switch and put it and the new relay in the Jeep. Everything works the way it should now, including the hazards.







__________________
Making it safe to go flying.... From the basement at work....

'02 Wrangler X BDS 3 inch lift and Daystar 1 inch body lift.
Farmboy73 is offline   Quote
Old 04-28-2017, 07:51 PM   #38998
Detail Oriented

5-Year WF Supporting Member

Holton345's Avatar

Join Date: Jun 2013
Location: Yazoo City, MS
Posts: 3,170
Got a decent engine stand recently. Purchased the cherry picker today and will pick it up on Monday. That 4.0L is coming out and the tub is coming off. It's restoration time, kids! w00t!!!!1!1!!

I still need the leveler/chains/bolt-down bracket thing.

Any suggestions? What do you have, and can you provide me with a link or at least a brand and part number?

Also, where did YOU attach the chains for the hoist? Photos are best if you have them. Thanks!
Laggy likes this.
__________________
Wade

2003 Shale Green Metallic TJ Sport
2013 Black JK Sport S

A yellow bird with a yellow bill landed on my windowsill. You know the rest...
Holton345 is offline   Quote
Old 04-28-2017, 11:08 PM   #38999
Jeeper

RocknLJ's Avatar

Join Date: Jul 2015
Location: Lancaster, Ca
Posts: 623
I put my BFG KO2 265/75/16's on Craig's List and ended up with 6 buyers lined up today alone. I guess that means I priced them too low, but its nice to defer the price of the 295's a bit. Hope one of these guys actually show up tomorrow.
__________________
2006 Jeep Wrangler Unlimited Rubicon (Impact Orange)

Previous owner of: '01 KJ Renegade; '00 WJ Loredo; '99 XJ Sport; '06 WK Overland; '99 XJ Classic; '05 LJ Rubicon; '99 TJ Sport.
RocknLJ is offline   Quote
Old 04-28-2017, 11:46 PM   #39000
Jeeper

lhinterman's Avatar

Join Date: Jan 2011
Location: zip 81174
Posts: 76
I put new Goodyear Wrangler's 31-10.5-15 on the pretty much stock 04 LJ. Vibrations stopped. Now I will look at Bilstein B6-4600 for the front to handle the gravel road I now live on.

__________________
A great ski machine for all.
A red LJ 2004 with a new white hardtop
57 chevy truck, SWB, 454ci, step bed
1966 Bronco, just added, has a long way to go
RAM 4x4 for everything else
lhinterman is offline   Quote
Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Today is my Anniversary! jeeptales Off-Topic 20 11-12-2019 03:12 PM
Officially a JEEP owner today rico334 TJ General Discussion Forum 33 08-22-2015 02:24 AM
One Problem After Another Today :( vin211 TJ General Discussion Forum 3 12-09-2014 04:47 AM
Tops switch today mishel JK General Discussion Forum 4 06-23-2009 03:00 PM





All times are GMT -5. The time now is 11:26 AM.


Powered by vBulletin® Version 3.8.8
Copyright ©2000 - 2020, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.1
User Alert System provided by Advanced User Tagging v3.1.0 (Pro) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
vBulletin Security provided by vBSecurity v2.2.2 (Pro) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.

Jeep®, Wrangler, Liberty, Wagoneer, Cherokee, Gladiator, Mopar and Grand Cherokee are copyrighted and trademarked to FCA US LLC.
Wranglerforum.com is not in any way associated with FCA US LLC.
