Hey everyone. Ive finally gotten around to starting me a photobucket so that I can now start my build thread. Here's a little background info:
I bought this Jeep about a year ago, I traded my running rusted out cj7 for it. It was in horrible mechanical shape when I got it. Body wise is terrific zero rust at all. But it had the anemic little 2.5 that seemed more like a hit or miss engine rather than a modern engine. So I fooled and fooled with it till I finally said forget it and I began buying parts for a swap.
Heres the direction so far
-305 Tbi out of a 87 Chevy pickup. Heard it run before it was pulled.
-Th400 with 241 out of late 80s 3/4 ton chevy
-Painless Tbi harness
-JB conversion shorty sye for the 241
-Champion conversion radiator bought off amazon
Ive already installed a Rough County 2.5 in lift because my springs were horrible shape.
And now for the part everyone likes, pictures.

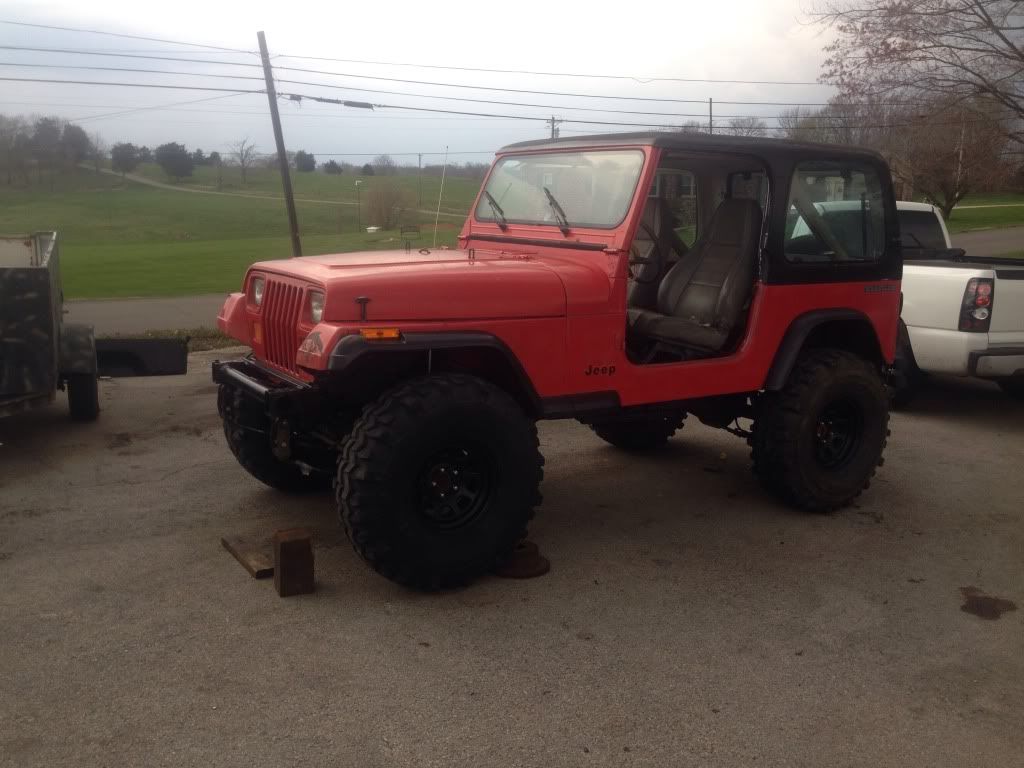

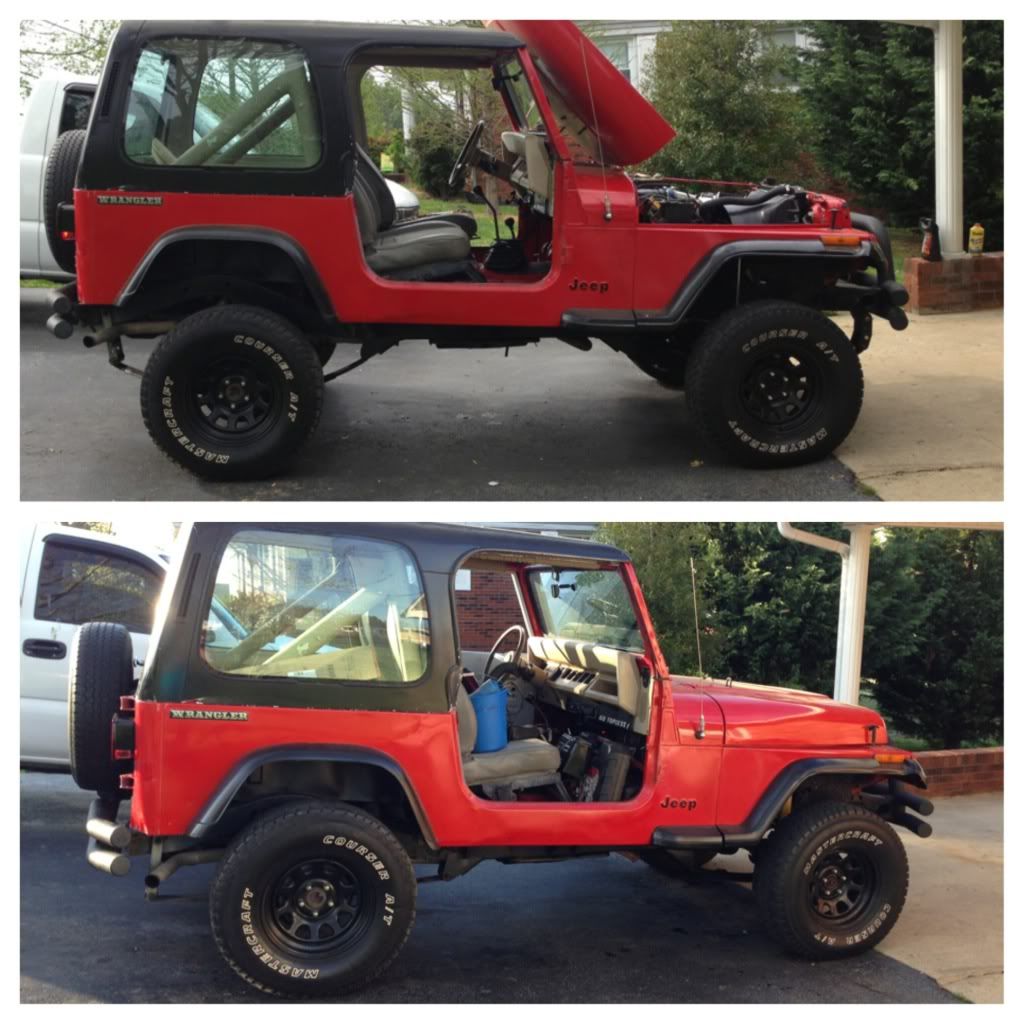

This is a shot of before and after the lift kit

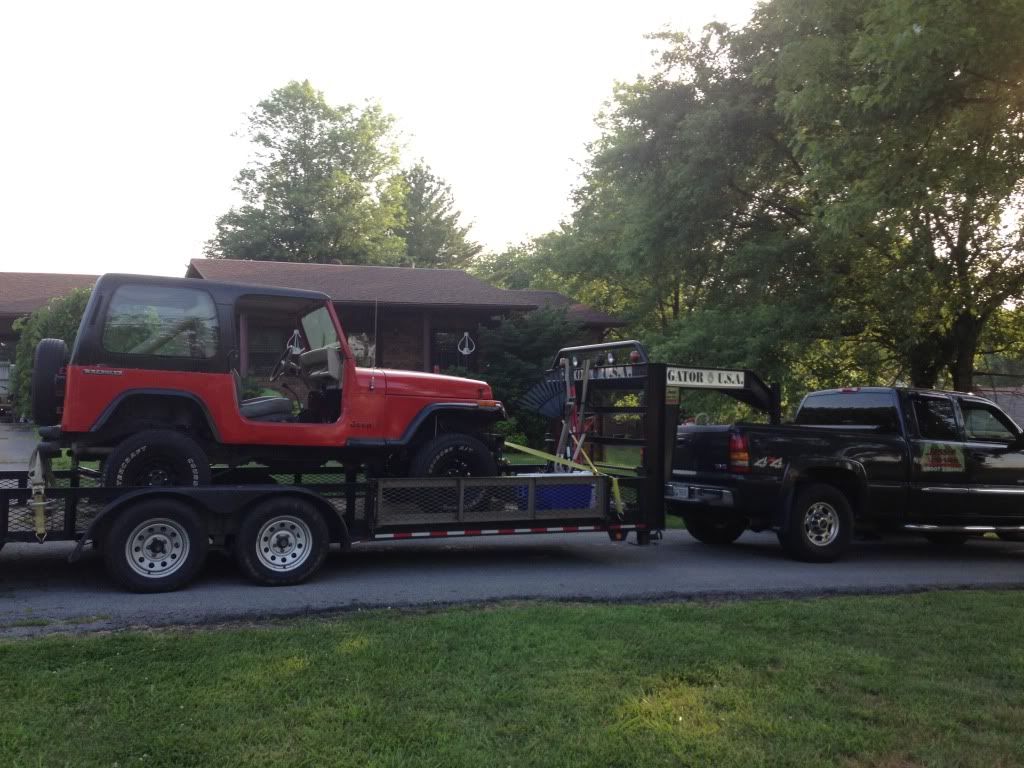

loaded up and headed to a good friends shop to start my swap

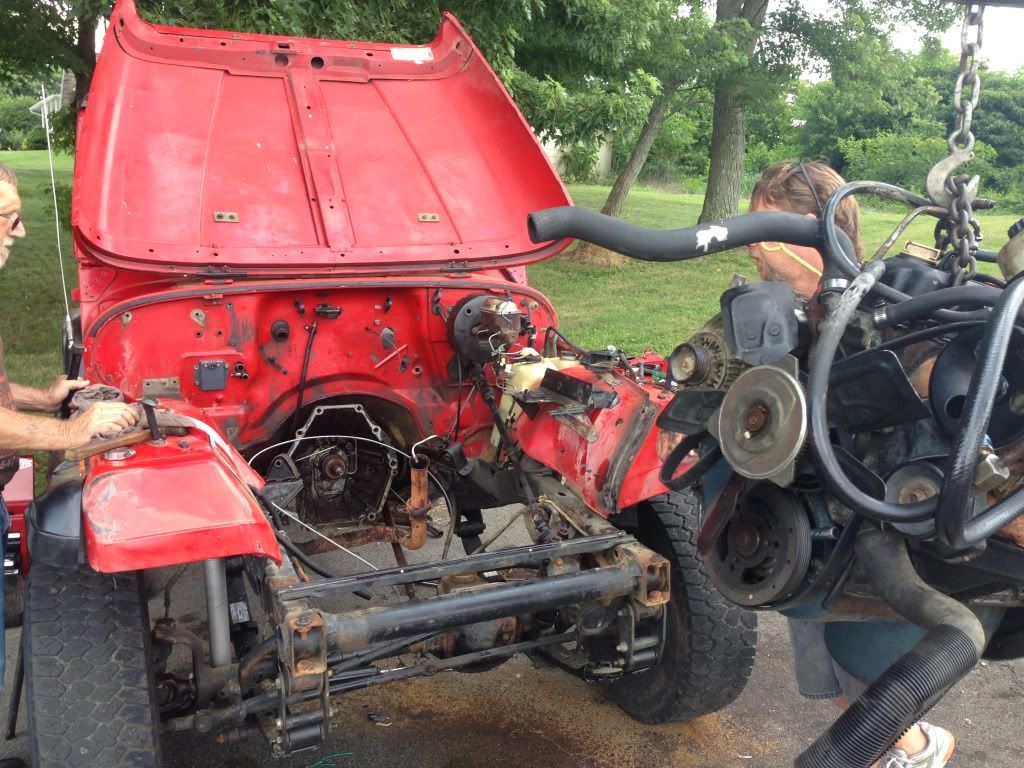

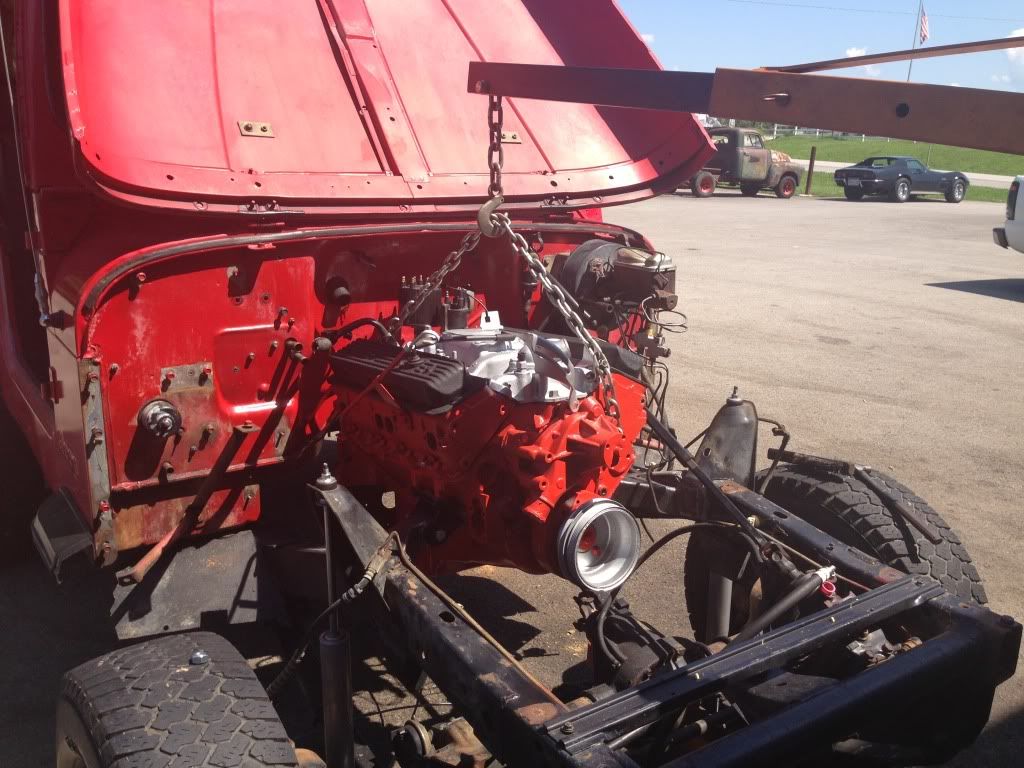

Motor pulled

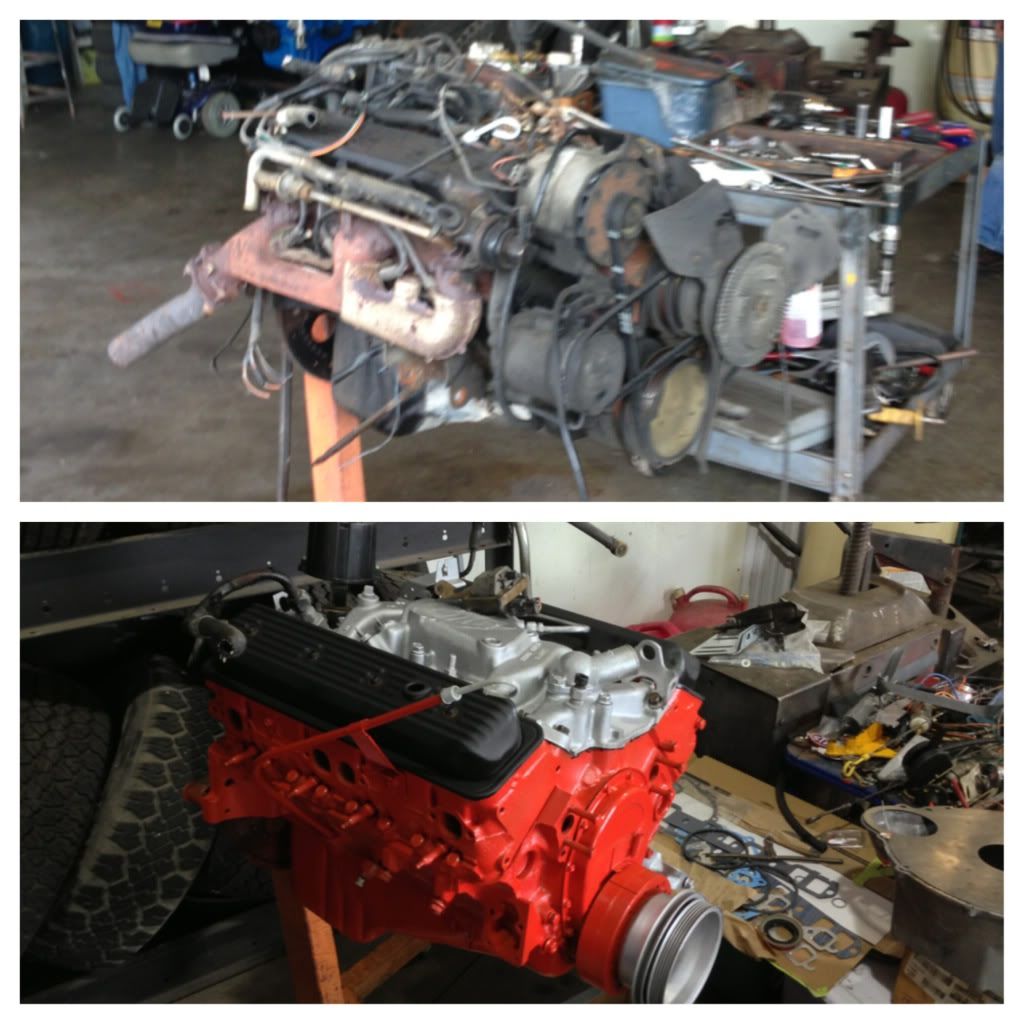

305 before and after I cleaned it up

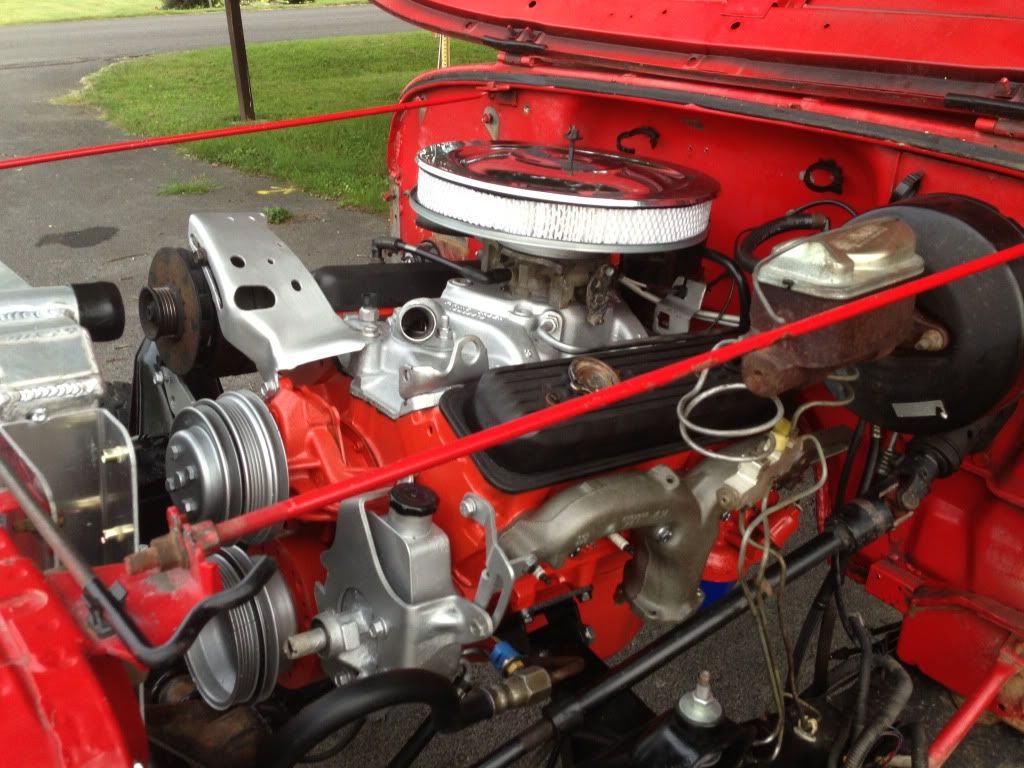

Motor Dropped in






Now just to go pick up the trans and get to doing more work. :dance:

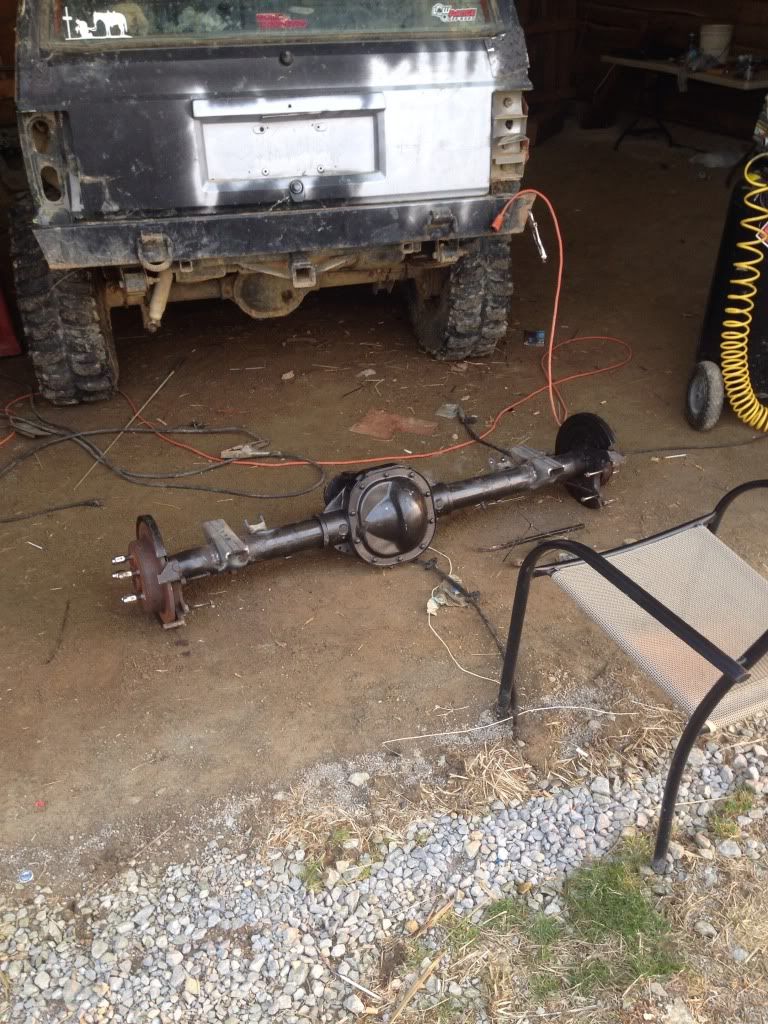

oh yeah btw since I know this will be in the next few comments. Yes I plan to swap out the rear end. One piece at a time cant do everything at once


·
Registered
Joined
·
848 Posts
Looking good. Is that your "final" engine location or just getting it zoned in?

I am about to install the 400 SBC I have built into my '92 although I am doing a body off frame "restoration" at the same time so my progress is really slow. More often than not I wonder if I should have started this effort with a Jeep with a lot less rust to repair.


·
Registered
Joined
·
442 Posts
Discussion Starter #5
Thats the final spot, used MORE mounts that locate it in what they had decided was the best spot. I was leery about it so I tacked the mounts in sat the motor in and it looked perfect to me so I burnt them in.


·
Registered
Joined
·
442 Posts
Discussion Starter #6

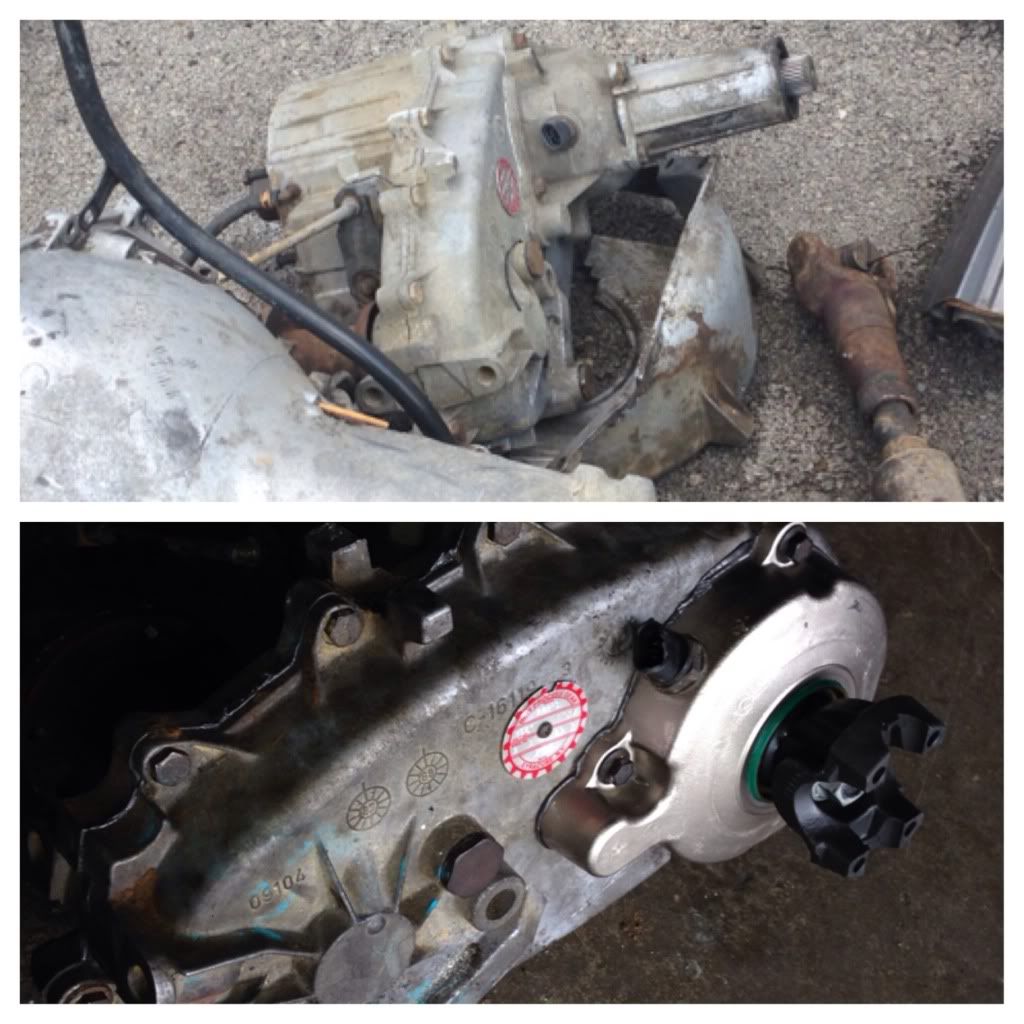

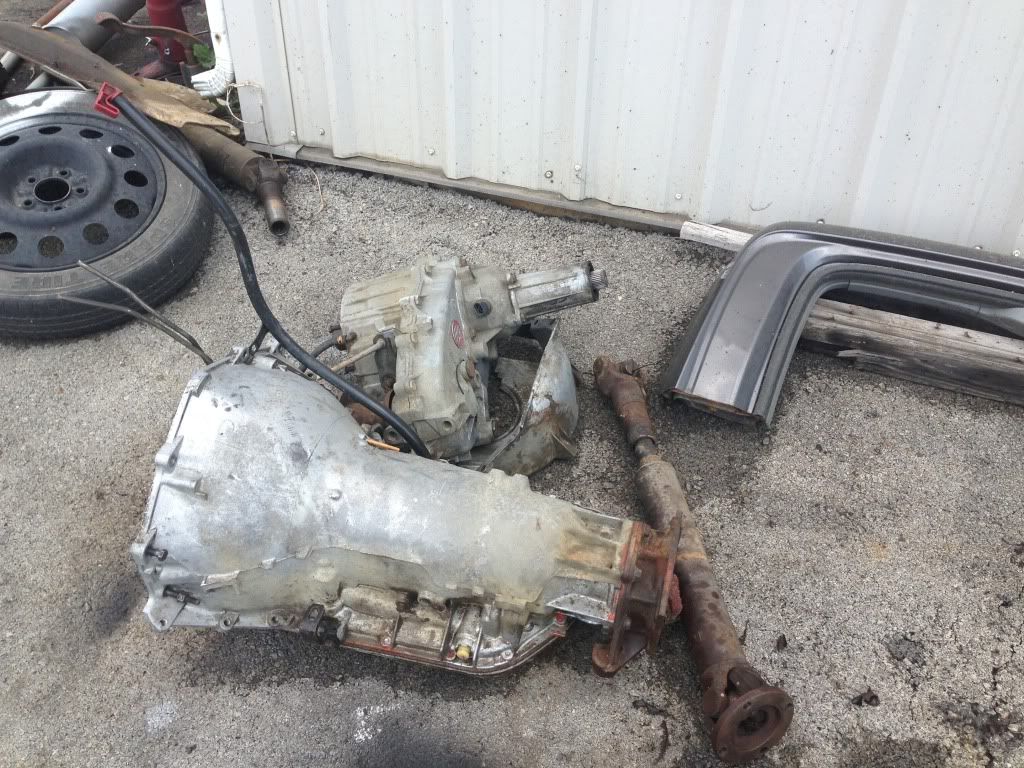

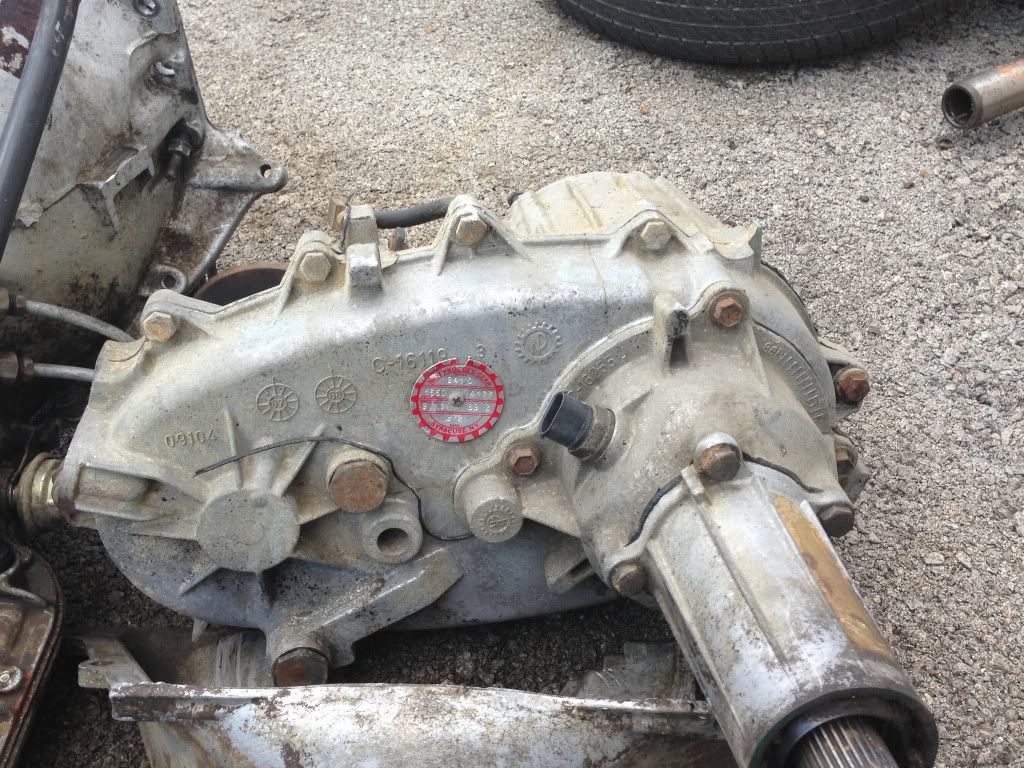

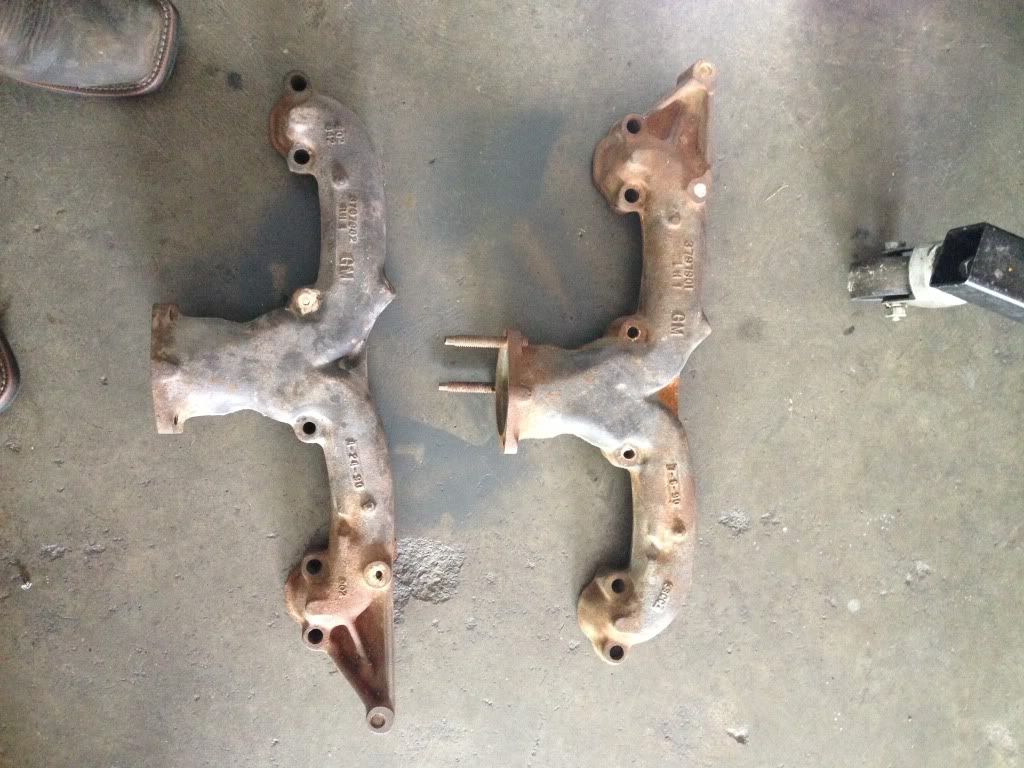

Was able to get a little done today before I had to head into my job. Picked up my trans and transfer and cleaned them up a little. Also went and got my manifolds. I've mentioned using these in several other threads, there ramhorn manifolds.







·
Registered
Joined
·
818 Posts
Nice looking, fricking love the trailer!:thumb:


·
Registered
Joined
·
442 Posts
Discussion Starter #8
Nice looking, fricking love the trailer!:thumb:
Thanks Scoob, my brother has a lawn care business and uses it to haul the mowers, it pulls wonderfully.

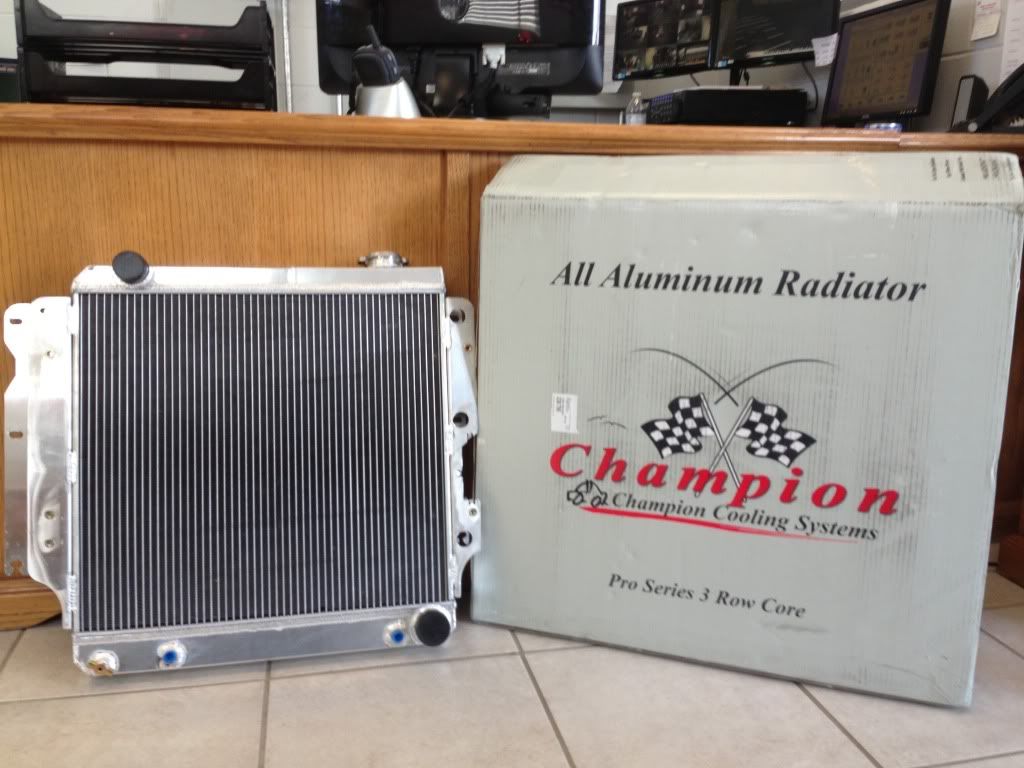

Got some more parts in today. Wasn't expecting it till next week, Champion all aluminum Radiator from Radiator Galaxy. Appears to be top quality



·
Registered
Joined
·
442 Posts
Discussion Starter #9
Alrighty guys, made a little more progress Thursday and Friday on my days off, seven more days and I can work on it some more. Shew the pains of swing shift.
Was able to paint the manifolds and get them mounted, stopped by the local Fastenal and picked up bolts and lock washers for them.

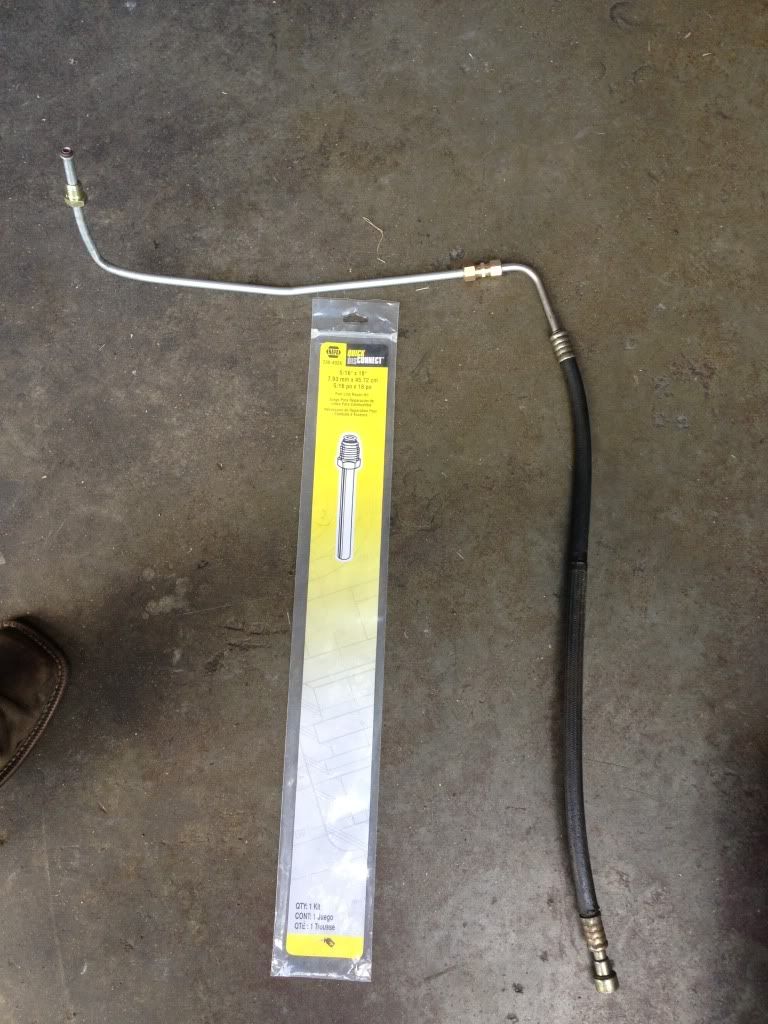

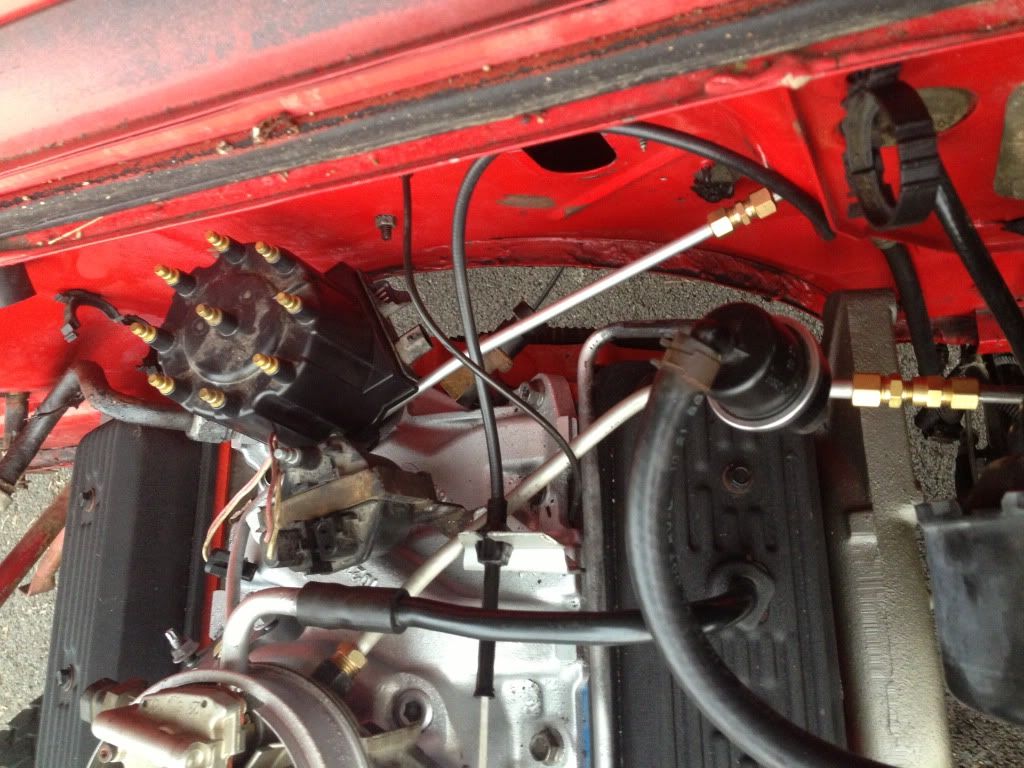

Also got the fuel lines ran. Went and got some Napa know how for that. lol It ended up being a very easy fix. Got a fuel line repair kit that matched what the TBI needed. It came in 18in of aluminum line that I bent to the correct shape then just cut off the factory hard lines and used a compression fitting to join them. They look for the most part good as factory.

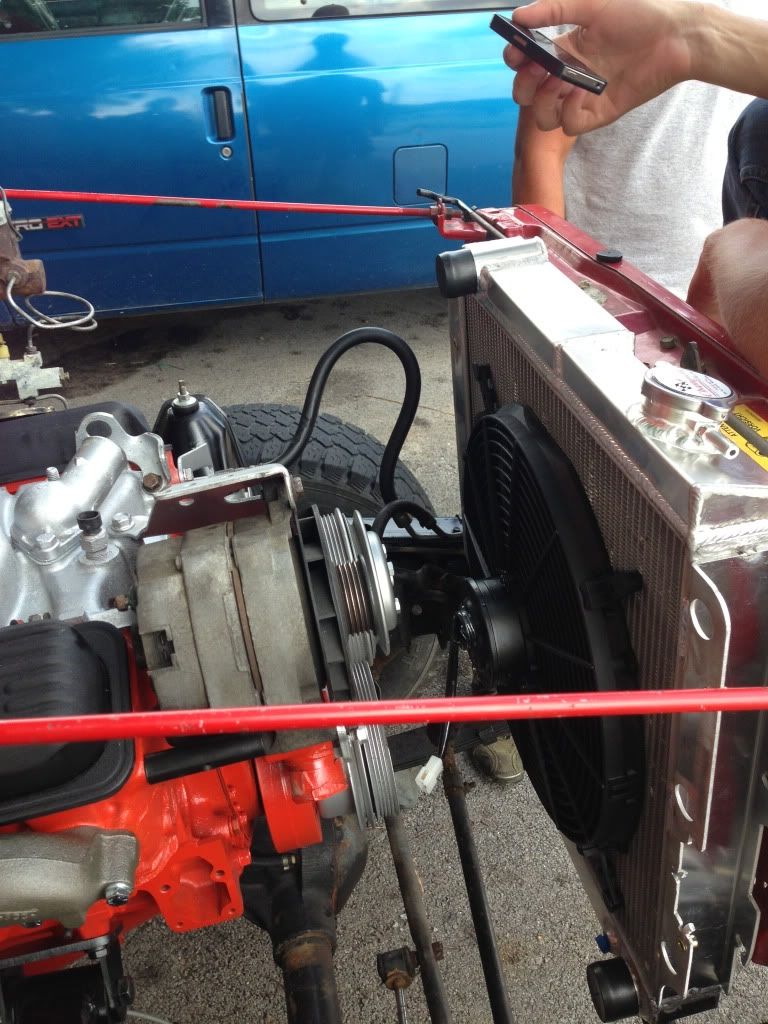

Got the radiator and electric fan put on. A buddy had purchased a champion radiator off ebay that came with a electric fan and he wasnt able to use it so I bought it off him.
Next thing planned is getting the sye ordered, number one priority for monday. Mount the trans, then get the radiator and heater hoses hooked up. Oh yeah and a 3in air filter I bought the chrome Mr. Gasket cheapo filter from advance and the filter in isnt quite big enough for my likes. Didnt get a lot of pictures but heres a couple, more to come with time.



·
Registered
Joined
·
250 Posts
How is the electric fan attached to the radiator? ?


·
Registered
Joined
·
442 Posts
Discussion Starter #11
Nothing fancy, its sort of like a zip tie that goes through the radiator. They come with most fans. Heres a link to some on summit http://www.summitracing.com/parts/der-13001/overview/. I could have made a hard mount to attach to where the fan shroud would mount on the radiator but this was easier, quicker, plus the fan came with them.


·
Registered
Joined
·
848 Posts
Are those hard fuel lines running from the engine connected to the chassis/body? You need to have some flexible section to deal with the engine movement relative to everything else given the engine mounts.


·
Registered
Joined
·
442 Posts
Discussion Starter #15
is your electric fan on a toggle switch of is it electonically controlled?
Havnt wired anything yet, waiting till I get all mechanical parts in place. Will probably use a thermostic control with a toggle and relay to bypass it if needed. Going to cross that bridge when I get there.

@WICruiser, a couple post ago I showed one of the fuel lines before it was mounted, I retained the stock jeep soft line that connects into the hard lines.


·
Registered
Joined
·
442 Posts
Discussion Starter #16

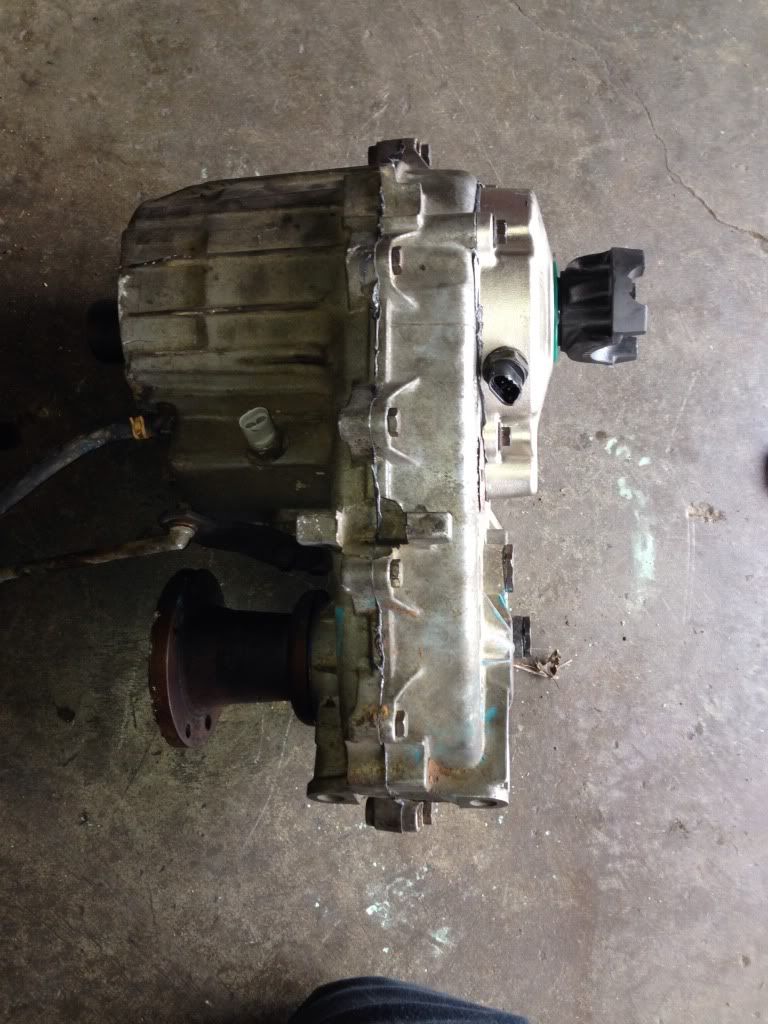

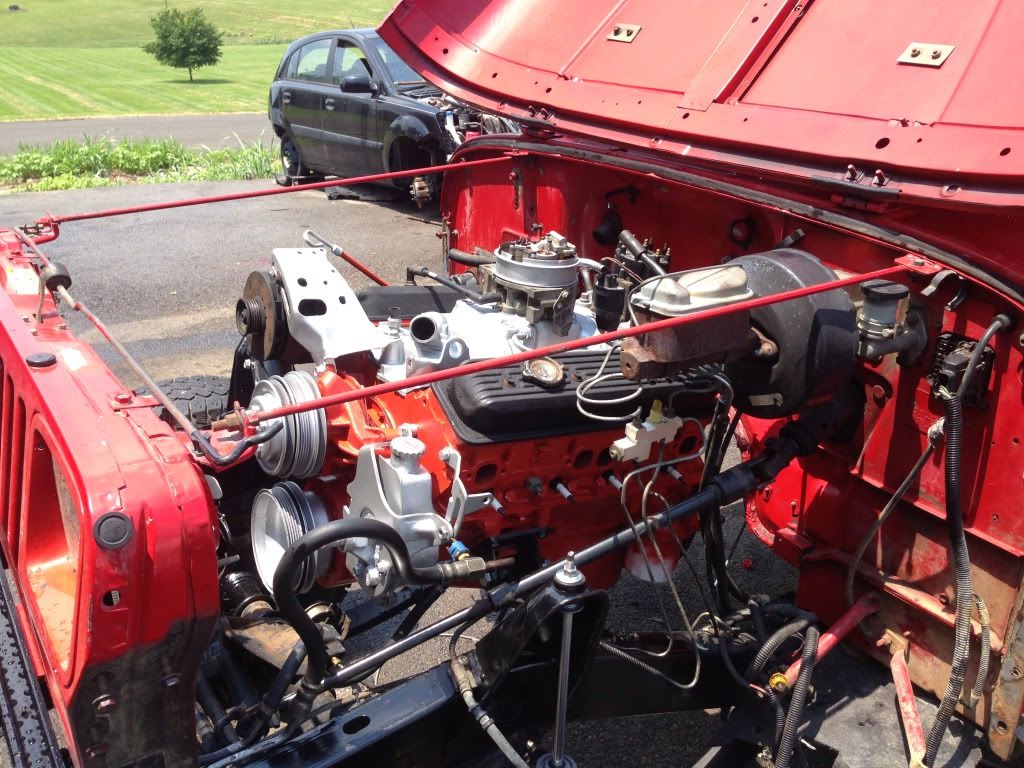

Got quiet a bit done on my days off. Transmission and transfer are in. Transmission for good but the transfer will come back to get an sye. But after talking to JB Conversions on the phone the part will be out of stock till the end of the month :nonono:. I hacked up the stock skid and made it work but I don't care for it to much at all. But luckily I got the cross member from the Chevy truck that my trans came from and its going to be quite easy to modify to make work a lot better.
Started on the wiring today figure if I can at least get it running then it wont be bad at all to finish up. Hopefully about a month and a half till its road worthy.


·
Registered
Joined
·
442 Posts
Discussion Starter #18

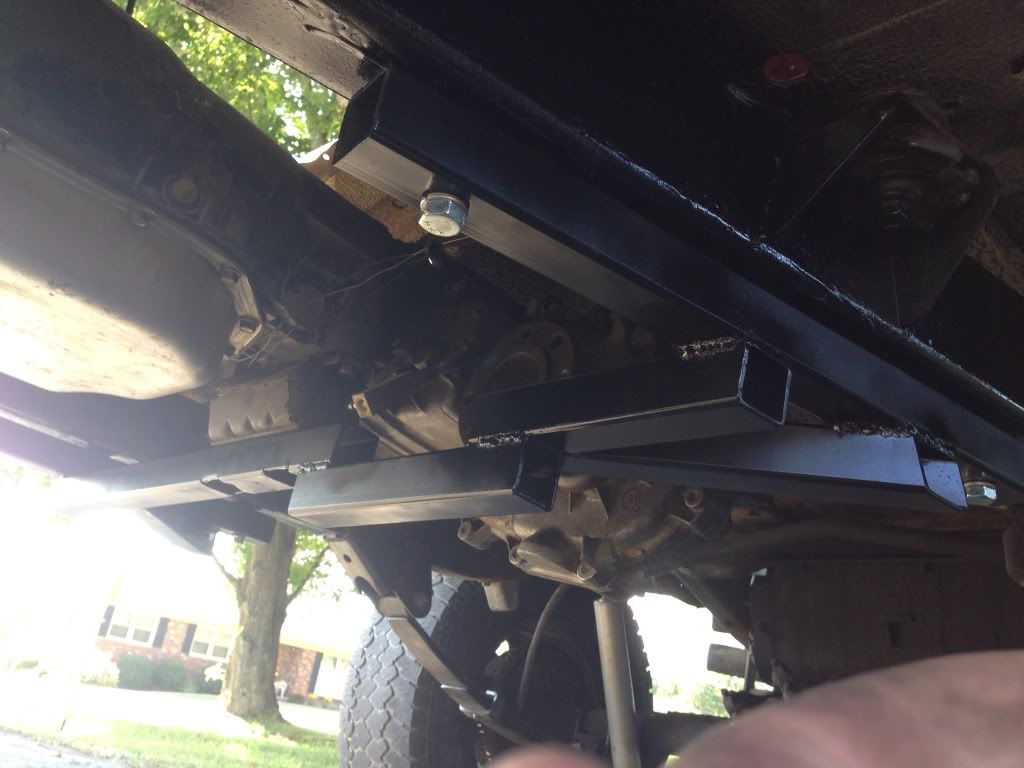

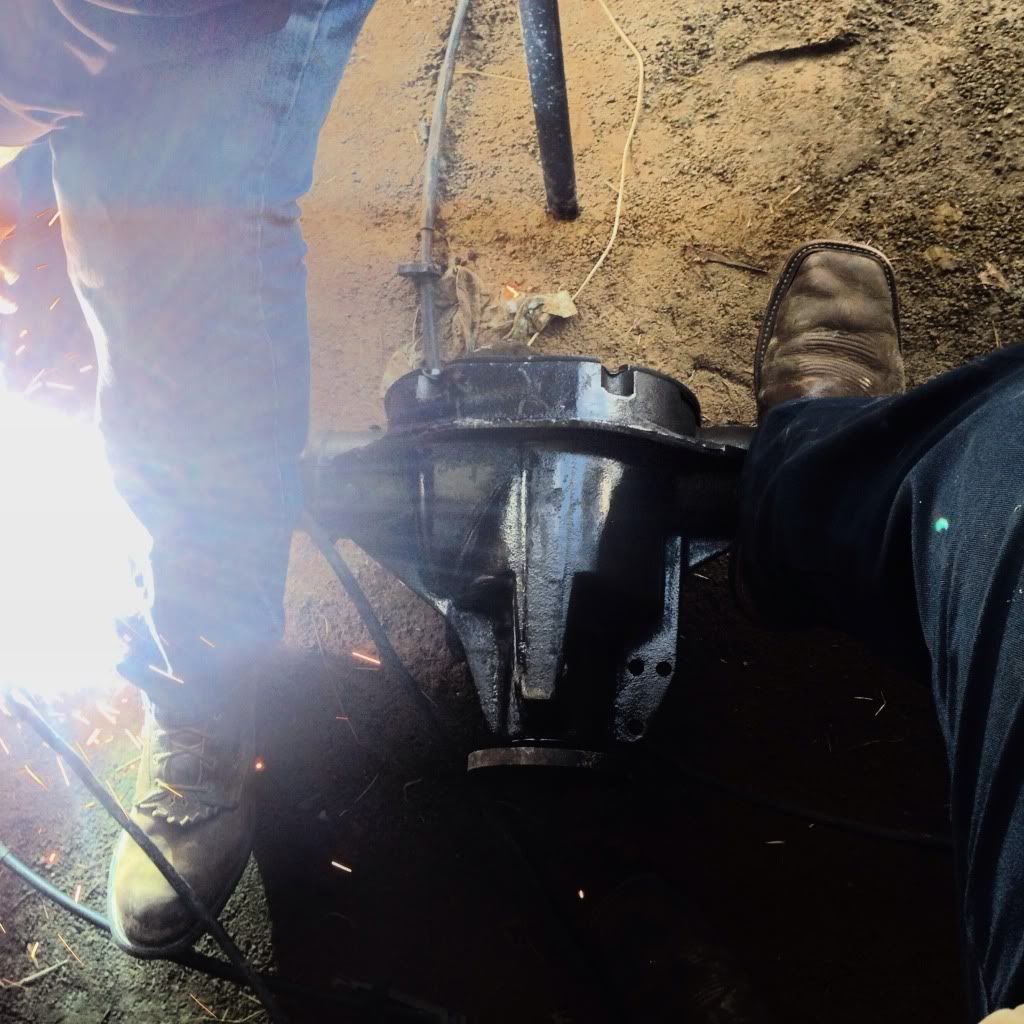

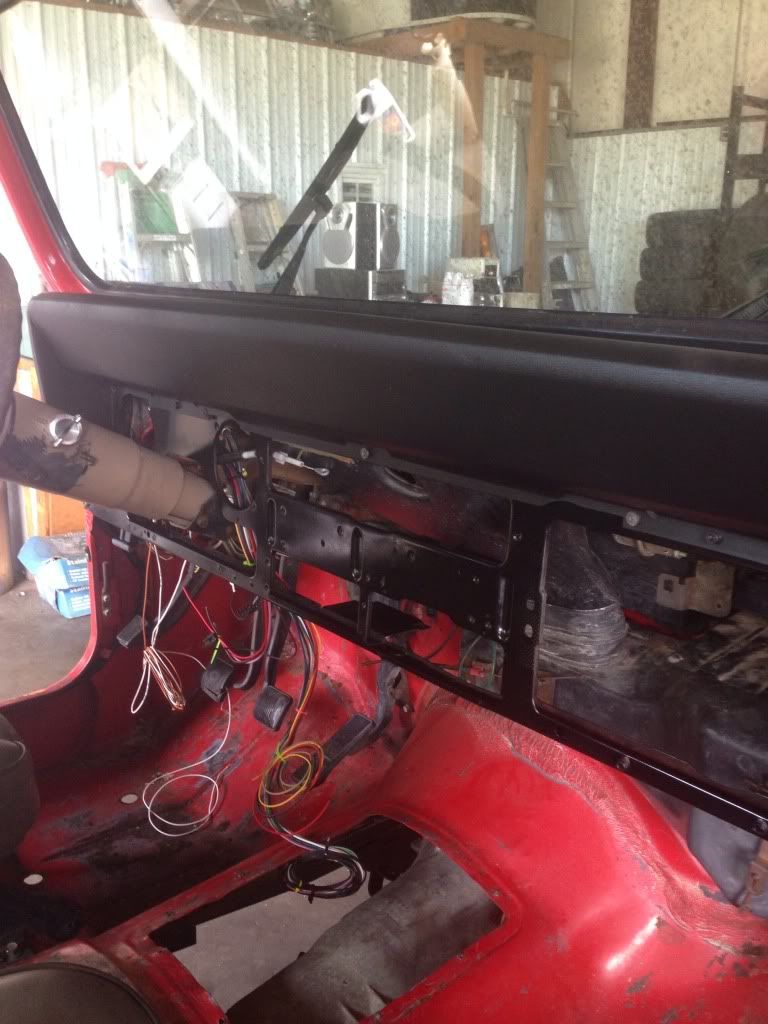

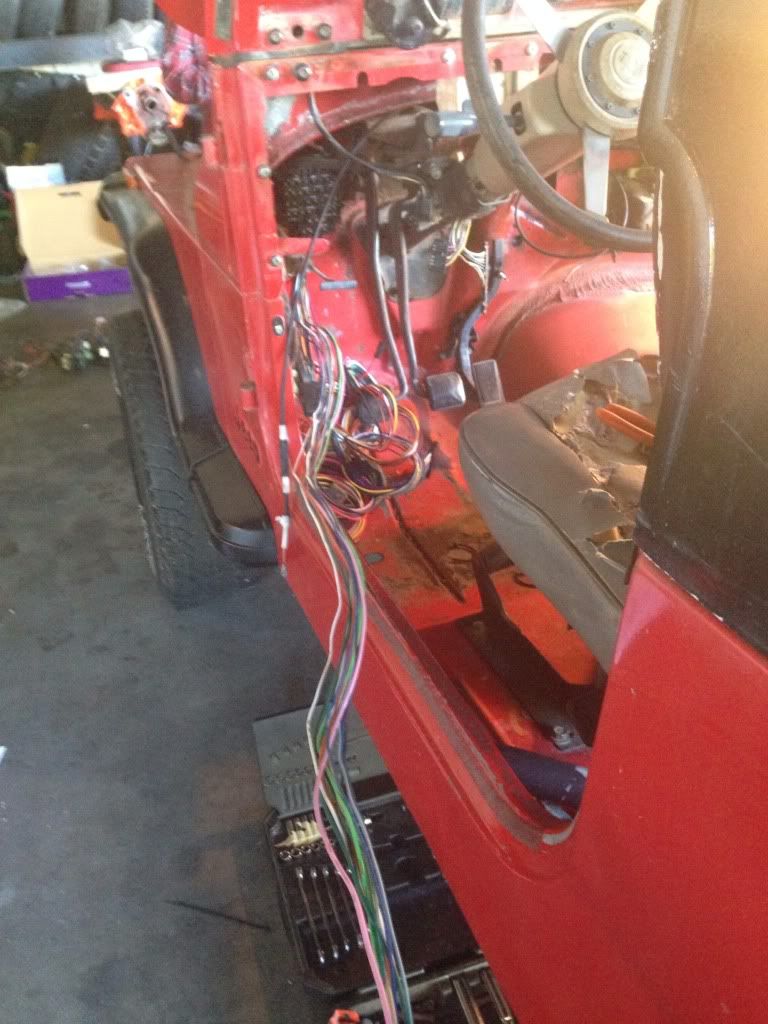

Its been a while since Ive posted any updates but I've still been making progress on it. Was able to get the JB conversion shorty sye installed. It helped a ton with DS length. Also made a new cross member for the trans. the original just wasn't going to work. Then this week I have started the wiring process. I decided to wire the whole thing front to back and everything in between. Purchased a 20 circuit universal harness from speedway may be a little over kill for a jeep but it was the best option for the money. While I were at it i pulled the dash to make it easier and painted the metal part gloss black then satin black on the pad. I'm going to take aluminum diamond plate and put on the dash, between the sides of the dash pad. since I'm going to use aftermarket gauges.



compared to stock, shortened 9 inches








·
Registered
Joined
·
442 Posts
Discussion Starter #20
Still working on it slowly. The weather here hasn't been the best on my days off work to get much done. But I did get the radiator hoses hooked up, that is a part with not much info on the web. I didn't want to use flex hose, the smooth looks lots better to be so after a few trips to NAPA I was able to get some that worked, with modification.

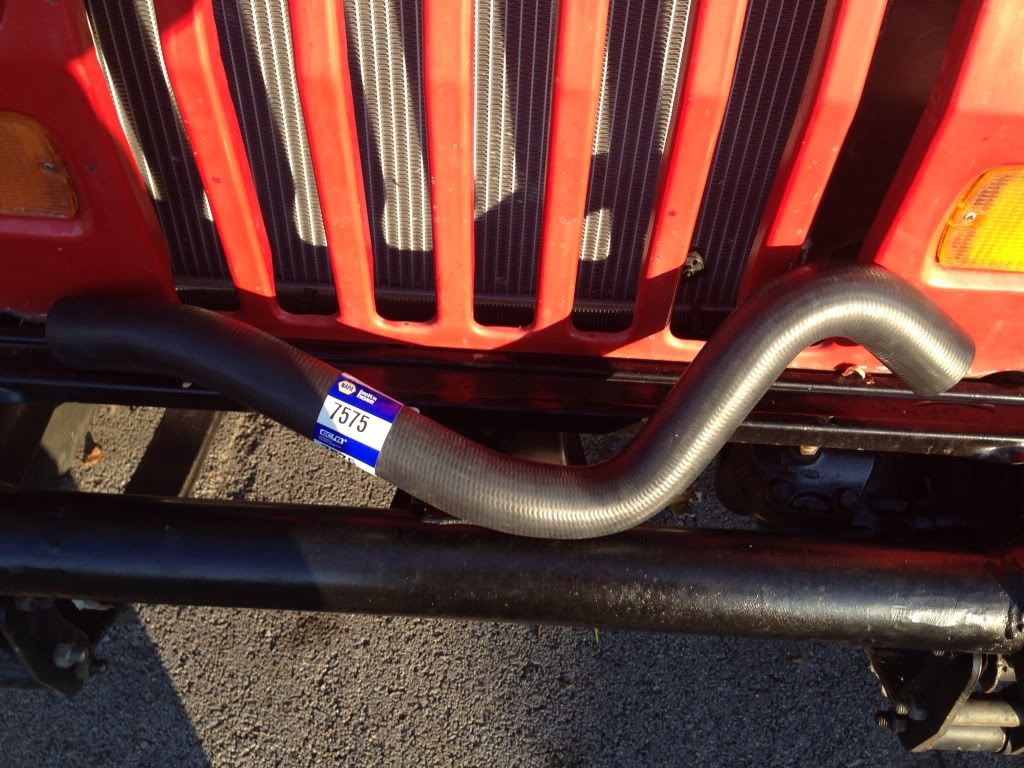

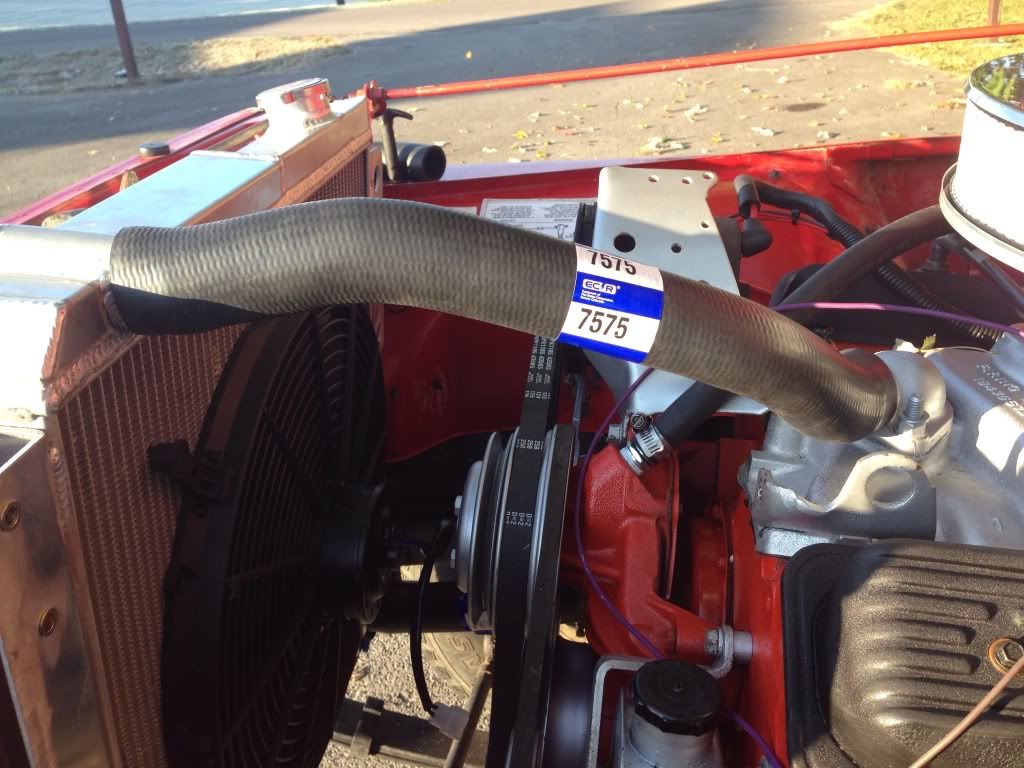

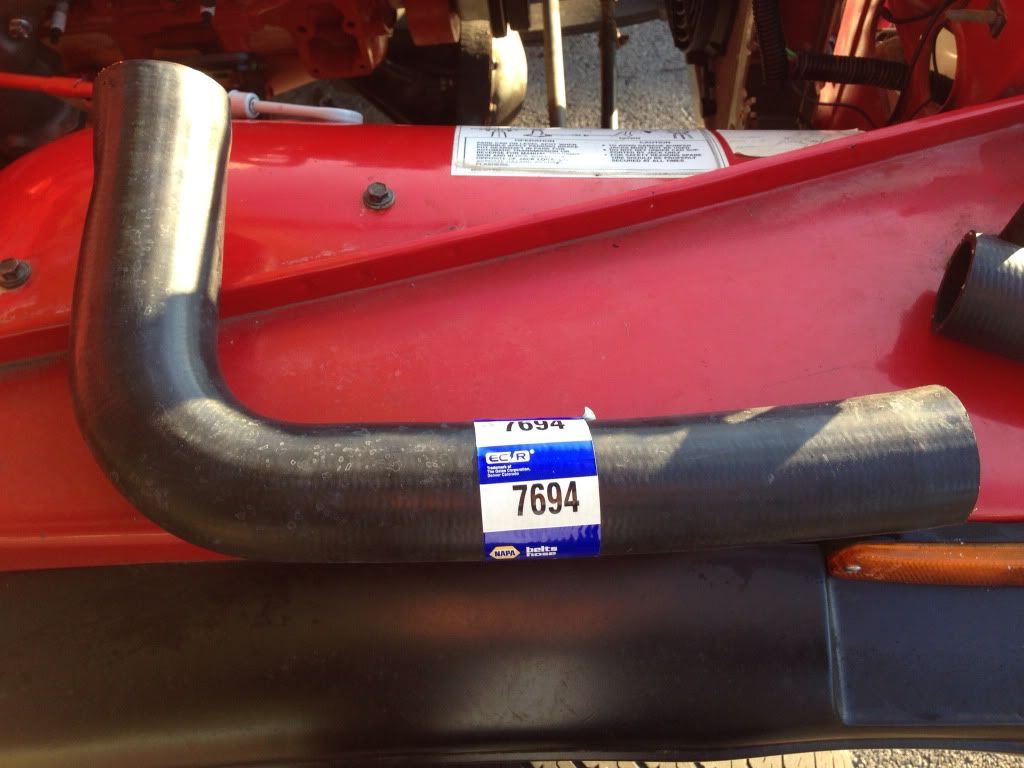

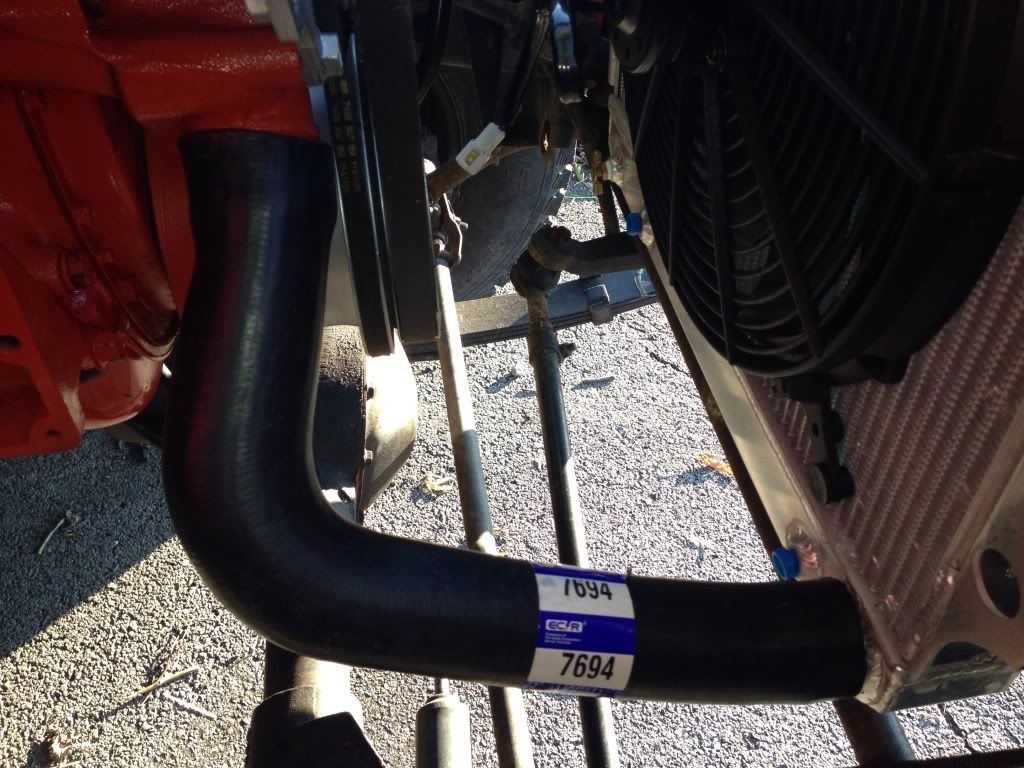

The first two pictures show the original part with part numbers showing

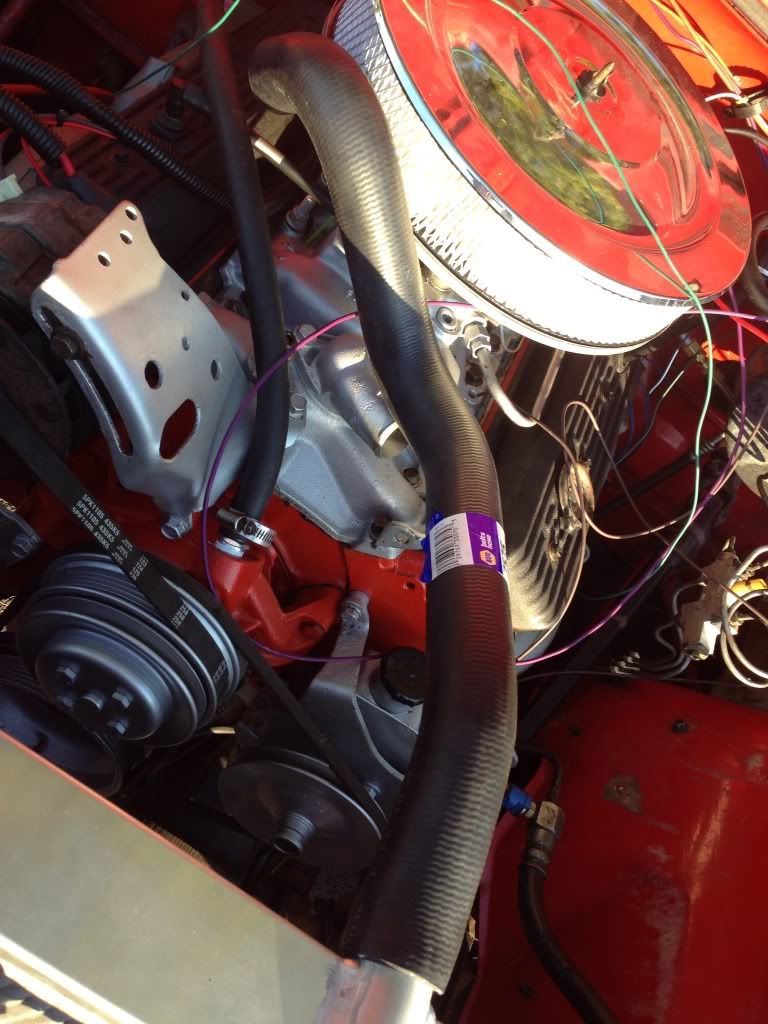

Here is how the top hose fit before trimming


After trimming


Bottom hose


Was also able to get my trans cooler mounted, just a cheapo from Advance. Wiring is coming along, would be done fairly quick if I could get more time. Been on the phone with a wrecking yard today about an 8.8, looks like they've got one with 4.10 gears :bop: Maybe some day it'll get drivable lol
