This weekend I helped my friend install his new Maximus-3 bumper hoop/winch mount and wanted to post up how simple and easy it actually was to do.

It was frigid temps - and we managed to fit his rig in the garage with the door closed - but the nice part is most of the unit itself can be pre-built inside where it's warmer :)

The kit itself is 4 pieces

(2) front brackets
(2) rear brackets
(1) hoop
(1) mounting plate (these differ between the light only and the light/winch mount - but install the same)

line up the rear bracket, plate, and hoop holes and install the (8) hex bolts (the plate goes between the rear bracket and the hoop)





When it's all said and done - it should look like this



Now its time to go outside and tear the bumper off :)

Start by removing the plastic airdam (6 plastic attachment thingys - they were different styles between my 14 and my buddies 09) and the plastic spacer on top between the bumper and grille (those plastic phillips thingys are useless - pry those suckers out!) the winch plate covers most of that gap - we didn't reinstall his - the light only plate is skinnier and leaves a bigger gap so I have in reinstalled on mine

Then remove the (8) nuts (18mm) that hold the bumper to the frame



(sometimes its easier to get to them from the top)



Once you have all (8) nuts removed - carefully disconnect the wiring harness at the fog lights - and then using a pair of pliers carefully pull the christmas trees holding the wire harness to the bumper (I believe there are 4 of them)

now you can completely remove the bumper from the Jeep - one that's on the ground - remove the (4) bolts holding the metal 'bumper' to the plastic 'bumper' (see image)



You can now see the OE tow hooks - take the last pair of brackets that came with the Maximus-3



and install them over the bolts on the tow hooks

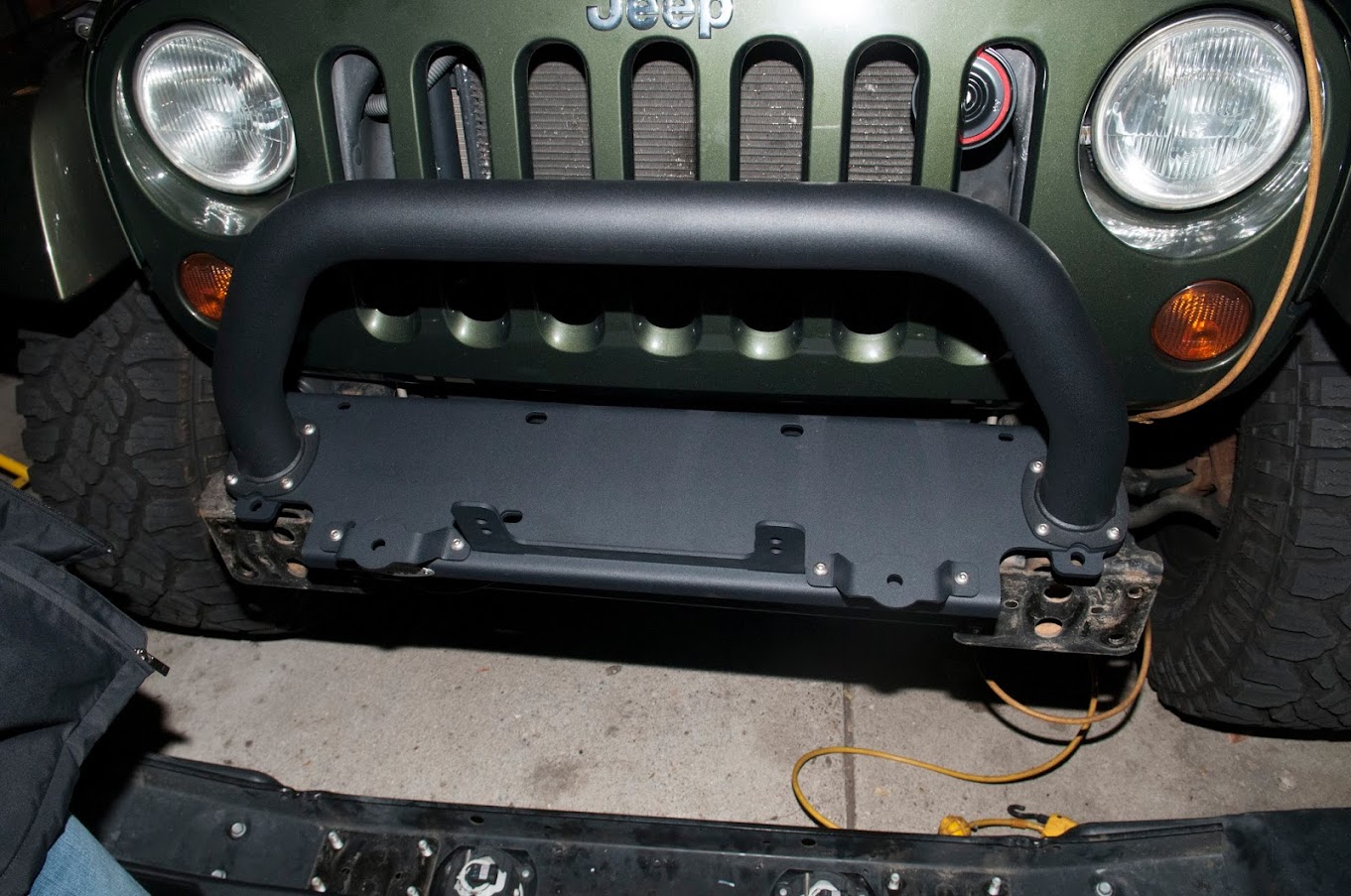

Next take your pre-assembled Maximus-3 and slide the rear brackets in to the frame and use the washer/bolt to loosely attach it to the frame (basically just to hold it while you put the bumper back on)

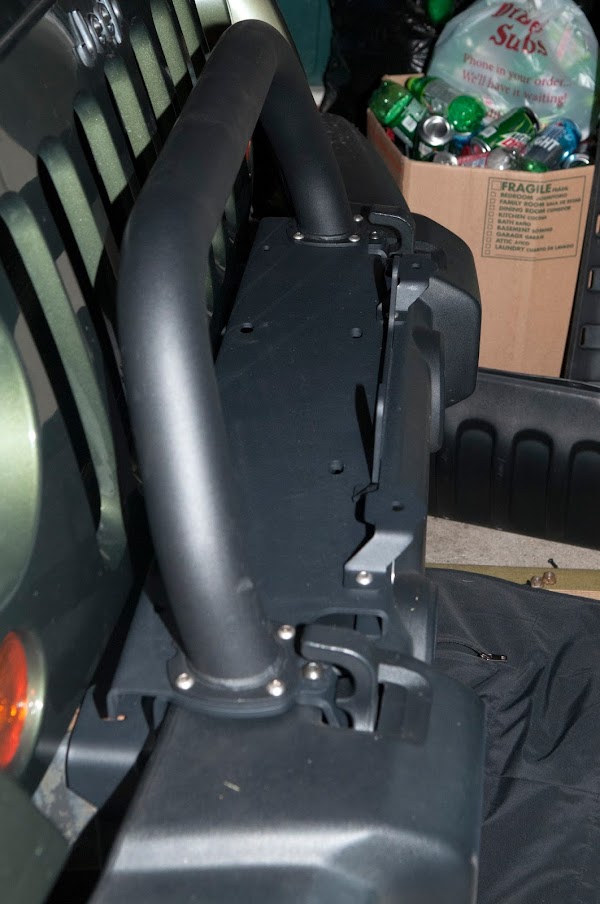

Bolt the metal inner bumper and the front plastic bumper back together and then lift and press the whole thing back on to the frame rail (you should be able to lift/rotate the Maximus-3 enough to get the bumper back on)



Hardest part of the install....getting this bolt tightened down...its a 7/32 hex bolt - had to take and cut down a hex key so that it fit under the tow hook - I'm going to suggest that perhaps Maximus look at actually adding a cut down 7/32 hex key to their kit for ease of install. (tried a hacksaw on one of my keys, ended up switching to some giant bolt cutters and then a grind wheel to
flatten out the end I cut.

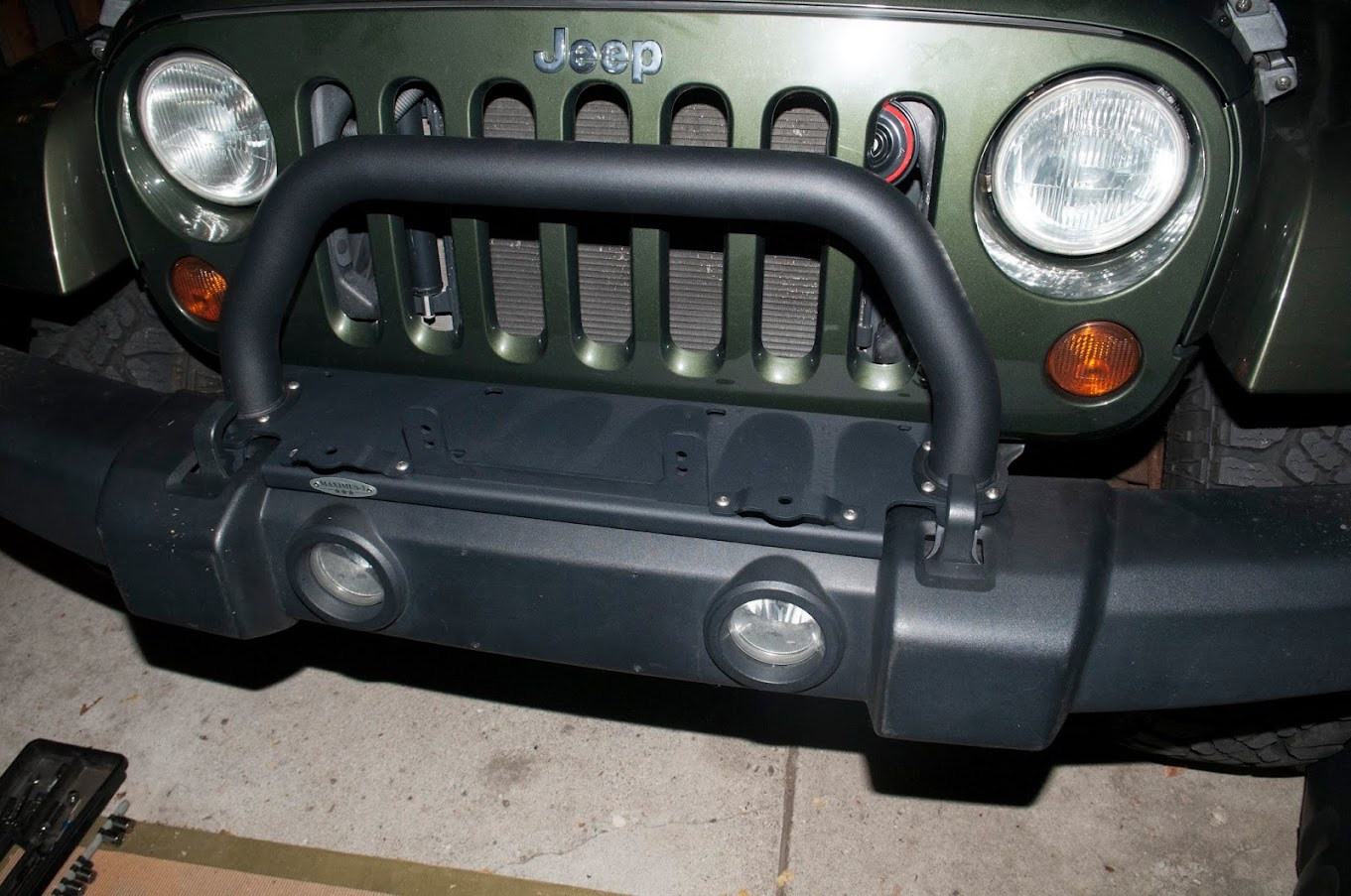

Once the bumper is back in place and bolted in - put the wire harness christmas trees back in and reconnect the fog lights. Then you can tighten down the two bolts on the side of the frame and the bolt under the tow hooks to secure the entire Maximus-3 to the Jeeps frame.



·
Registered
Joined
·
874 Posts
What is the distance between the mounting bracket edges, inside to inside the hoop? I am contemplating using this grill guard/hoop on a different make and model bumper.


·
Registered
Joined
·
14 Posts
Thanks for the write-up. Should be installing mine tonight. Only part I'm worried about is finding a low profile Allen key. I'll post pics when I'm finished.

On a side note.....shipping was super fast from Maximus, and it was packaged great. Couldn't have been more wrapped and protected.


·
Registered
Joined
·
14 Posts
Just finished. I'll take some better pics later. Install wasn't bad at all. Hardest part was getting to the bumper bolts behind the vac pump.

Land vehicle Vehicle Car Automotive tire Tire


·
Registered
Joined
·
14 Posts
Haven't wired them up yet so I can't really comment yet on the light output. As far as looks and build goes I'm very happy for the money. They fill the void under the hoop nicely.


·
Registered
Joined
·
15 Posts
I installed a Maximus-3 hoop bar also, but I just loosen the bumper bolts, pulled the bumper out as far as allowed, then installed the mounting bracket's into the frame pockets, and then installed the hoop bar, so I did not have to remove the bumper to install the hoop bar. Very easy install without removing the bumper. My Jeep is a 2013 10A and the bumpers are different.


·
Registered
Joined
·
150 Posts
I was interested in installing SKU Part #: 0100-102TB-01 , which is the same unit without the light plate on a 2014 JKU. It looked like you might be able to sneak it in without removing the bumper? Yes or no? Not that I'm lazy but there is normally a lot of alcohol involved in my modification projects (also, by the way in sex) and I've learned in both to try and keep things as simple as possible, to fearing injury to any or all parties involved.


·
Registered
Joined
·
166 Posts
Just installed mine today and ya definitely have to remove the bumper, there's no sneaking this thing in anywhere. It's a tight fit but super sturdy when done. So after some blood,sweat,tears and taking the lords name in vain many times, I got it done!

This thread help out too, thanks! :thumb:


Attachments

·
Nature Photog and Jeeper
Joined
·
2,981 Posts
Discussion Starter · #15 ·
Looking good :)

and I think the hardest part (for me at least) was the bolts that go under the tow hooks. After almost a year with mine - I've got a little bit of surface rust but its still as solid as ever and look great with my LED bar. Here's a recent shot of me and my buddy down in North Carolina - he had to take the hoop off because it got in the way of the winch solenoid and added a pair of Krawl Offroad 2x2 LED cubes.



·
Registered
Joined
·
166 Posts
Good to hear it is still holding up, I was wondering about rust. So where are the places it rusted the most? Thanks for sharing the pic and giving your opinion after a year of having it on.


·
Nature Photog and Jeeper
Joined
·
2,981 Posts
Discussion Starter · #17 ·
Good to hear it is still holding up, I was wondering about rust. So where are the places it rusted the most? Thanks for sharing the pic and giving your opinion after a year of having it on.
Passenger side


drivers side


·
Registered
Joined
·
166 Posts
Good to know! Thanks for sharing a few pics of that. I wonder if some rust inhibitor like 'Fluid Film' would help with that.

I also noticed you have an extra tab coming off the sides of the mounting plates, i don't have those on mine.


·
Registered
Joined
·
34 Posts
Looking good :) and I think the hardest part (for me at least) was the bolts that go under the tow hooks. After almost a year with mine - I've got a little bit of surface rust but its still as solid as ever and look great with my LED bar. Here's a recent shot of me and my buddy down in North Carolina - he had to take the hoop off because it got in the way of the winch solenoid and added a pair of Krawl Offroad 2x2 LED cubes.
Thanks for the write up. I just ordered mine today and will definitely be referencing this thread come install time. Regarding your buddy's winch issues - was center mounting the solenoid not an option on that particular winch? Joe at Maximus told me it will be a pretty tight for my Ramsey 8.5e - although I got the winch from a friend for $100, so it's not a complete loss if I have to find a more compatible replacement.
